TPS

Temperature: -70°C to 200°C
Can ship in 2 -3 Days

Product Page

Tenney Benchmaster BTRC Temperature & Humidity Test Chamber Serial#: 12024-2

Fully Refurbished Benchtop Temperature & Humidity Chamber. Available for Immediate Purchase. Can ship in 3-5 Days!

Tenney's Benchmaster temperature and humidity test chambers are capable of simulating a wide range of temperature or temperature and humidity conditions. The five-cubic foot work space will readily accept equipment as large as a 19" relay rack.

In keeping with the needs of today's lab, we designed these temperature and humidity test chambers to have a compact exterior that maximizes the interior work space.

Benefits

  • Simulates a wide range of temperature or combined temperature and humidity conditions to meet a variety of testing needs
  • Compact design maximizes interior laboratory workspace
  • Vertical-down airflow assures consistent conditions

Features

  • Vapor-tight interior liners of 100% continuously welded stainless steel
  • Humidity capable models constructed of 100% non-corroding parts and have a low-water protection system
  • Open-air low mass nichrome wire heating elements

Pricing Information

  • List Price New: $ 23,457.00
  • Purchase This Unit For: $ 17,250.00
  • Rent This Unit For: $ 1,600.00 / month

Specifications

  • Interior Dimensions: WXDXH (inches) 20 x 19.25 x 22
  • Exterior Dimensions: WXDXH (inches) 62 x 34 x 34.25
  • Crated Dimensions: WXDXH (inches) 77 x 42 x 51
  • Voltage: 230/240V-1 phase 60 Hz
  • Amp Draw: 29
  • Amp Fuse: 40
  • Temperature range: -70C to 200C
  • Humidity 20%-95%, RH over the temperature range of 20C to 85C, limited by a 3C dew point

Control System

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.

Features

  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart
  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment

Options

Included Option:
  • Single standard 2 inch port with plug centered in left sidewall
  • 1" vent in left sidewall
  • Watlow F4T Programmable Controller
  • Data Logging & Chart Trending

Available Options:

  • Cart with Casters
  • Shelves
  • LN2 Boost Cooling
  • Boost Heat
  • Chart Recorder
  • Maintenance Kit
  • NIST Calibration Certificate

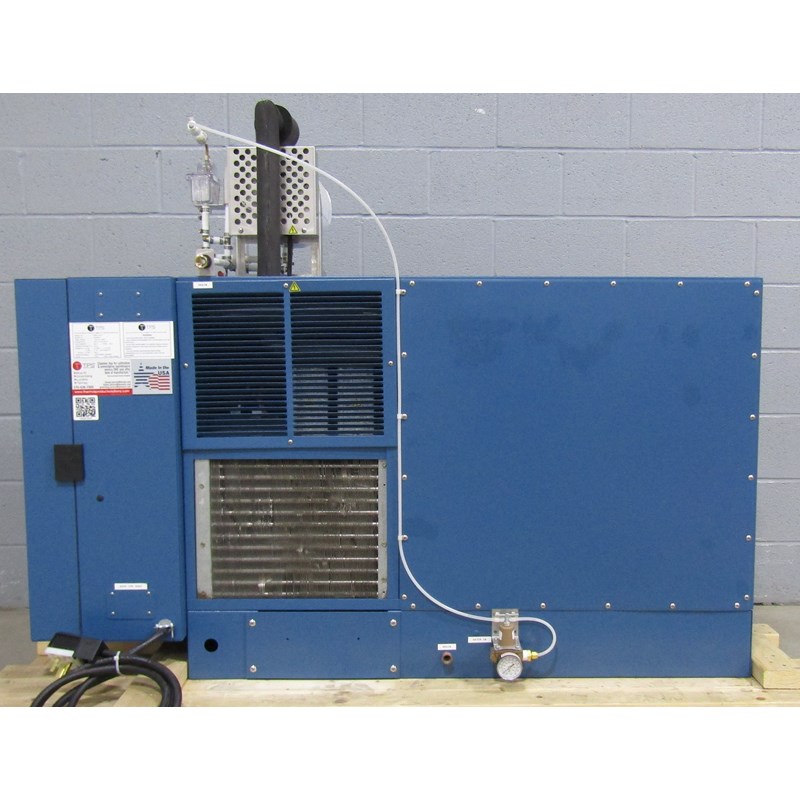

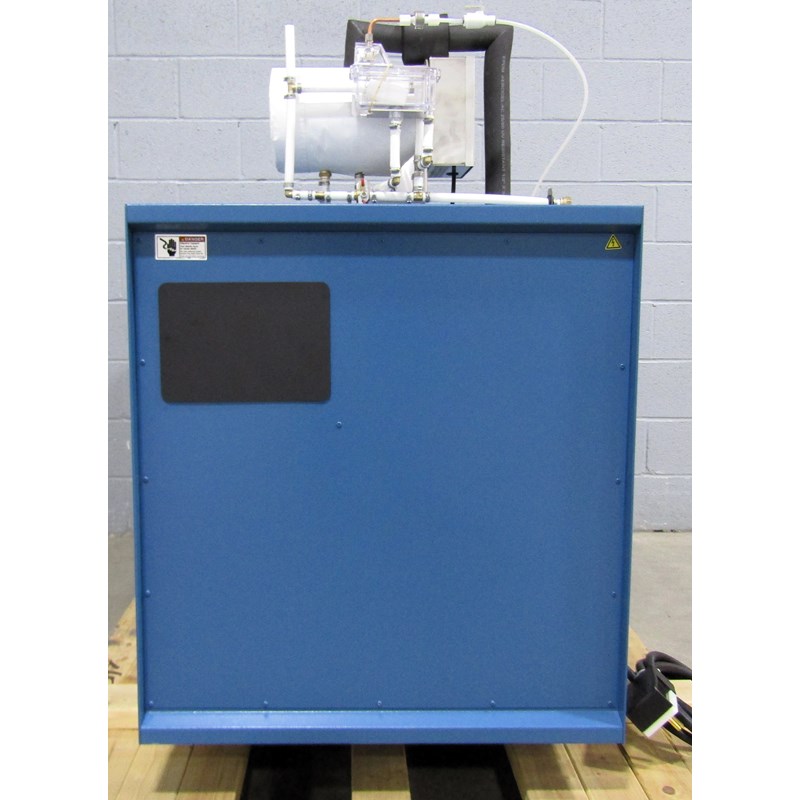

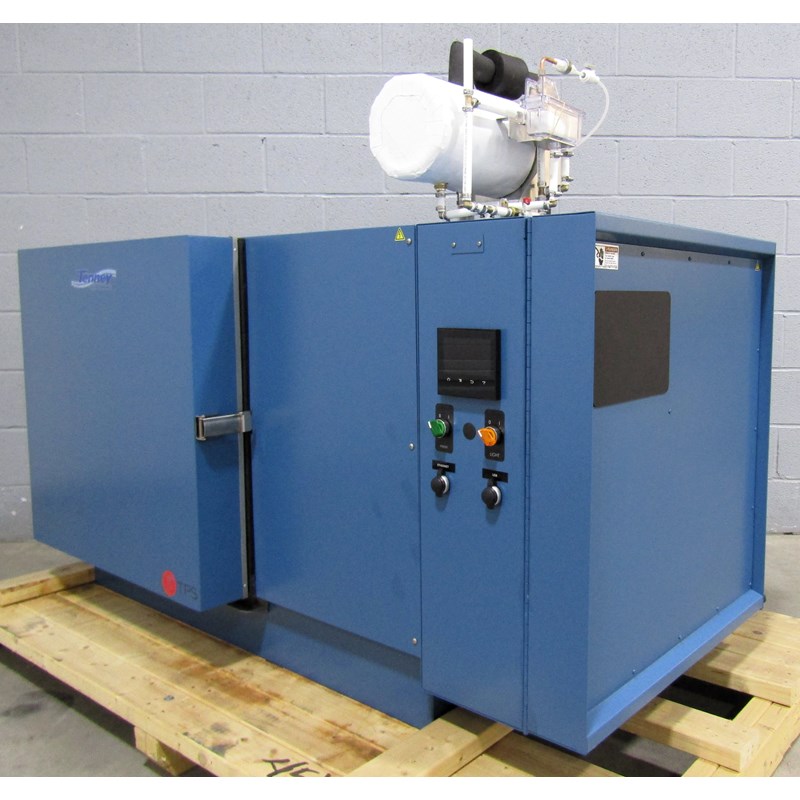

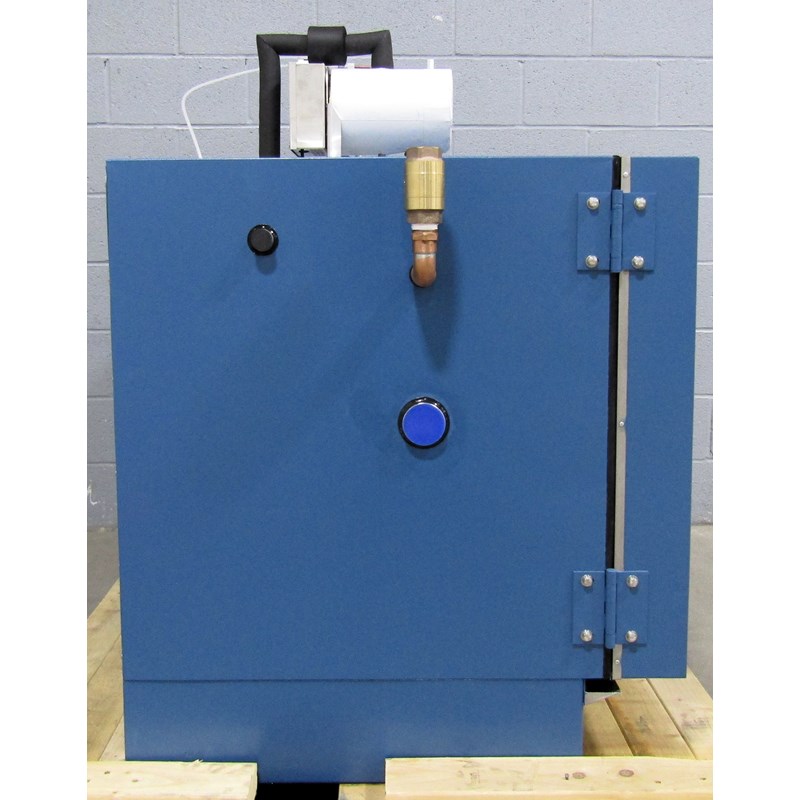

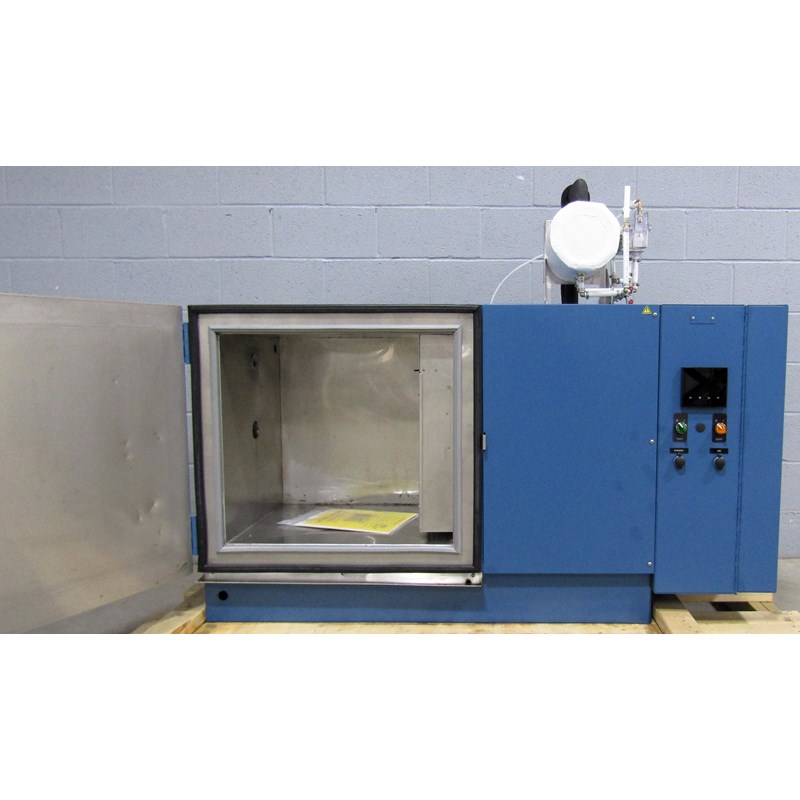

Additional Images
