Blue M DC-246-F-ST350 Batch Oven Serial#: DC-9233

Fully Refurbished Unit! In Stock and Ready to Ship

Benefits

  • High volume horizontal air re-circulation system and electric heating system allow for maximum temperature uniformity in performance
  • Differential airflow switch if loss of airflow is detected and shuts down oven's heaters
  • Excellent reliability and performance ratings

Features

  • Nichrome wire heater elements for durability
  • Centrifugal type blower wheel for efficient air flow through the system
  • Horizontal air flow
  • Infinitely variable control (from full re-circulation to full one pass)
  • PID controls
  • Direct drive blower
  • Manually adjustable intake/exhaust system for ease of balancing
  • Enclosed wiring to meet National Electric Code (NEC) for safe operation

Pricing Information

  • List Price New: $ 17,413.00
  • Purchase This Unit For: $ 14,800.00
  • Rent This Unit For: $ 2,700.00 / month

Specifications

  • 15°C above ambient to 316°C
  • Control Accuracy: +0.5°C
  • Resolution: +0.1°C
  • Temperature Range: 15°C above ambient to 316°C
  • Interior Dimensions W x D x H (inches): 36 x 28 x 48
  • Exterior Dimensions W x D x H (inches): 63 x 39 x 85
  • Electrical Power: 208/230V 3 Phase 60 Hz
  • Amp Draw: 33/38A
  • Fuse 50A
  • KW: Standard: 10.5/14.0kW
  • Weight: 2100 pounds

Control System

Yokogawa UT350  Non-profiling single setpoint type

Yokogawa UT350 Non-profiling single setpoint type

  • 1/4 DIN
  • Single channel
  • Automatic control only
  • Auto-Tuning, "SUPER" overshoot-suppress function, and new "SUPER 2" hunting-suppress function
  • 1 universal process input
  • 1 heat control output
  • Up to 2 contact inputs and 3 contact outputs for alarms/events
  • Support for light loader
  • Communications: RS-485, Modbus®

Options

Included

  • Top panel control location
  • Main Breaker
  • Over Temperature Protection
  • TPS Exclusive 1 year parts and labor warranty on Refurbished Equipment

Available

  • Stainless Steel Slotted Shelves
  • Process Timer
  • F4T Profiling Touchscreen Control with Onboard Data-logging
  • 3" Access Port
  • Lockout Hasp
  • NIST Calibration
  • 17025 Calibration
  • Maintenance / Spare Parts Kit

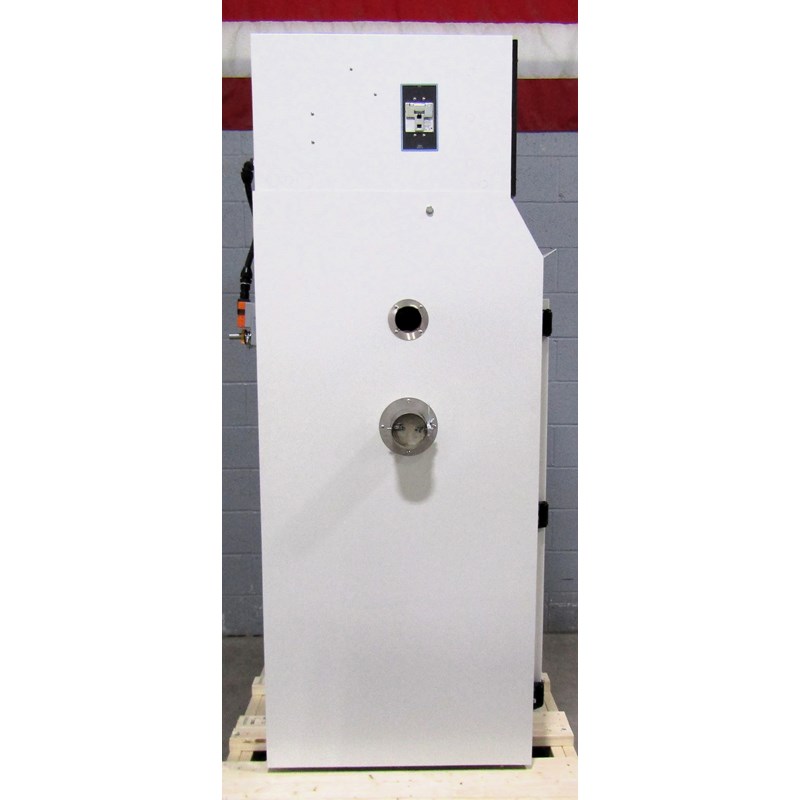

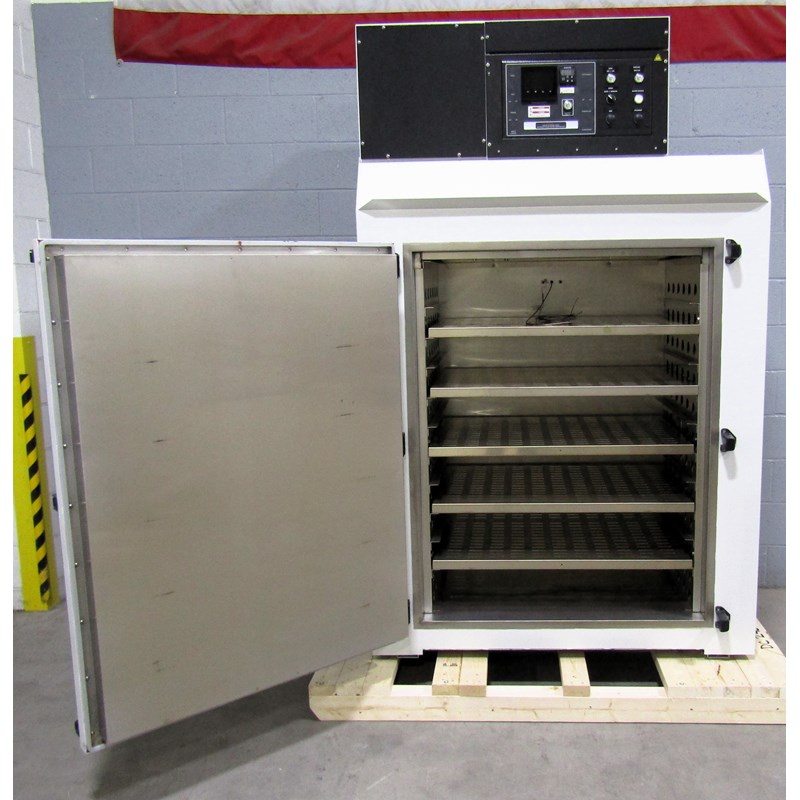

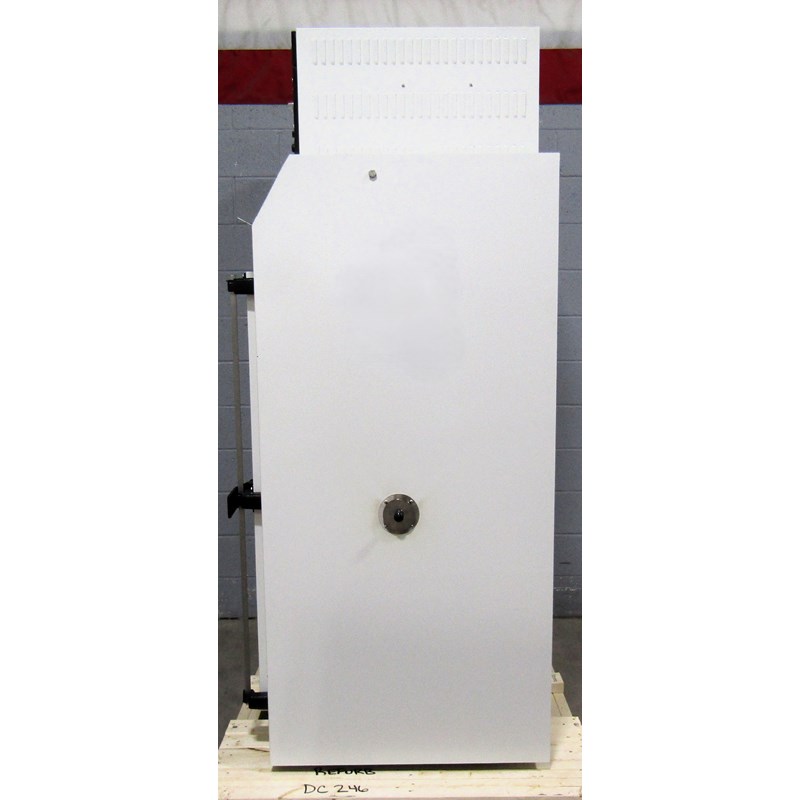

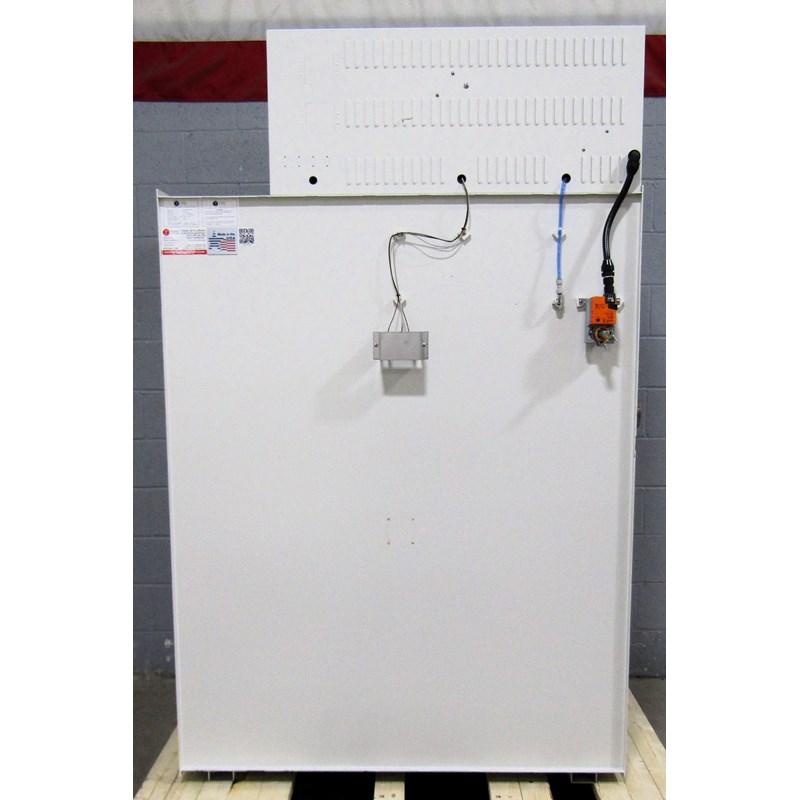

Additional Images
