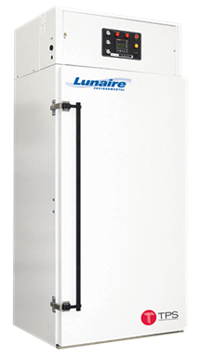

Lunaire CEO-932-4-C-F4T Temperature & Humidity Steady State Stability Test Chamber Serial#: 163082-01, 163082-02

New Unit Back in Stock. Can ship in 3-5 Days! Available for Rent or Purchase.

Benefits

  • Temperature/humidity settings are housed conveniently in one controller and allow for hands-free operation
  • Designed for quick shipping, easy installation, and consistency over controls, utility requirements, and heat output
  • Air intake and exhaust tubes with manual dampers vent undesirable process moisture and vapors, protecting the product
  • Highly efficient horizontal airflow system provides maximum temperature uniformity in testing
  • Safety-minded low limit and high limit temperature shutdown circuits sound, limiting unwanted results

Features

  • Electric Incoloy-sheathed tubular heaters
  • Single stage reciprocating type compressor with Non-CFC refrigerant
  • Vapor-Flo Humidity Generator
  • Centrifugal type blower wheel with external mounted motor for air circulation
  • Door Gasket Trough and Chamber Drain
  • Non-ramping, manual mode
  • Direct printing to a serial printer
  • Direct connection to a PLC or computer workstation
  • High definition, LCD display with four digital input lines
  • Solid Shelves included

Pricing Information

  • List Price New: $18,855.00
    •
  • Purchase This Unit For: $18,855.00
    •
  • Rent This Unit For: $1,650.00 / month
    •

Specifications

  • Interior Dimensions: 33" wide x 28" deep x 60" height
  • Exterior Dimensions: 39" width x 32" deep x 91" high
  • Temperature Range: 0 °C to + 99 °C, ± 0.3 °C after stabilization
  • Temperature/Humidity Range: 20% to 96% RH, ±2% for relative humidity
  • Humidity Range with Optional Air Dryer: 5% RH at temperatures to +20 °C
  • Power Required- 208/230VAC single Phase, 30A
  • UL508A Control Panel
  • FG# R753143-01, R753143-02

Control System

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.

Features

  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart
  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment

Options

Included Options

  • Watlow F4T Temperature/Humidity Controller
  • Cabinet Mounted Water Regulator
  • Data Logging and Chart Trending
  • 4 Shelves
  • UL508A Control Panel

Available Options

  • Air Drier
  • Additional Shelves
  • Ports
  • Maintenance Kit
  • Calibration

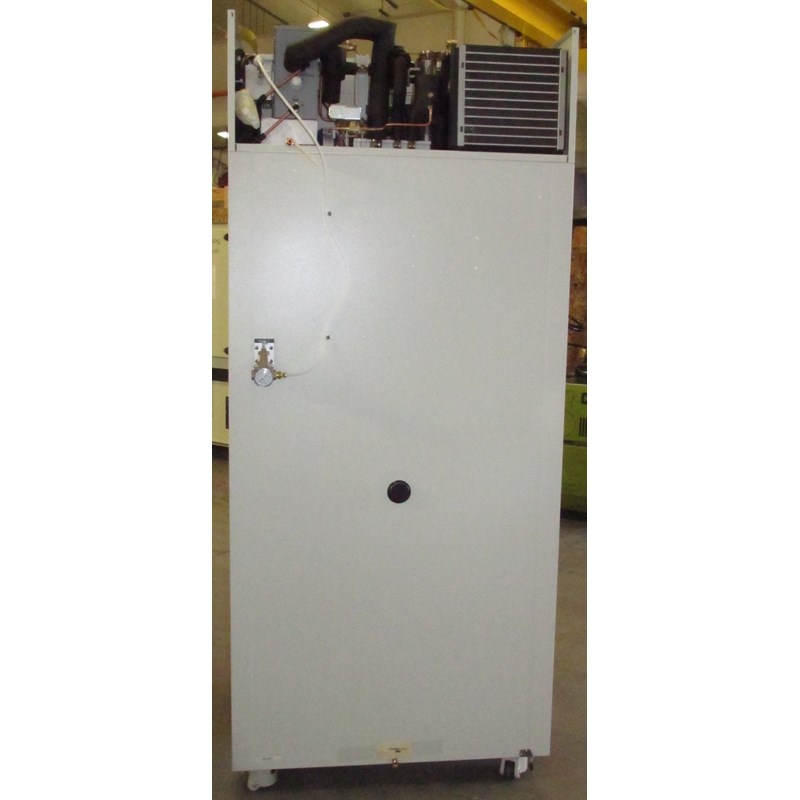

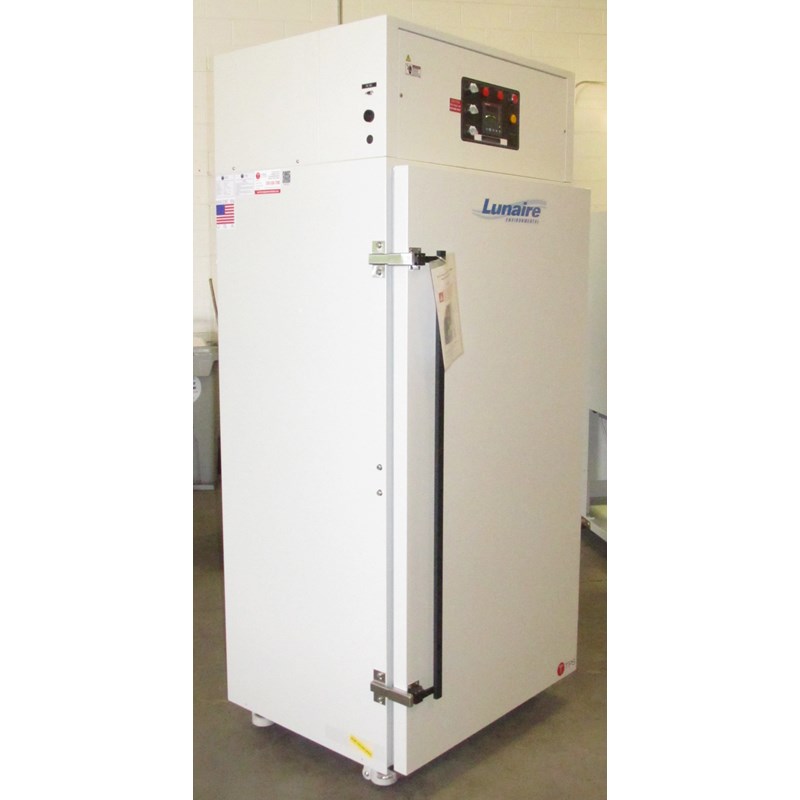

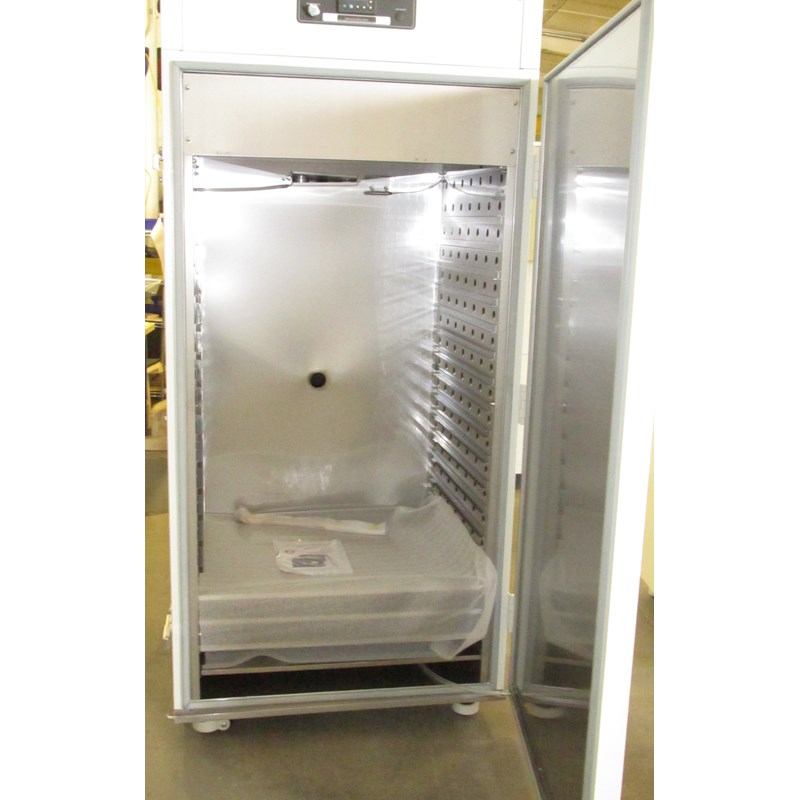

Additional Images
