TPS

Temperature: 15ºC Above Ambient to 350ºC
Available for Immediate Shipment

Product Page

Blue M DC-256-F-PMP Mechanical Convection Oven Serial#: 119860

Fully Refurbished 5.8 Cubic Foot Blue M Oven.  Ready for Shipment!  Ships in 2-3 days

Benefits

  • Horizontal air flow assures uniform thermal performance
  • Assures safety of product and operator with protection from exceeding heat limits
  • Ideal for annealing, heat treating, stress relieving, burn-out

Features

  • Electric open-air heavy gauge nichrome wire heater elements
  • Adjustable air intake and exhaust dampers
  • 4 inches of mineral wool insulation
  • Interior reinforced 304 stainless steel

Pricing Information

  • List Price New: $ 12,782.00
  • Purchase This Unit For: $ 10,500.00
  • Rent This Unit For: $1,900.00/Month

Specifications

  • 15°C (27°F) above ambient to 350°C (662°F)
  • Interior Dimensions: WXDXH (inches) 25 x 20 x 20
  • Exterior Dimensions: WXDXH (inches) 45 x 36 x 49
  • Door Hinge: Right
  • Voltage: 230/240V, Three Phase  60 Hz
  • Amperage: 31 Amps
  • Fuse: 40 Amps
  • Heater 12.0 kW
  • FG# R251107

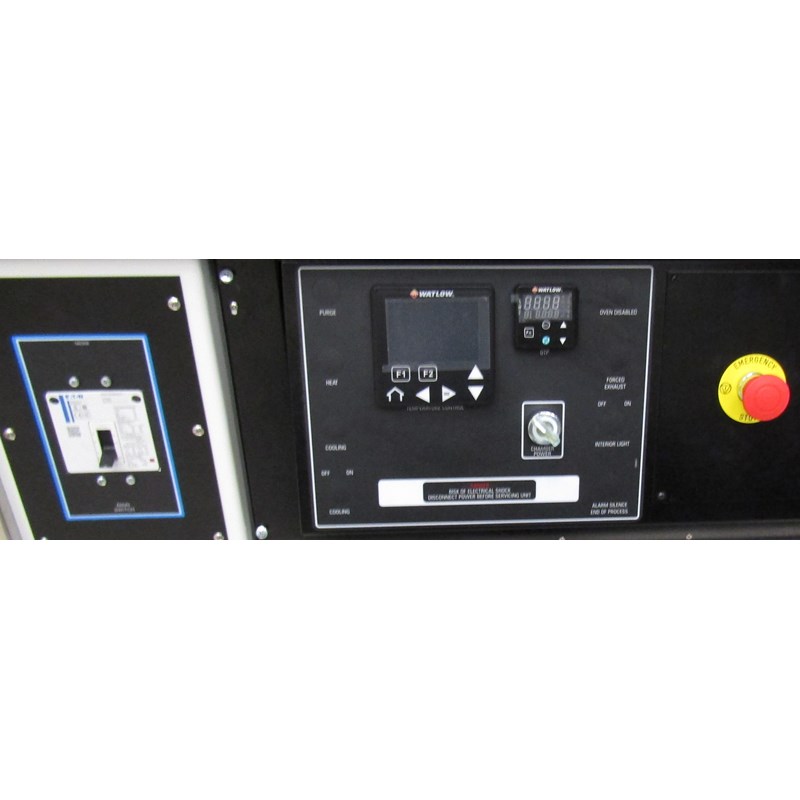

Control System

Watlow PM Plus

Options

Included Options:
  • Over-temperature Protection
  • Floor Stand
  • 3" Port in Rear of Unit
  • Emergency Power Pushbutton
  • TPS Limited Warranty - 90 Days Parts, 30 Days Labor
Available Options:
  • Stainless Steel Shelves
  • 24-hour/7 day digital timer
  • NIST Calibration Certificate
  • Maintenance Kit

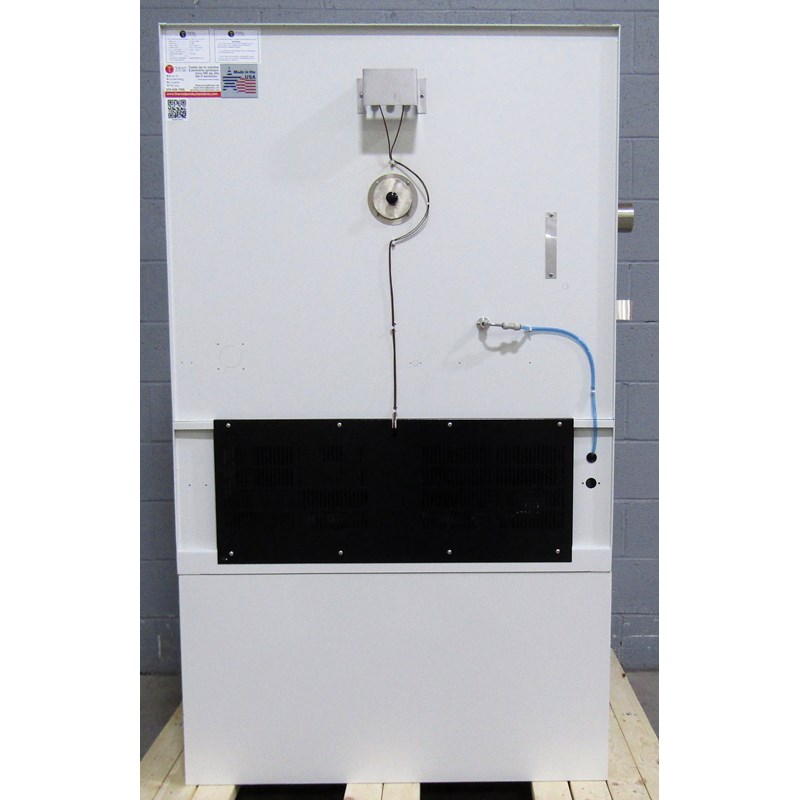

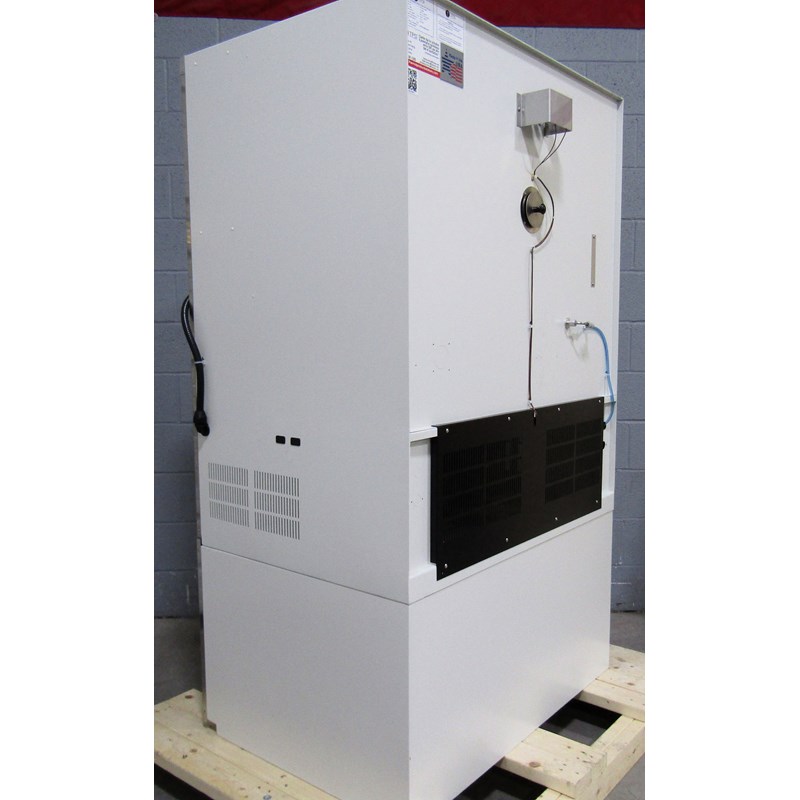

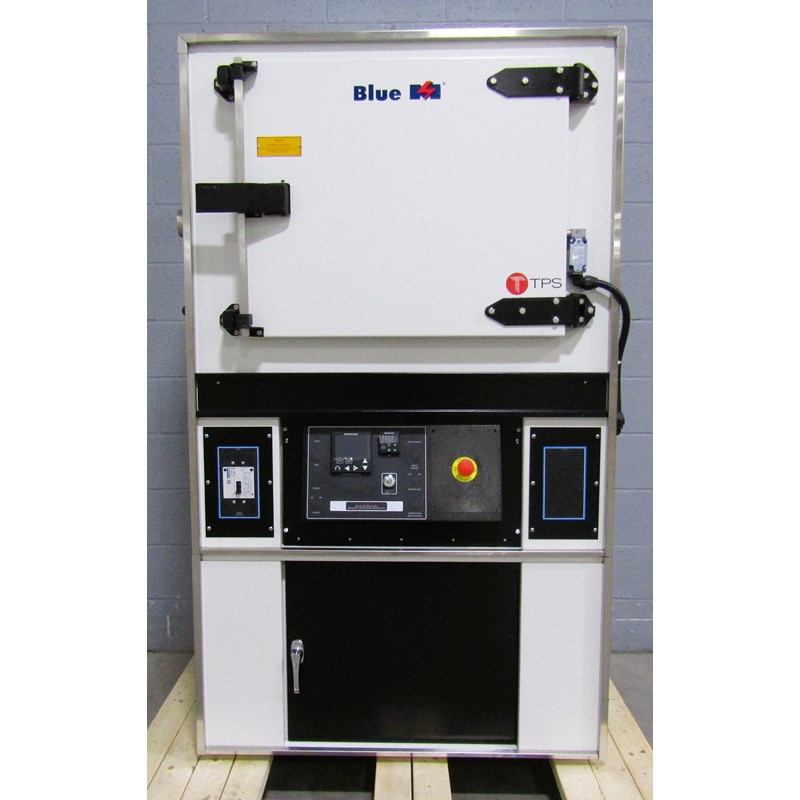

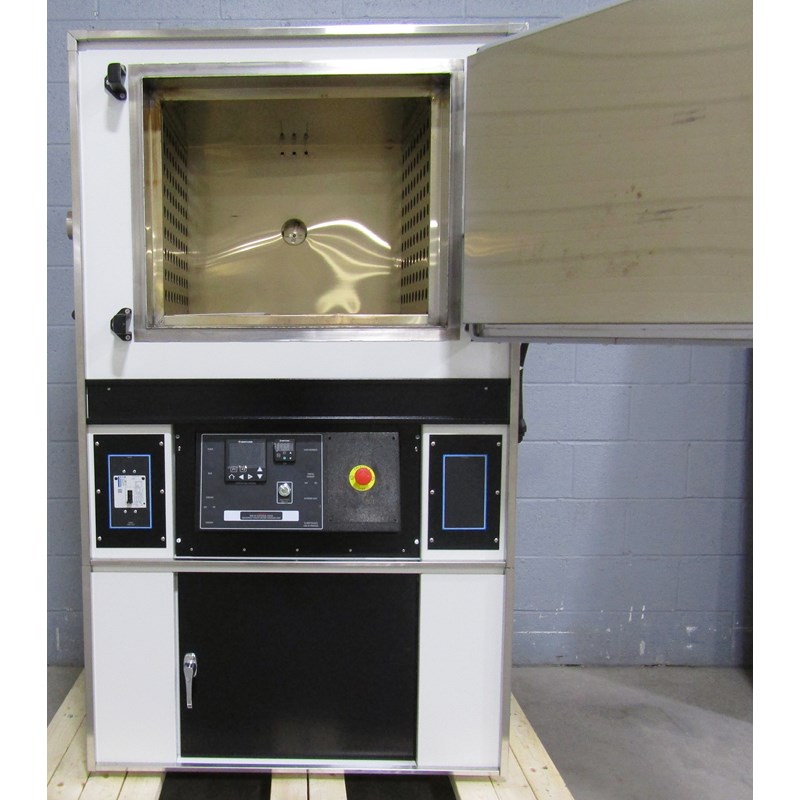

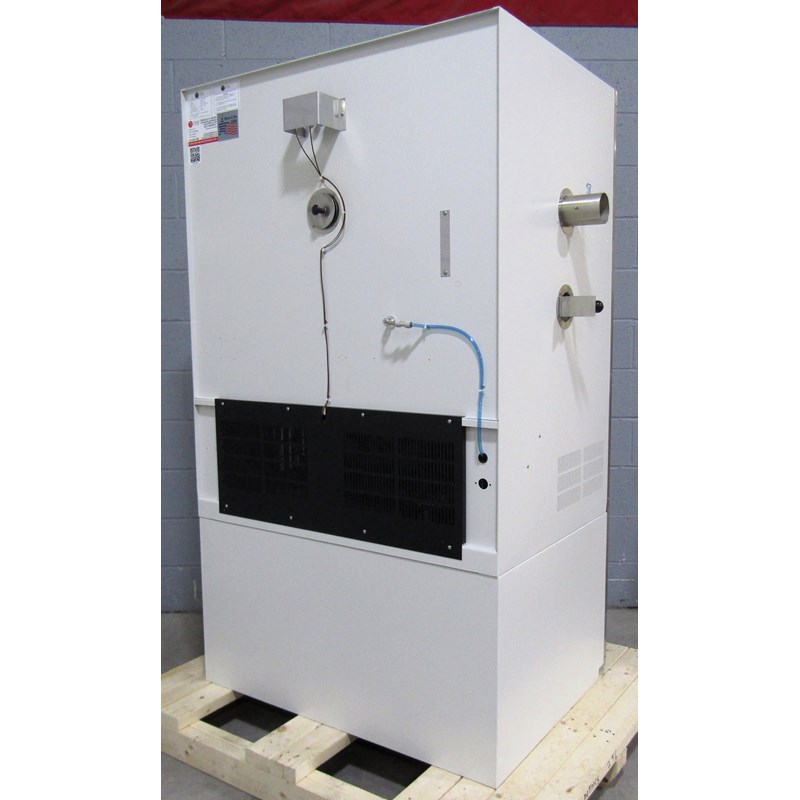

Additional Images
