TPS

Temperature: -73°C to +200°C
Ready to Ship in 3-5 Days

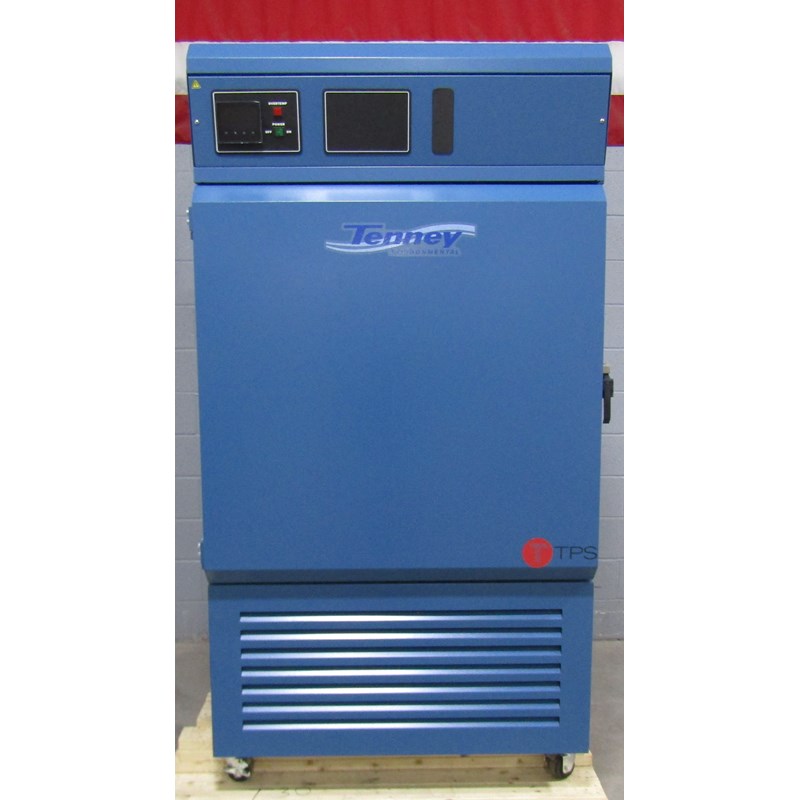

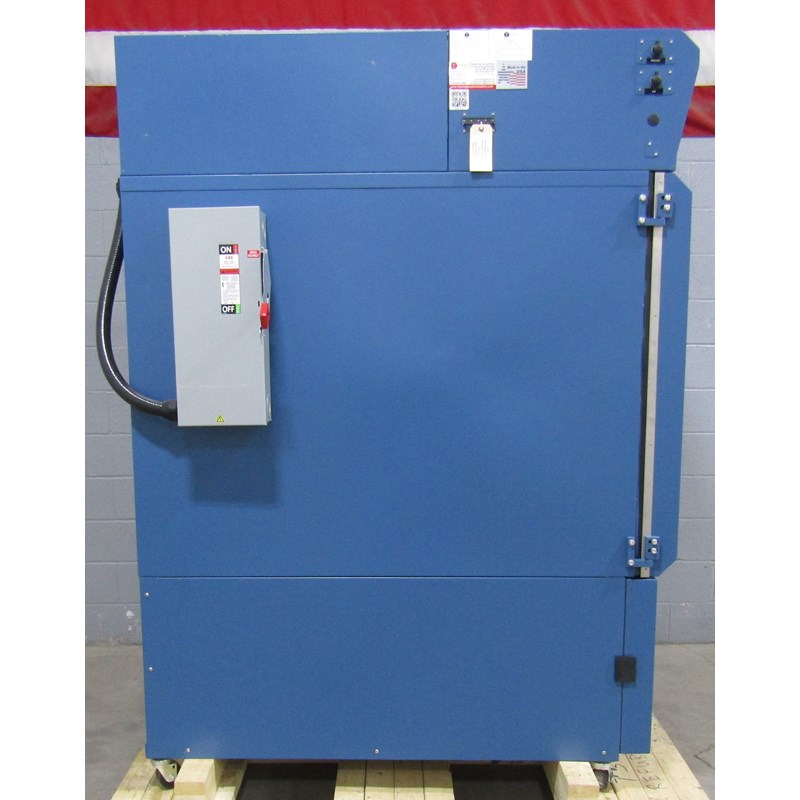

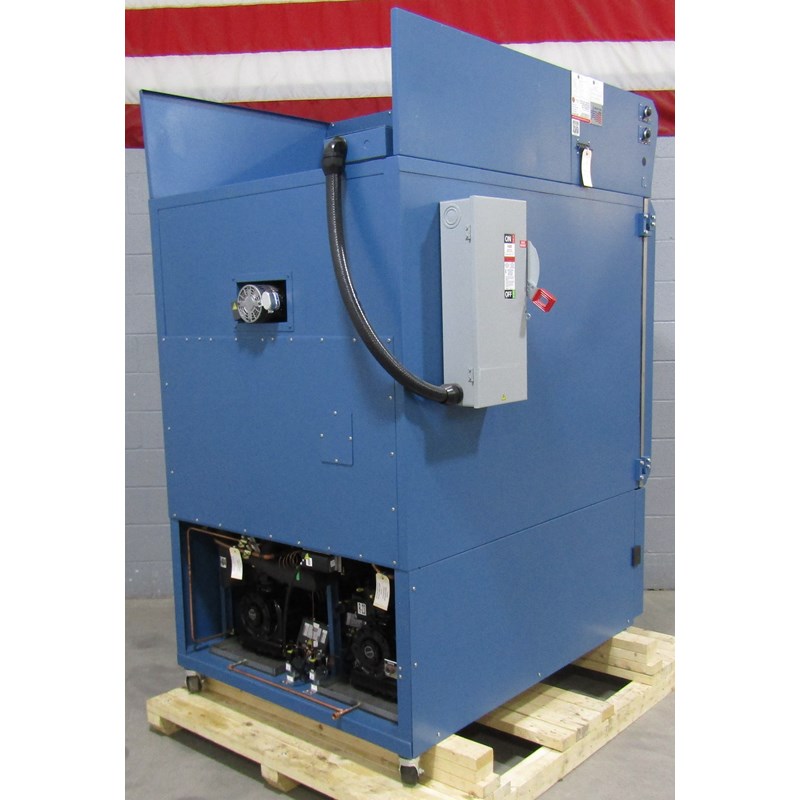

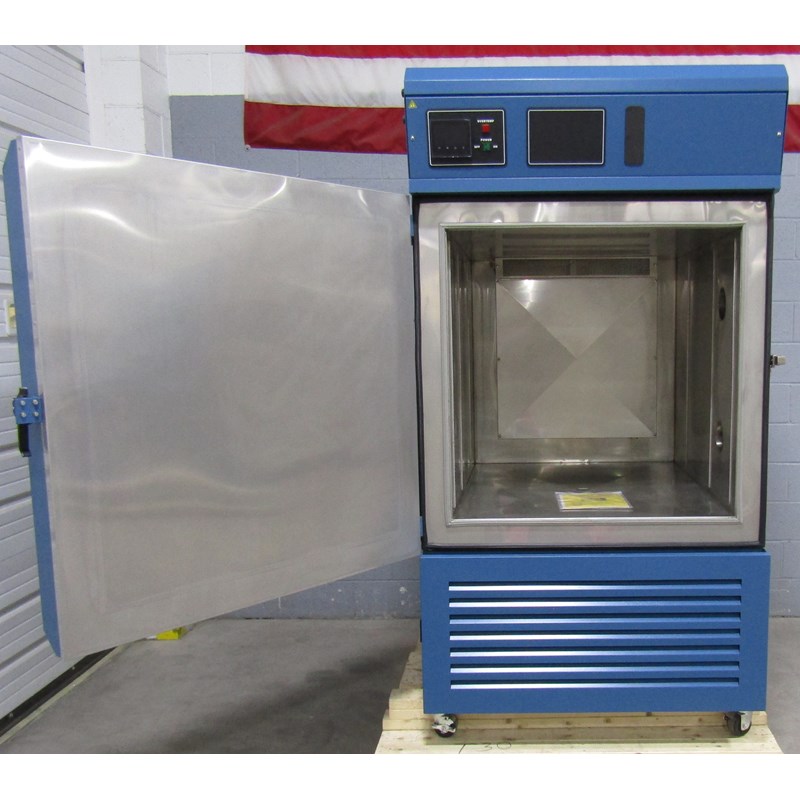

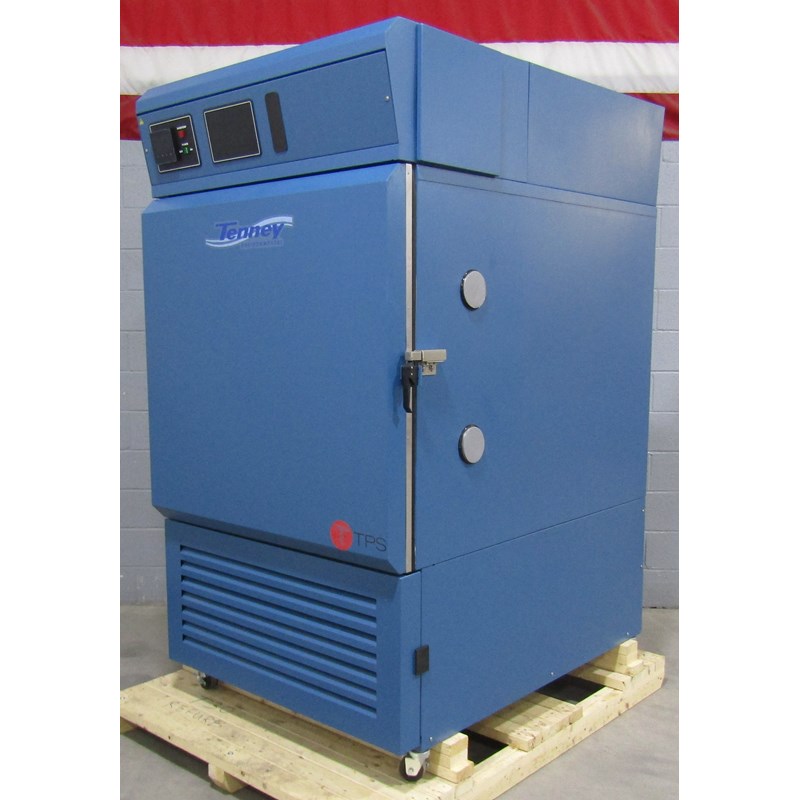

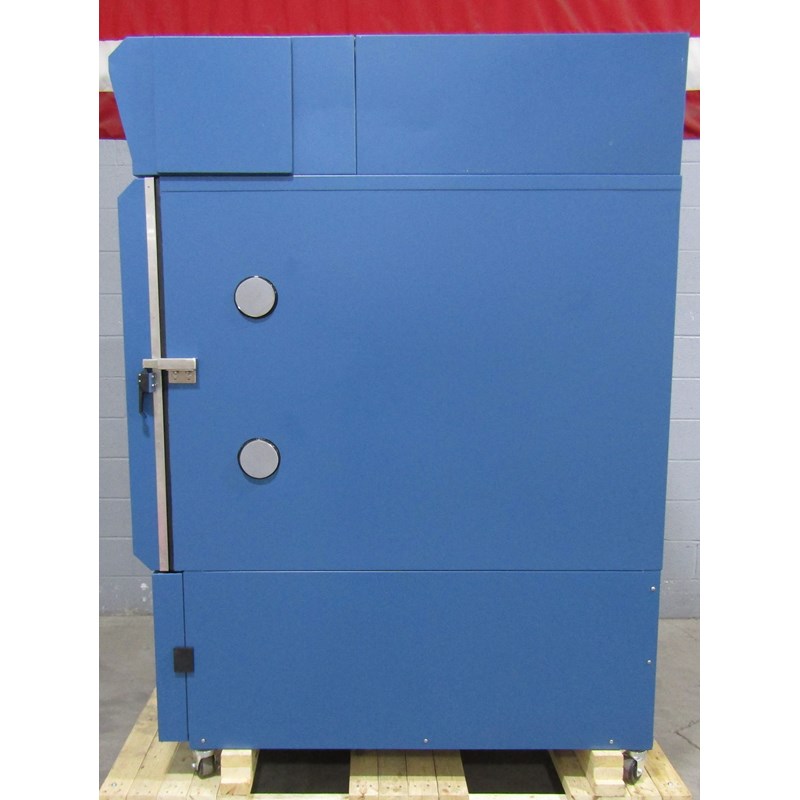

Tenney T-Series T30C3.0-F4T-F Environmental Test Chamber (Temperature Only) Serial#: 29132-02

Refurbished Unit Ready to Ship!  Available for Immediate Purchase.

Our line of Tenney Series chambers employ leading edge technology to supply our customers with the most efficient and environmentally-friendly test equipment possible. State-of-the-art controllers allow precise, effective monitoring and programming of your unit.   An exact blend of insulation ensure efficient chamber operation and maximize floor space by minimizing equipment footprints.  Time-proven mechanical refrigeration, in single or cascade systems, allows years of worry-free use.  Environmentally safe CFC-free refrigerants provide the safety you demand.

Benefits

  • Structural reinforcement is used at all critical points
  • Through wall ports are continuously welded
  • Fully welded liner

Features

  • Design features for optimal performance such as high volume horizontal down air circulation
  • Electric heating system and mechanical refrigeration system
  • Profiling Touchscreen Control System
  • Casters (2 locking)
  • Ethernet Communications

Pricing Information

  • List Price New: $ 45,000.00
  • Purchase This Unit For: $ 32,500.00
  • Rent This Unit For: N/A

Specifications

  • Temperature Range: -73C to 200C
  • Interior Dimensions: WxDxH (inches) 36 x 40 x 36
  • Exterior Dimensions: WxDxH (inches) 46 X 64 X 84
  • Voltage: 230/240V 3 phase, 60Hz
  • Amp: 56
  • Fuse: 70 A
  • Air Cooled
  • Refrigeration: Tenney Classic Cascade (2) 3.0 HP
  • FG# R240624

Control System

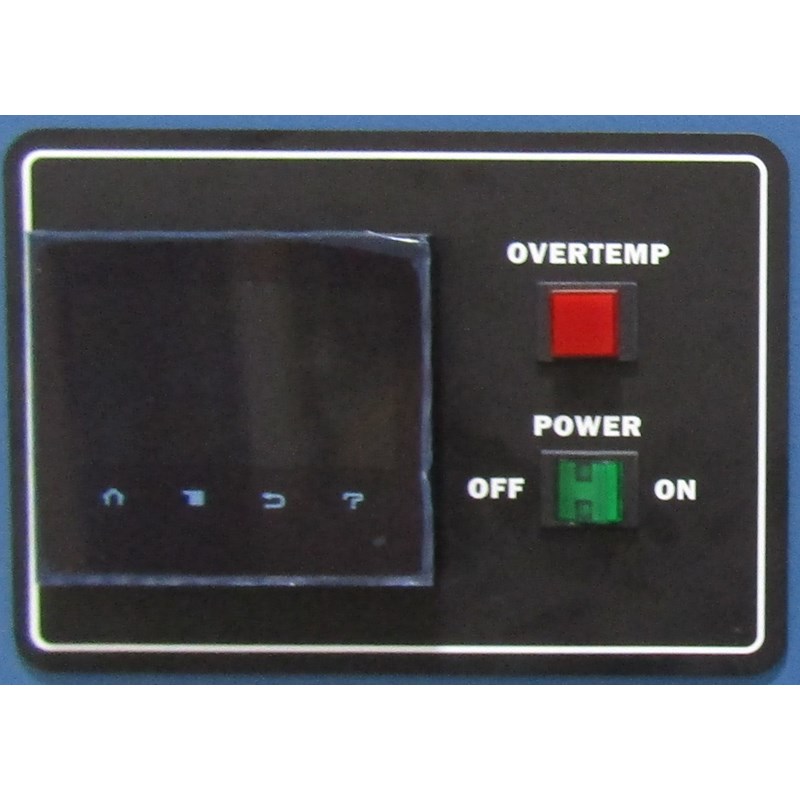

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.

Features

  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart
  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment

Options

Included Options:
  • (2) 3" ports in Right Side Wall
  • (2) 3 HP Compressors: Great for a faster change rate!
  • Watlow F4T Programmable Controller
  • Data logging and Trending
  • TPS Refurbished Warranty: 30 Days Labor & 90 Days Parts
Available Options:
  • Stainless Steel Shelves
  • Certificate of Calibration; NIST
  • Over-Temperature Protection
  • Dry Air Purge
  • LN2 Boost Cooling
  • Boost Heat
