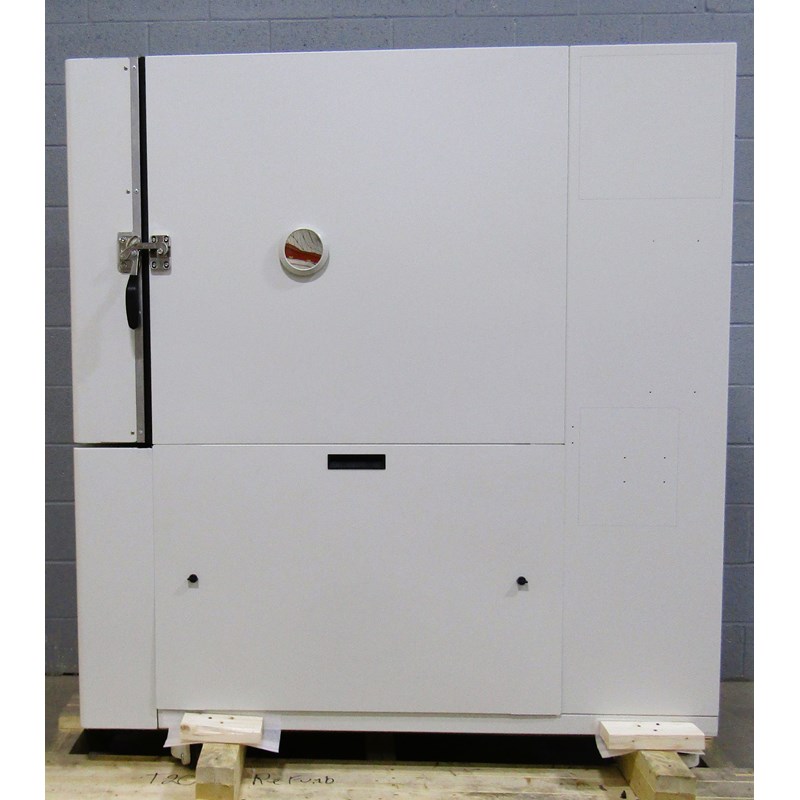

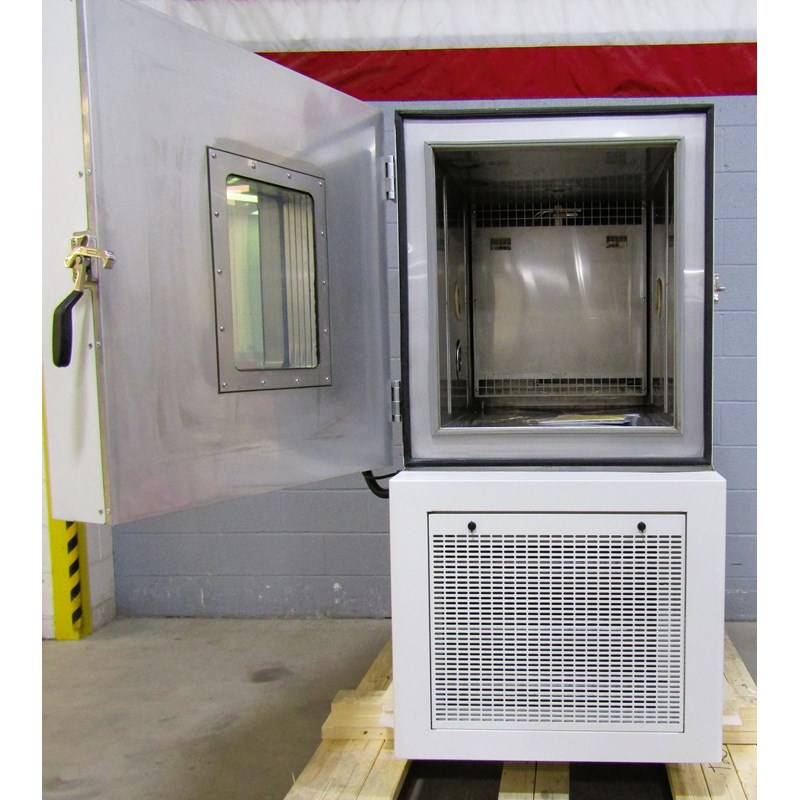

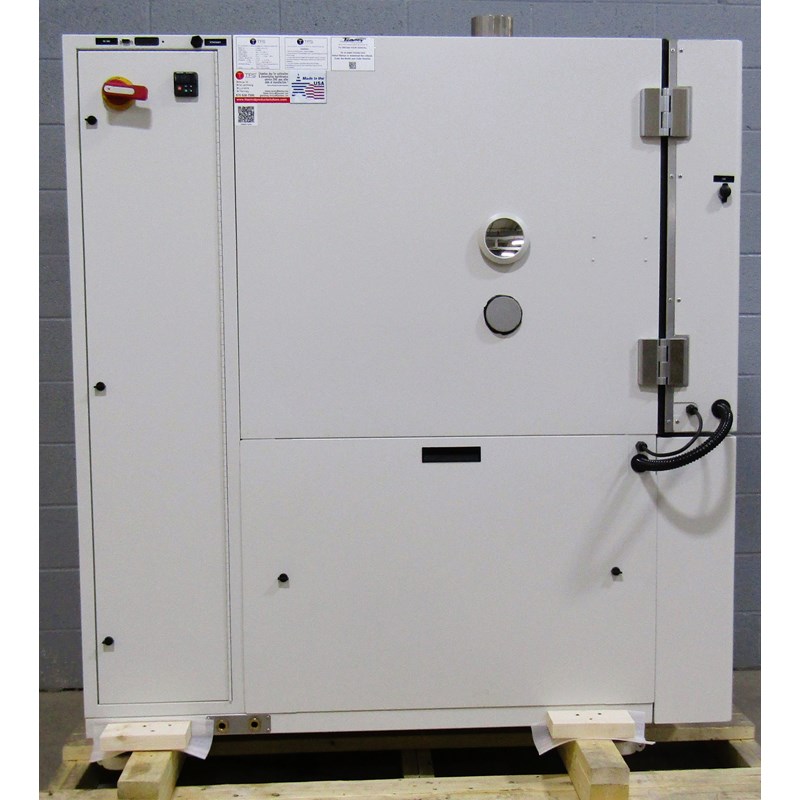

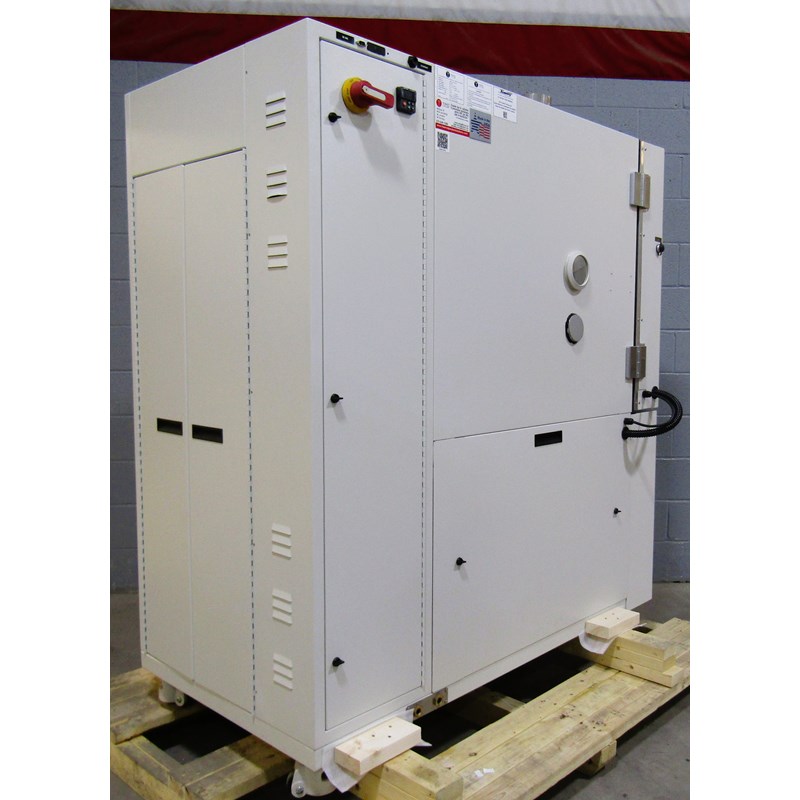

C10RC2.0-A-S1.2-C Tenney "C-EVO" Environmental Test Chamber Serial#: 169621

Smart 1.2 Controller 7 Inch Screen

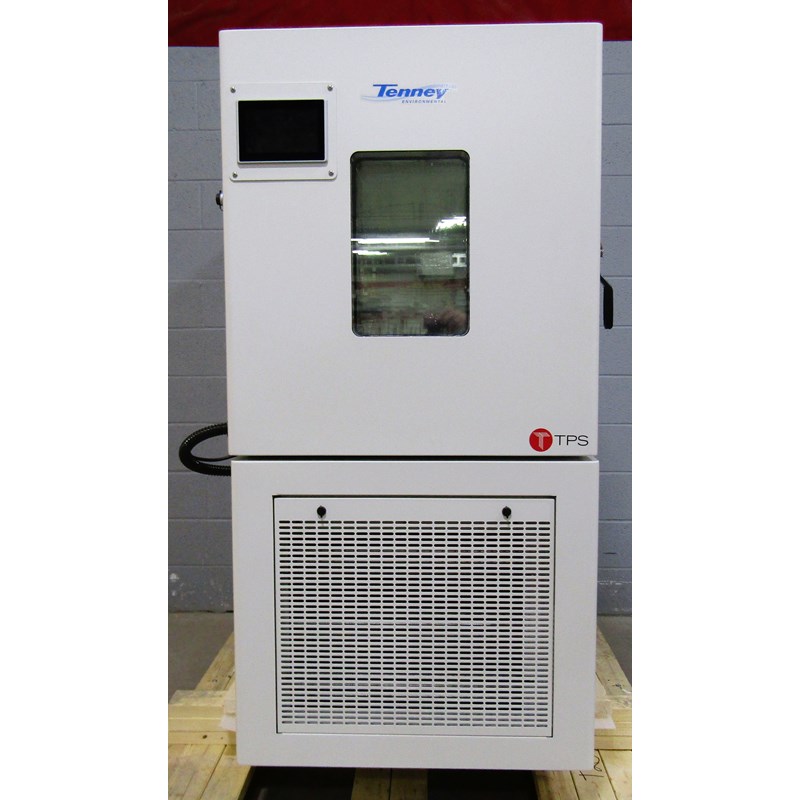

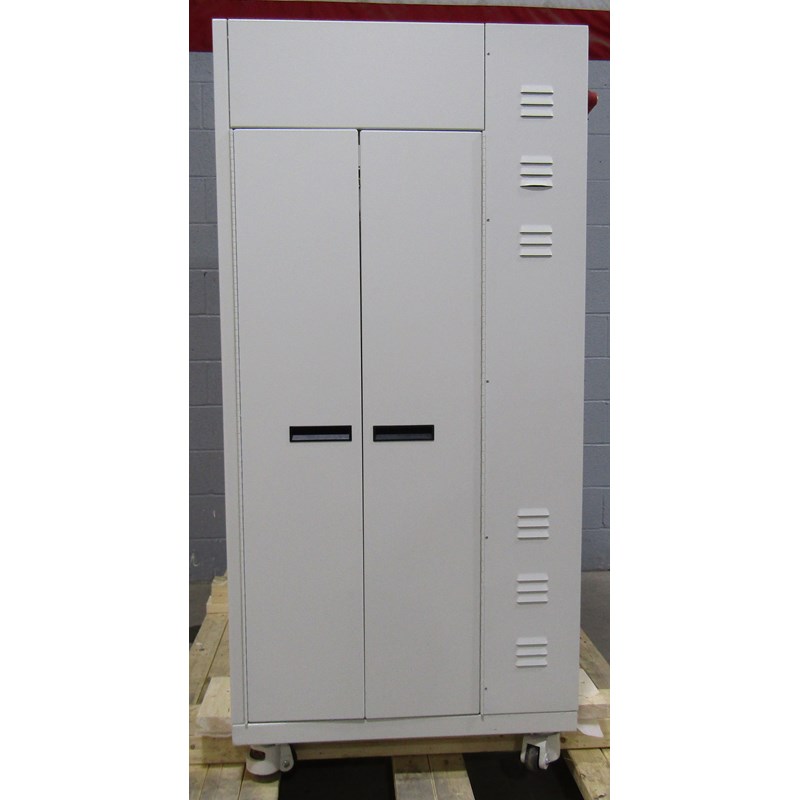

The conditioning system is supplied with the Smart 1.2 touch screen control system which provides total programming capabilities. The HMI controller will be embedded within the workspace door. The control panel at the rear of the chamber will be a UL508A Certified control panel.

The main features of the Windows CE 7.0 Pro based PLC Smart 1.2 are the WSVGA 1024 X 600 high resolution graphical 7-inch touch screen, Smart 1.2 graphical user interface, 800 MHz Cortex A9 central processing unit, 4 GB (SD Card) flash storage, capable of storing up to 100 profiles with 100 steps each. Test Data retrieval and profile data transfer/sharing is accomplished through a local USB flash drive. Individual PID control loops allow for precise process control. A 100-ohm platinum RTD is used for temperature measurement and a dry capacitance type sensor is used for humidity measurement.

Features as follows:

• Real-time and historical color graph displays for temperature and humidity as well as set point values
• System can run in Single set point or Programmed modes
• Alarm, Program, and Datalog files can be easily transferred to and from controller via USB.
• Built-in TCP/IP networking via Ethernet 10/100 communication port
• Ethernet and RS485 communications are standard. RS232, & IEEE GPIB are all available as options.
• Built-in peripheral support expansion using the USB, providing an effective and flexible interface, for use with USB Keyboards, mouse and barcode scanners
• Analog signal re-transmit out to peripheral devices such as optional chart recorders
• Remote access via Smartphone, IPad, etc. with internet connection and VNC phone application
• 16 million display colors with a contrast ratio of 850:1
• 512MB DRAM and 1GB of Flash Memory
