Tenney C30RS2.0-A-F4T-C "C-EVO" Temperature & Humidity Test Chamber Serial#: 98704

Benefits

  • Design features for optimal performance such as high volume horizontal down air circulation
  • Electric heating system and mechanical refrigeration system
  • Vapor injection type humidification system
  • Wide range of options available

Features

  • Four leveling casters
  • Two 3-inch access ports each centered in sidewall of the chamber
  • Window in Door w/Interior Light
  • Programmable Controller
  • Computer Interface: Ethernet Communications

Pricing Information

  • List Price New: $ 34,650.00
    •
  • Purchase This Unit For: $ 27,250.00
    •
  • Rent This Unit For: $ 2,400.00
    •

Specifications

  • Temperature Range: -35°C to 180°C
  • Humidity Range: 10% to 95% RH over the temperature range of 20° C to 85° C, limited by a 3° dew point.
  • Interior Dimensions: WXDXH (inches) 36x40x36
  • Exterior Dimensions: WXDXH (inches) 56x73x78
  • Crating Dimensions: WXDXH (inches) 60x78x82
  • Weight: 1,250 pounds
  • Electrical Power: 230/240V 1 Phase 60Hz
  • AMP Draw: 40
  • AMP Fuse: 50
  • Refrigerant: R-404A

Control System

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.

Features

  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart
  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment

Options

Included Options

  • Watlow F4T Programmable Controller
  • Data & Chart Logging
  • Temp-Gard (Over-Temperature Protection)
  • Window in Door
  • Interior Light

Available Options

  • Shelves
  • Maintenance Kit
  • NIST Calibration Certificate
  • Dry Air Purge System
  • 5 Gallon water Reservoir
  • GN2 Purge System
  • LN2 Purge System
  • CO2 Boost Cooling

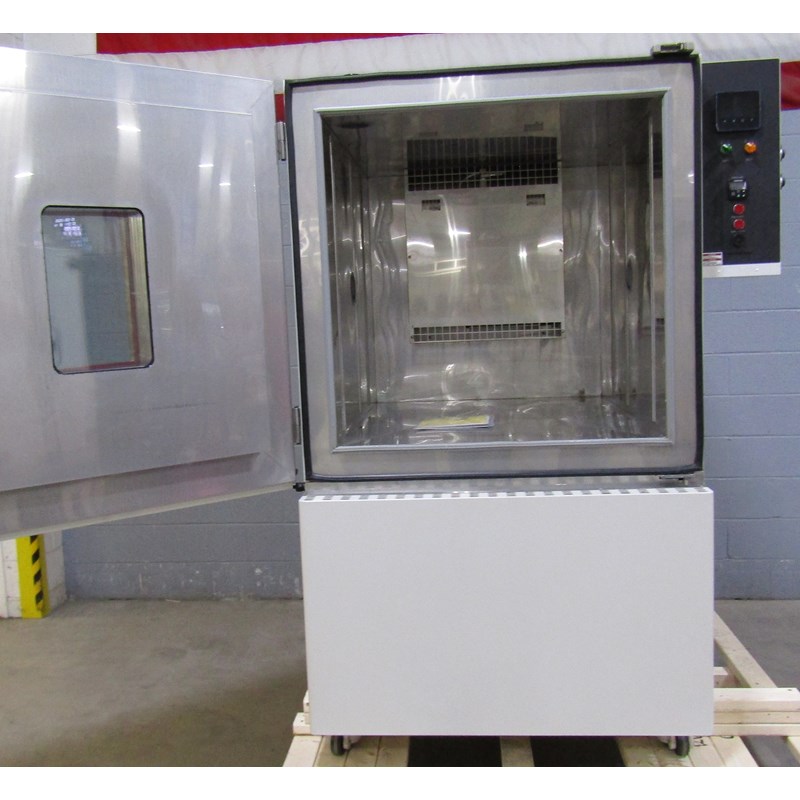

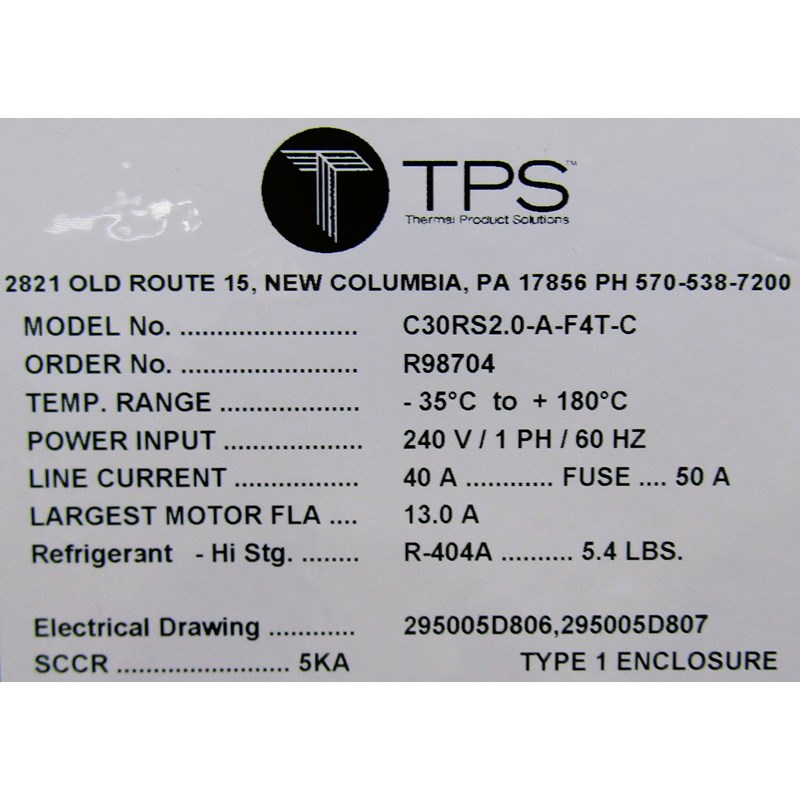

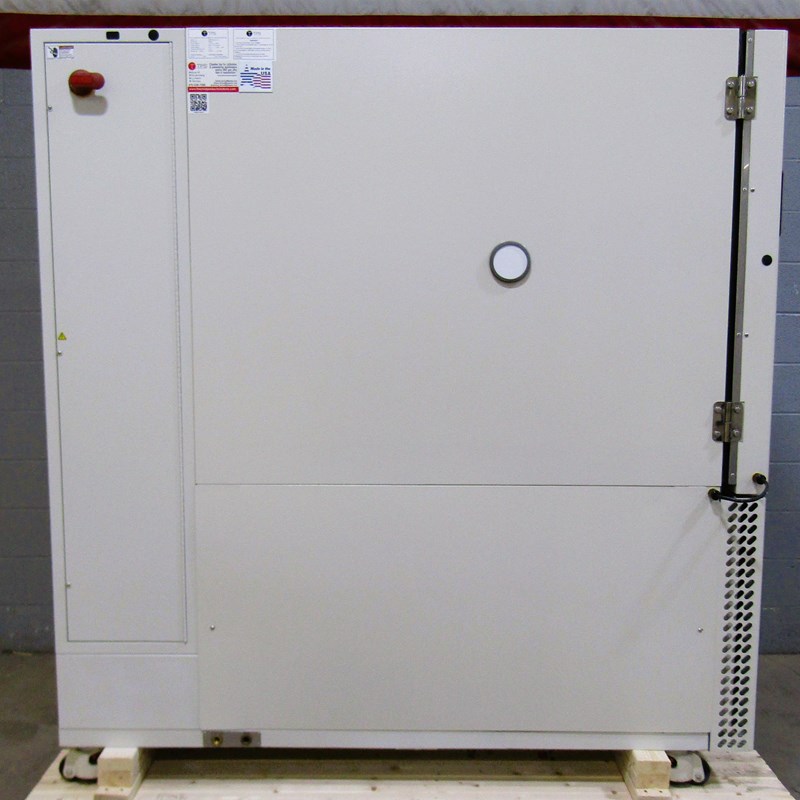

Additional Images
