Tenney TC20RC2.0-A-WF4T-C Temperature and Humidity Chamber Serial#: 175050

BRAND NEW R&D TC20RC Available for Immediate Sale or Monthly Rental.  Can Ship in 3-5 Days!  Ask About our Rent to Own Option!

The TC Series of environmental cycling reach-in test chambers include both temperature-only chambers and temperature / humidity chambers. The Tenney TC Series Cycling Test Chambers offer design features for optimal performance such as a high volume horizontal-down air circulation system with an electric heating system and a mechanical refrigeration system. If the humidity option is selected, a vapor injection type humidification system is used to condition the product. A wide range of options can be added to enhance the equipment. Since 1932, Tenney engineering continues to incorporate the latest technologies in heating, cooling, and humidification to meet the most stringent demands in the industry.

Benefits

  • Design features for optimal performance such as high volume horizontal down air circulation
  • Electric heating system and mechanical refrigeration system
  • Vapor injection type humidification system
  • Wide range of options available

Features

  • Four leveling casters
  • Two 3-inch access ports each centered in sidewall of the chamber
  • Window in Door and Interior Light
  • Computer Interface: Ethernet Communication

Pricing Information

  • List Price New: $ 34,663.00
    •
  • Purchase This Unit For: $ 32,933.00
    •
  • Rent This Unit For: $2,200.00 / month
    •

Specifications

  • Condenser Type: Air
  • Computer Interface: Ethernet Communications Standard with Controller
  • Control Panel: UL508A
  • Door Style: Window in Door w/ Chamber Light
  • Water Supply: Water Regulator Assembly
  • Warranty: Standard 1 Year labor & 1 Year parts
  • Temperature Range: -68C to 180C
  • Temperature Fluctuation: +/- 1.0 Deg C measured at control sensor
  • Humidity Fluctuation: +/- 5% RH after stabilization
  • Humidity Range: 20% to 95%, RH over the temperature range of 20°C to 85°C, limited by a 5°C dew point
  • Interior Dimensions: WXDXH (inches) 30x32x36
  • Exterior Dimensions: WXDXH (inches) 49x64x77
  • Crating Dimensions: WXDXH (Inches) 54x70x83
  • Electrical Power: 230V/240V 1 Phase 60Hz
  • Amp Draw: 45
  • Amp Fuse: 60
  • Weight: 1,692.00
  • FG# R754790

Control System

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.

Features

  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart
  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment

Options

Included

  • (2) 3" ports - one in each sidewall
  • Window in Door w/ Interior Light
  • Casters (2 Locking)
  • UL508A Control Panel
  • Data Logging & Chart Trending
  • Full Warranty

Available

  • Main electrical disconnect
  • Shelves
  • Cooling Boost - CO2 or LN2
  • Dry Air Purge
  • Dehumid Dry Air - GN2 Purge system
  • Boost Heat
  • DI Cartridge System
  • Reverse Osmosis System
  • Pump to drain
  • NIST Certificate of Calibration
  • Maintenance kit

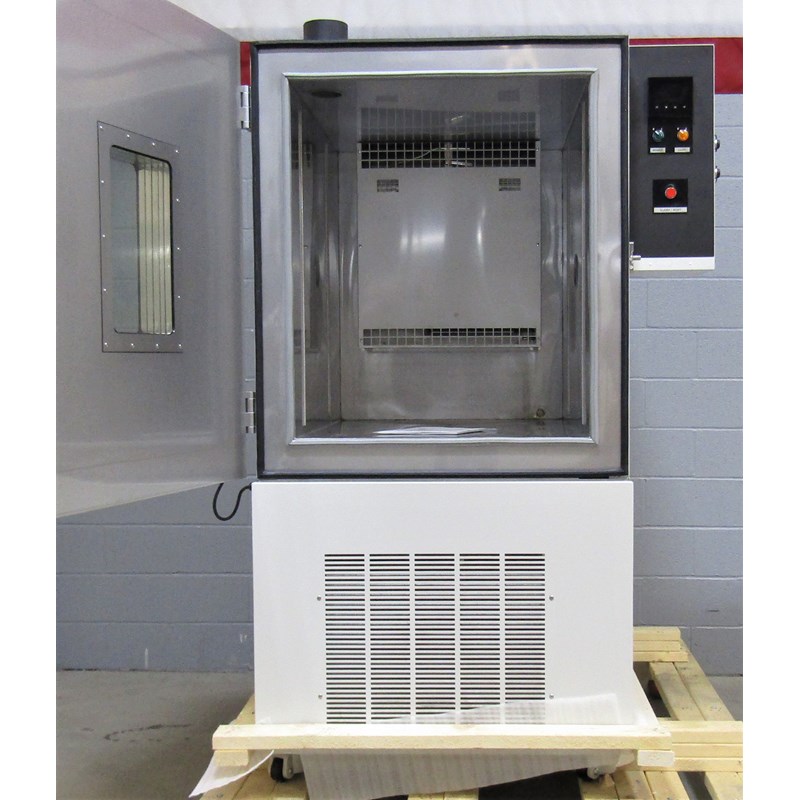

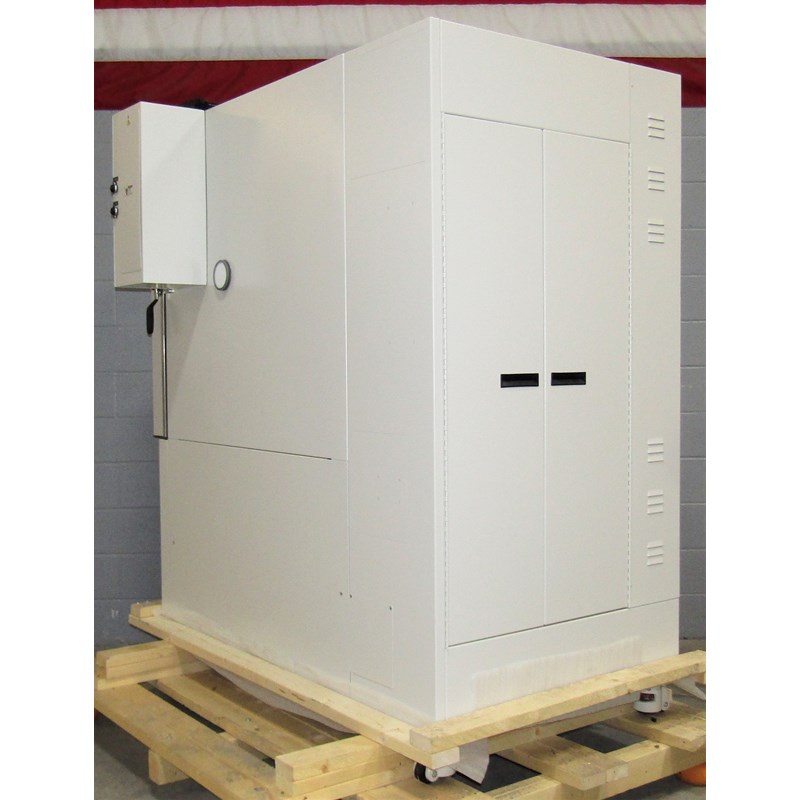

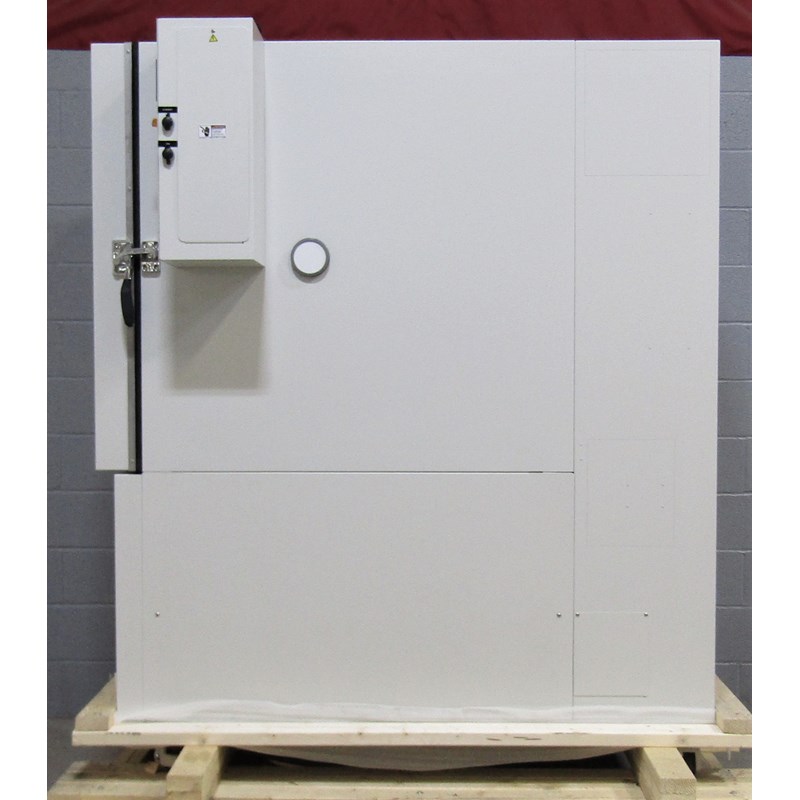

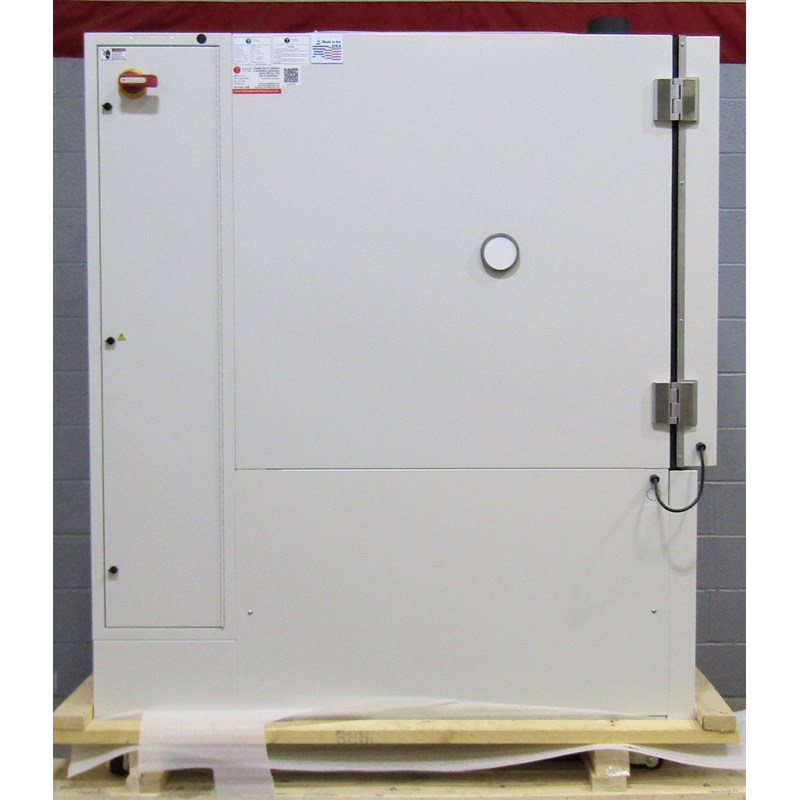

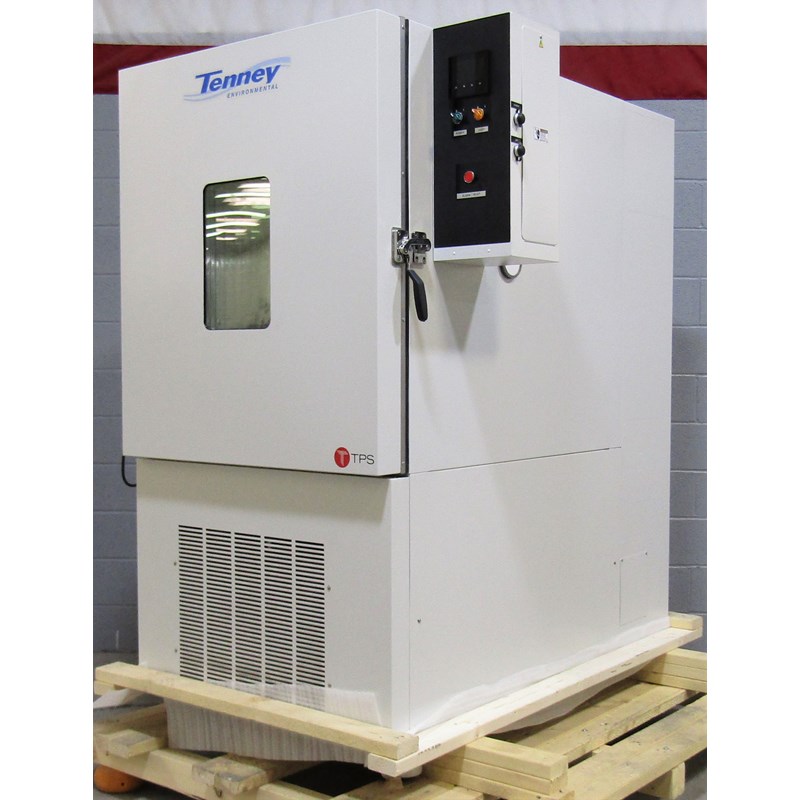

Additional Images
