Blue M DC-296 Mechanical Convection Oven Serial#: 56425-01, 26425-02

Now Available!  Fully Refurbished DC-296. Available for Rent or Purchase.

The Blue M Standard Mechanical Convection Oven is ideal for a number of laboratory and industrial oven applications, including ASTM testing, epoxy curing, moisture drying, UL testing, aging of electronic components and devices, and other processes and testing requirements.

Benefits

  • Available with profiling or single setpoint temperature controls
  • Horizontal air flow assures uniform thermal performance under all loading conditions
  • Exclusive Blue M Eterna heating elements - the most reliable available, with heavy gauge, high temperature nickel chromium where, low-watt density for longer service life, standard air flow switch
  • Blue M one-pass air flow controls your profile, including cool down with infinitely variable control from full recirculation to full one pass, and optional motorized damper for automatic operation
  • Direct drive blower multi-blade centrifugal blower with high-volume air delivery, dynamically balanced

Features

  • Differential air pressure switches alert operators before costly problems with batch runs
  • Many different workspace sizes to fit virtually any requirement
  • Quick access for simple inner chamber cleaning
  • Easy to use controller for repeatable results and less training requirements
  • Reinforced Type 304 stainless steel interior resists corrosion and makes cleaning easy
  • 4 inches of fiberglass insulation saves energy and provide cool to the touch exterior
  • Adjustable air intake and exhaust dampers for flexible testing conditions
  • Infinitely variable control from full recirculation to full one pass to accommodate any processing need
  • Profiling or single setpoint temperature controls offer flexible recipe options
  • Standard air flow switch

Pricing Information

  • List Price New: $8,862.00
  • Purchase This Unit For: $6,800.00
  • Rent This Unit For: $1,050.00 / month

Specifications

  • Safety Door Switch
  • Door Style: Standard Single Door
  • Door Hinge: Right Hand
  • Warranty: 1 Year Labor and 1 Year Parts
  • Over Temperature Protection is included as standard on this model
  • Temperature Range: 15°C above ambient to 350°C
  • Interior Dimensions W x D x H (inches): 25 x 25 x 25
  • Exterior Dimensions W x D x H (inches): 45 x 40 x 63
  • Crating Dimensions W x D x H (inches): 51 x 42 x 72
  • Cabinet Type: Floor Standard Single Door
  • Electrical Power: 460V/480V 3 Phase 60 Hz
  • Amp Draw: 23
  • Heater: 18.0 kW
  • Weight: 902.0 lbs.
  • FG# R181104, R181105

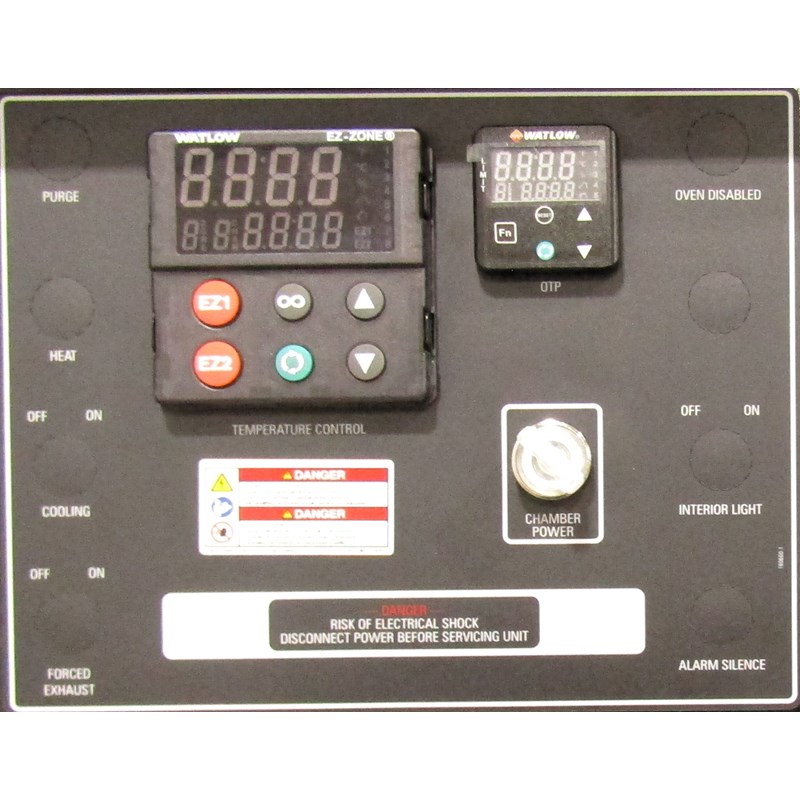

Control System

STAT 350 Single Set Point Controller

Options

Included

  • Safety Door Switch
  • Overtemperature Protection
  • Rear Chamber Access Port

Optional

  • Programmable Controller
  • Additional Shelves
  • Light Tower
  • Chart Recorder
  • Door Limit Switch

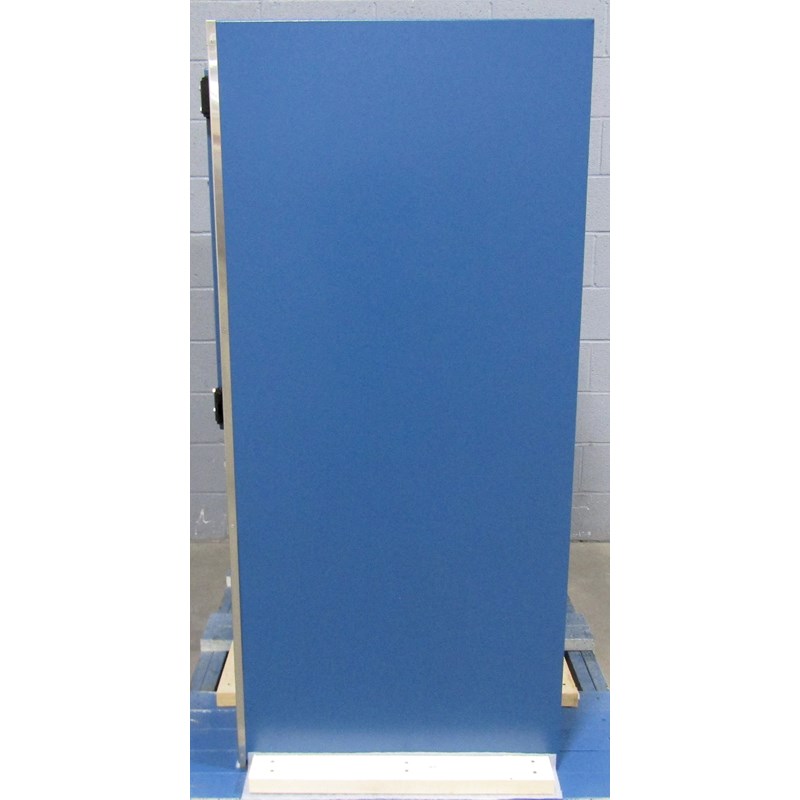

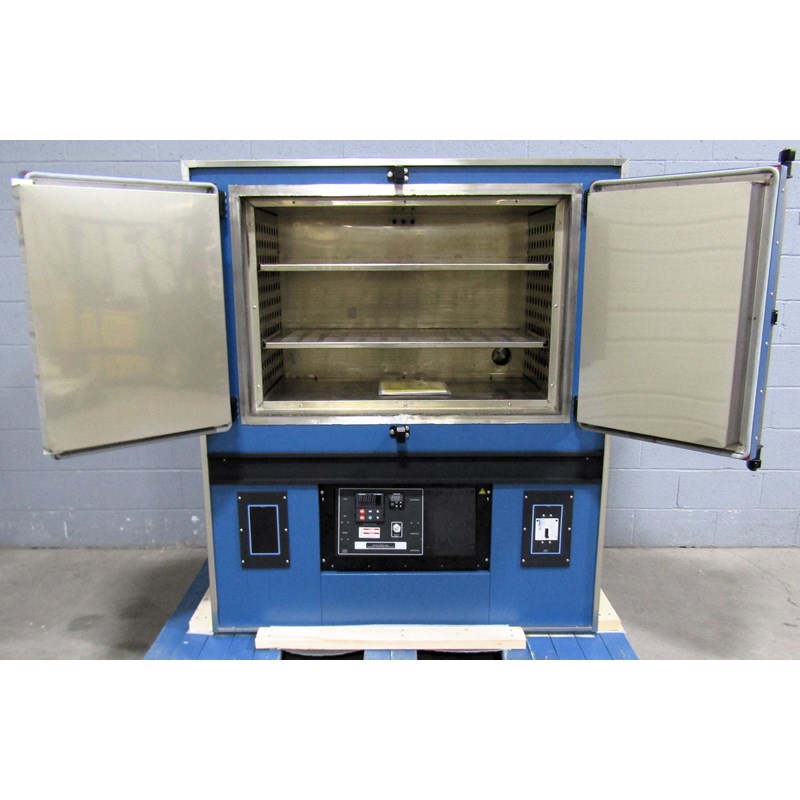

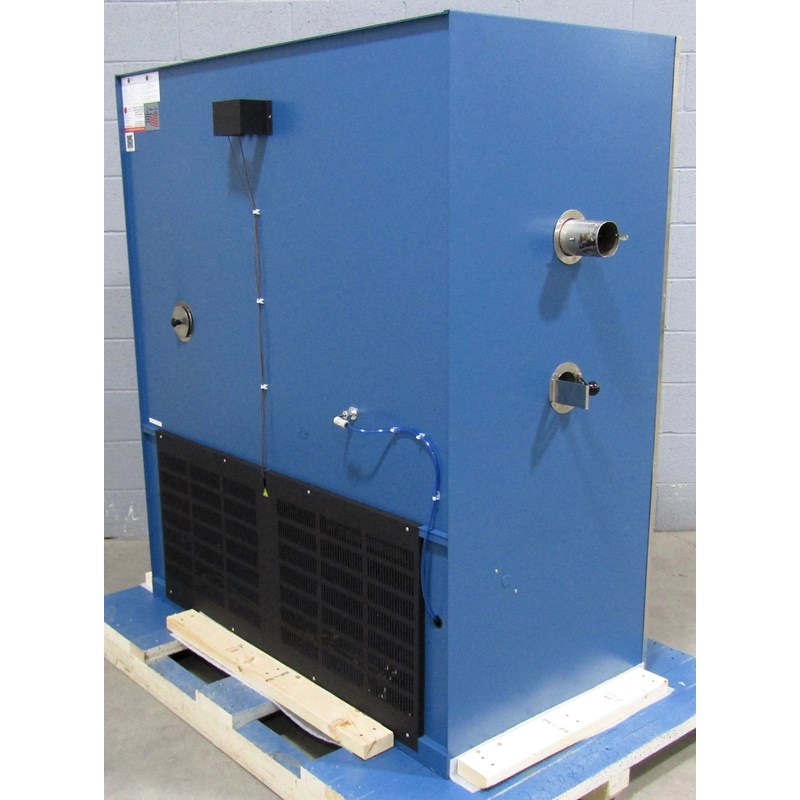

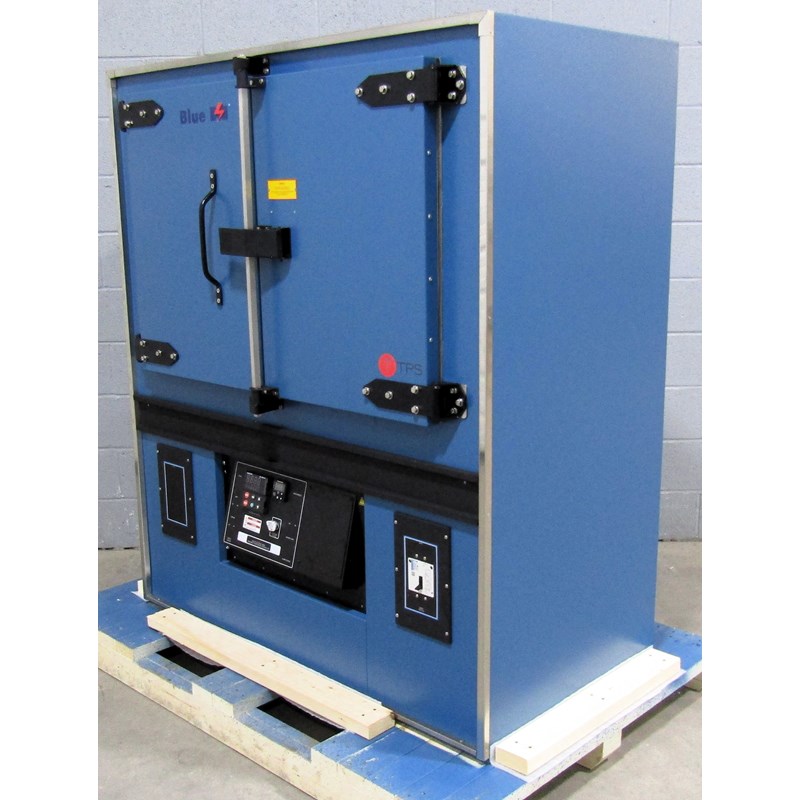

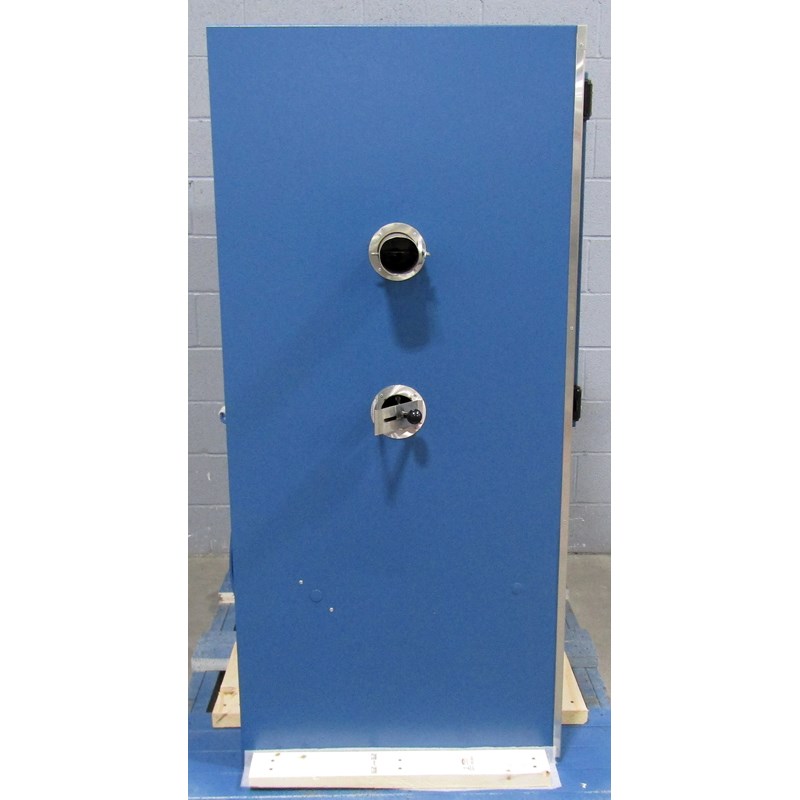

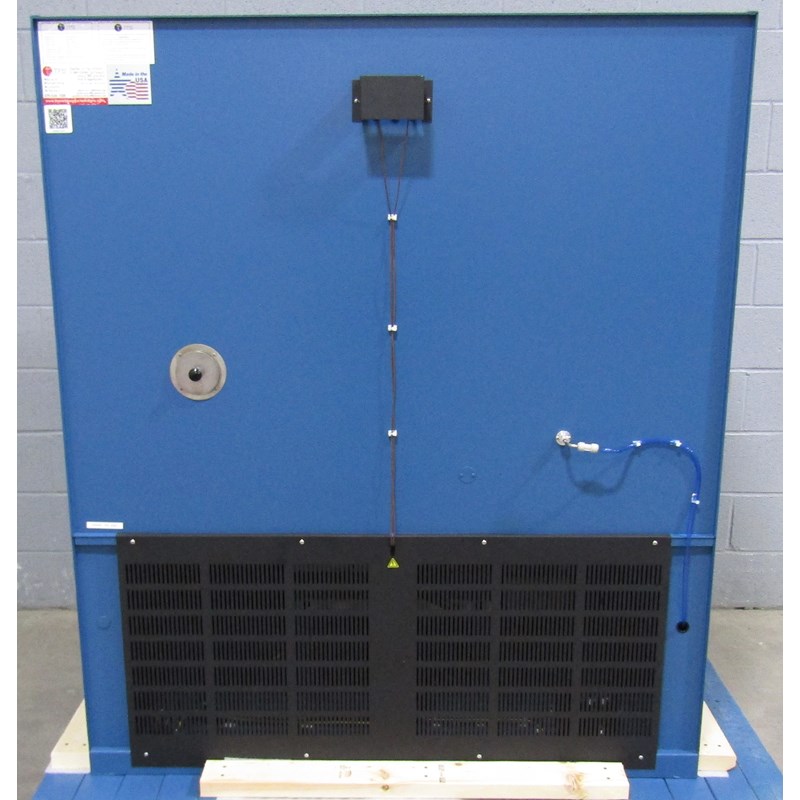

Additional Images
