TPS

Temperature Range: 15°C above ambient to 350°C
Can Ship in 2-3 Days

Product Page

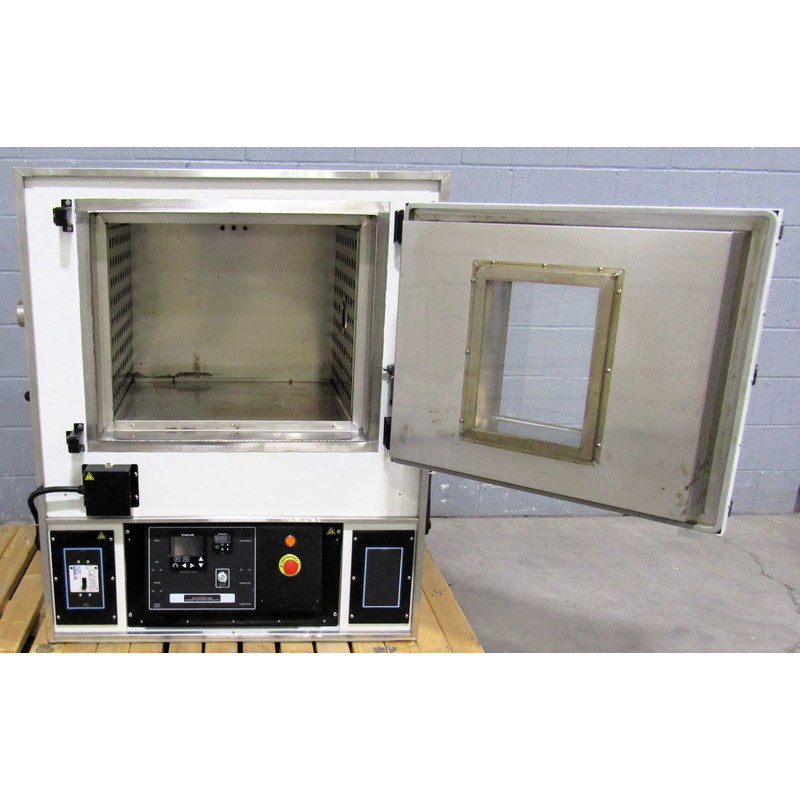

Blue M DC-256-F-PM Mechanical Convection Oven Serial#: 145435

New & In Stock! Available for Rent or Purchase. Can Ship in 2-3 Days!

The Blue M Standard Mechanical Convection Oven is ideal for a number of laboratory and industrial oven applications, including epoxy curing, moisture drying, UL testing, aging of electronic components and devices, and other processes and testing requirements.

Benefits

  • Horizontal air flow assures uniform thermal performance under all loading conditions
  • Exclusive Blue M Eternal heating elements - the most reliable available, with heavy gauge, high temperature nickel chromium where, low-watt density for longer service life, standard air flow switch
  • Blue M one-pass air flow controls your profile, including cool down with infinitely variable control from full re-circulation to full one pass, and optional motorized damper for automatic operation
  • Direct drive blower multi-blade centrifugal blower with high-volume air delivery, dynamically balanced
Features
  • Differential air pressure switches alert operators before costly problems with batch runs
  • Quick access for simple inner chamber cleaning
  • Easy to use controller for repeatable results and less training requirements

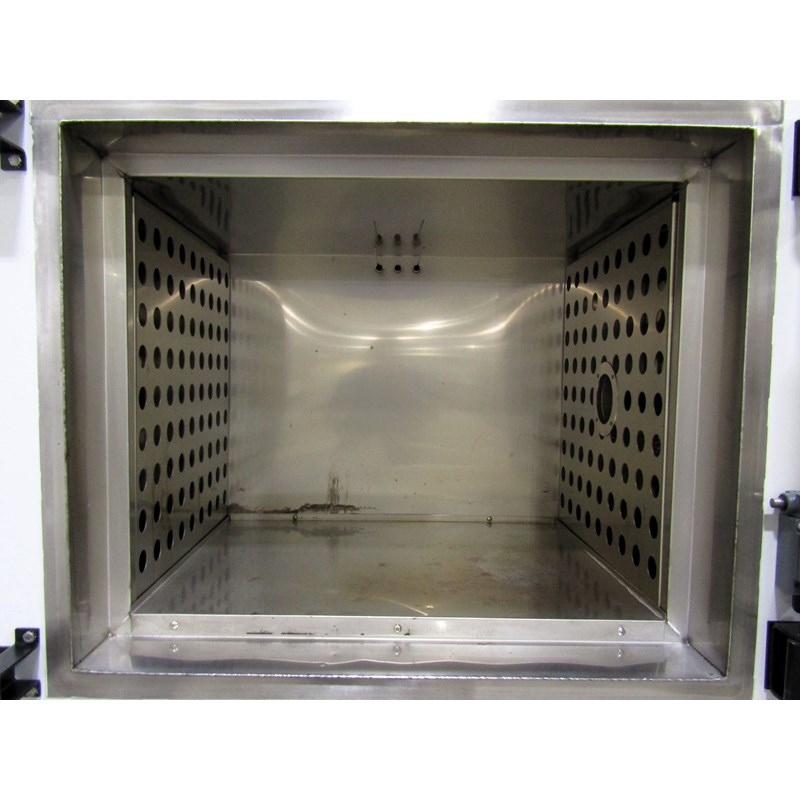

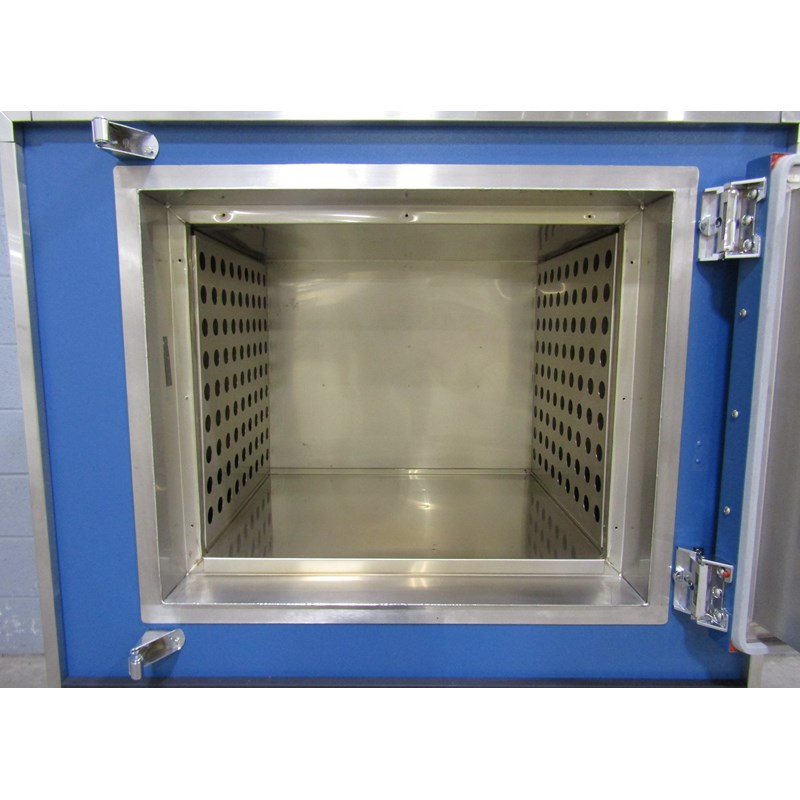

  • Reinforced Type 304 stainless steel interior resists corrosion and makes cleaning easy
  • 4 inches of fiberglass insulation saves energy and provide cool to the touch exterior

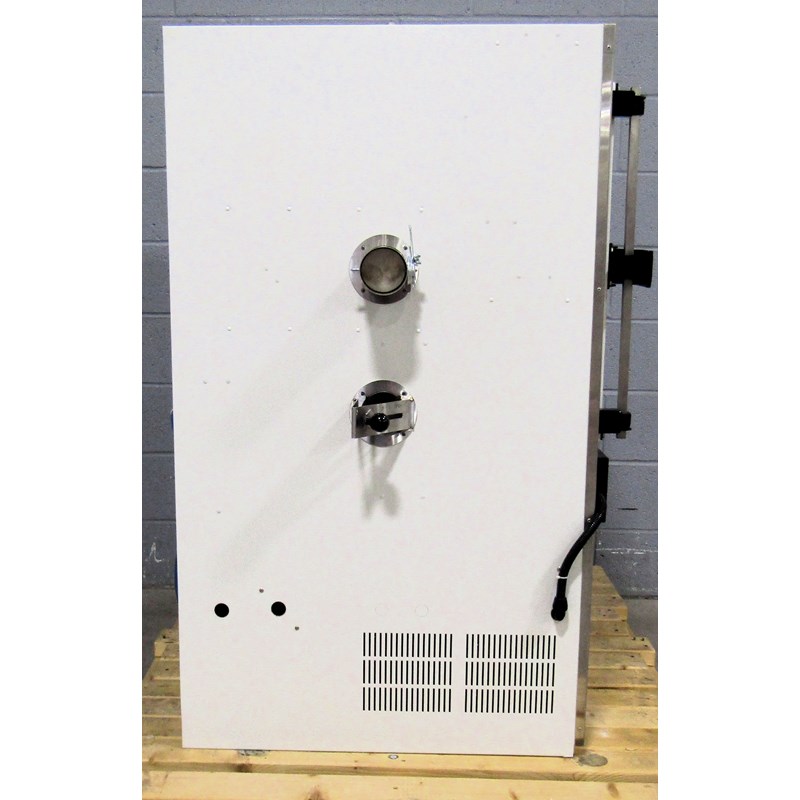

  • Adjustable air intake and exhaust dampers for flexible testing conditions
  • Infinitely variable control from full re-circulation to full one pass to accommodate any processing need
  • Profiling or single set-point temperature controls offer flexible recipe options
  • Standard air flow switch

Performance

  • Temperature Range: 15ºC above ambient to 350ºC
  • Control: +0.5ºC
  • Resolution: ±0.1°C
  • Run-up to 300°C in 60 minutes or less

Pricing Information

  • List Price New: $ 9,080.00
  • Purchase This Unit For: $ 9,080.00
  • Rent This Unit For: $ 1,050.00 / Month

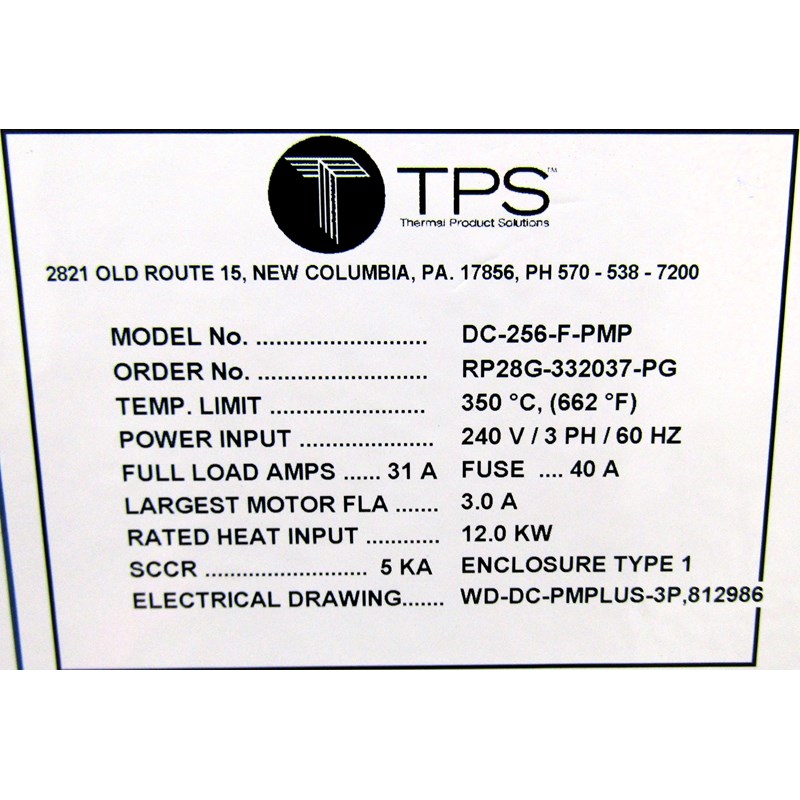

Specifications

  • Door Style: Standard Single Door
  • Door Hinge: Right Hand
  • Warranty: 2 Year Labor and 2 Year Parts
  • Over Temperature Protection is included as standard on this model
  • Temperature Range: 15°C above ambient to 350°C
  • Interior Dimensions W x D x H (inches): 25 x 20 x 20
  • Exterior Dimensions W x D x H (inches): 45 x 36 x 49
  • Crating Dimensions W x D x H (inches): 55 x 46 x 59
  • Cabinet Type: Bench Standard Single Door

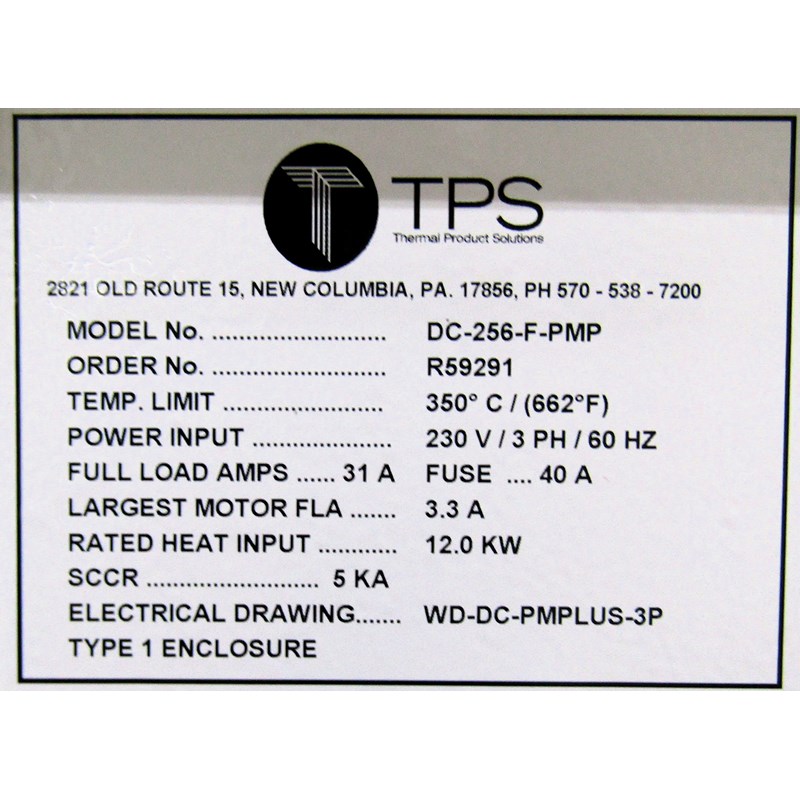

  • Electrical Power: 230V/240V 3 Phase 60 Hz
  • Amp Draw: 31A, Fuse: 40A
  • Heater: 12.0 kW
  • Weight: 700.0 lbs.

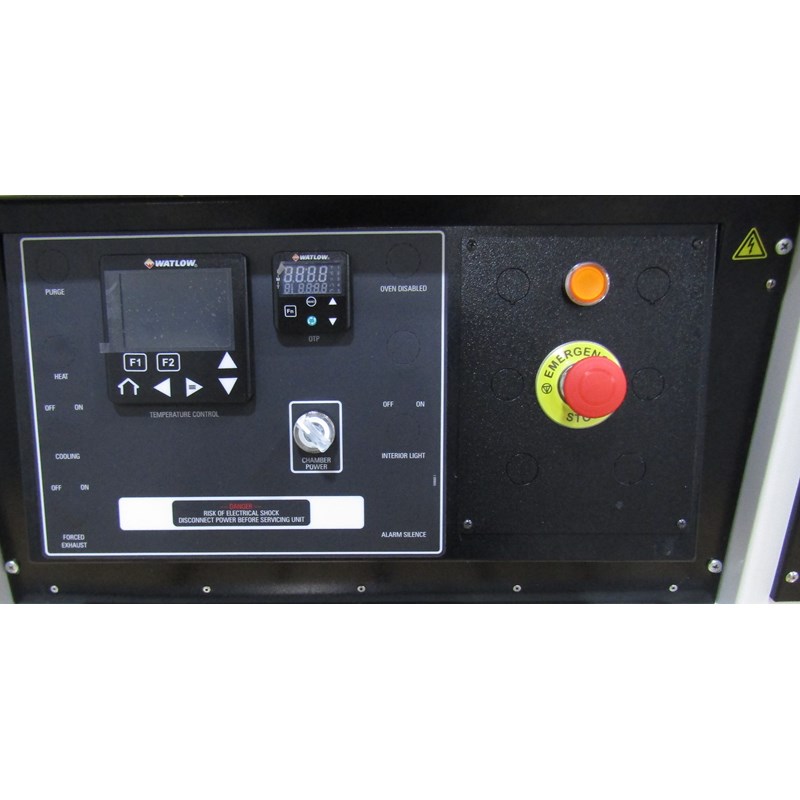

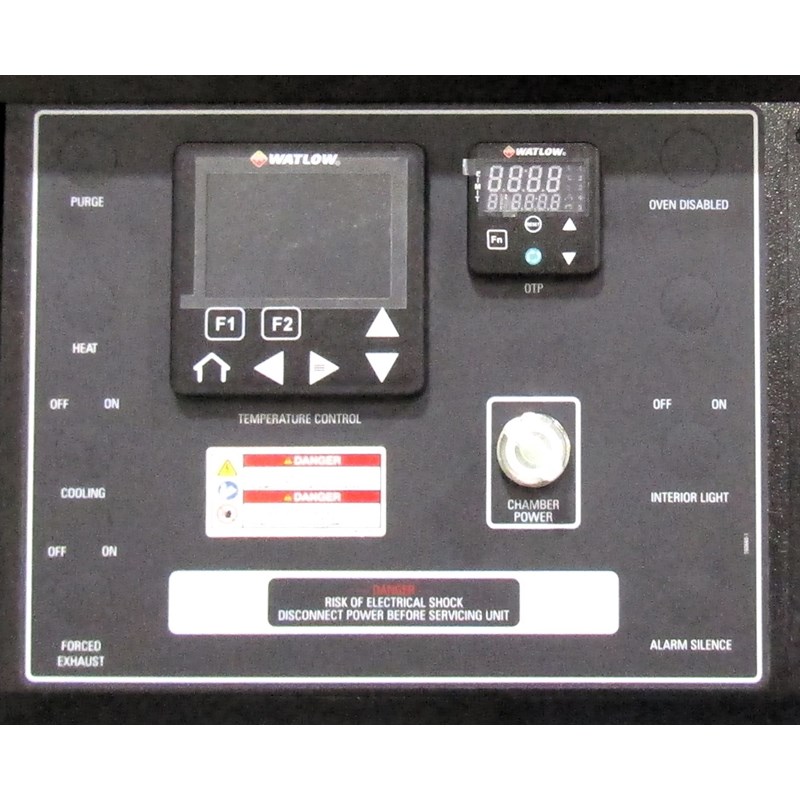

Control System

Watlow EZ Zone PM (PID)

Watlow EZ Zone PM (PID)

  • Single-channel, ¼ DIN, non-profiling-type controller
  • Type J thermocouple for temperature measurement
  • Fully programmable menu system
  • Auto-Tune is provided for fast, efficient start ups

Options

Included
  • Safety Door Switch
  • UL508 Control Panel
  • 2 Year Parts & Labor Warranty
  • Over-temperature Protection
Available
  • Stainless Steel Shelves
  • Maintenance Kit
  • Stand
  • NIST or A2LA 17025 Calibration
