Blue M DCW-1406-C-PM Welded and Sealed Mechanical Convection Oven Serial#: 167302

Blue M DCW-1406 R&D Unit.  Available for Immediate Sale, Monthly Rental and Rent to Own.  In Stock and Ready to Ship!

Benefits
  • Available with profiling or single set-point temperature controls
  • Horizontal air flow assures uniform thermal performance under all loading conditions
  • Exclusive Blue M Eterna heating elements - the most reliable available, with heavy gauge, high temperature nickel chromium where, low-watt density for longer service life, standard air flow switch
  • Blue M one-pass air flow controls your profile, including cool down with infinitely variable control from full re-circulation to full one pass, and optional motorized damper for automatic operation
  • Direct drive blower multi-blade centrifugal blower with high-volume air delivery, dynamically balanced
Features
  • Differential air pressure switches alert operators before costly problems with batch runs
  • Quick access for simple inner chamber cleaning
  • Easy to use controller for repeatable results and less training requirements
  • Reinforced Type 304 stainless steel interior resists corrosion and makes cleaning easy
  • 4 inches of fiberglass insulation saves energy and provide cool to the touch exterior
  • Adjustable air intake and exhaust dampers for flexible testing conditions
  • Infinitely variable control from full re-circulation to full one pass to accommodate any processing need
  • Profiling or single set-point temperature controls offer flexible recipe options

Pricing Information

  • List Price New: $ 18,300.00
  • Purchase This Unit For: $ 17,385.00
  • Rent This Unit For: $ 2,300.00 / month

Specifications

  • Temperature Range: 15°C above ambient to 350°C
  • Interior Dimensions WxDxH (inches): 48 x 24 x 36
  • Exterior Dimensions WxDxH (inches): 68 x 40 x 73
  • Crating Dimensions WxDxH (inches): 78 x 50 x 83
  • Cabinet Type: Floor Standard Double Door
  • Electrical Power: 230/240V Single Phase 60 Hz
  • Amp Fuse: 50 Amps
  • KW: 9.0kW
  • Weight: 1350.0 lbs.
  • FG#: R753766

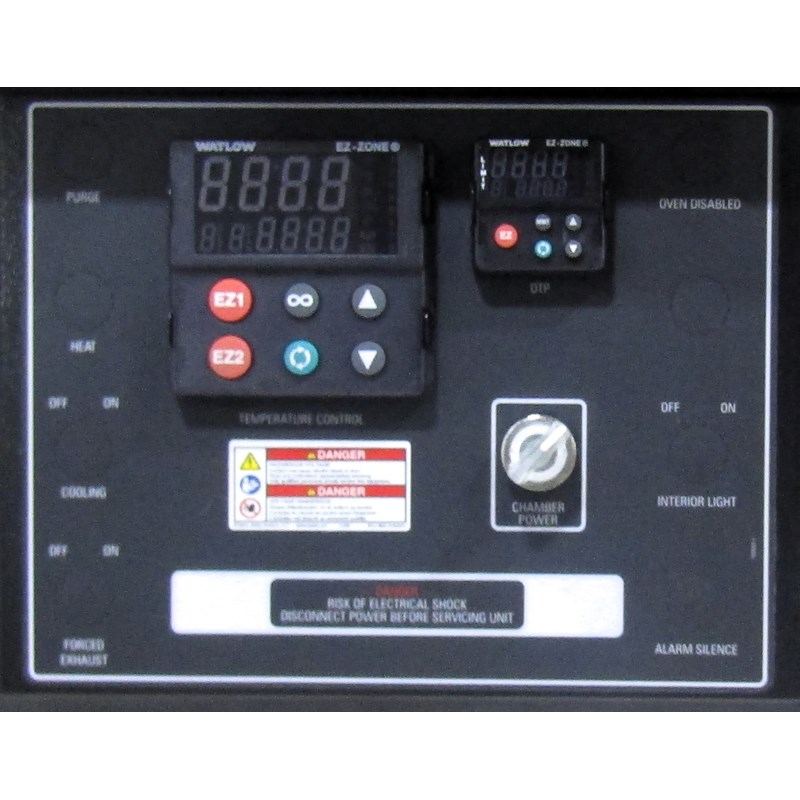

  • Control System

    Watlow EZ Zone PM (PID)

    Watlow EZ Zone PM (PID)

    • Single-channel, ¼ DIN, non-profiling-type controller
    • Type J thermocouple for temperature measurement
    • Fully programmable menu system
    • Auto-Tune is provided for fast, efficient start ups

    Options

    Included
    • Over Temperature Protection
    • Safety Door Switch
    • Warranty: Two Year Parts & Labor
    Available
    • Stainless Steel Shelves
    • Maintenance Kit
    • NIST Calibration Certificate
    • Controller Upgrade: Watlow F4T
    • Tower Lights
    • Process Timers
