« Back to List Page
TPS

15°C above ambient to 350°C
Ask about our Rent to Own Option!

Product Page

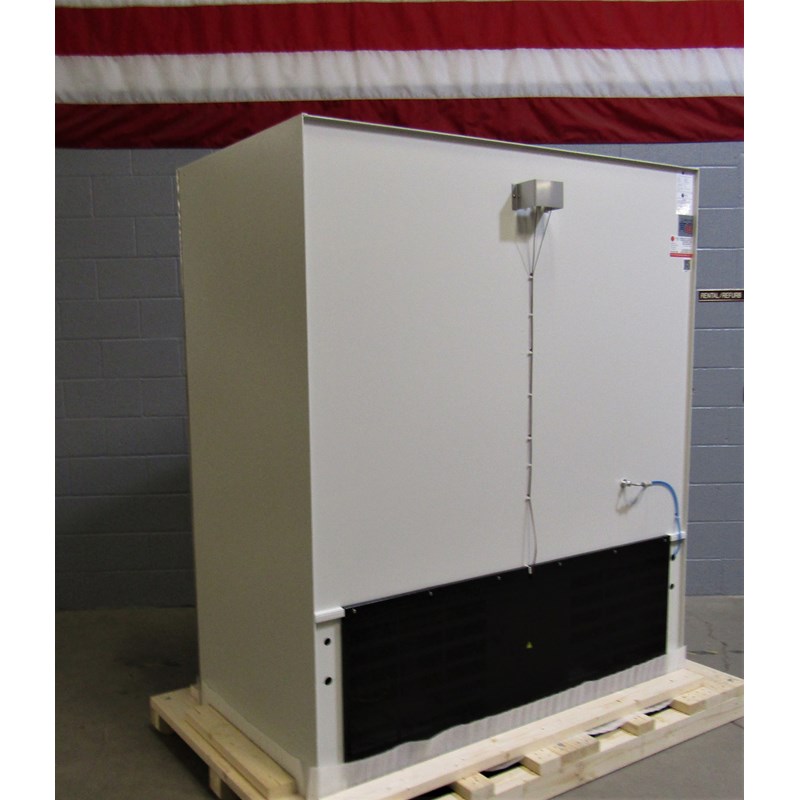

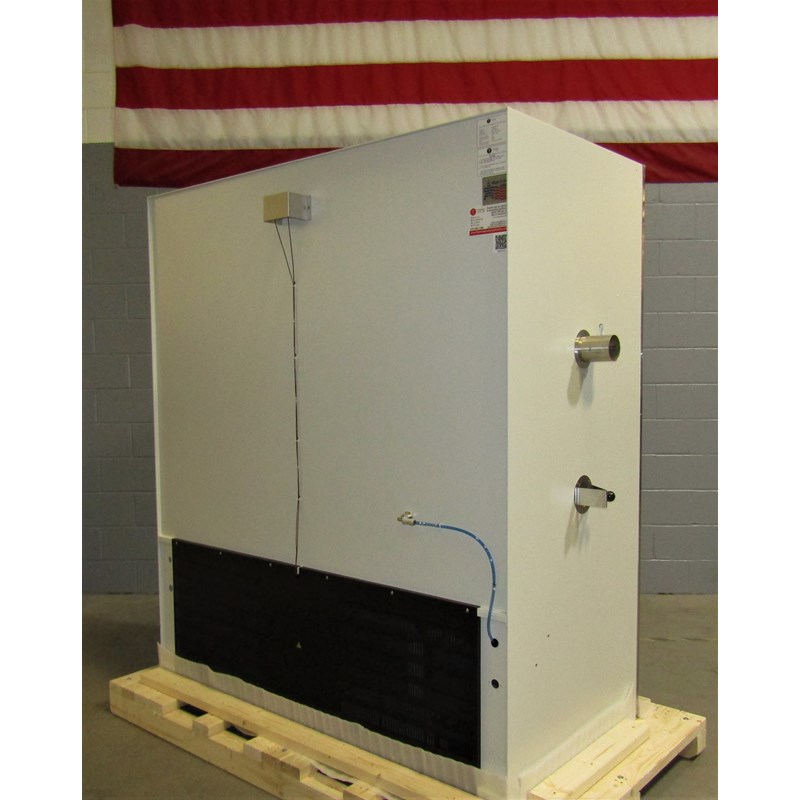

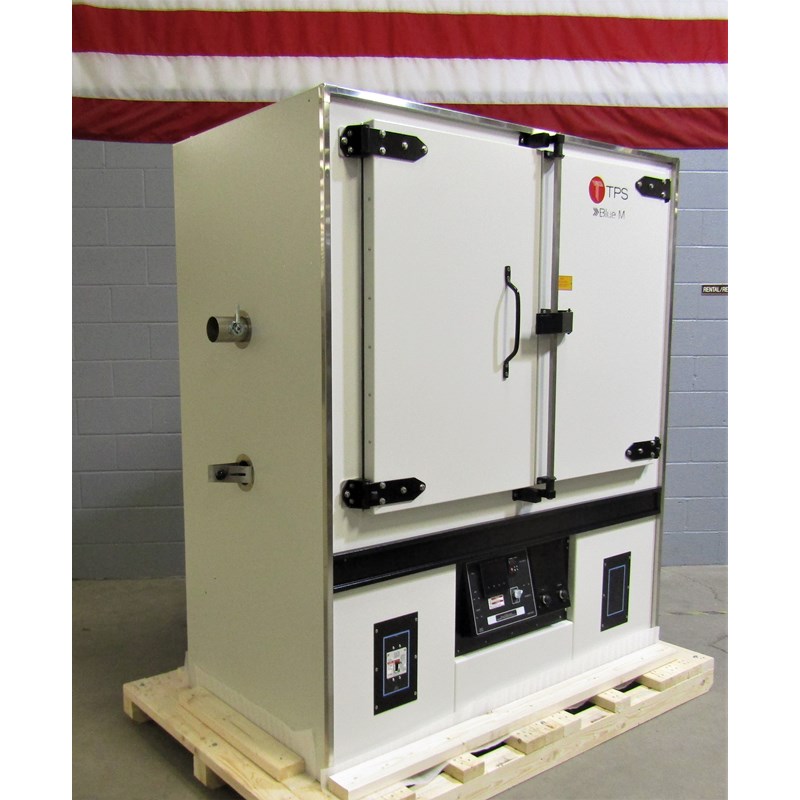

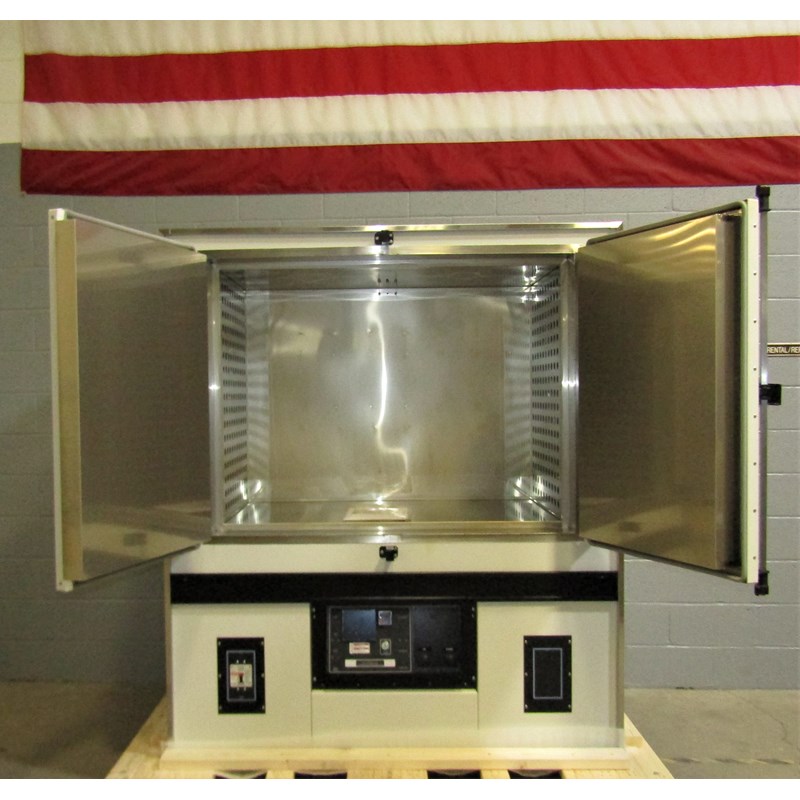

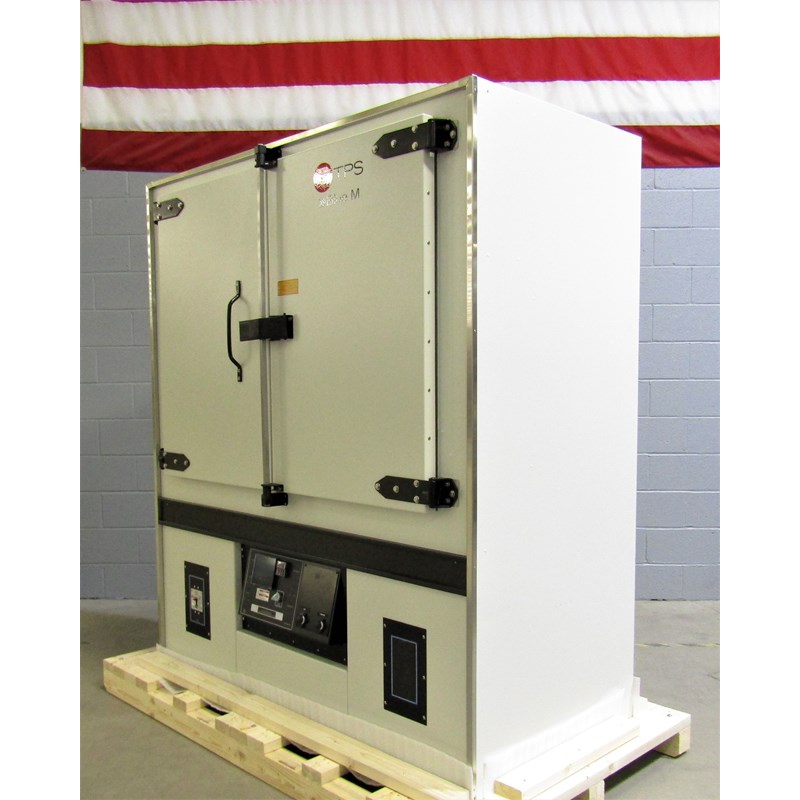

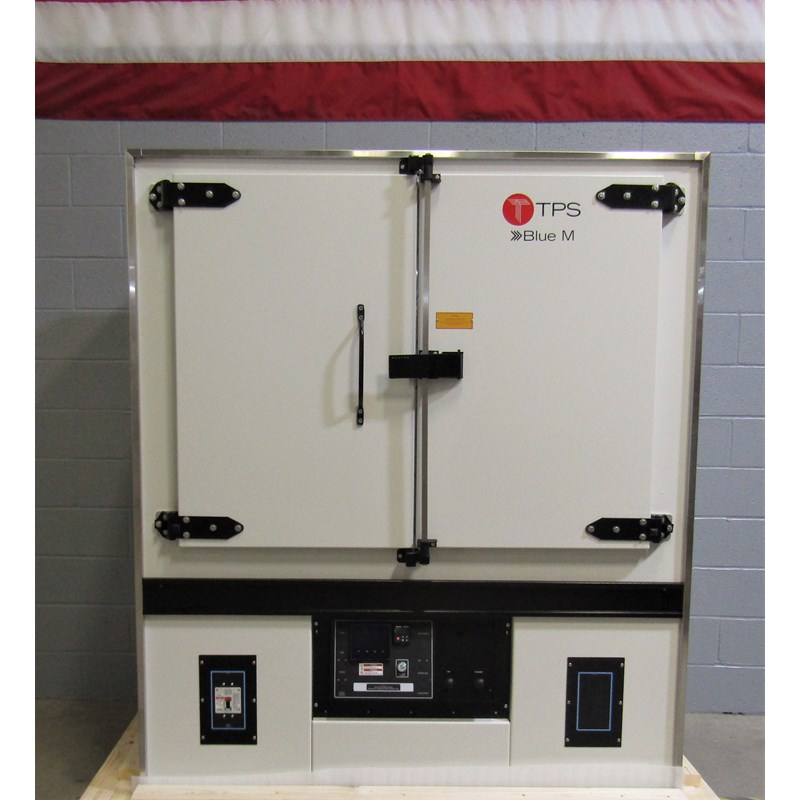

Blue M DCW-1406-F-PM Welded and Sealed Mechanical Convection Ovens Serial#: 179699-01, 179699-02

Blue M Mechanical Convection Oven Available for Rent or Rent to Own.  Can Ship in 2-3 Days!

Features

  • Adjustable air intake and exhaust dampers
  • Adjustable shelf levels
  • Fiberglass insulation to ensure safe cabinet skin temperature
  • Heavy-duty door - double-wall, insulated construction
  • Independent, over-temperature protection (high limit controller) included
  • Corrosion-resistant, stainless steel (type 304) interior
  • All-welded, heavy-duty exterior with heavy-gauge, reinforced, cold-rolled steel
  • Baked on white powder-coated enamel finish on the exterior for long-lasting corrosion protection
  • Every oven is fully assembled and individually factory tested
  • Circuit breaker provided for ground fault protection as standard
  • Single or three-phase operation available in 50 Hz or 60 Hz

Benefits

  • Available with profiling or single setpoint temperature controls
  • Horizontal air flow assures uniform thermal performance under most loading conditions
  • Exclusive Blue M Eterna heating elements - the most reliable available, with heavy-gauge high-temperature nickel-chromium wire and low-watt density for longer service life
  • Airflow switch provided as standard to protect oven and product
  • Adjustable one-pass airflow system - tempered air passes over heater(s) and through chamber only once if necessary - readily adjusted to suit a broad range of product loads and operating requirements. Motorized damper available for automatic operation
  • Direct drive, multi-blade, centrifugal blower with high volume air delivery and dynamically balanced for minimum noise

Pricing Information

  • List Price New: N/A
  • Purchase This Unit For: N/A
  • Rent This Unit For: $ 2,300.00 / month

Specifications

  • Temperature Range: 15°C above ambient to 350°C
  • Interior Dimensions WxDxH (inches): 48 x 24 x 36
  • Exterior Dimensions WxDxH (inches): 68 x 40 x 73
  • Crating Dimensions WxDxH (inches): 78 x 50 x 83
  • Cabinet Type: Floor Standard Double Door
  • Electrical Power: 230V/240V 3 Phase 60 Hz
  • Amp Draw: 61A
  • Amps Fuse: 80 Amps
  • KW: 24.0kW
  • Weight: 1350.0 lbs.
  • FG# R755444-01, R755444-02
  • Control System

    Watlow PM Plus Temperature Controller

    Watlow PM Plus Temperature Controller

    The Watlow PM PLUS™ is a 1/4-DIN Ramp/Soak programmable controller with up to 4 profiles, 10 steps per profile.

    Features

    • An enhanced interface for easier programming and readability with a SMOOTHTOUCH™ keypad and LCD display.
    • Bluetooth® connectivity with the EZ-LINK™ mobile app for remote access capability and full descriptions of parameters and error codes.
    • The PM Plus is also available without Bluetooth®.
    • Advanced PID control using auto-tune with TRU-TUNE+ adaptive control algorithm.
    • Programmable function key(s) enables simple, one-touch operation of user-defined, repetitive activities.

    Options

    Included

    • Over Temperature Protection
    • Door Safety Switch

    Available

    • Shelves
    • Process Timers
    • Tower Light
    • UL508A control panel
    • NIST Calibration Certificate
    • Upgrade to Watlow F4T Controller

    Additional Images
