TPS

1 In Stock - Ships in 3-5 Days
-73 C to 200 C

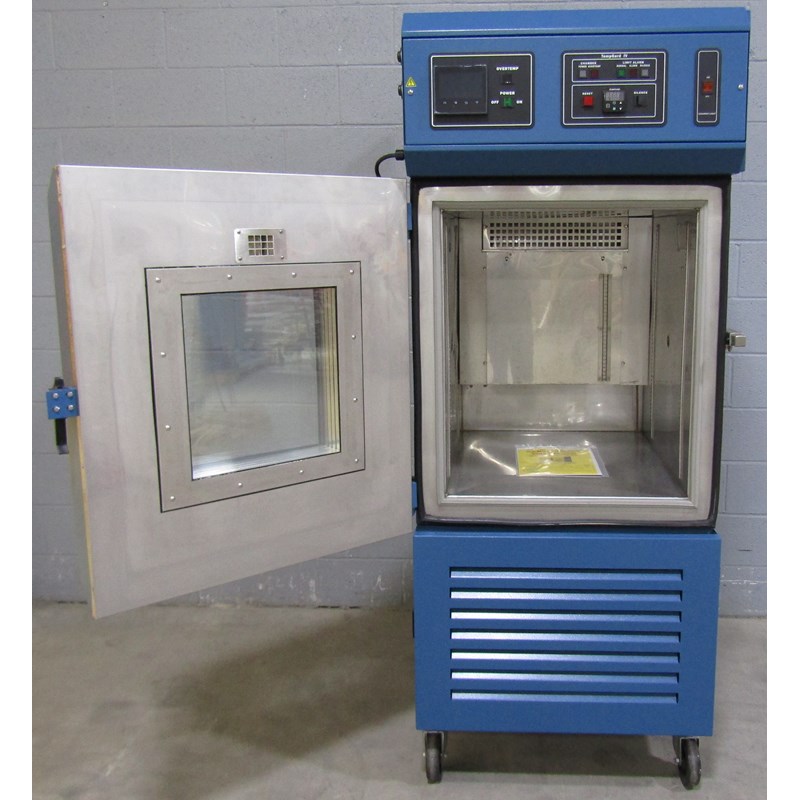

Tenney "T-Series" T10RC1.5 Environmental Test Chamber Serial#: 29108

Fully Refurbished Temperature & Humidity Chamber.  Can Ship in 3-5 Days! Available for Purchase or Rent.

Our line of Tenney "T" Series chambers employ leading edge technology to supply our customers with the most efficient and environmentally friendly test equipment possible. State-of-the art controllers allow precise, effective monitoring and programming of your unit. An exact blend of insulations ensure efficient chamber operation and maximize floor space by minimizing equipment footprints. Time-proven mechanical refrigeration, in single or cascade systems, allow years of worry-free use. And, environmentally safe CFC-free refrigerants provide the safety you demand.

Benefits

  • Design features for optimal performance such as high volume horizontal down air circulation
  • Structural reinforcement is used at all critical points
  • Through wall ports are continuously welded
  • Electric heating system and mechanical refrigeration system
  • Wide range of options available

Features

  • Swivel Casters
  • Watlow F4T Programmable Control System
  • Data & Chart Trending Capabilities
  • Window in Door
  • Chamber light

Pricing Information

  • List Price New: $34,784.00
  • Purchase This Unit For: $27,500.00
  • Rent This Unit For: $2,000.00/month

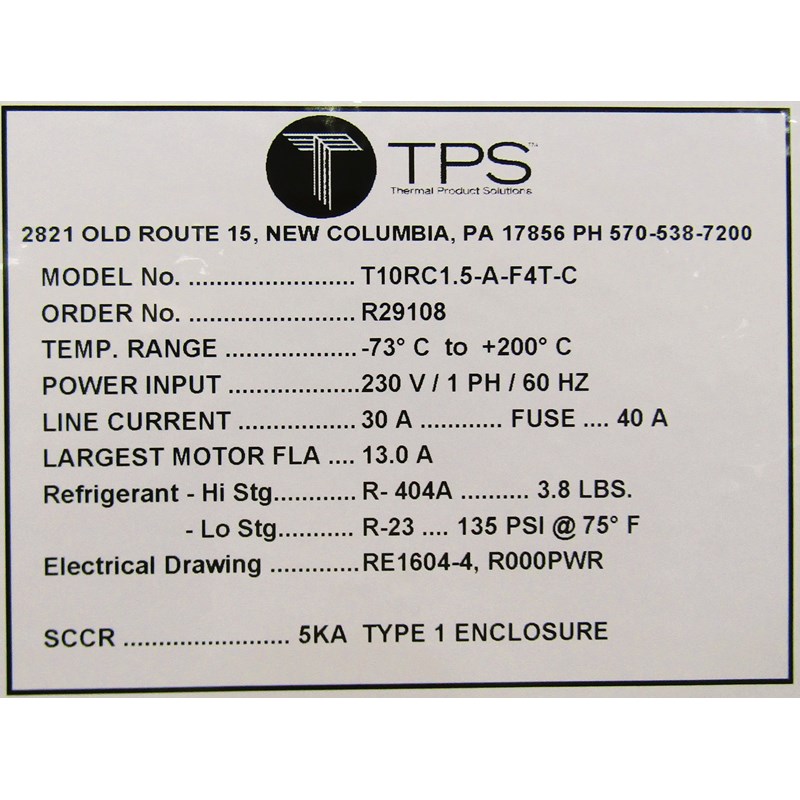

Specifications

  • (4) Swivel casters
  • (1) 2-inch access port centered in the left sidewall of the chamber.
  • Temperature Range: -73°C to 200°C.
  • Humidity Range: 20% to 95%
  • Interior Dimensions W X D X H (inches): 24 x 27 x 28
  • Exterior Dimensions W X D X H (inches): 34 x 47 x 74
  • Crating Dimensions W X D X H (inches): 38 x 62 x 84
  • Electrical Power: 230/240V 1 Phase 60 Hz
  • Amp Draw: 30
  • Amp Fuse: 40
  • Refrigerants: R-404A, R-23

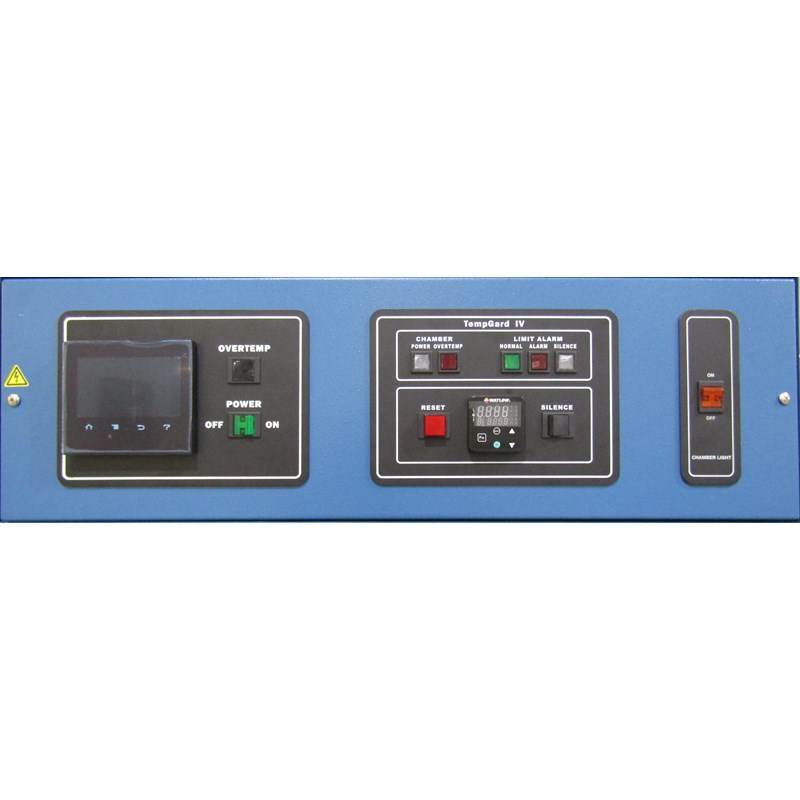

Control System

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.

Features

  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart
  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment

Options

Included Options

  • Condenser Type: Air
  • Computer Interface: Ethernet Communications
  • Data Logging & Chart Trending Capabilities
  • Window w/Interior Light
  • Over-Temperature Protection: TempGard
  • Water Supply: Water Regulator Assembly
  • Limited Warranty

Additional Options

  • NIST Calibration Certificate
  • Shelves
  • Maintenance Kit
  • Water Recycling System
  • GN2 Purge
  • LN2 Purge
  • Air Dry System
  • ProcessView Software
