TPS

Temperature Range: -73°C to 200°C
Can Ship in 2-3 Days

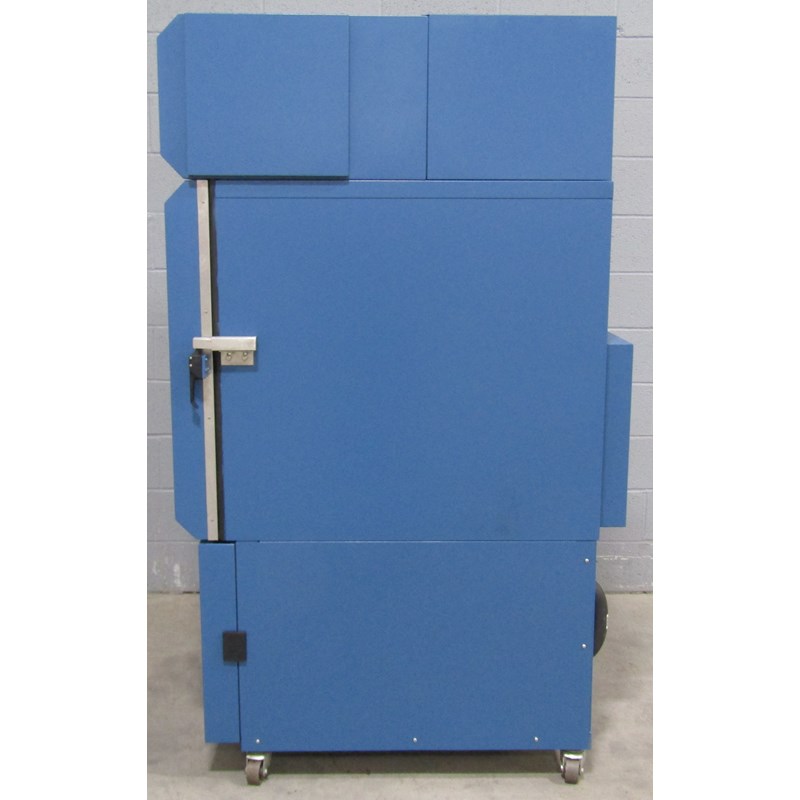

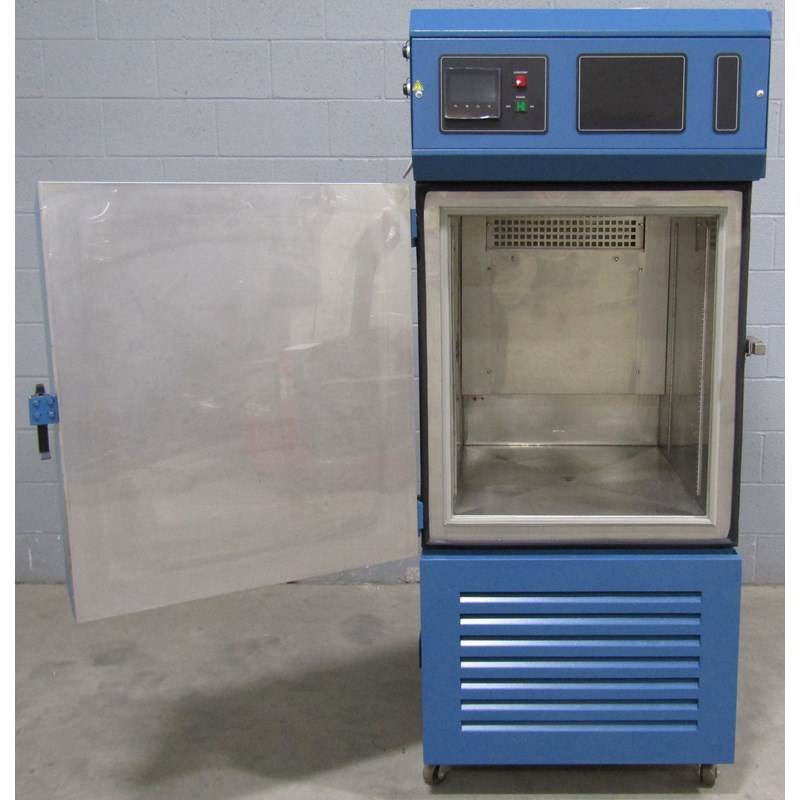

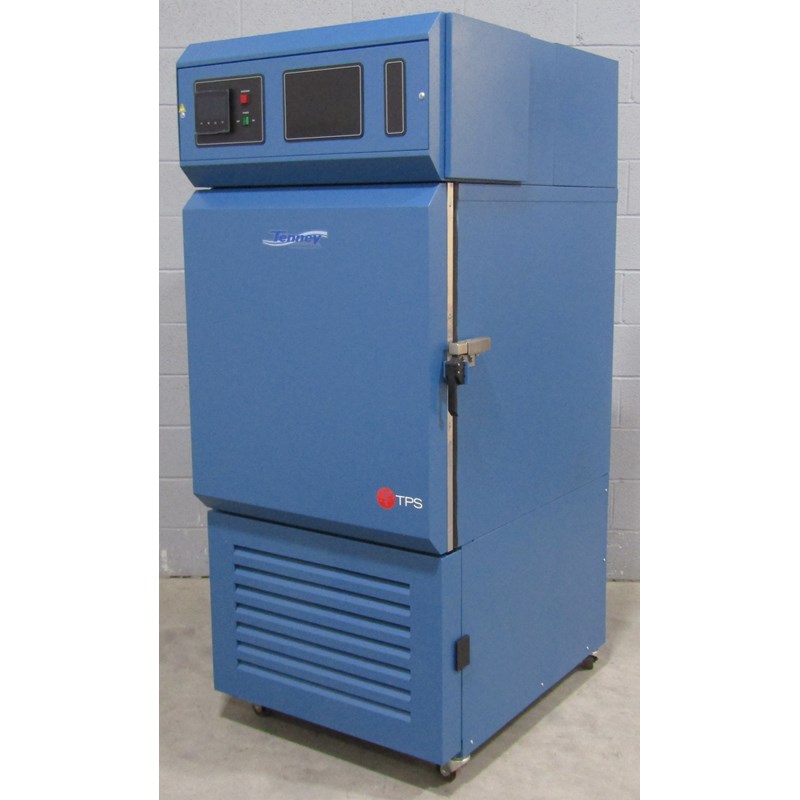

Tenney T10C1.5-A-F4T-C Temperature Chamber Serial#: 27286-05

Fully Refurbished Unit Available for Immediate Sale.  Can Ship in 2-3 Days.  Ask about our Rent to Own option.

Our line of Tenney Series chambers employ leading edge technology to supply our customers with the most efficient and environmentally-friendly test equipment possible. State-of-the-art controllers allow precise, effective monitoring and programming of your unit.   An exact blend of insulation ensure efficient chamber operation and maximize floor space by minimizing equipment footprints.  Time-proven mechanical refrigeration, in single or cascade systems, allows years of worry-free use.  Environmentally safe CFC-free refrigerants provide the safety you demand.

Benefits

  • Structural reinforcement is used at all critical points
  • Through wall ports are continuously welded
  • Fully welded liner

Features

  • Design features for optimal performance such as high volume horizontal down air circulation

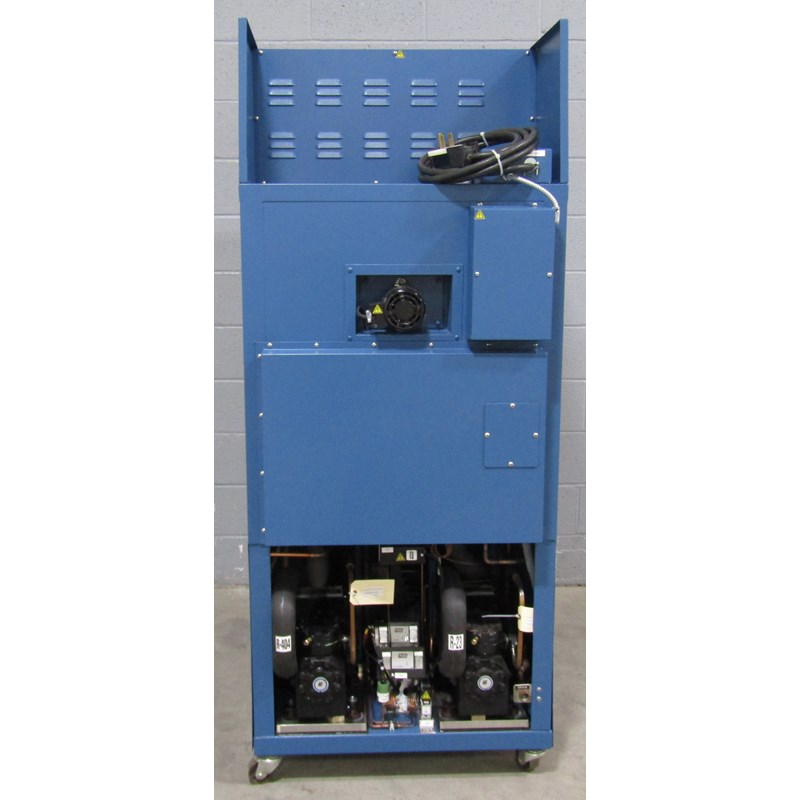

  • Electric heating system and mechanical refrigeration system
  • Watlow F4T Programmable Controller with Data and Chart Trending
  • Casters

Pricing Information

  • List Price New: $ 24,953.00
  • Purchase This Unit For: $ 18,750.00
  • Rent This Unit For: $ 1,700.00 / month

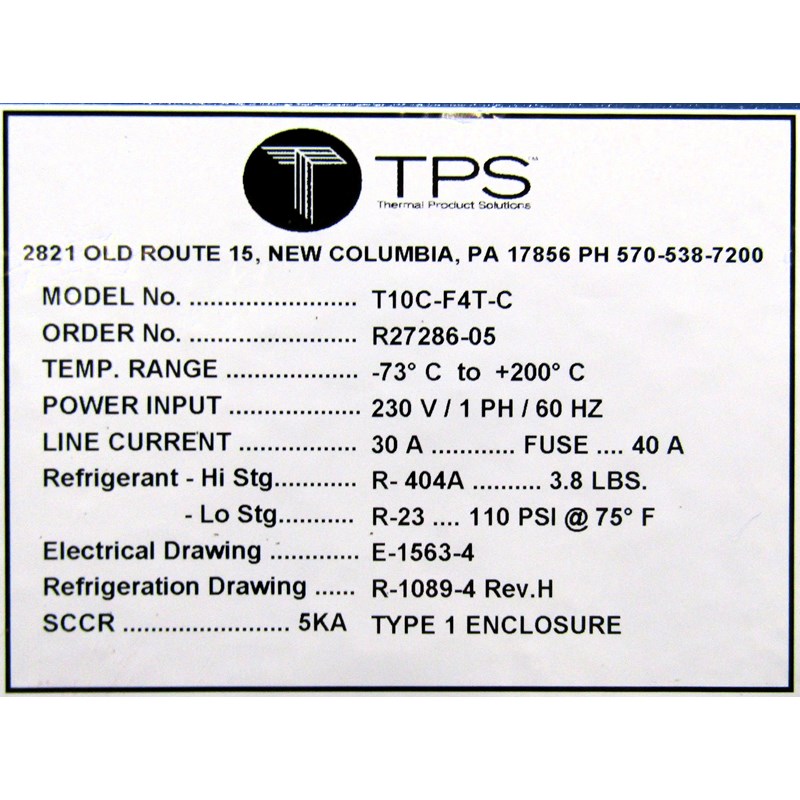

Specifications

  • Temperature Range: -73C - 200C
  • Internal Dimensions: W x D x H (inches) 24 x 27 x 28
  • External Dimensions: W X D X H (inches) 30 x 47 x 74
  • Weight: 950#
  • Electrical Power: 230/240V, 1 phase,  60Hz
  • Amp Draw: 30 Amp
  • Fuse: 40
  • Heater: 2.5kW
  • FG# R250121

Control System

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.

Features

  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart
  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment

Options

Included
  • Data Logging & Chart Trending Included with the Watlow F4T Controller

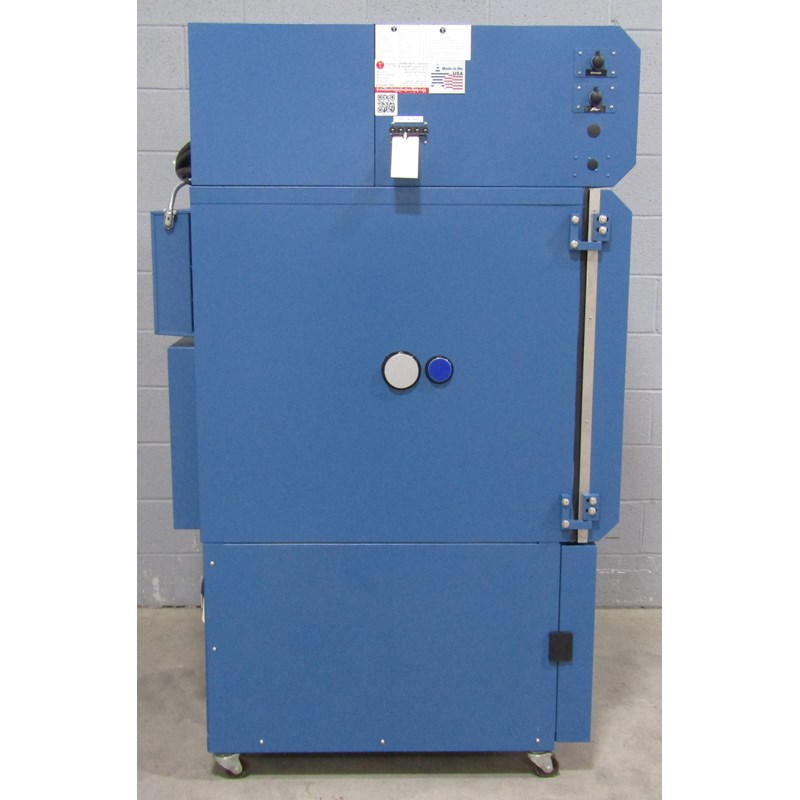

  • (1) 2" Port & (1) 3" Port with Plugs located on the Left Side of Unit
  • Limited Warranty

Available

  • Stainless Steel Shelves
  • Certificate of Calibration NIST or ISO17025
  • Tempgard (OTP)
  • Dry Air Purge
  • Maintenance Kit
  • LN2 Boost Cooling
  • Boost Heat

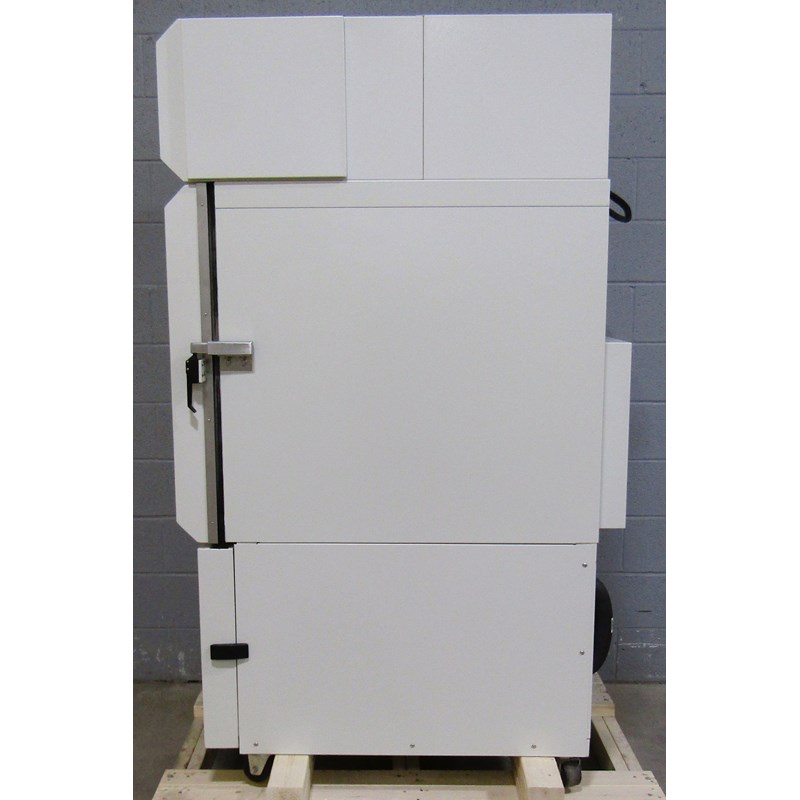

Additional Images
