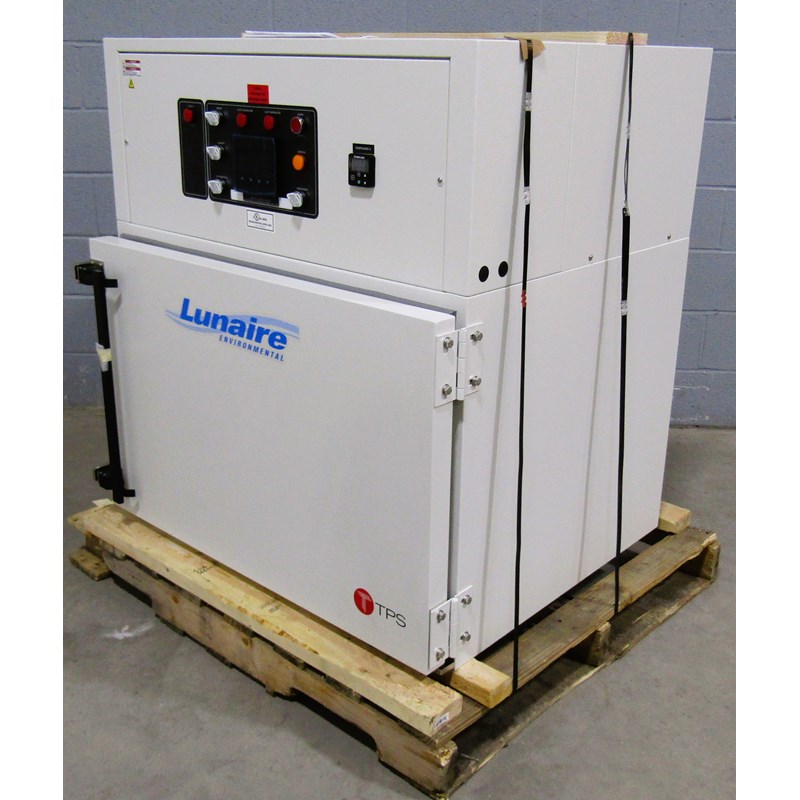

Lunaire CEO-908-4-C-F4T Temperature & Humidity Steady State Stability Test Chamber Serial#: 171188

Rental Returned Unit.  Available for Immediate Sale or Monthly Rental.  Ready to ship! Can Ship in 3-5 Days.

Lunaire’s steady-state chambers are available in four convenient sizes. With work space sizes of 8, 16, 32, and 58-cubic-feet and a variety of temperature and humidity combinations, these chambers provide the flexibility for a wide range of uses.

Benefits

  • Meets a variety of needs with availability in four sizes and multiple temperature and humidity combinations
  • Temperature/humidity settings are housed conveniently in one controller and allow for hands-free operation
  • Designed for quick shipping, easy installation, and consistency over controls, utility requirements, and heat output
  • Air intake and exhaust tubes with manual dampers vent undesirable process moisture and vapors, protecting the product
  • Highly efficient horizontal airflow system provides maximum temperature uniformity in testing
  • Safety-minded low limit and high limit temperature shutdown circuits sound, limiting unwanted results

Features

  • Electric Incoloy-sheathed tubular heaters
  • Single stage reciprocating type compressor with Non-CFC refrigerant
  • Vapor-Flo II Humidity Generator
  • Centrifugal type blower wheel with external mounted motor for air circulation
  • Door Gasket Trough and Chamber Drain
  • Non-ramping, manual mode
  • Direct printing to a serial printer
  • Direct connection to a PLC or computer workstation
  • High definition, LCD display with four digital input lines

Pricing Information

  • List Price New: $19,033.00
    •
  • Purchase This Unit For: $15,750.00
    •
  • Rent This Unit For: $1,750.00 / month
    •

Specifications

  • Temperature Range: 0°C to 99°C
  • Interior Dimensions W x D x H (inches): 33 x 28 x 15
  • Exterior Dimensions W x D x H (inches): 39 x 32 x 46
  • Crating Dimensions W x D x H (inches): 44 x 41 x 89
  • Electrical Power: 230/240V 1 Phase 60 Hz
  • Amp Draw: 24
  • Amp Fuse: 30
  • Computer Interface: Ethernet Communications Standard with Controller
  • Control Panel: UL508A
  • Door Style: Solid Door
  • Water Supply: Water Regulator Assembly
  • Quantity (1) 2" port with a cover comes standard with this unit and is centered in the work space on the back wall of the chamber

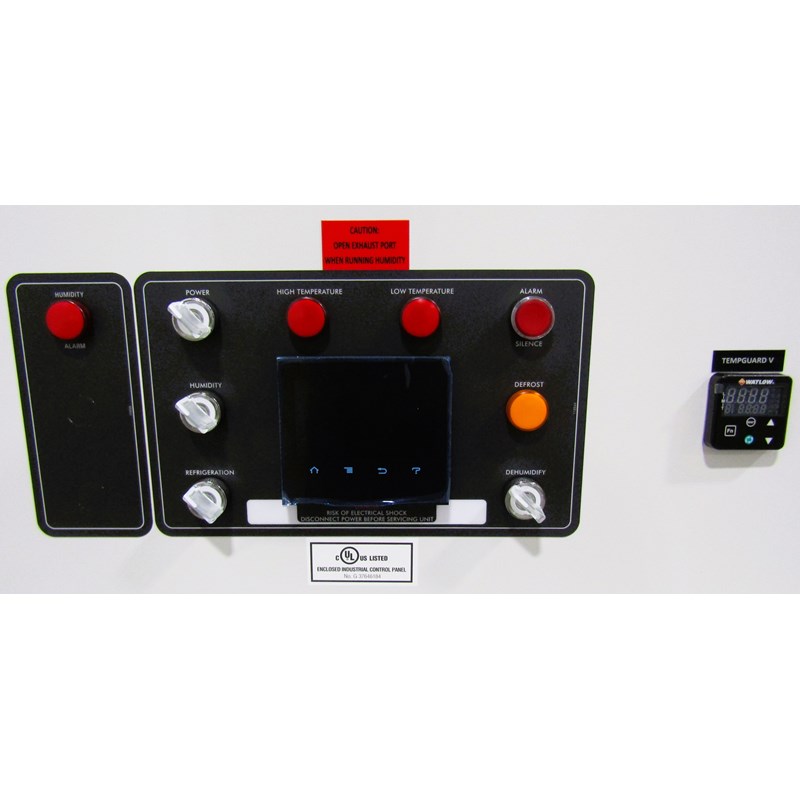

Control System

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.

Features

  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart
  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment

Options

Included Options:

  • UL508A Control Panel
  • Computer Interface: Ethernet Communications
  • (1) 2" port with cover centered in the back wall (work space) of the chamber
  • Cabinet Mounted Water Regulator
  • Limited Warranty

Available Options:

  • Shelves
  • Stand
  • Air Dryer for Low RH Operation
  • Reverse Osmosis Water Treatment System
  • Water Reservoir with Water Recycling System
  • Deionized Water Cartridge System
  • Certificate of Calibration
  • Maintenance Kit

Additional Images
