TPS

2 In Stock
15°C above ambient to 350°C

Product Page

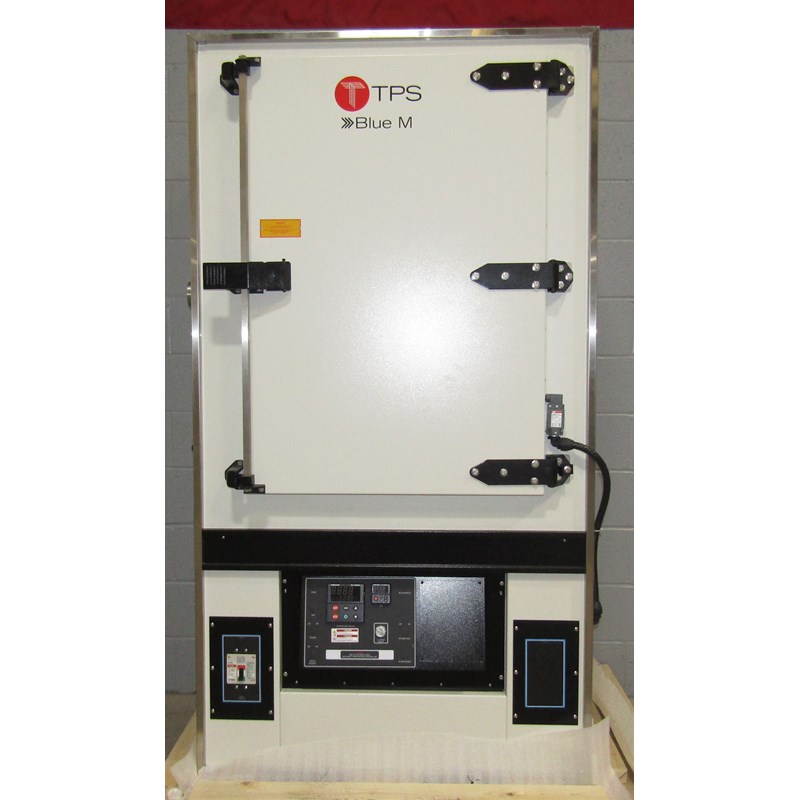

Blue M DC-336-C-F4T Serial#: 143559-01, 143559-02

Back in Stock! Available for Rent or Purchase. Can ship in 2-3 Days!

Benefits

  • High volume horizontal air re circulation system and electric heating system allow for maximum temperature uniformity in performance
  • Differential airflow switch if loss of airflow is detected and shuts down oven's heaters
  • Excellent reliability and performance ratings

Features

  • Nichrome wire heater elements for durability
  • Centrifugal type blower wheel for efficient air flow through the system
  • Horizontal air flow
  • Infinitely variable control (from full re circulation to full one pass)
  • Profiling controls
  • Direct drive blower
  • Manually adjustable intake/exhaust system for ease of balancing
  • Enclosed wiring to meet National Electric Code (NEC) for safe operation

Pricing Information

  • List Price New: $12,238.00
  • Purchase This Unit For: $12,238.00
  • Rent This Unit For: $1,050.00 / month

Specifications

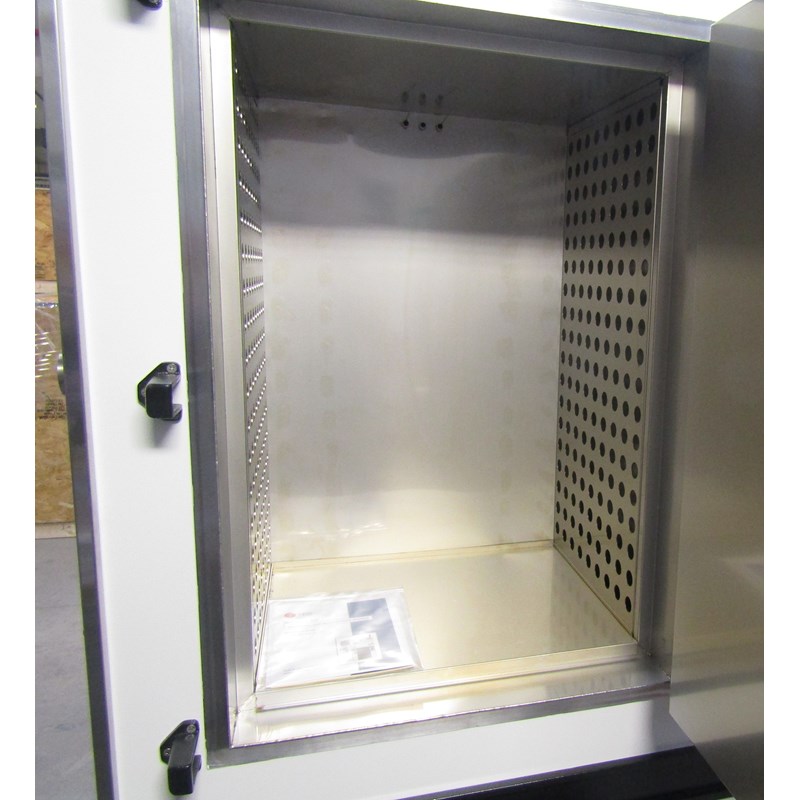

  • Interior Dimensions: 25"W x 20"D x 38"H
  • Exterior Dimensions: 45"W x 36"D x 75"H
  • Voltage: 208/230 VAC, Single phase 60 Hz
  • Max Amperage 40A,
  • Fuse: 50A
  • Heater:  6.0/8.0 Kw
  • Temperature Range: 15°C above ambient to 350°C (662°F)
  • FG# R740093-01, R740093-02

Control System

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.

Features

  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart
  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment

Options

Included Options

  • Safety Door Switch
  • Over-Temperature Protection Included
  • Computer Interface: Ethernet Communications Standard with Controller
  • 2 Year Parts and Labor Warranty

Available Options

  • Stainless Steel Shelves
  • Maintenance Kit

Additional Images
