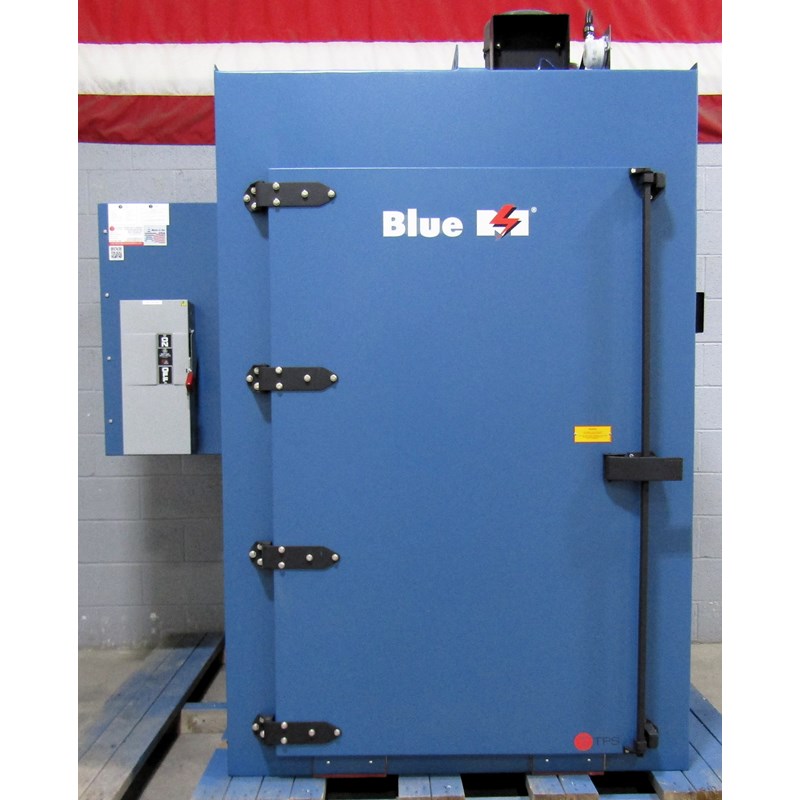

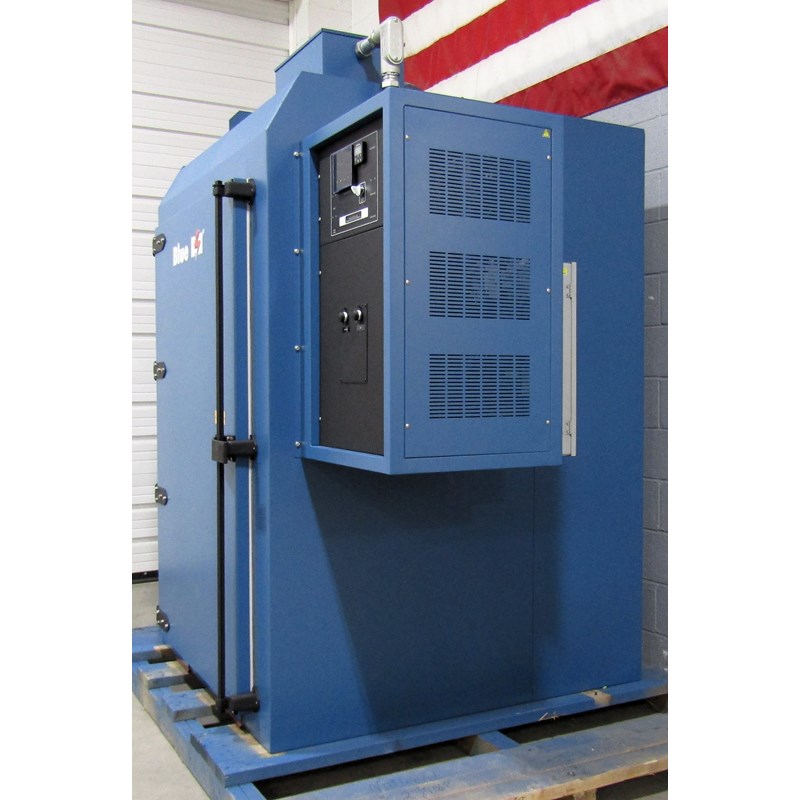

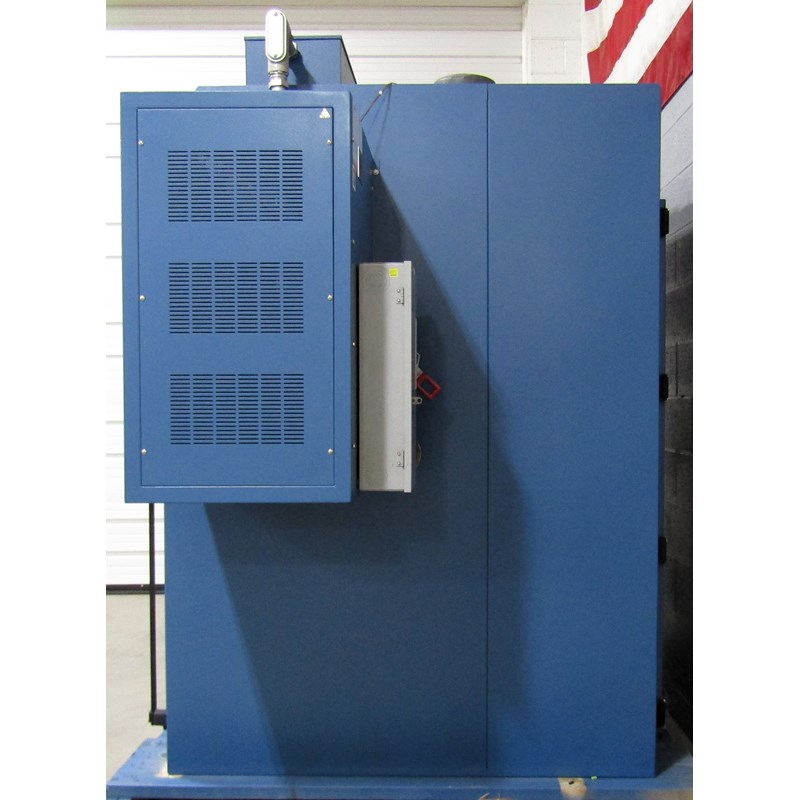

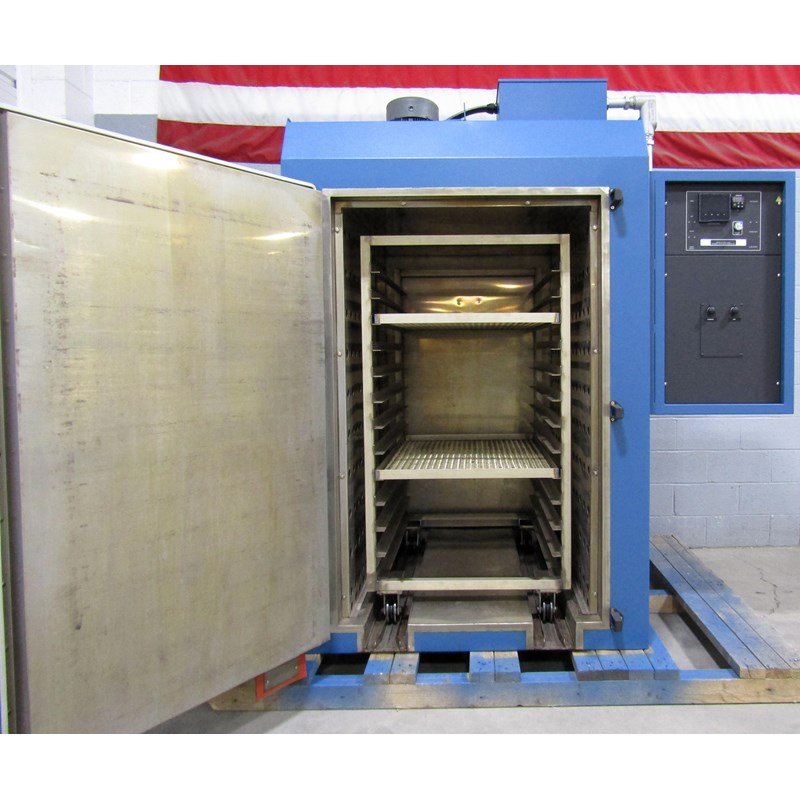

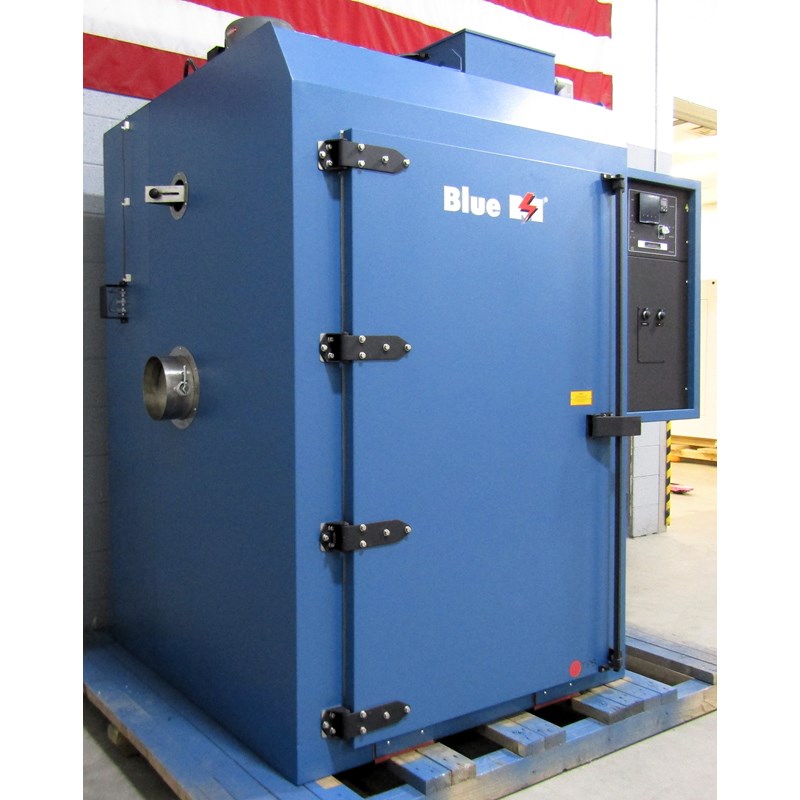

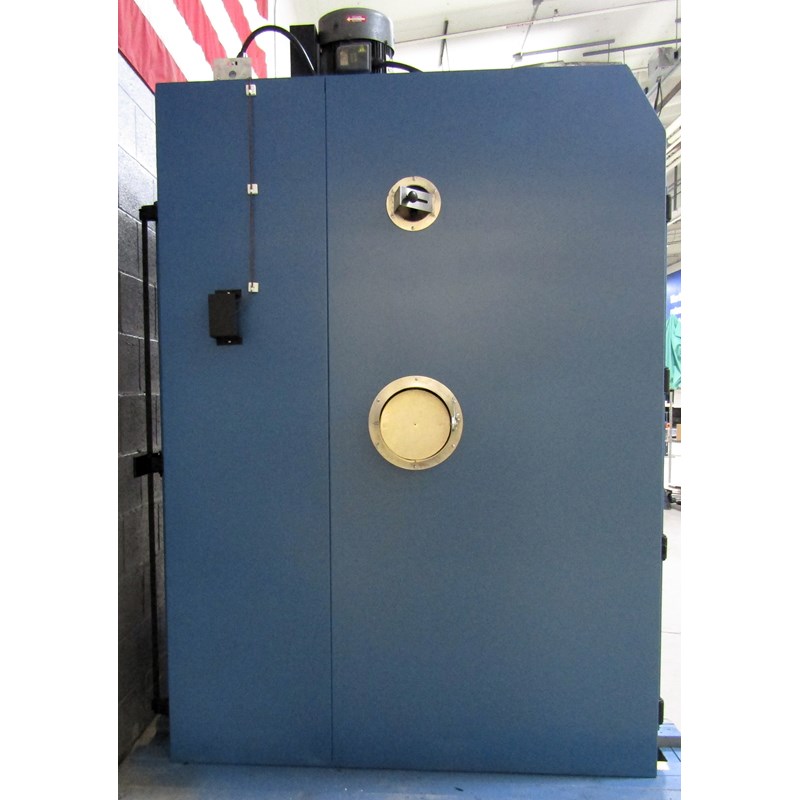

Blue M DCRI-366 Roll-In Rack Oven Serial#: 135085

New & In-Stock!  Ready to ship in 3-5 Days!

Blue M industrial batch ovens provide customers with reliability and superior performance. These batch ovens are ideal for a variety of testing and industrial applications. The Blue M batch oven utilizes a high volume horizontal air re-circulation system which maximizes temperature uniformity and performance. Optional items such as stainless steel shelves, viewing windows, and data acquisition devises can be added to meet your process needs.

Benefits

  • Standard Cabinet Oven (Model DC), available in an array of sizes
  • Standard options available for a High Power, a High Temperature (750°F maximum), and a Truck-In (DCRI) version
  • High volume horizontal air re-circulation system and electric heating system allow for maximum temperature uniformity in performance
  • Differential airflow switch if loss of airflow is detected and shuts down oven's heaters
  • Excellent reliability and performance ratings

Features

  • Nichrome wire heater elements for durability
  • Centrifugal type blower wheel for efficient air flow through the system
  • Horizontal air flow
  • One-pass air flow
  • Infinitely variable control (from full re-circulation to full one pass) and optional automatic motorized damper for flexibility with your process
  • Side-mounted control compartment for easier control access (60 and 96 cu. ft. models only)
  • Profiling or single set point controls
  • Direct drive blower
  • Manually adjustable intake/exhaust system for ease of balancing
  • Enclosed wiring to meet National Electric Code (NEC) for safe operation

Pricing Information

  • List Price New: $23,360.00
  • Purchase This Unit For: $23,360.00

Specifications

  • Computer Interface: Ethernet Communications Standard with Controller
  • Door Style: Standard Single Door
  • Door Hinge: Left Hand
  • Warranty: 2 Year Labor and 2 Year Parts
  • Over Temperature Protection is included as standard on this model
  • Temperature Range: 15°C above ambient to 316°C
  • Interior Dimensions W x D x H (inches): 36 x 36 x 48
  • Exterior Dimensions W x D x H (inches): 63 x 51 x 85
  • Crating Dimensions W x D x H (inches): 73 x 61 x 95
  • Cabinet Type: Floor Standard Single Door
  • Electrical Power: 230V/240V 3 Phase 60 Hz
  • Amp Draw: 47
  • Heater:18 kW
  • Weight:1482.0

Control System

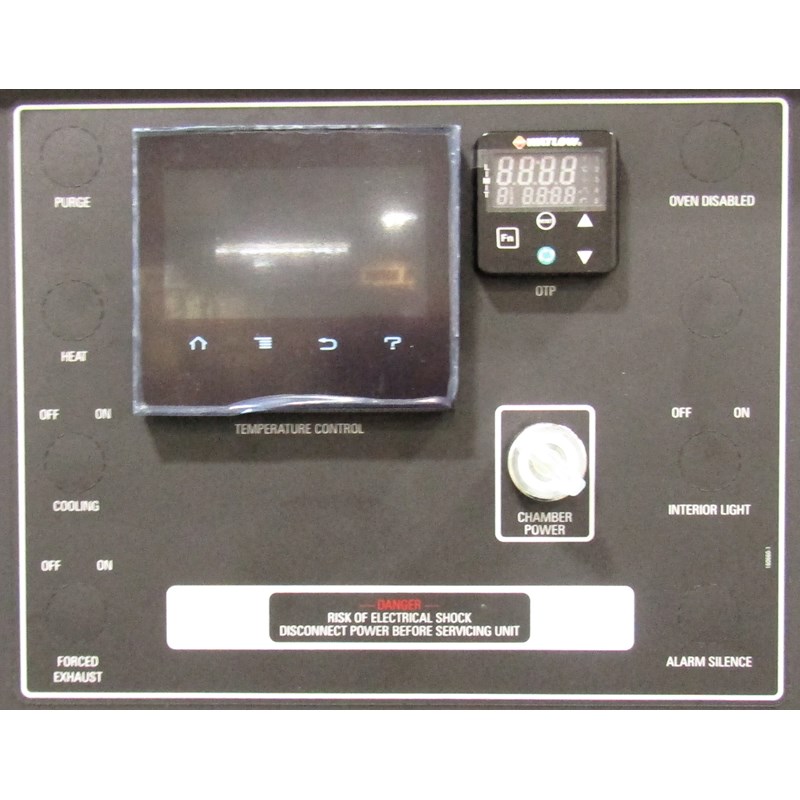

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.

Features

  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart
  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment

Options

Included Options

  • Blue M 2 year parts and labor warranty
  • Over Temperature Protection

Available Options

  • 3" Port
  • Roll In Racks
  • Watlow F4T data logging and chart trending upgrades
