TPS

Temperature Range: -68°C to 180°C
1 In Stock

Product Page

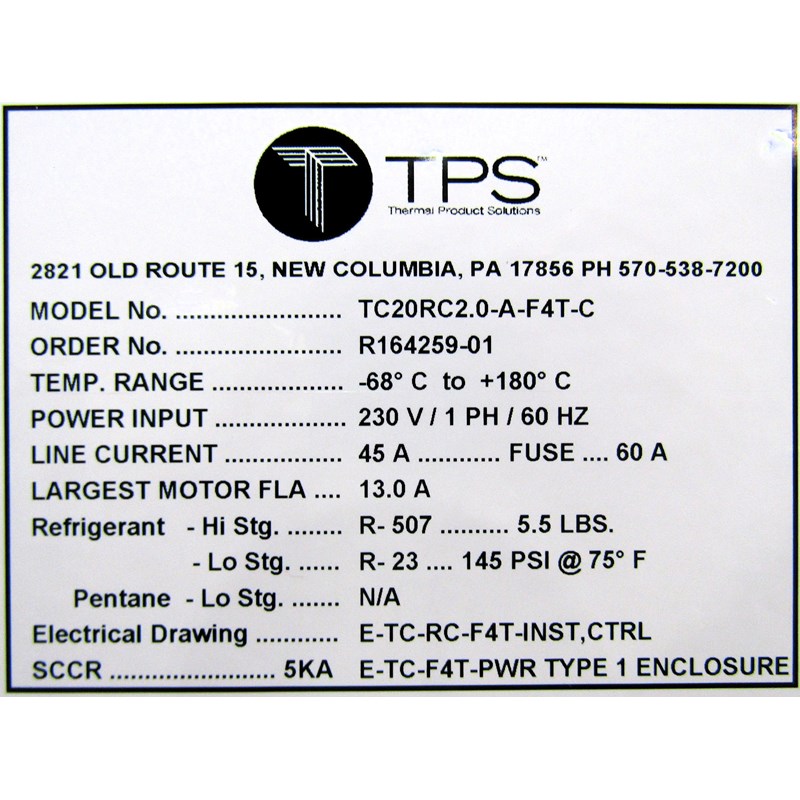

Tenney TC20RC2.0-A-F4-C Temperature & Humidity Chamber Serial#: 123718-01

Rental Returned TC20RC.  Available to Buy or Rent.  Can be ready to ship in 2-3 Days.

The TC Series of environmental cycling reach-in test chambers include both temperature-only chambers and temperature / humidity chambers. The Tenney TC Series Cycling Test Chambers offer design features for optimal performance such as a high volume horizontal-down air circulation system with an electric heating system and a mechanical refrigeration system. If the humidity option is selected, a vapor injection type humidification system is used to condition the product. A wide range of options can be added to enhance the equipment. Since 1932, Tenney engineering continues to incorporate the latest technologies in heating, cooling, and humidification to meet the most stringent demands in the industry.

Benefits

  • Design features for optimal performance such as high volume horizontal down air circulation
  • Electric heating system and mechanical refrigeration system
  • Vapor injection type humidification system
  • Wide range of options available

Features

  • Four leveling casters
  • Two 3-inch access ports each centered in sidewall of the chamber
  • Window in Door and Interior Light
  • Computer Interface: Ethernet
  • Unit has a minimum standard shelf spacing of 2". This particular chamber can accommodate a maximum of 6 shelves.

Pricing Information

  • List Price New: $24,830.00
  • Purchase This Unit For: $16,900.00
  • Rent This Unit For: $1,650.00 / month

Specifications

  • Temperature Range: -68C to 180C
  • Humidity Range: 20% to 95% RH over the temperature range of 20C to 85C limited by a 3C dew-point
  • Condenser Type: Air
  • Interior Dimensions: W X D X H (inches) 30 x 32 x 36
  • Exterior Dimensions: W X D X H (inches) 49 x 64 x 77
  • Crating Dimensions: W X D X H (Inches) 54 x 70 x 83
  • Electrical Power: 230V/240V 1 Phase 60Hz
  • Amp Draw: 45
  • Amp Fuse: 60
  • Weight 1692#
  • FG# R717536-01

Control System

Watlow F4 Temperature Controller

Watlow F4 Temperature Controller

  • Dual channel
  • Profiling: 40 profiles, 256 steps
  • Automatic & manual control
  • 2 Analog inputs, universal-type (RTD is standard)
  • 4 Digital inputs
  • 2 Auxiliary analog inputs -- optional
  • 2 Control outputs: time proportioned, on/off or 4-20 mA
  • 2 Alarm outputs
  • 8 Digital event outputs
  • 2 Retransmit outputs -- optional
  • Communications: EIA-232 and EIA-485 with Modbus RTU protocol

Options

Included

  • RS485 Communications standard with the Watlow F4 controller
  • Set of Four leveling casters
  • Heated window in door w/internal light
  • Water Regulator Assembly
  • 1 Year Parts and Labor Warranty

Available

  • Shelves
  • Cooling Boost - CO2 or LN2
  • Dry Air Purge
  • Dehumid Dry Air - GN2 Purge system
  • Boost Heat
  • Five Gallon Reservoir w/recycling system
  • DI Cartridge System
  • Reverse Osmosis System
  • Pump to drain
  • NIST Certificate of Calibration
  • A2LA ISO17025 Calibration
  • Maintenance kit
  • Upgrade to the Watlow F4T controller

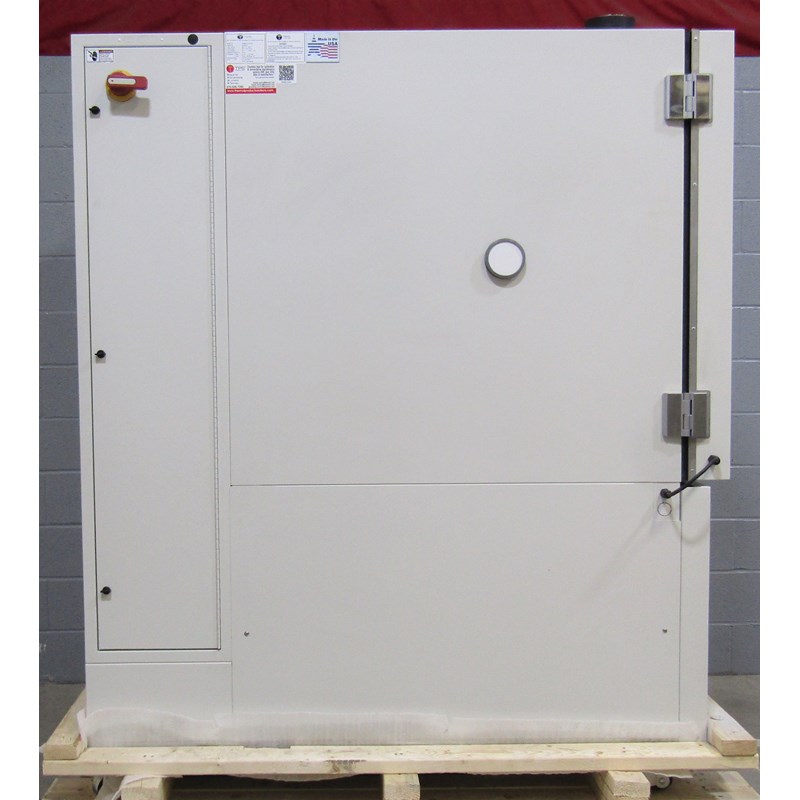

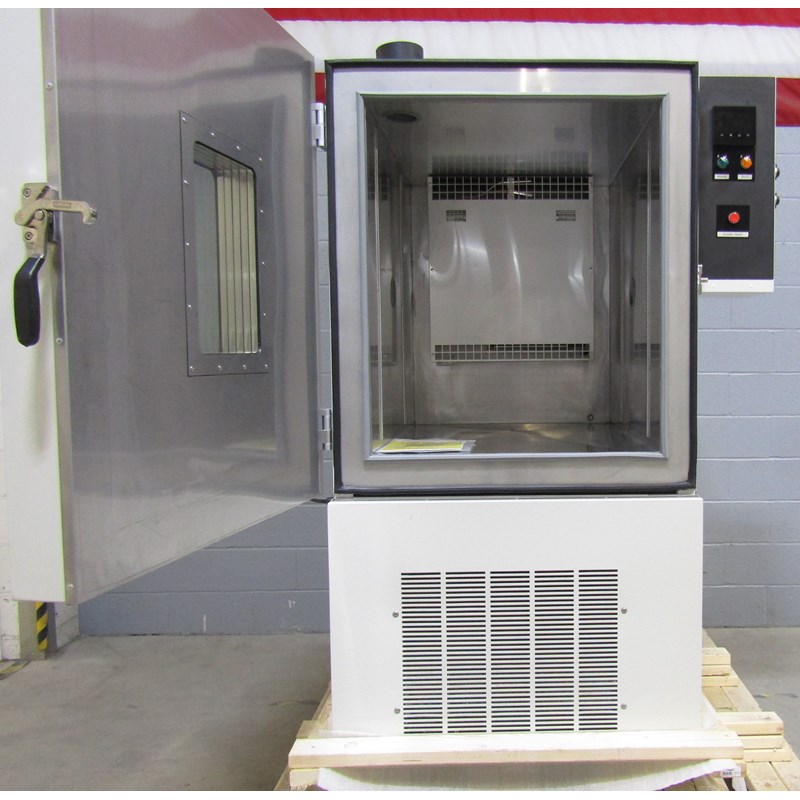

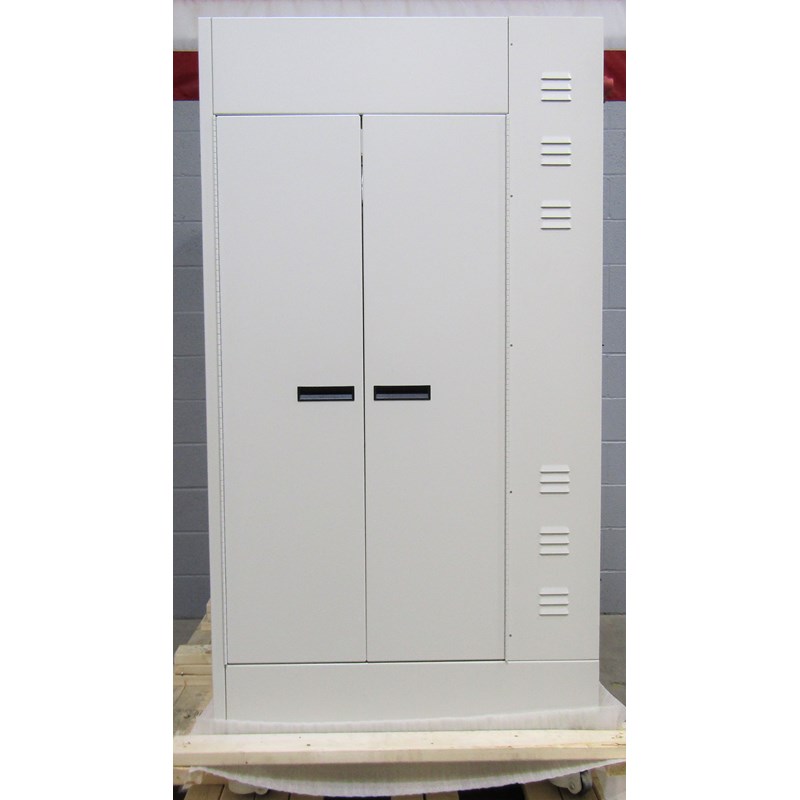

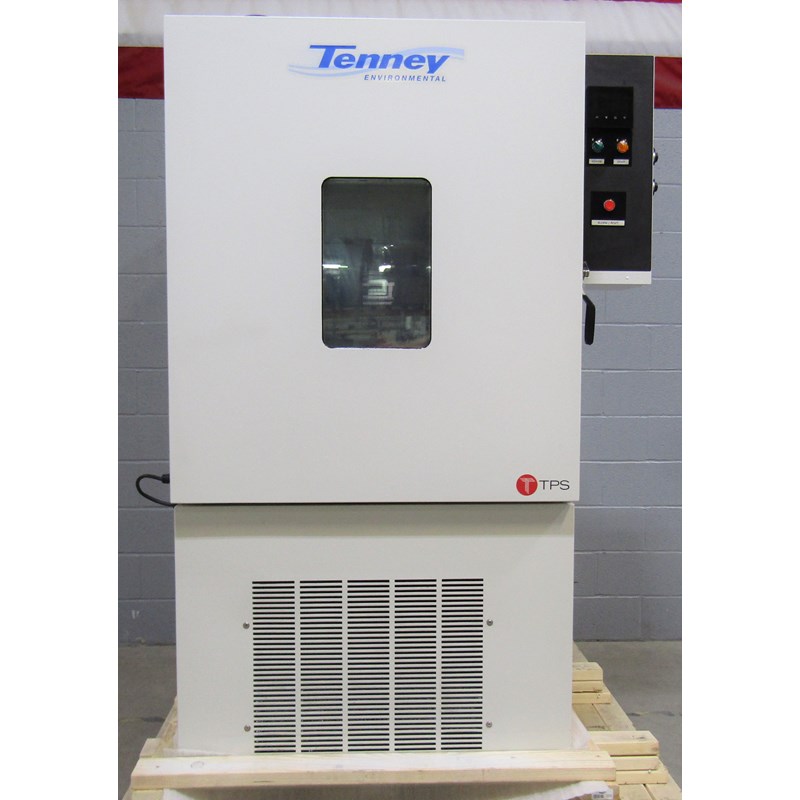

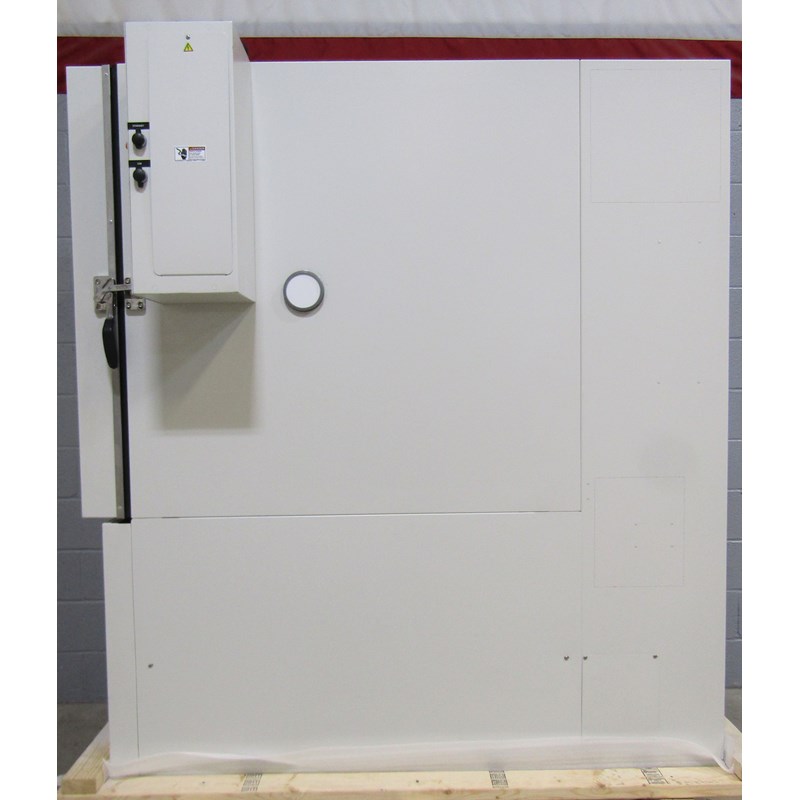

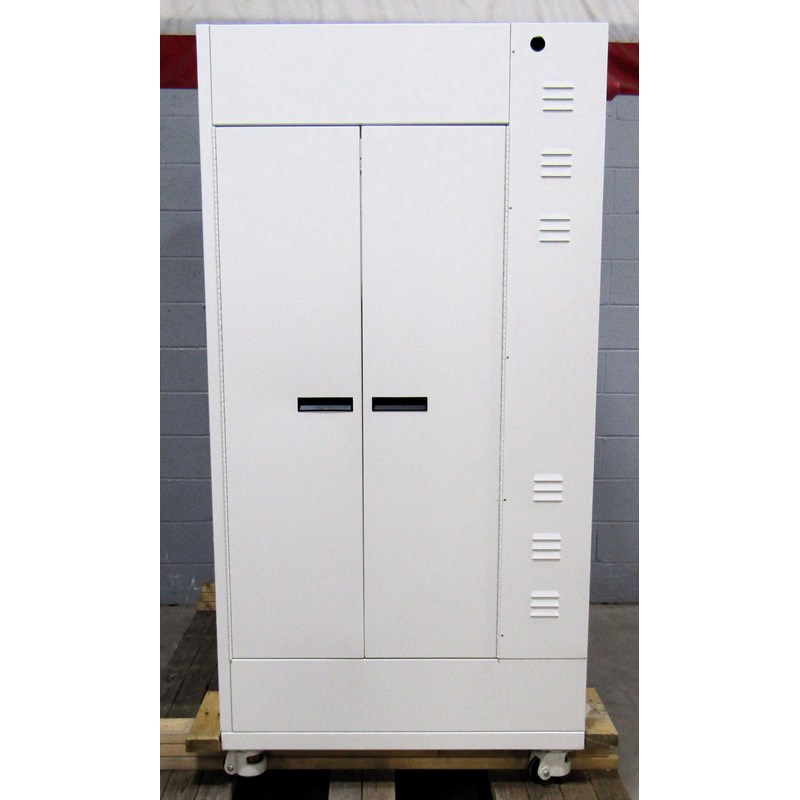

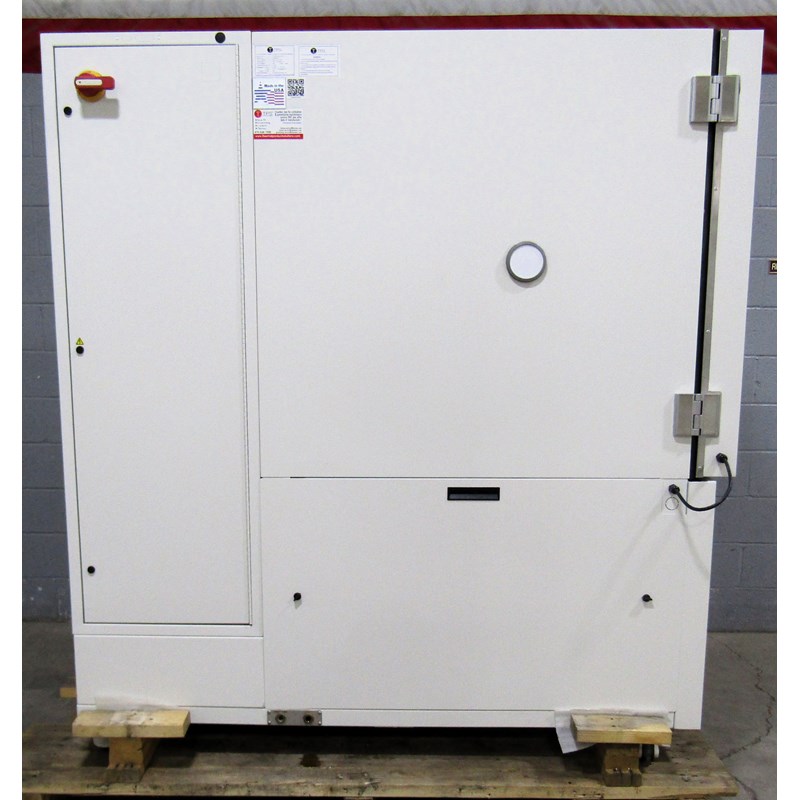

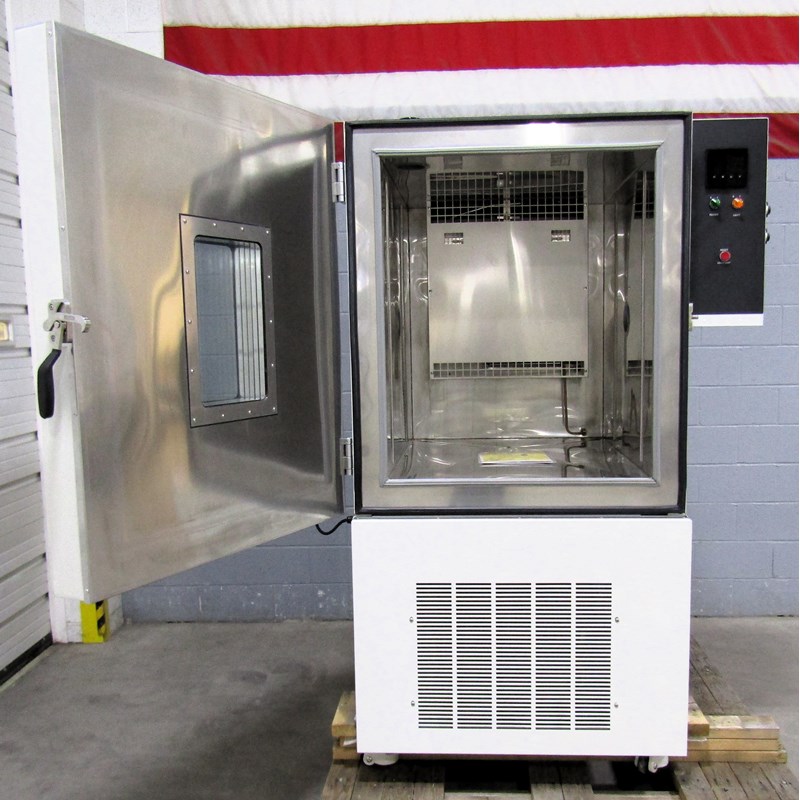

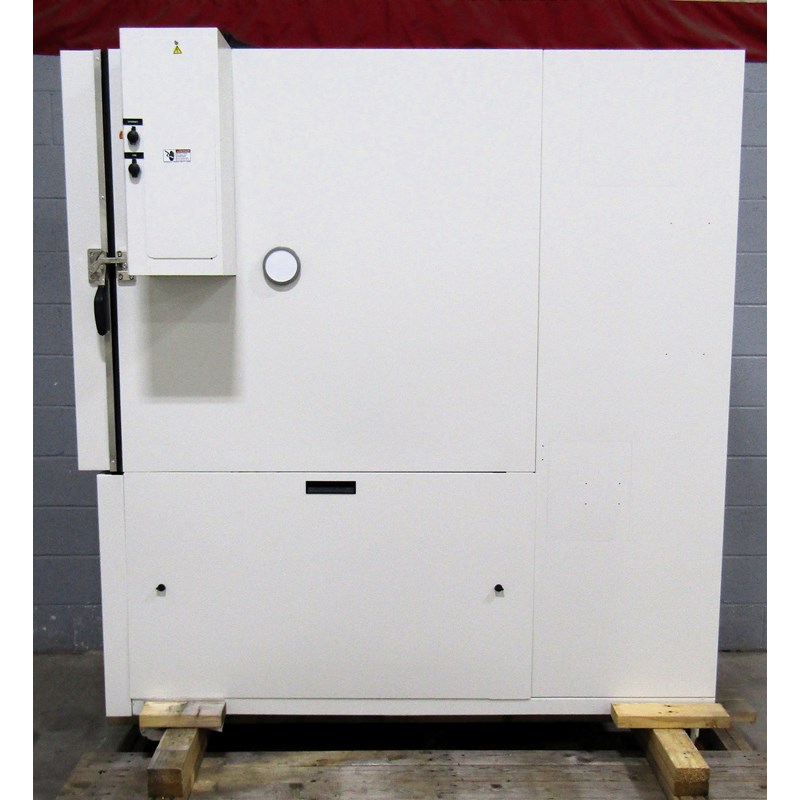

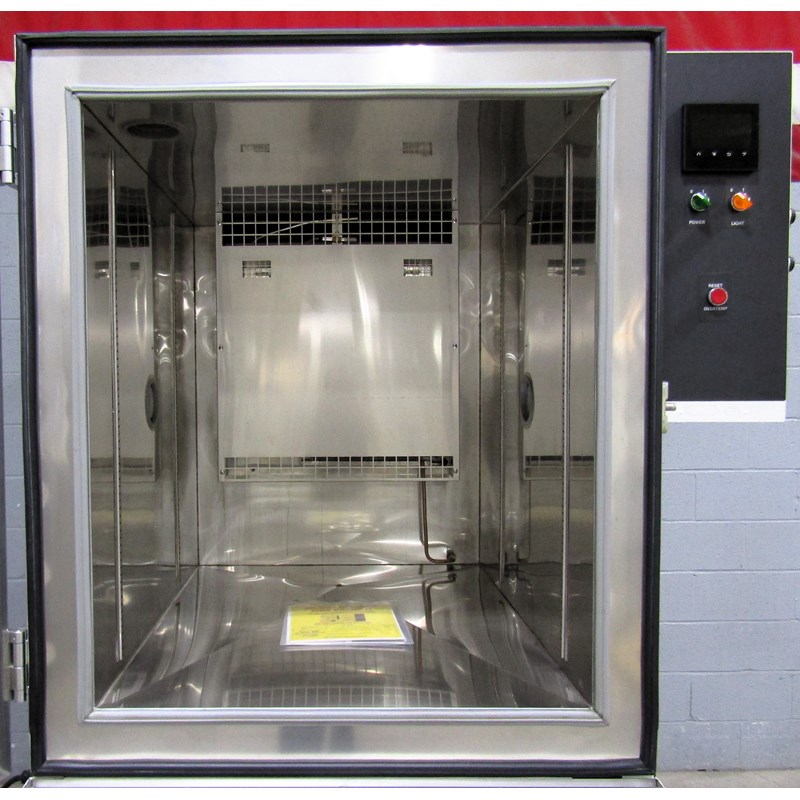

Additional Images
