Temperature Range: -68°C to 180°C
One In Stock for Quick Shipment

Product Page

Tenney T2C Temperature Test Chamber Serial#: 163047-02

In Stock and Available for Rent or Purchase.  Can Ship in 3-5 Days!


  • Easy to use controller
  • Fiberglass and polyurethane around chamber for uniform insulation
  • Minimal thermal transfer for more accurate results
  • Accurate control and display with minimum maintenance
  • Units are mobile
  • The Tenney T2 Temperature Test Chamber has a minimum footprint


  • Vapor-tight, continuously welded stainless steel interiors
  • Low work space height to ease the loading and unloading of product
  • Vertical re-circulation conditioning system
  • Ethernet data communications with data logging
  • Platinum Resistance Temperature Detector (RTD)
  • Cascade refrigeration system
  • Built in safety devices

Pricing Information

  • List Price New: $12,876.00
  • Purchase This Unit For: $12,876.00
  • Rent This Unit For: $1,050.00 / month


  • Internal Dimensions: 16"W x 13.5"D x 16"H
  • External Dimensions: 26"W x 27"D x 65"H
  • Temperature Range -68°C to 180°C
  • Power Requirement- 120VAC, 20A
  • Approx. Weight: 495 lbs.
  • Shelf Loading: 10 lbs/shelf, not to exceed 50 lbs total loading.
  • Refrigeration: Cascade 1/2 HP
  • FG# R753140-02

Control System

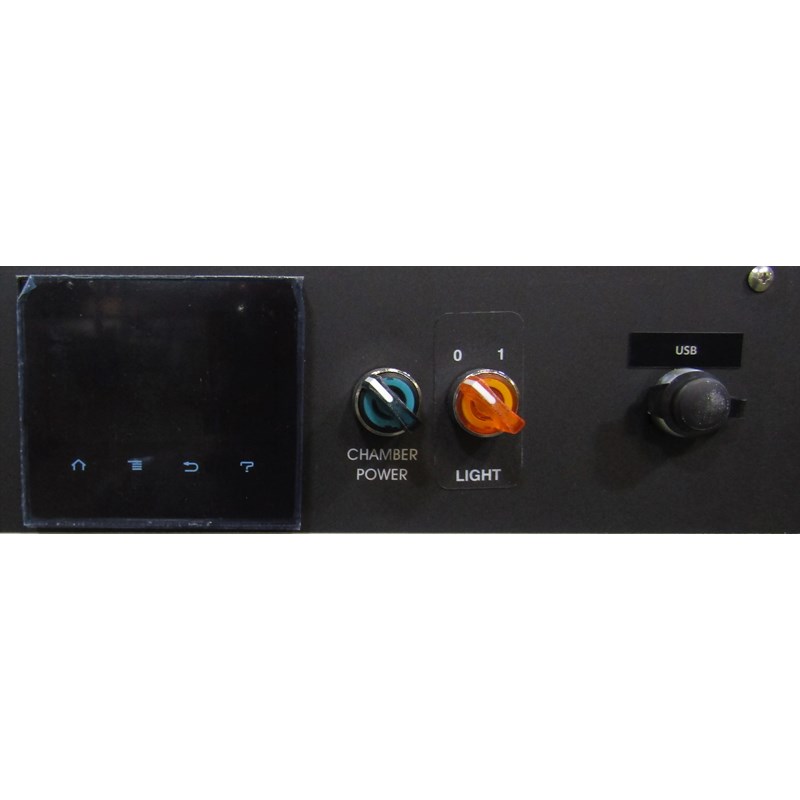

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.


  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart
  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment


Included Options

  • Viewing Window
  • Chamber Light

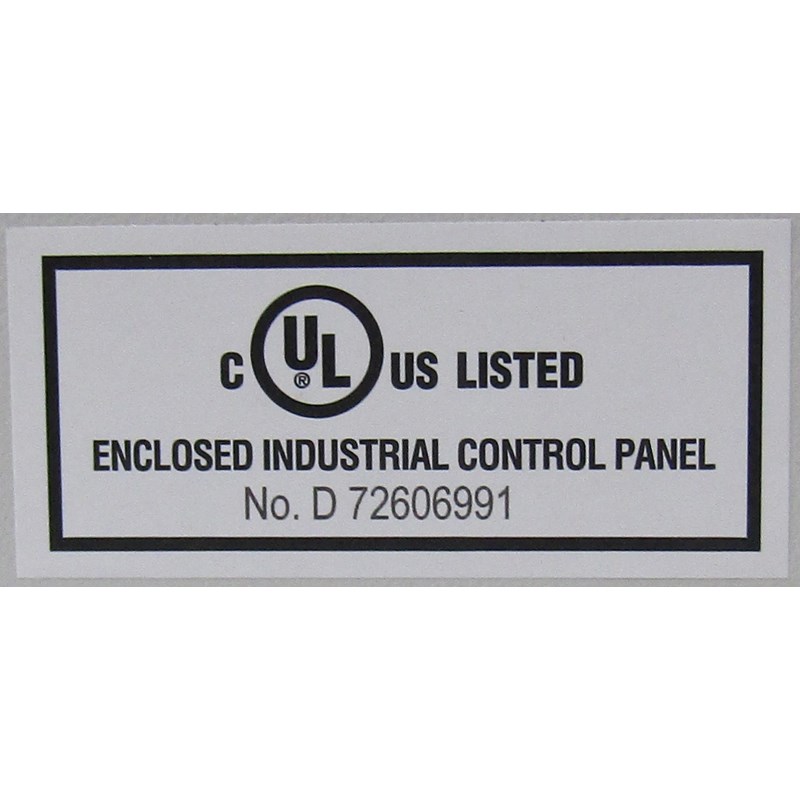

  • C/UL508 Control Panel
  • Data Logging
  • Chart Trending

Available Options

  • Stainless Steel Shelves
  • Maintenance Kit
  • Dry Air Purge System
  • GN2 Purge System
  • LN2 Boost Cooling System
  • CO2 Boost Cooling System

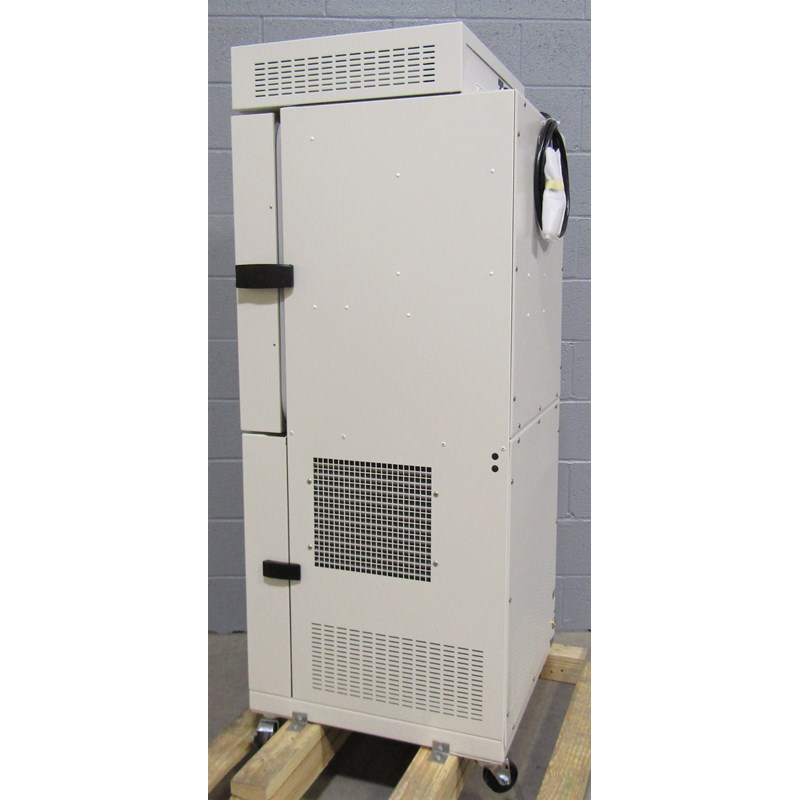

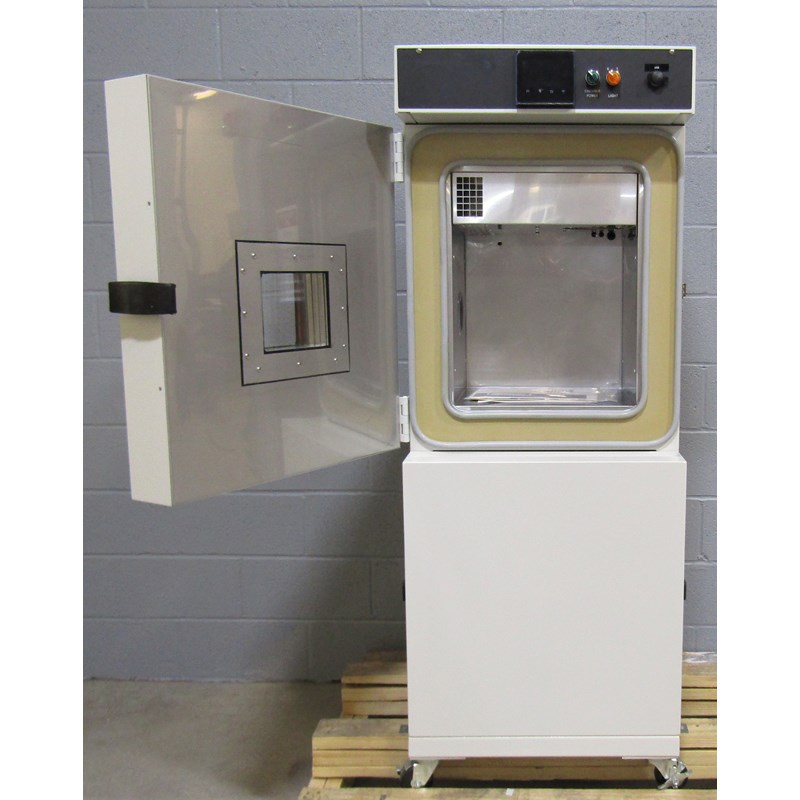

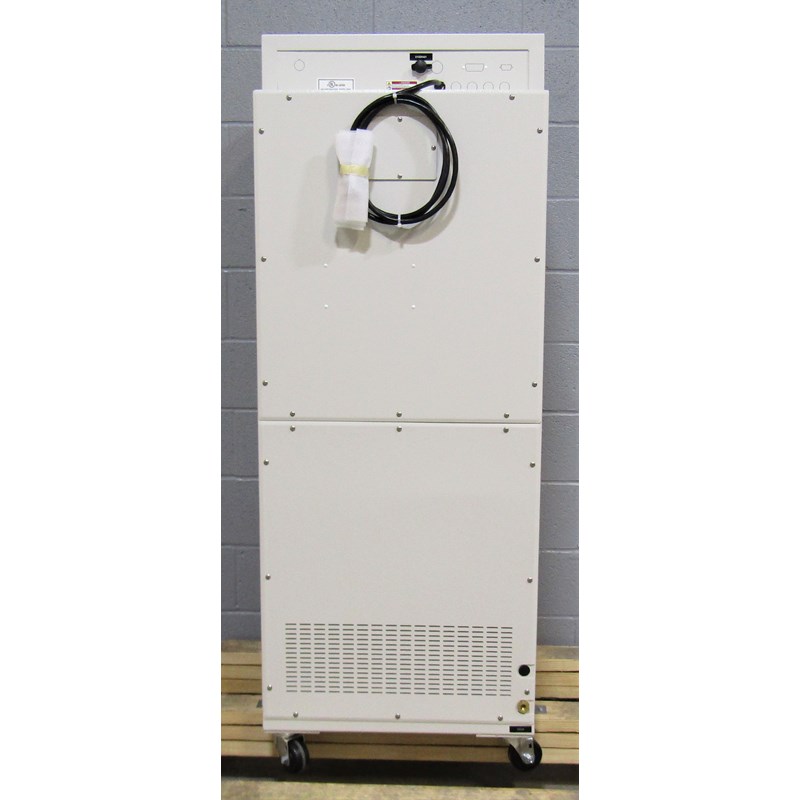

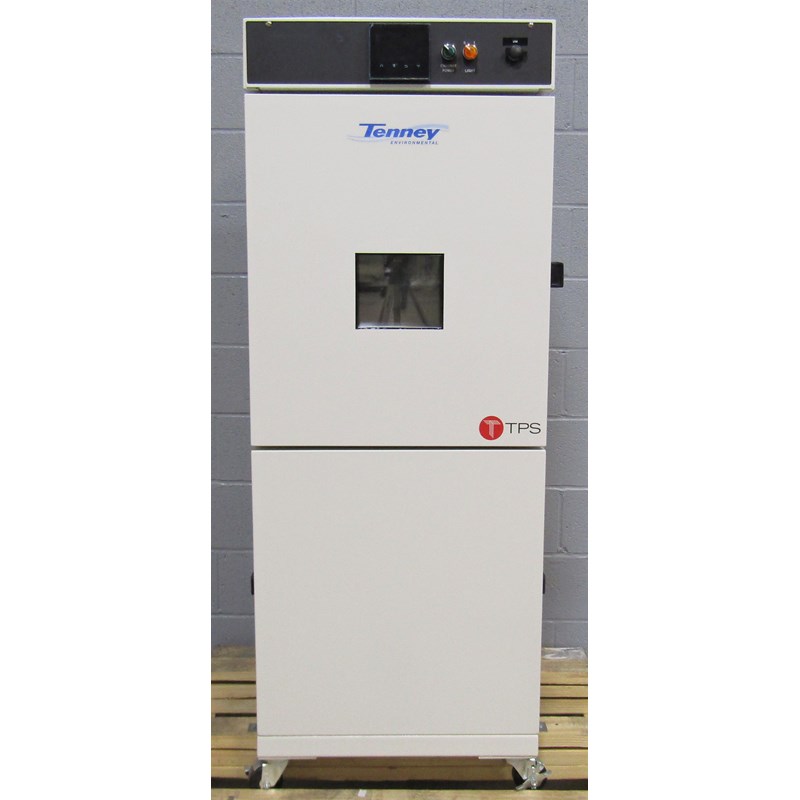

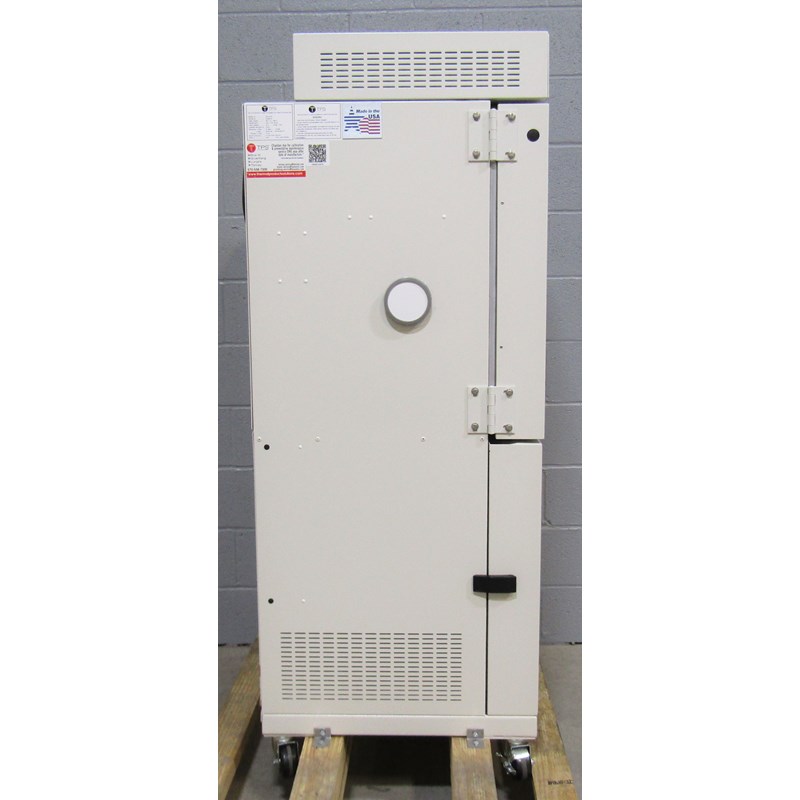

Additional Images
