TC30RC2.0-A-F4T-C Tenney "TCseries" Temperature & Humidity Test Chambers Serial#: 164866-02

Tenney TC30RC Temperature & Humidity Chamber Available for Rent. Can Ship in 3-5 Days!  Ask about our Rent to Own Option!

The TC Series of environmental cycling reach-in test chambers include both temperature-only chambers and temperature / humidity chambers. The Tenney TC Series Cycling Test Chambers offer design features for optimal performance such as a high volume horizontal-down air circulation system with an electric heating system and a mechanical refrigeration system. If the humidity option is selected, a vapor injection type humidification system is used to condition the product. A wide range of options can be added to enhance the equipment. Since 1932, Tenney engineering continues to incorporate the latest technologies in heating, cooling, and humidification to meet the most stringent demands in the industry.

Benefits

  • Design features for optimal performance such as high volume horizontal down air circulation
  • Structural reinforcement is used at all critical points
  • Through wall ports are continuously welded
  • Electric heating system and mechanical refrigeration system
  • Wide range of options available

Features

  • Casters (2 locking)
  • Watlow F4T Profiling Control System
  • Ethernet Communications
  • Window in Door
  • Chamber light
  • UL508A Control Panel

Pricing Information

  • List Price New: N/A
    •
  • Purchase This Unit For: N/A
    •
  • Rent This Unit For: $2,250.00 / month
    •

Specifications

  • Temperature Range: -68°C to 180°C
  • Temperature Fluctuation: +/- 1.0 Deg C measured at control sensor
  • Humidity Fluctuation: +/- 5% RH after stabilization
  • Humidity Range: 20% to 95%, RH over the temperature range of 20°C to 85°C, limited by a 5°C dew point
  • Interior Dimensions W X D X H (inches): 36 x 40 x 36
  • Exterior Dimensions W X D X H (inches): 55 x 72 x 77
  • Crating Dimensions W X D X H (inches): 61 x 80 x 83
  • Electrical Power: 230V/240V 1 Phase 60 Hz
  • Amp Draw: 45
  • Amp Fuse: 60
  • Weight: 1896

Control System

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.

Features

  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart
  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment

Options

Included Options

  • Two (2) three inch diameter access ports with plugs (1 on each side, centered in the work space). Both ports and plugs are silicone.
  • 10" x 15.5" Viewing Window
  • Chamber Light
  • Data Logging & Chart Trending
  • Ethernet Communications
  • One Year Parts & Labor Warranty

Available Options

  • CO2 or LN2 Boost Cooling
  • Extended Temperature Range: -73°C to 200°C
  • Dry Air Purge
  • Stainless Steel Shelves
  • Independent OTP
  • Maintenance Kit
  • Water Recycling System

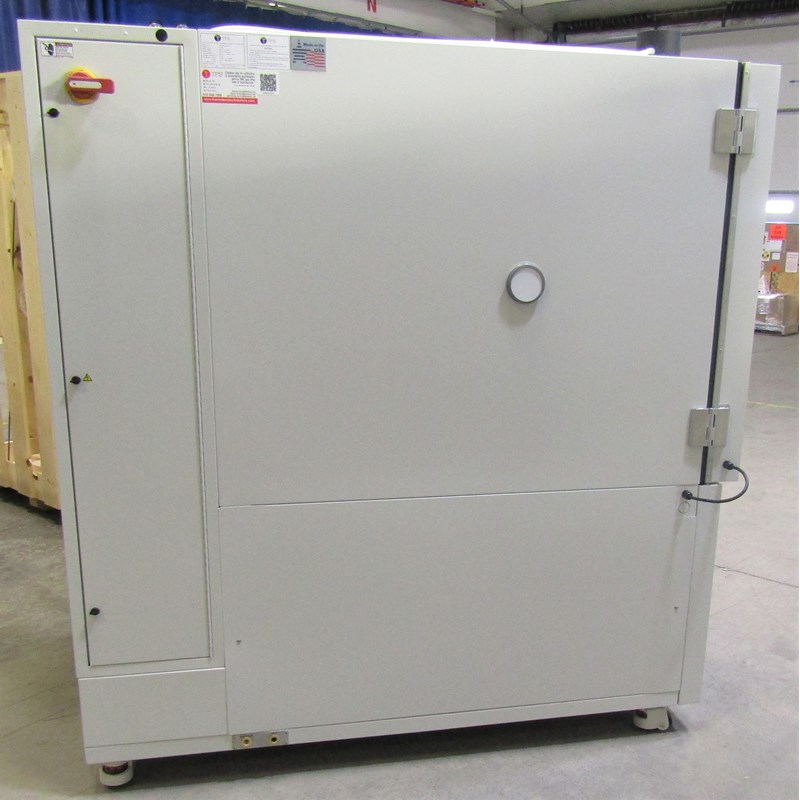

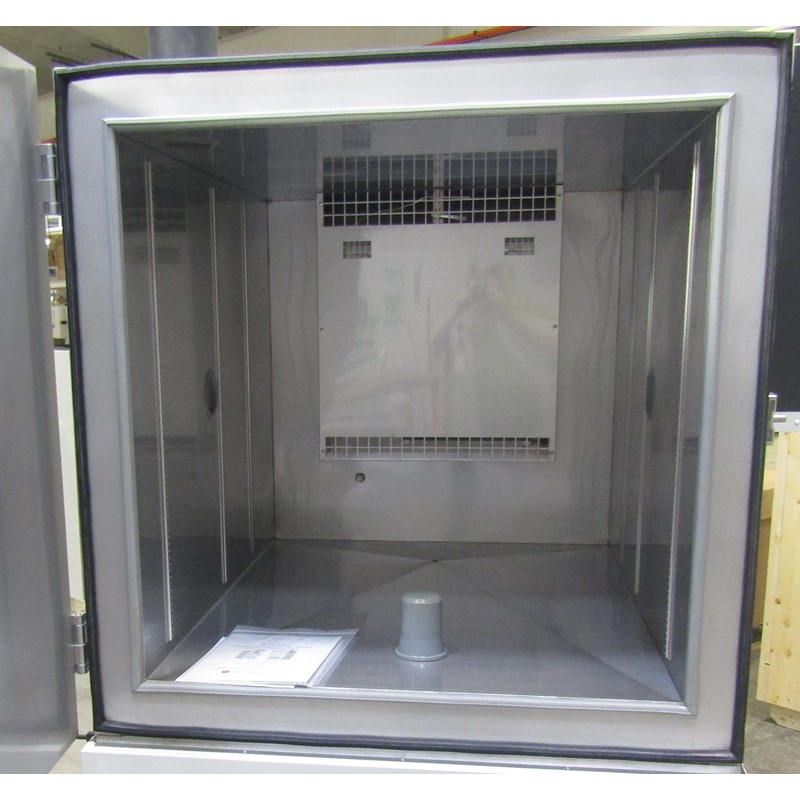

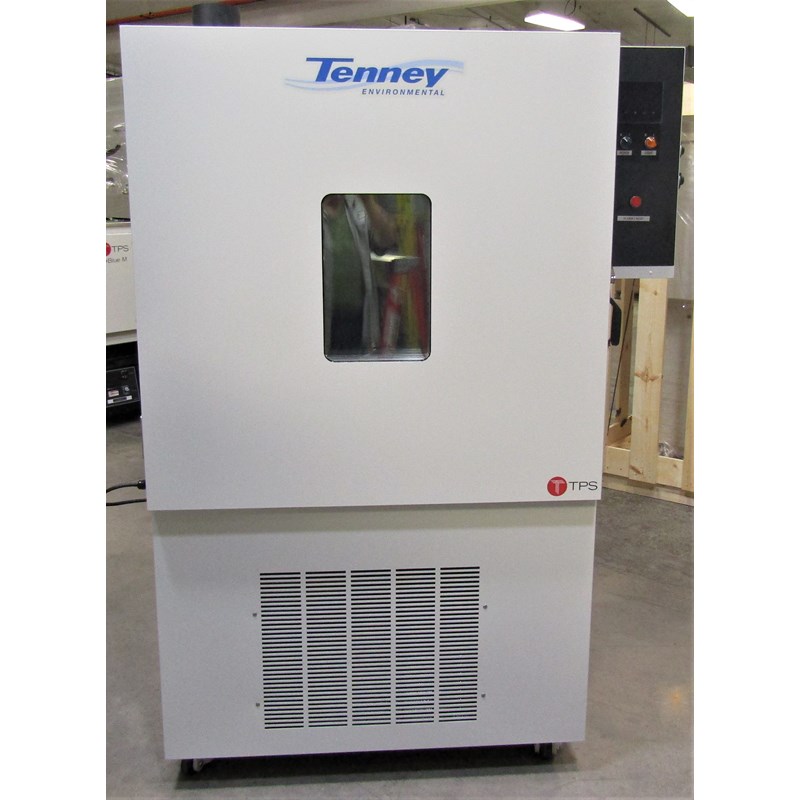

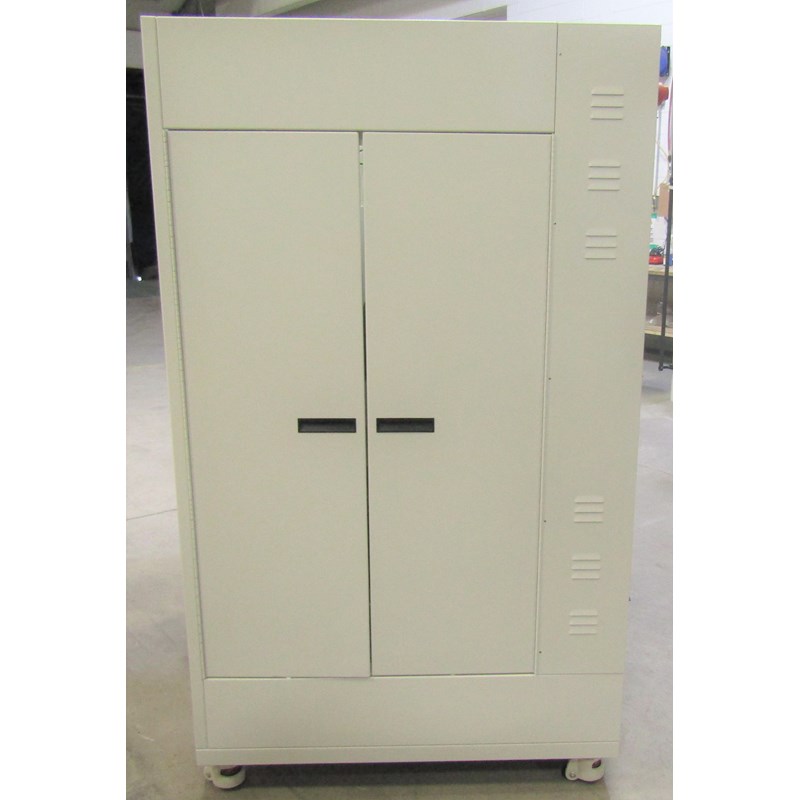

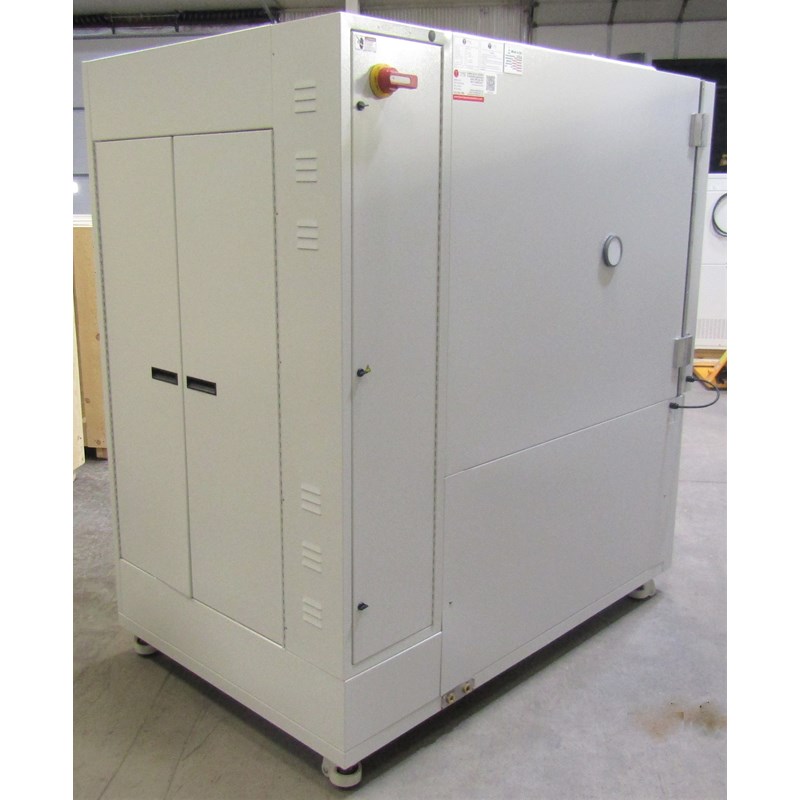

Additional Images
