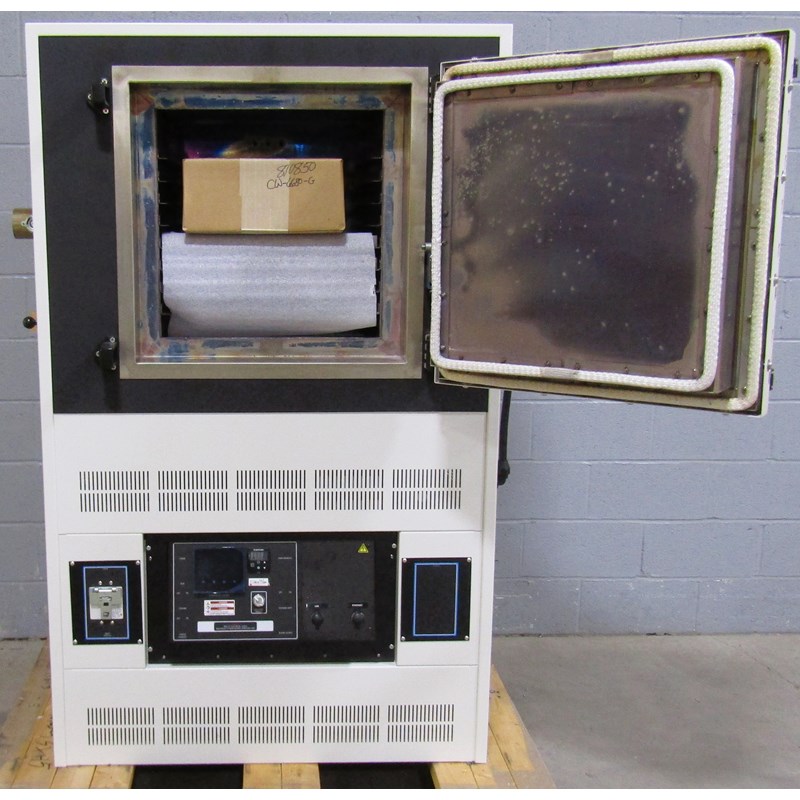

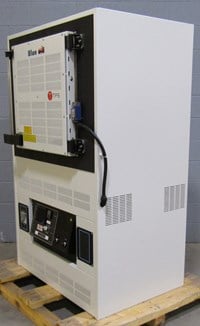

Blue M CW-6680-G-F4T Ultra Temp Mechanical Convection Oven Serial#: 174322-02

Brand New Customer-Returned High Temperature Blue M Oven.  Available for Immediate Sale.  Can Ship in 3-5 Days.

The Blue M Ultra-Temp® Standard High-Temperature Industrial Oven is ideal for annealing, heat treating, stress relieving, and a number of other high temperature processes.

Benefits

  • Horizontal airflow assures uniform thermal performance under most loading conditions.
  • Exclusive Blue M Eterna heating elements- the most reliable available, with heavy-gauge high-temperature nickel-chromium wire and low-watt density for longer service life.
  • Multi-blade, centrifugal blower with high-volume air delivery and dynamically balanced for minimum noise.

Features

  • Fully welded and sealed construction
  • Door switch (disables heat and circulation blower upon door opening)
  • Heatshield doors for minimum exterior temperature
  • 6" of mineral wool insulation to ensure safe cabinet skin temperature and minimize heat loss
  • Multiple shelf levels Heavy-duty door - double-wall, insulated construction
  • Independent, over-temperature protection (high limit controller) included

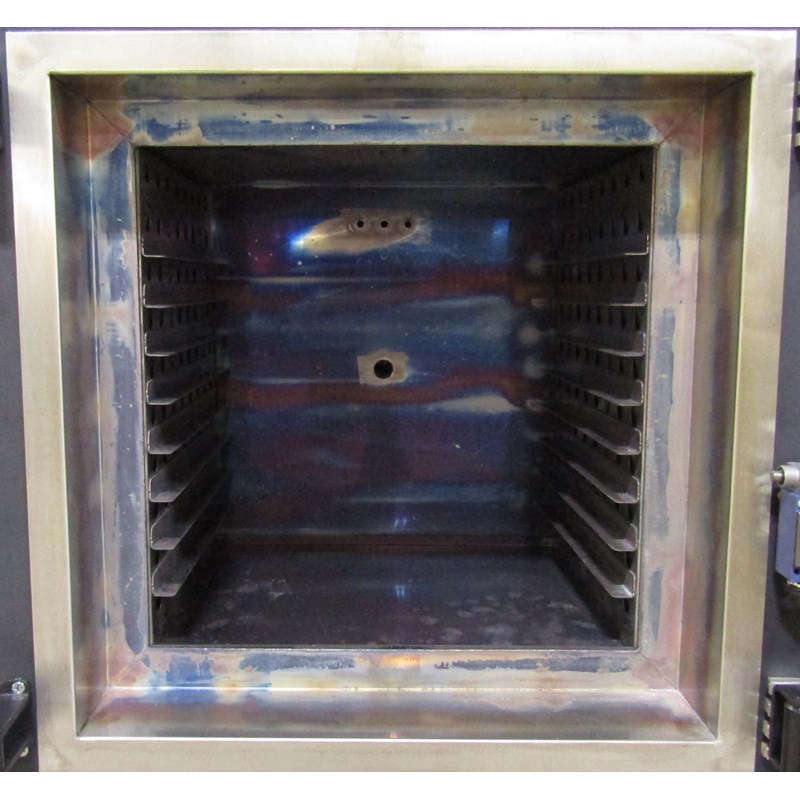

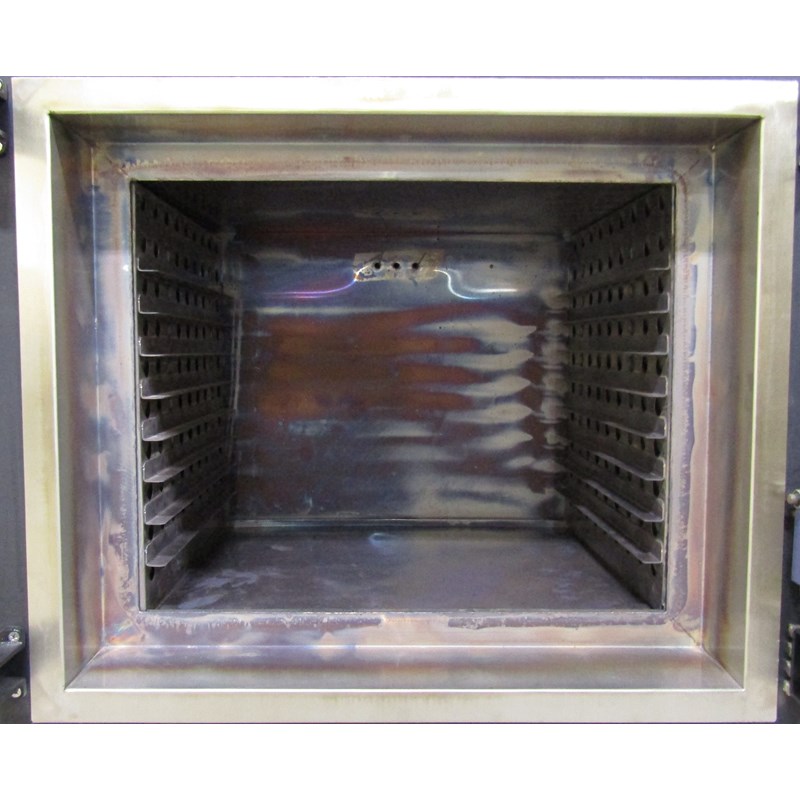

  • Corrosion-resistant, stainless steel (type 304) interior
  • All-welded, heavy-duty exterior with heavy-gauge, reinforced, cold-rolled steel
  • Baked on white powder-coated enamel finish on exterior for long-lasting corrosion protection
  • Every oven is fully assembled and individually factory tested
  • Circuit breaker provided for ground fault protection as standard
  • Three-phase operation available in 50 Hz or 60 Hz

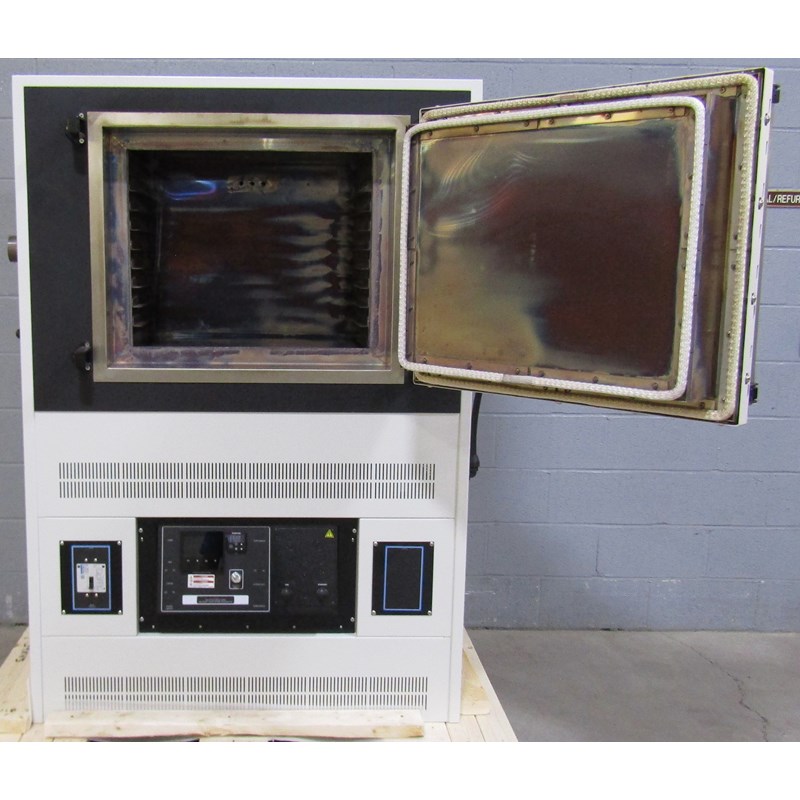

  • Blue M fiberglass tadpole door gasket design for positive sealing of door Exclusive Blue M dual-gasket door seal design maintains seal integrity at temperatures to 704°C
  • Full 1/2-inch steel front chamber mounting plate for strength and dimensional stability

Pricing Information

  • List Price New: $ 22,249.00
  • Purchase This Unit For: $ 21,249.00
  • Rent This Unit For: N/A

Specifications

  • Door Style: CW - Standard Single Door
  • Door Hinge: Right Hand
  • Over Temperature Protection is included as standard on this model
  • Temperature Range: 15°C above ambient to 704°C
  • Interior Dimensions W x D x H (inches): 20 x 18 x 20
  • Exterior Dimensions W x D x H (inches): 45 x 36 x 70
  • Crating Dimensions W x D x H (inches): 58 x 48 x 77
  • Electrical Power: 460V/480V 3 Phase 60 Hz
  • Amp Draw: 20
  • Heater: 16.0 kW

Control System

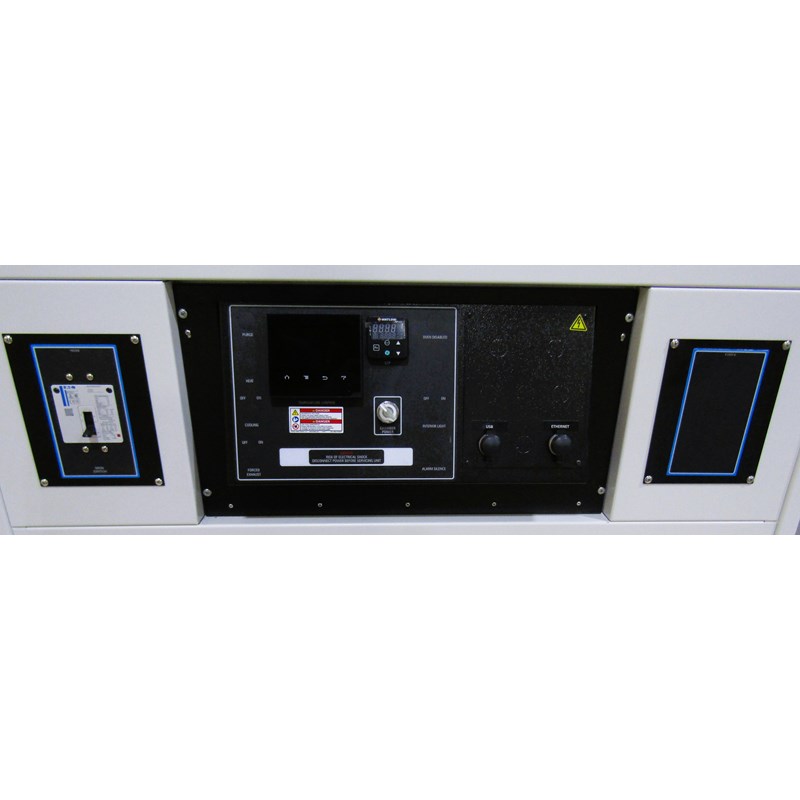

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.

Features

  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart

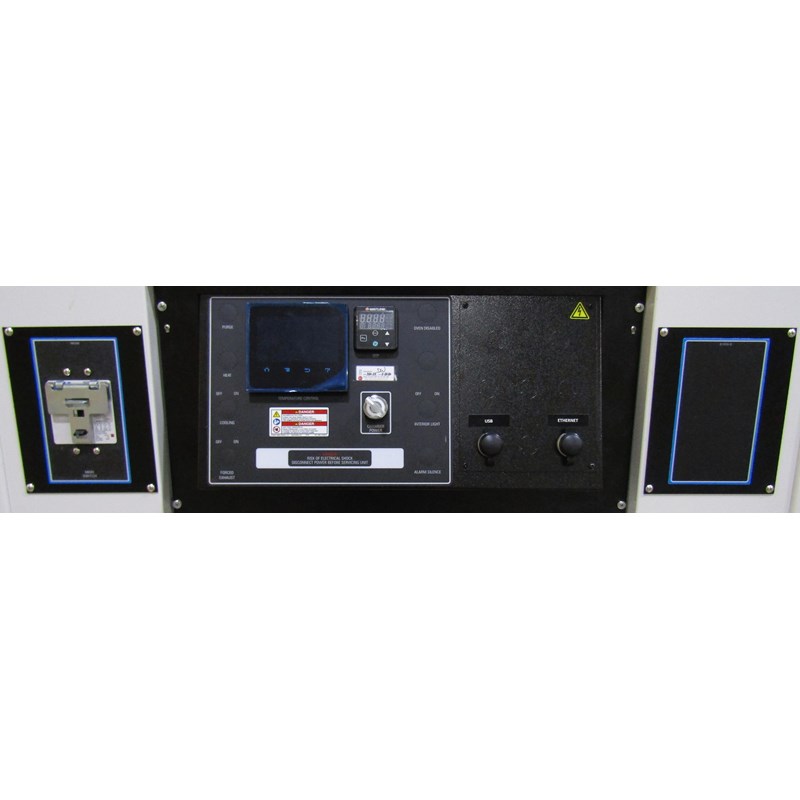

  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment

Options

Included:

  • Oven will be supplied with three (3) stainless steel slotted shelves reinforced to hold up to 150-Lbs per shelf distributed load. Total batch load is 300-Lbs distributed across the 3 shelves
  • Ethernet Communications Included as Standard w/controller
  • Over Temperature Protection
  • Warranty: One Year

Optional:

  • Standard Shelves
  • Process View Software
  • NIST Calibration
  • UL Control Panel
  • Emergency Power Off Pushbutton
  • Emergency stop
  • Light tower assembly with audible alarm
  • Maintenance lock-out system
  • Main power fused disconnect switch
  • Maintenance Kit
  • F4T Upgrade: Data Logging & Chart Trending

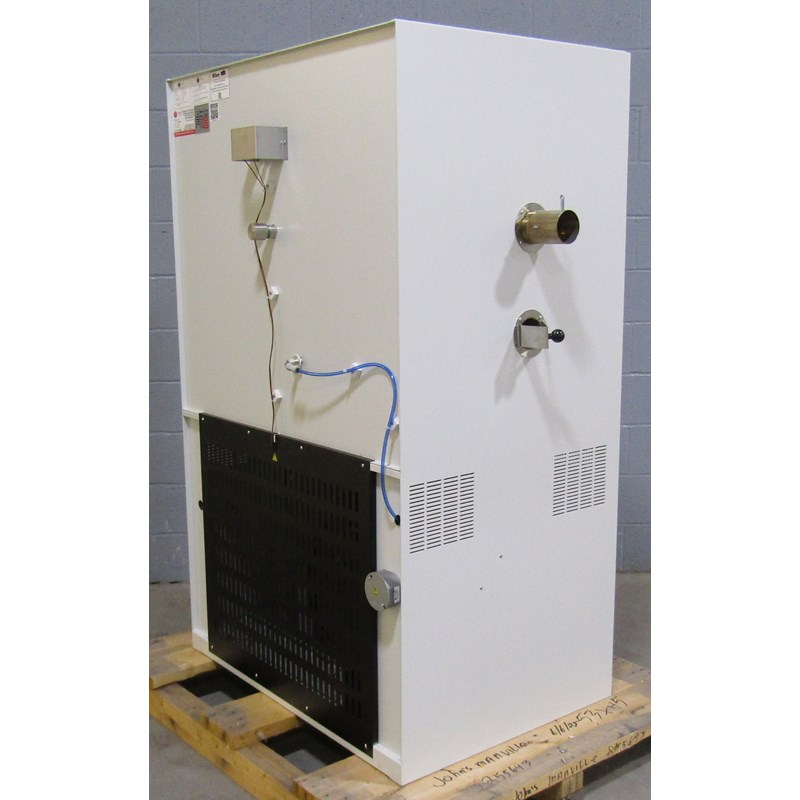

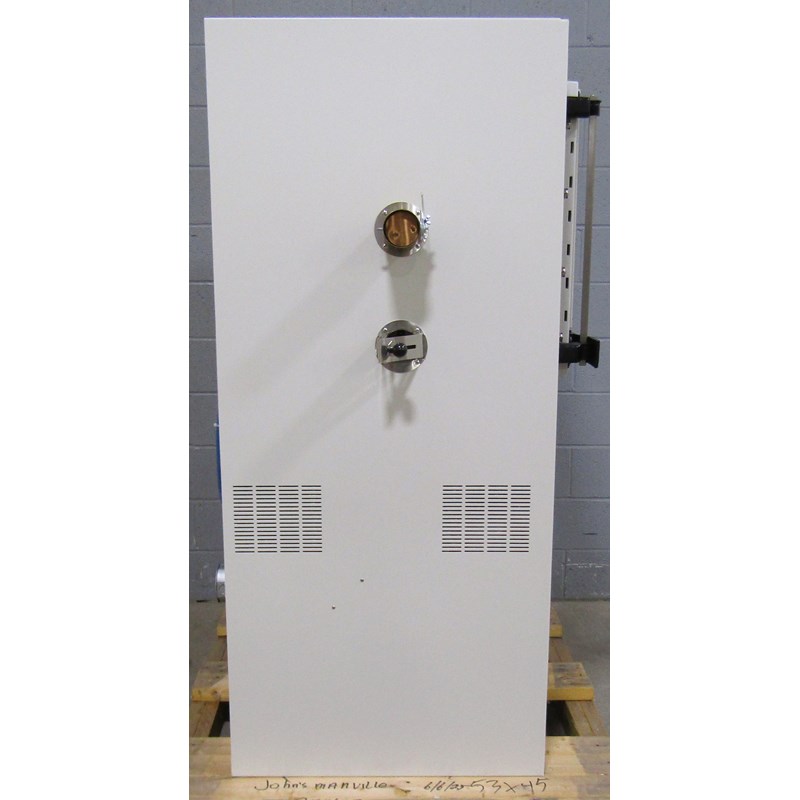

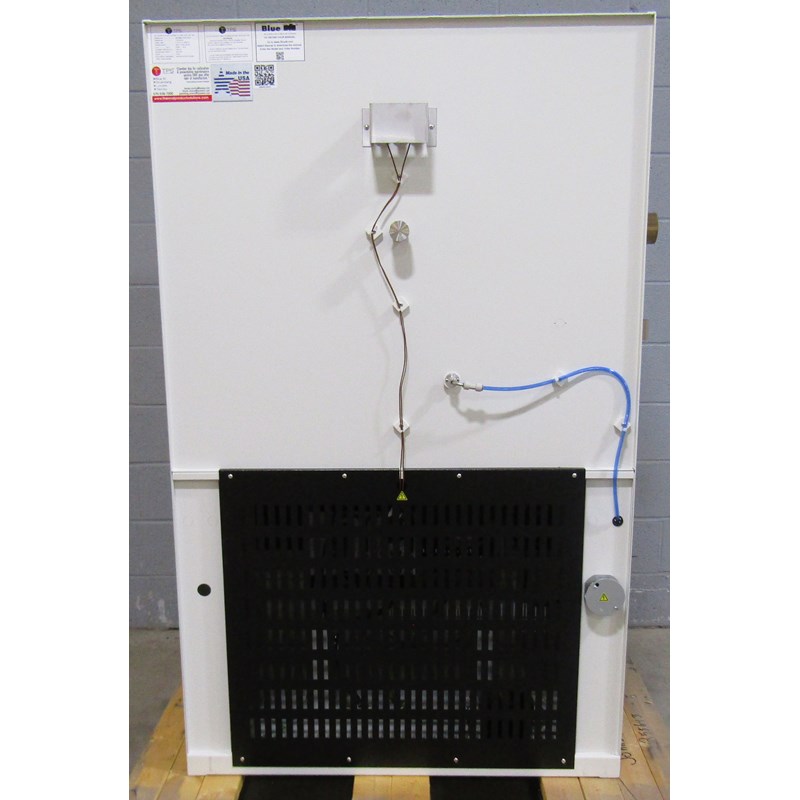

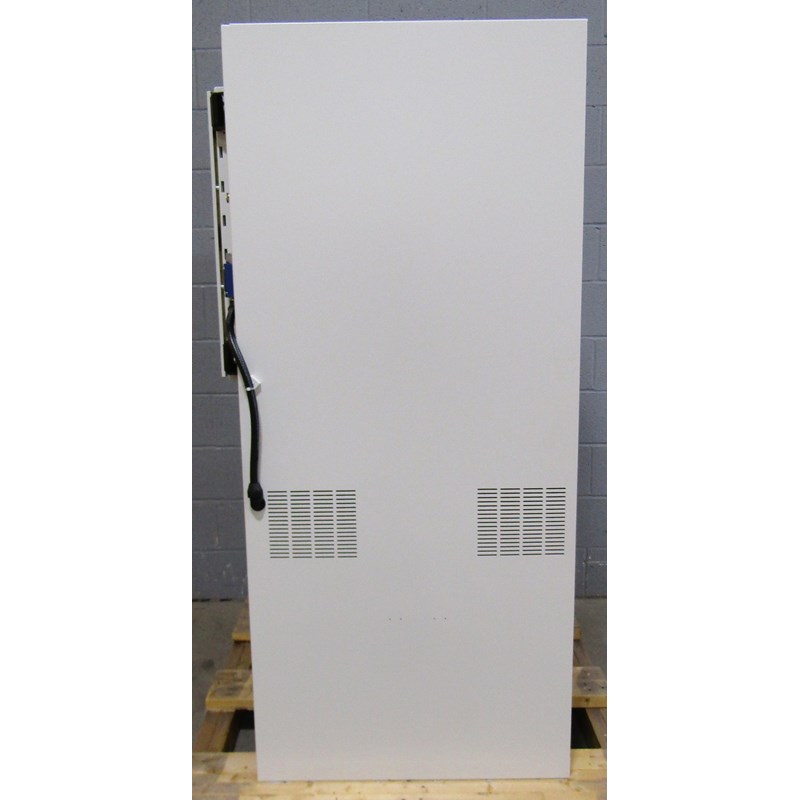

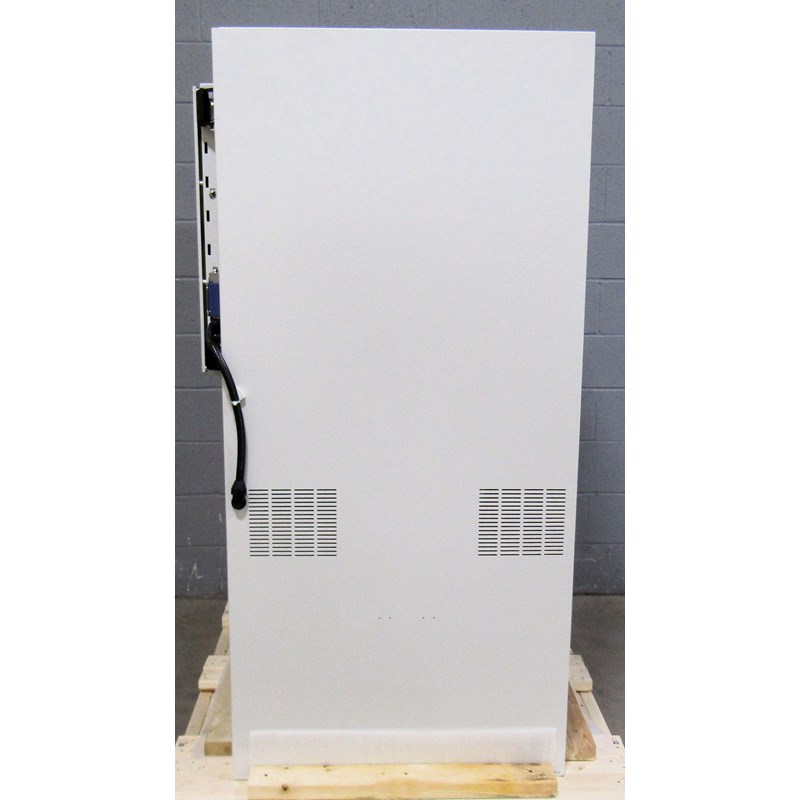

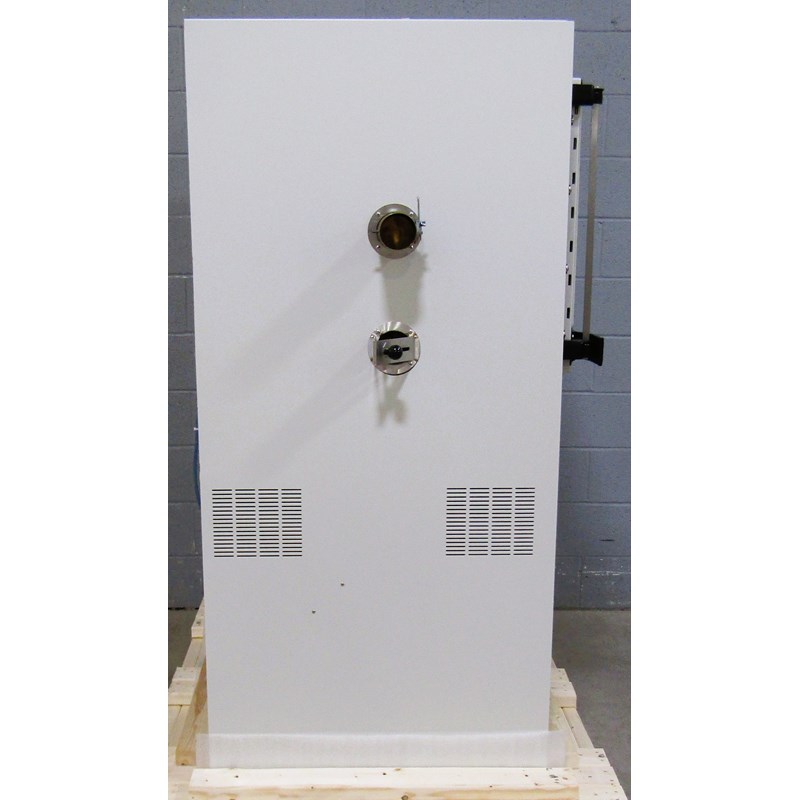

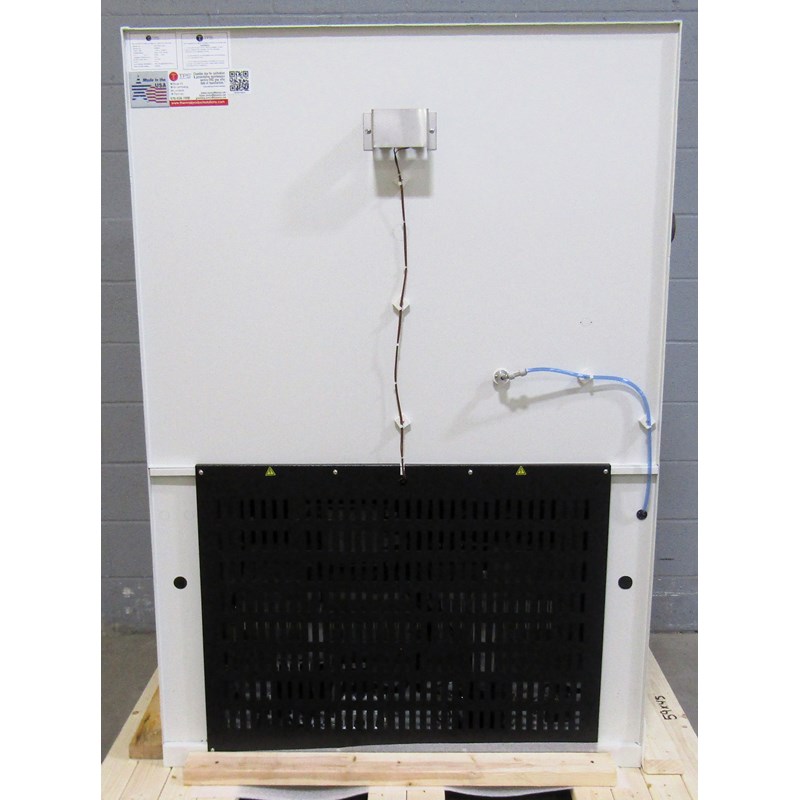

Additional Images
