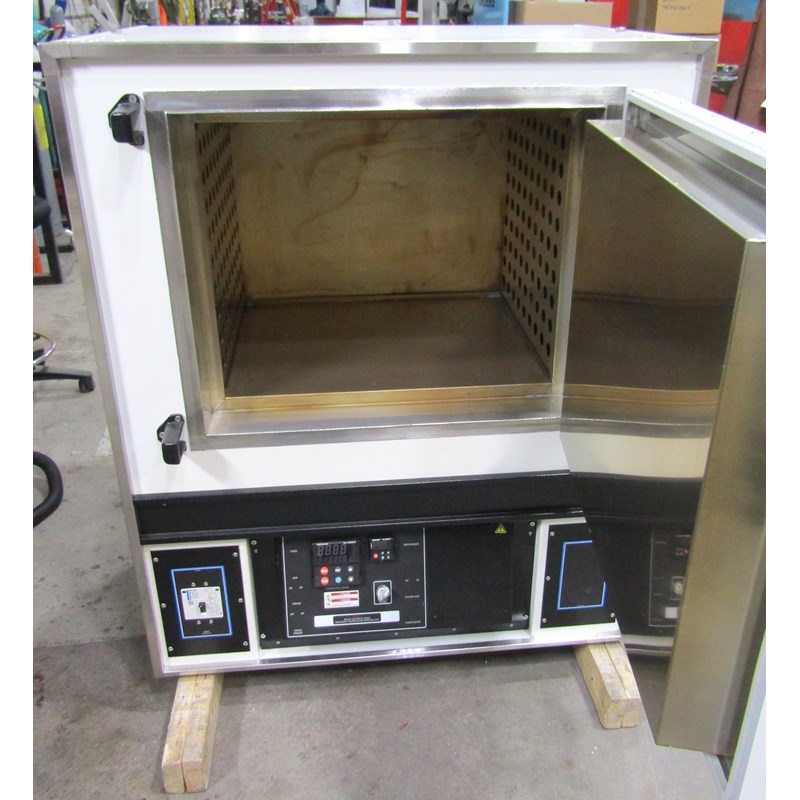

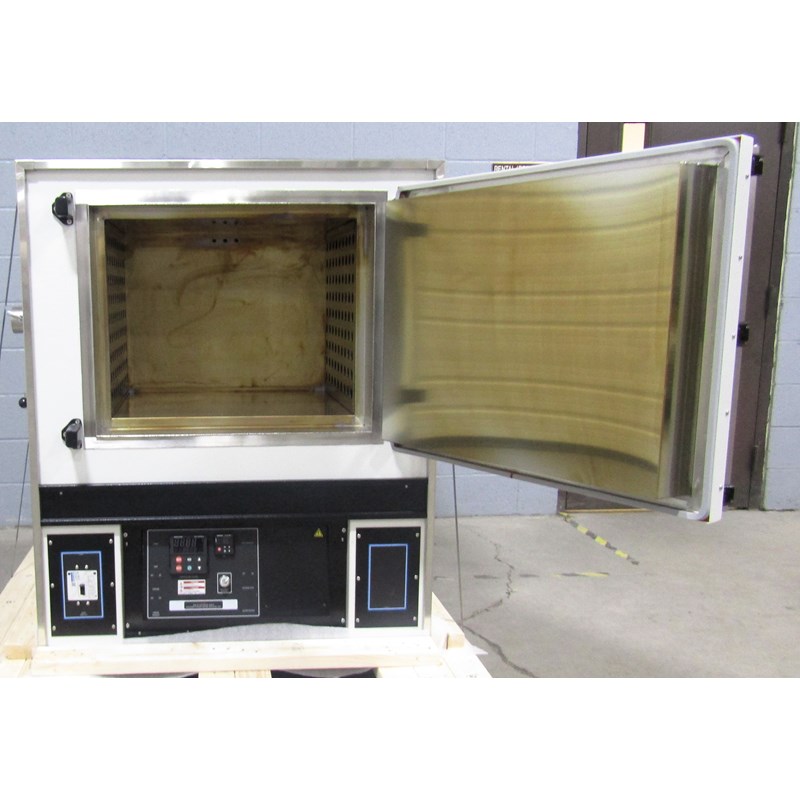

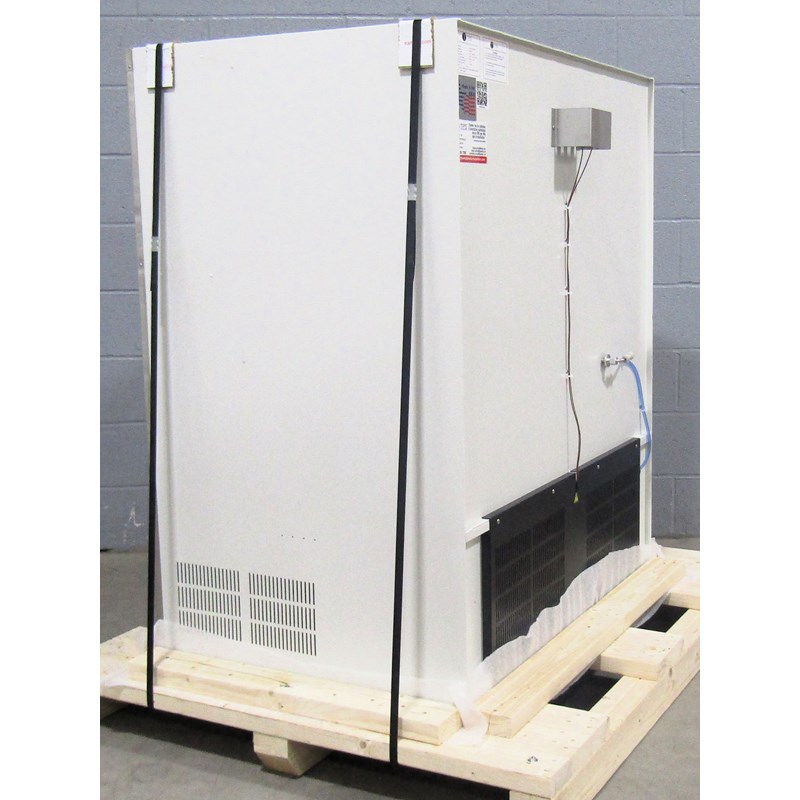

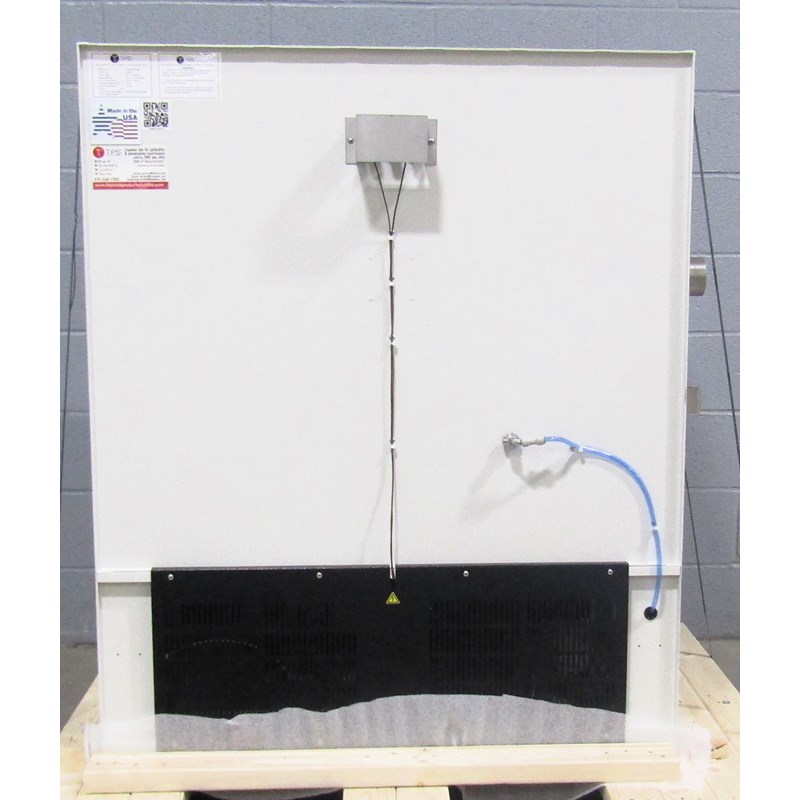

Blue M DCW-256-C-PMP Welded & Sealed Mechanical Convection Oven Serial#: 179691-01, 179691-02

Blue M Mechanical Convection Ovens available for Monthly Rental. Can Ship in 2-3 Days. Ask about our Rent to Own Option!

Features

  • Fiberglass insulation to ensure safe cabinet skin temperature

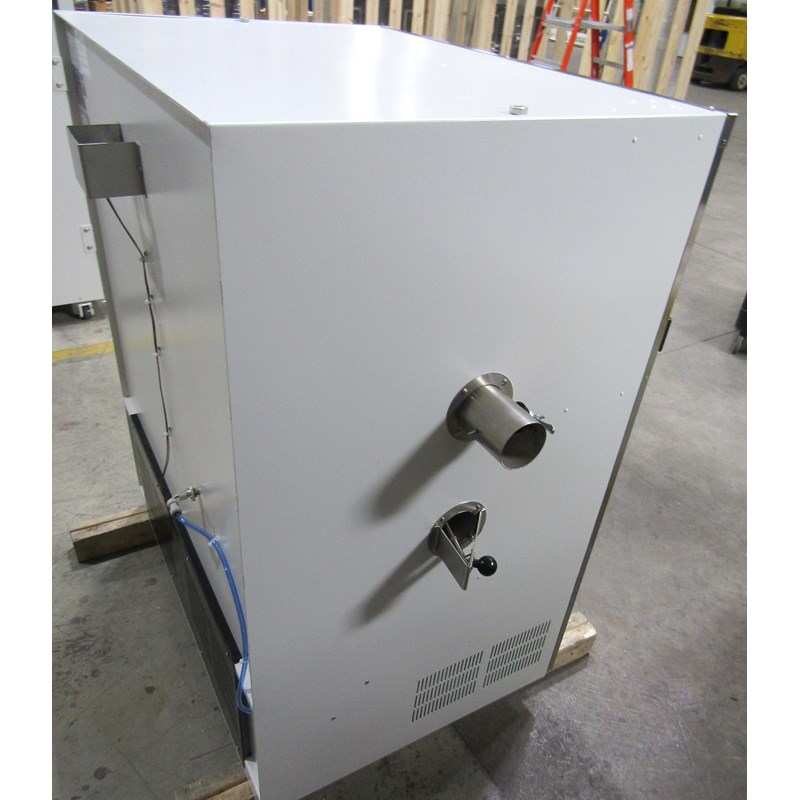

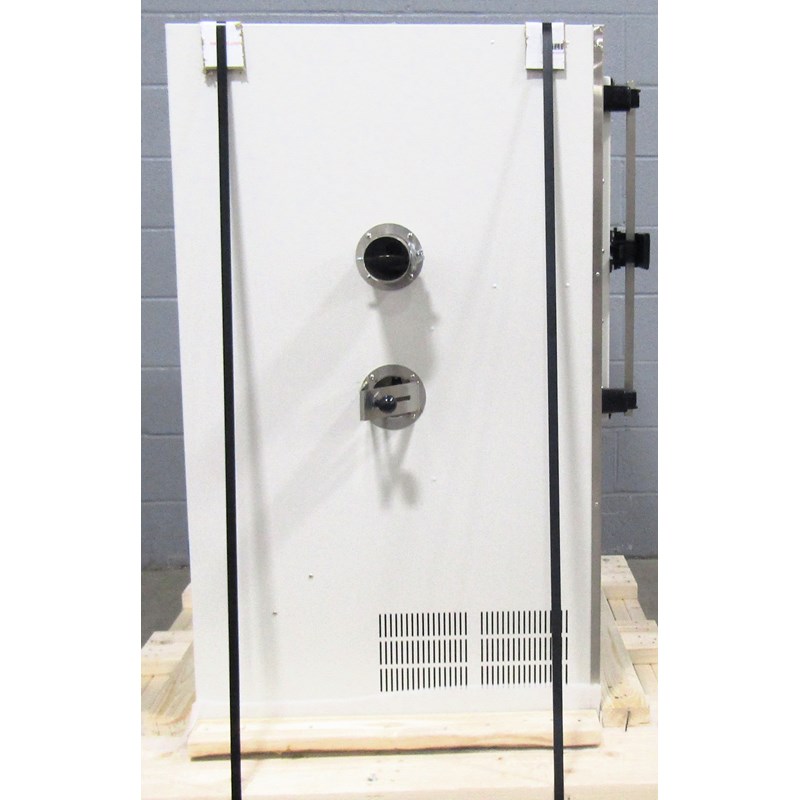

  • Adjustable air intake and exhaust dampers
  • Adjustable shelf levels
  • Heavy-duty door - double-wall, insulated construction
  • Independent, over-temperature protection (high limit controller) included
  • Corrosion-resistant, stainless steel (type 304) interior
  • All-welded, heavy-duty exterior with heavy-gauge, reinforced, cold-rolled steel
  • Baked on white powder-coated enamel finish on the exterior for long-lasting corrosion protection
  • Every oven is fully assembled and individually factory tested
  • Circuit breaker provided for ground fault protection as standard
  • Single or three-phase operation available in 50 Hz or 60 Hz

Benefits

  • Available with profiling or single setpoint temperature controls
  • Horizontal air flow assures uniform thermal performance under most loading conditions
  • Exclusive Blue M Eterna heating elements - the most reliable available, with heavy-gauge high-temperature nickel-chromium wire and low-watt density for longer service life
  • Airflow switch provided as standard to protect oven and product
  • Adjustable one-pass airflow system - tempered air passes over heater(s) and through chamber only once if necessary - readily adjusted to suit a broad range of product loads and operating requirements. Motorized damper available for automatic operation
  • Direct drive, multi-blade, centrifugal blower with high volume air delivery and dynamically balanced for minimum noise

Pricing Information

  • List Price New: N/A
  • Purchase This Unit For: N/A
  • Rent This Unit For: $ 1,900.00 / month

Specifications

  • Door Style: Standard Single Door
  • Door Hinge: Right Hand
  • Warranty: 2 Year Labor and 2 Year Parts
  • Over Temperature Protection is included as standard on this model
  • Temperature Range: 15°C above ambient to 350°C
  • Interior Dimensions W x D x H (inches): 25 x 20 x 20
  • Exterior Dimensions W x D x H (inches): 47 x 36 x 56
  • Cabinet Type: Bench Standard Single Door
  • Electrical Power: 230/240V Single Phase 60Hz
  • Amp Draw: 29
  • Heater: 6 Kw
  • Weight: 700.0 lbs.
  • FG# R755441-01, R755441-02

Control System

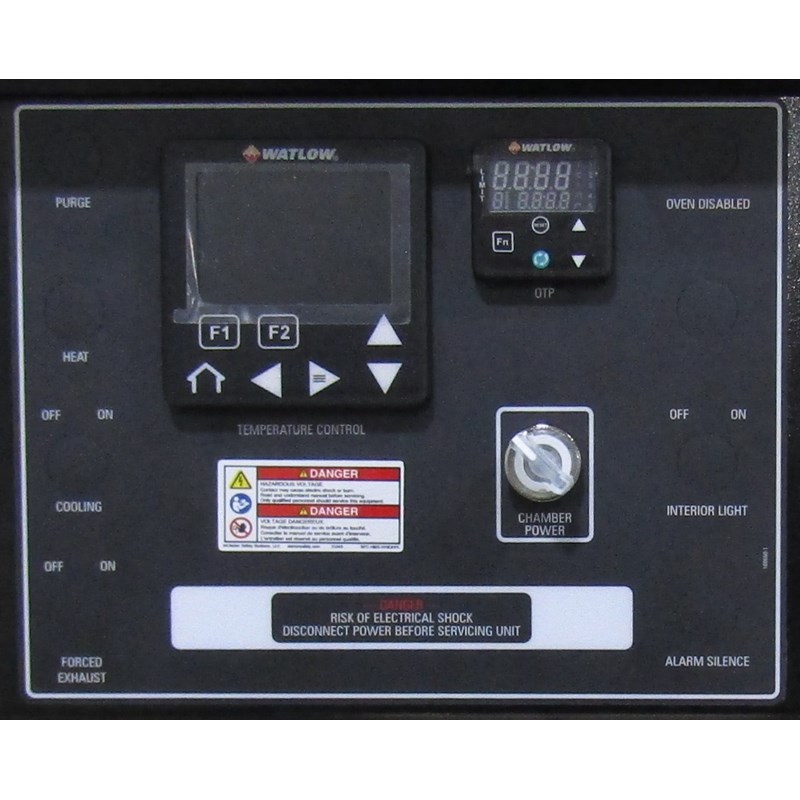

Watlow PM Plus Temperature Controller

Watlow PM Plus Temperature Controller

The Watlow PM PLUS™ is a 1/4-DIN Ramp/Soak programmable controller with up to 4 profiles, 10 steps per profile.

Features

  • An enhanced interface for easier programming and readability with a SMOOTHTOUCH™ keypad and LCD display.
  • Bluetooth® connectivity with the EZ-LINK™ mobile app for remote access capability and full descriptions of parameters and error codes.
  • The PM Plus is also available without Bluetooth®.
  • Advanced PID control using auto-tune with TRU-TUNE+ adaptive control algorithm.
  • Programmable function key(s) enables simple, one-touch operation of user-defined, repetitive activities.

Options

Included

  • Over Temperature Protection
  • Safety Door Switch

Available

  • Upgrade to Watlow F4T programmable controller
  • Shelves
  • Maintenance Kit
  • NIST Calibration
  • Floor Stand
