Shel Lab SM03 3.02 Cu. ft. Forced Air Oven Serial#: 3007925

R&D Lab Oven Available for Sale.  Can ship in 2-3 Days!

This Mechanical Convection Lab Oven is designed for laboratory applications such as moisture drying, curing, baking, aging and general testing. These convection lab ovens utilize horizontal airflow that allows for tighter temperature uniformity and high-quality components to ensure years of reliable service. They also offer adjustable over-temperature protection to prevent damage to the oven or its load.

These ovens offer an excellent balance of value and features. They have been designed for convenience and appearance in a laboratory environment with ergonomic handles and controls, along with a powder-coated steel exterior. They provide superior heat ramp-up and recovery and uses long life tube-style heating elements that last over twice as long as open coil or wire elements.

NOTE: These lab ovens cannot be used with any volatile or hazardous materials.

Features Include:

  • Horizontal airflow assures uniform thermal performance under most loading conditions
  • Long lasting heating elements
  • Superior heat ramp-up and recovery
  • Stainless-Steel Interior construction
  • High-quality digital PID temperature controller
  • Overtemperature Protection (OTP) is standard on all Blue M lab ovens

Pricing Information

  • List Price New: $ 4,398.00
  • Purchase This Unit For: $ 3,958.00
  • Rent This Unit For: N/A

Specifications

  • Temperature Range: 20°C above ambient to 260°C
  • Interior Dimensions W x D x H (inches): 16.5 x 19.5 x 16.0
  • Exterior Dimensions W x D x H (inches): 27.0 x 29.0 x 34.0
  • Crating Dimensions W x D x H (inches): 33.0 x 33.0 x 47.0
  • Electrical Power: 115V-120V 1 Phase 50/60 Hz
  • Air Flow: Horizontal
  • Amp Draw: 14 KW
  • Fuse Amps: 15
  • Heater: 1.5kW
  • Weight: 171.00 lbs

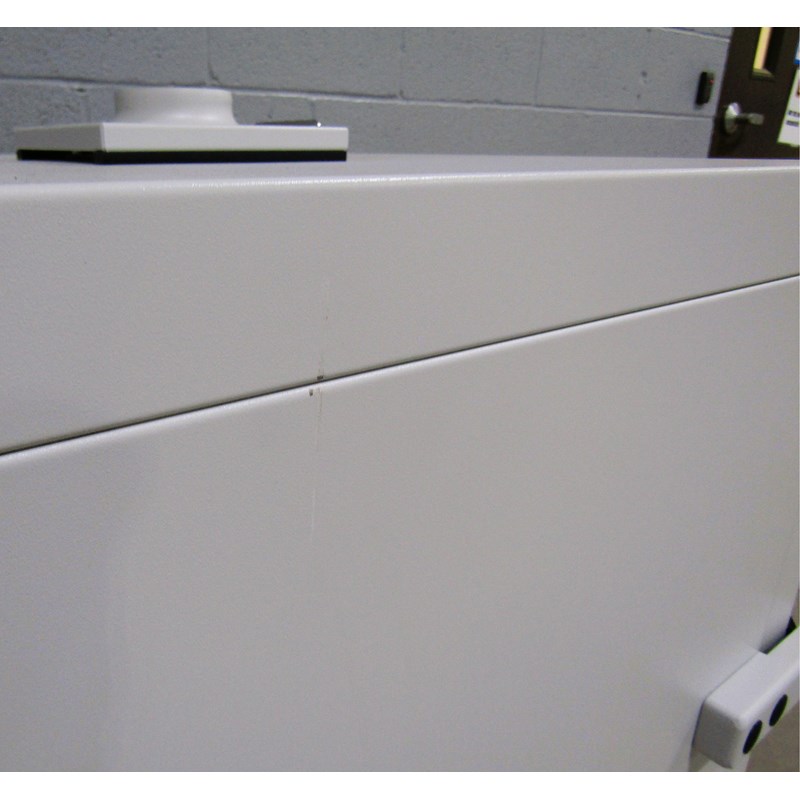

  • Note: This unit has a small scratch on the left side (see photo)

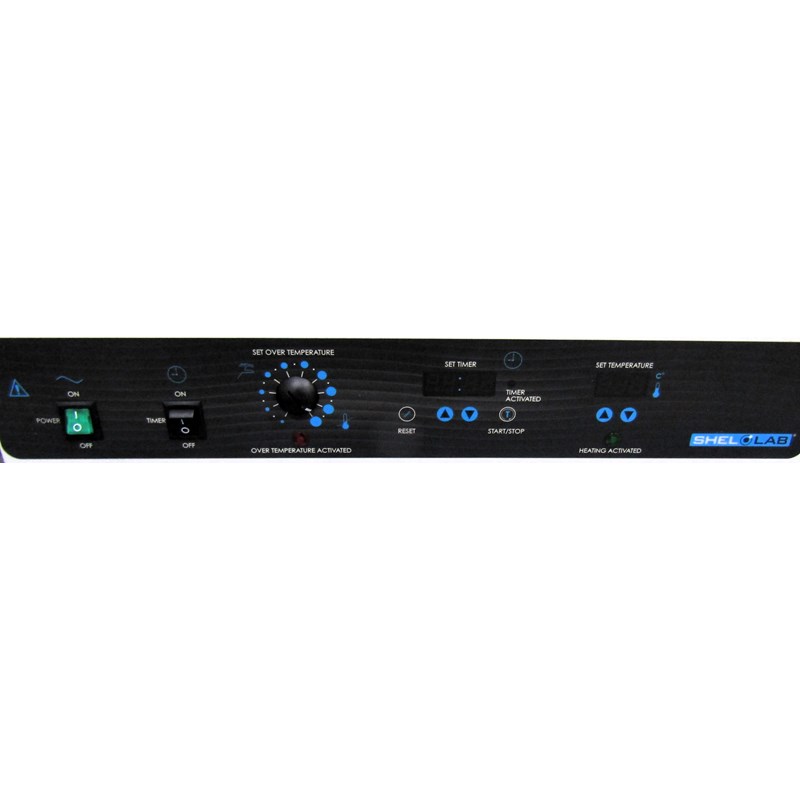

Control System

PID Control System

Options

Included Options:

  • Two Shelves
  • Over Temperature Protection (OTP)
  • Power Cord (125V, 15 amp, 9ft 5in NEMA 5-15P power cord)
  • UL/CSA compliant (label not included), CE Approval, and DIN 12880 Compliant
  • Rear access port 1.75-inch diameter w/high temperature port access stopper

Additional Images
