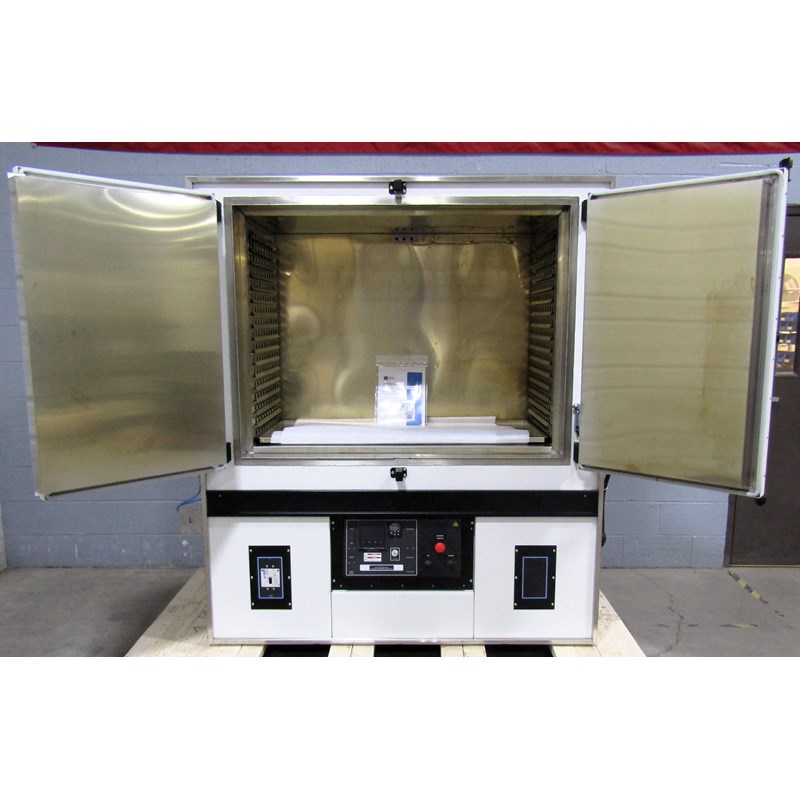

Blue M DCW-1406-G-F4T-ASTM Convection Oven Serial#: 171153

Rare Opportunity! Cancelled Order Oven. ASTM 5374 & 5423 Type II Oven Calibrated at 260C. Available for Immediate Sale.

The Blue M ASTM Convection Oven is ideal for a number of industrial oven applications, including ASTM testing, epoxy curing, moisture drying, UL testing, aging of electronic components and devices, and other processes and testing requirements. The oven meets type 5374 and 5423 type II testing requirements.

Benefits:

• Fiberglass insulation to ensure safe cabinet skin temperature
• Heavy-duty door - double-wall, insulated construction
• Independent, over-temperature protection (high limit controller) included

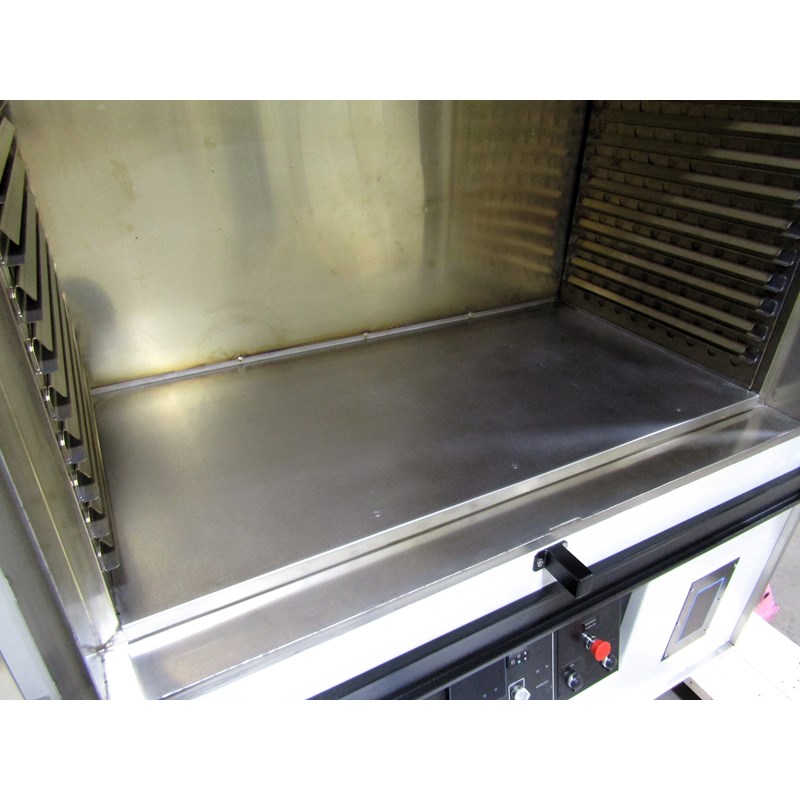

• Corrosion-resistant, stainless steel (type 304) interior
• Welded and sealed inner chamber
• All-welded, heavy-duty exterior with heavy-gauge, reinforced, cold-rolled steel
• Baked on white powder-coated enamel finish on the exterior for long-lasting corrosion protection
• Every oven is fully assembled and individually factory tested
• Circuit breaker provided for ground fault protection as standard
• Single or three-phase operation available in 50 Hz or 60 Hz

Features

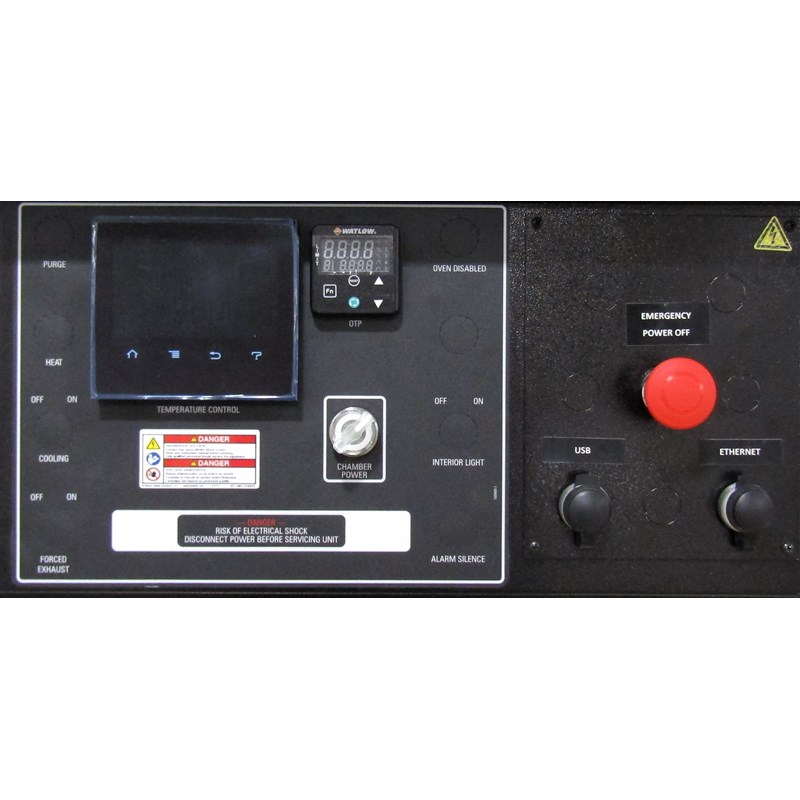

• Available with profiling or single setpoint temperature controls
• Horizontal airflow assures uniform thermal performance under most loading conditions
• Exclusive, adjustable, semi-pierced duct walls for tuning of airflow
• Variable frequency drive on circulation blower
• Exclusive Blue M Eterna heating elements – the most reliable available, with heavy-gauge high-temperature nickel-chromium wire and low-watt density for longer service life
• Airflow switch provided as standard to protect oven and product
• Direct drive, multi-blade, centrifugal blower with high-volume air delivery and dynamically balanced for minimum noise
