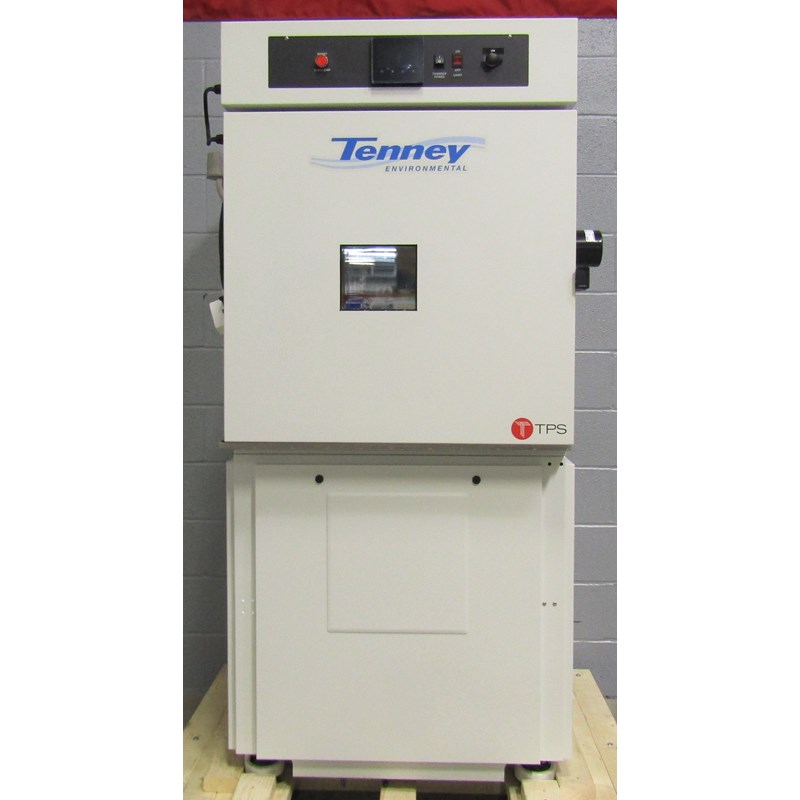

Tenney Benchmaster UTRC Upright Temperature & Humidity Chamber Serial#: 174444

Tenney Benchmaster UTRC available for Monthly Rental & Rent to Own.  Can Ship in 3-5 Days!

The Tenney Benchmaster Upright Test Chambers are capable of simulating a wide range of temperature or temperature and humidity conditions. They feature one horsepower cascade refrigeration and two-kilowatt heating systems that provide optional cooling and heating performance. The five cubic foot internal workspace has the versatility to accommodate both small and large size test material. The vertical configuration of these environmental testing chambers minimizes the floor space required

Benefits

  • Simulates a wide range of temperature or combined temperature and humidity conditions to meet a variety of testing needs
  • Uniformed conditions are assured through the use of vertical-down recirculating conditioning stream
  • Compact vertical footprint maximizes workspace
  • Cost-efficient alternative to standard benchtop chambers

Features

  • 5 cu ft chamber with optional viewing window
  • Vapor-tight interior liners made of 100% continuously welded stainless steel
  • Interior constructed of 100% non-corroding parts
  • Features a low-water protection system (on RH models)
  • Watlow F4T Controller
  • Optional recording instruments
  • Optional over/under temperature protection

Pricing Information

  • List Price New: N/A
    •
  • Purchase This Unit For: N/A
    •
  • Rent This Unit For: $1,700.00 / month
    •

Specifications

  • Computer Interface: Ethernet Communications Standard with Controller
  • Control Panel: UL508A
  • Chamber Light: Yes
  • Door Style: Window in Door (6" x 8")
  • Single standard 3 inch port with a plug; centered in left sidewall
  • Water Supply: Water Regulator Assembly
  • Instructional Manuals: Digital Manual on a USB Drive
  • Temperature Range: -68°C to 180°C
  • Control Tolerance: +/-1.0°C and +/- 5% RH after stabilization
  • Humidity Range: 20% to 95%, RH over the temperature range of 20°C to 85°C, limited by a 5°C dew point
  • Interior Dimensions W x D x H (inches): 20 x 19.25 x 22
  • Exterior Dimensions W x D x H (inches): 43 x 32 x 74
  • Crating Dimensions W x D x H (inches): 51 x 48 x 84
  • Electrical Power: 230V/240V 1 Phase 60 Hz
  • Amp Draw: 29
  • Amp Fuse: 40

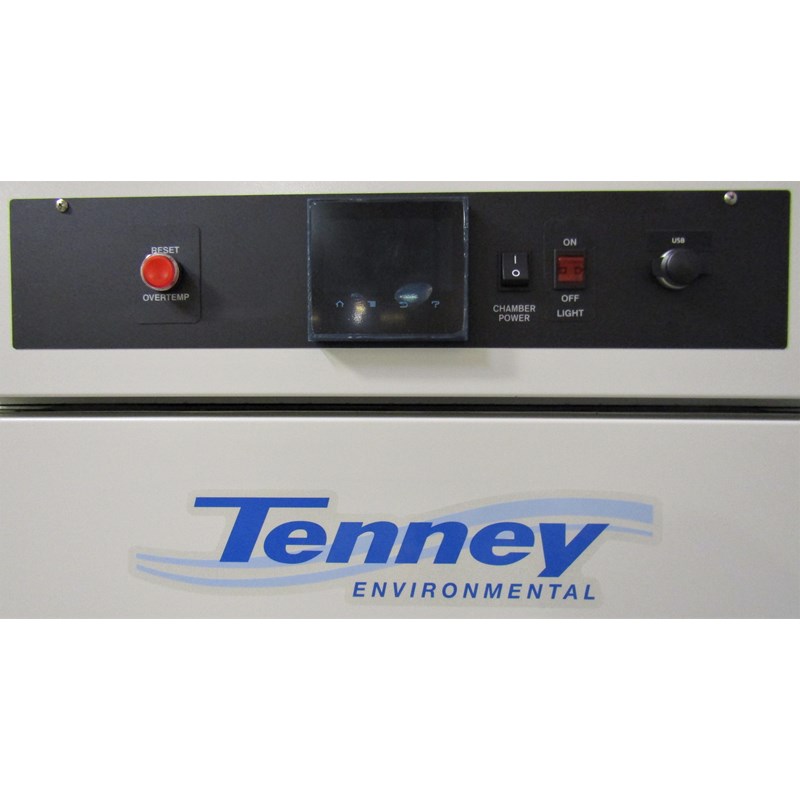

Control System

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.

Features

  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart
  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment

Options

Included Options:

  • Single standard 3 inch port with plug centered in left sidewall
  • Watlow F4T Controller w/Data & Chart Trending Capabilities
  • Ethernet Standard w/Watlow F4T
  • 6" x 8" Window in door w/Interior Chamber LIght

Available Options:

  • Cart with Casters
  • LN2 Boost Cooling
  • RS232 Communications
  • Tempgard OTP
  • Shelves
  • Maintenance Kit
  • NIST Calibration

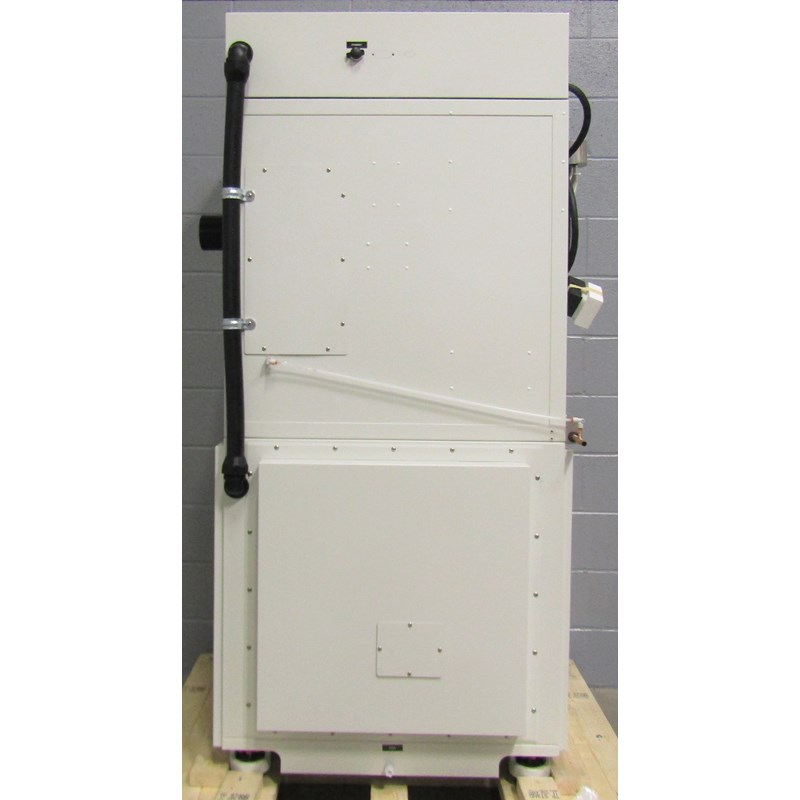

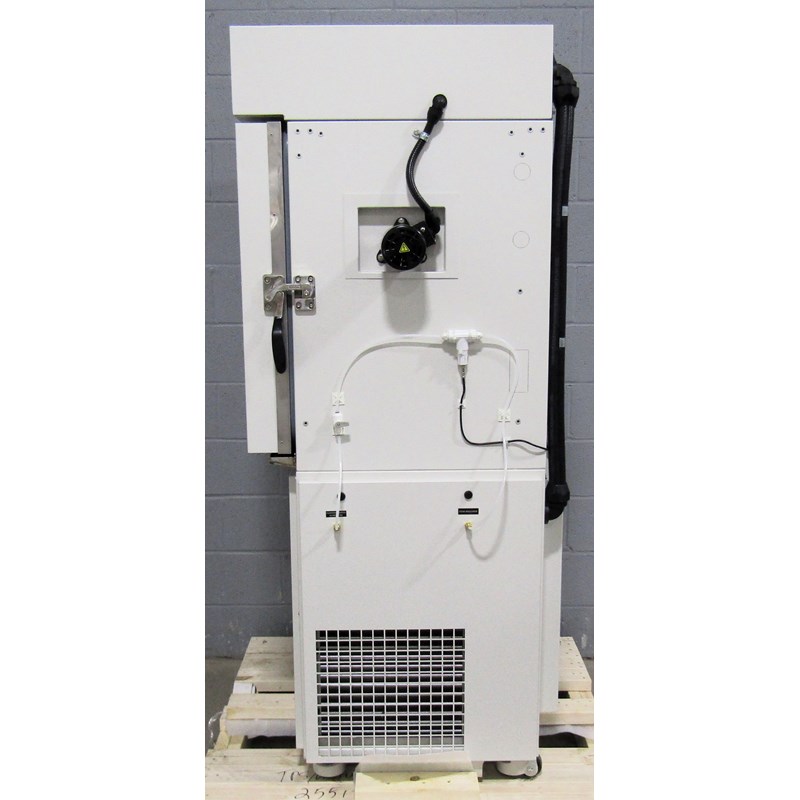

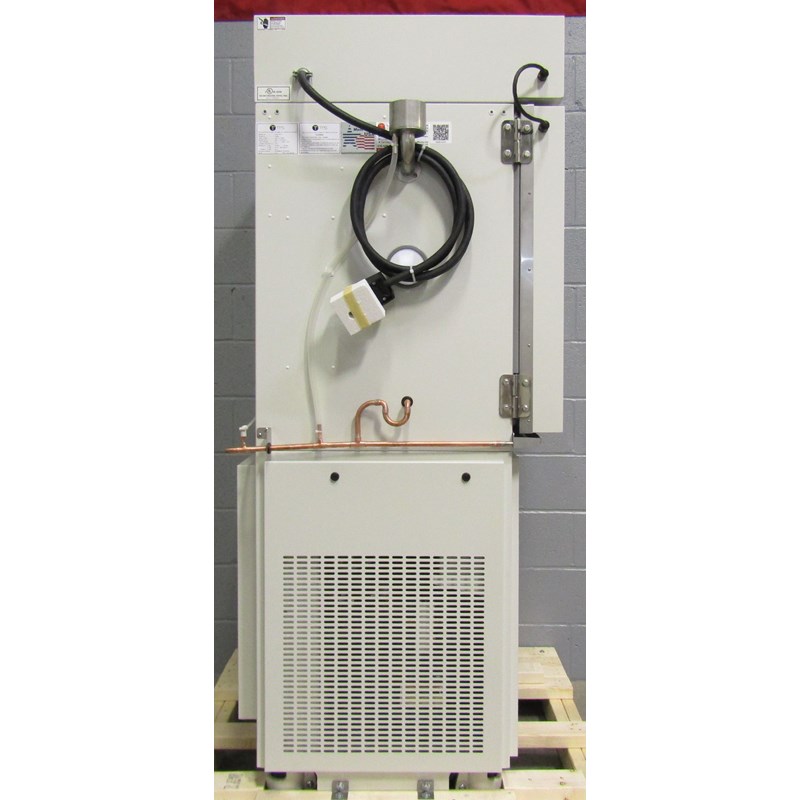

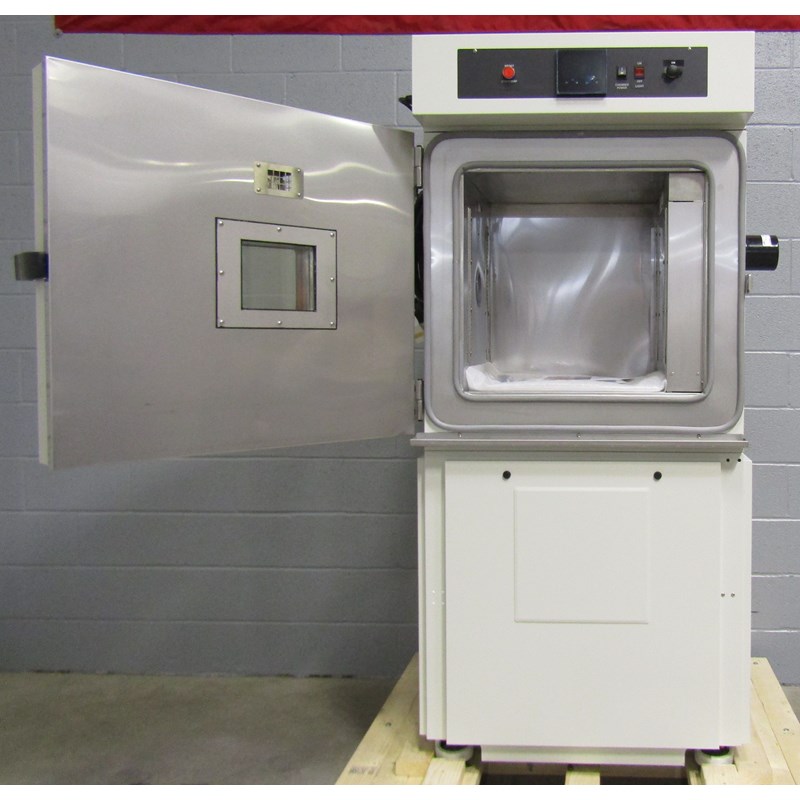

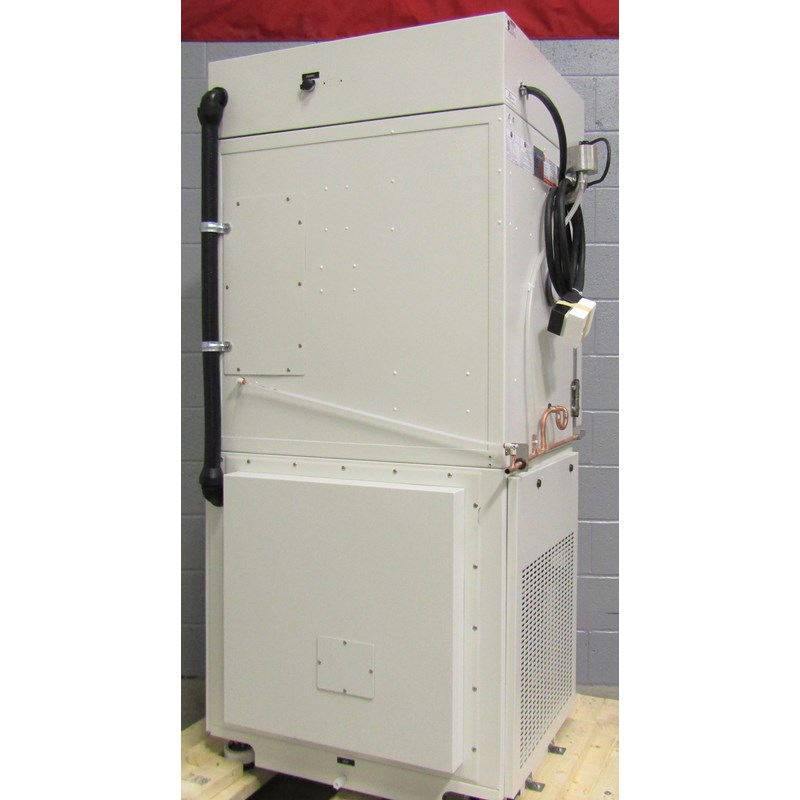

Additional Images
