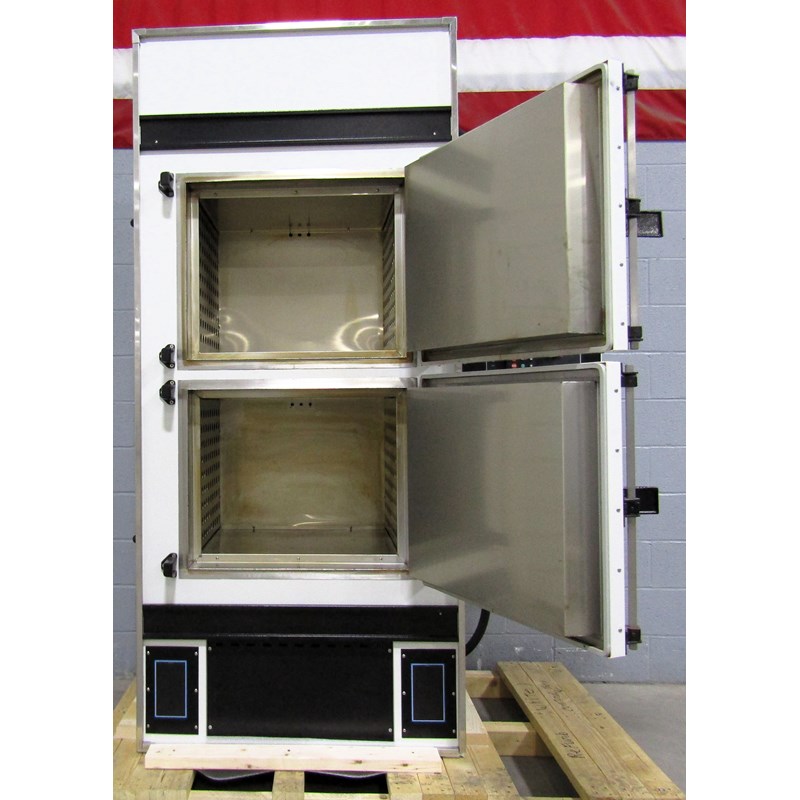

Blue M STK-05S-F-PM Stacked Mechanical Convection Oven Serial#: 141991
Rare Opportunity! Blue M Stacked Mechanical Convection Oven Available for Immediate Sale. Refurbished Unit in great condition. Can Ship in 2-3 Days!
Blue M manufactures industrial stacked ovens made for curing, drying, and baking applications. Not only is it versatile, but it’s easy to operate and performs exceptionally under even extreme loading conditions. Temperature ranges from 15°C to 350°C.
Features of the Blue M Stacked Ovens
- Adjustable air intake and exhaust dampers
- Adjustable shelf levels
- Fiberglass insulation to ensure safe cabinet skin temperature
- Heavy-duty door-double-wall, insulated construction
- Independent, over-temperature protection (high limit controller) included
- Corrosion resistant, stainless steel (type 304) interior
- All-welded, heavy-duty exterior with heavy-gauge, reinforced, cold-rolled steel
- Baked on white powder-coated enamel finish on exterior for long-lasting corrosion protection
- Every oven is fully assembled and individually factory tested

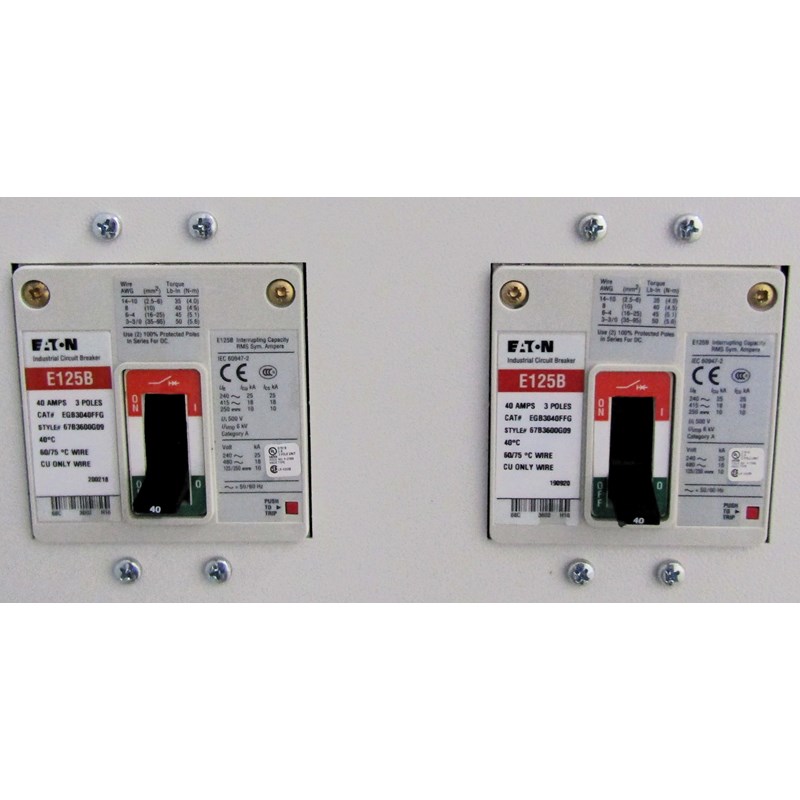

- Circuit breaker provided for ground fault protection as standard
- Double the processing with the footprint of a single oven
Pricing Information
- List Price New: $ 26,595.00
- Purchase This Unit For: $ 21,250.00
Specifications
- Model Number: STK-05S-F-PM
- Temperature Range: 31F above ambient to 662°F
- Interior Dimensions: 25" wide x 20" deep x 20" high per chamber
- Exterior Dimensions: 62.44" wide x 36.45" deep x 90"
- high Voltage: 230/240V 3 Phase 60 Hz.
- Chamber Type: Standard Air
- Amp Draw: 31 Amps per chamber
- KW Per Chamber: 12.0 KW per chamber
- Air Flow: Horizontal Cabinet Type: Integrated Stacked System

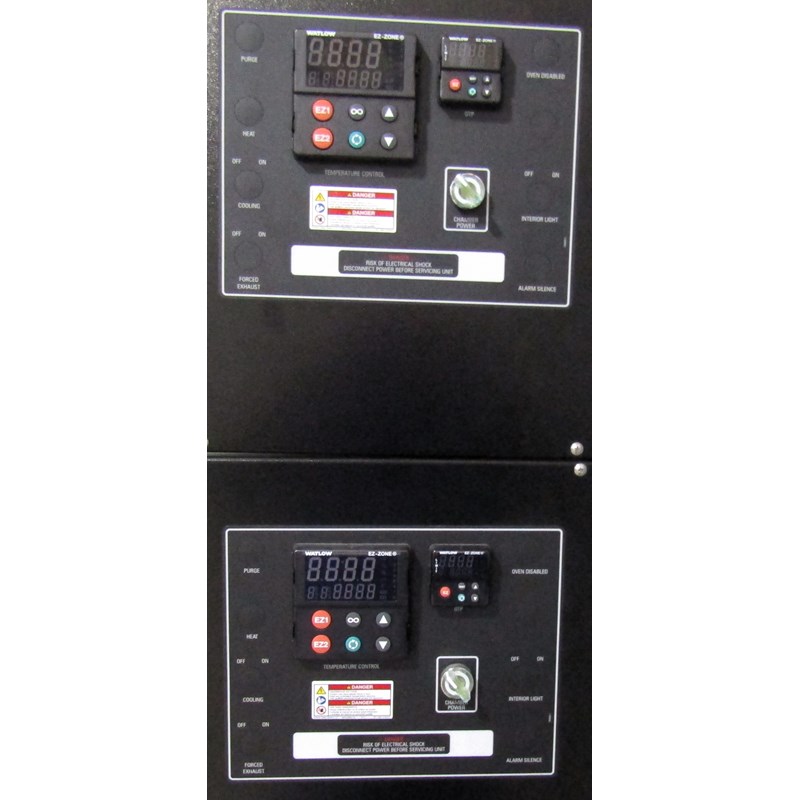

Control System
.png?w=150 "Watlow EZ Zone PM (PID)")
Options
Included:
- Over Temperature Protection (OTP)
- Air Flow Switches
- Limited Warranty: 30 Days Labor, 90 Days Parts
Available:
- Maintenance Kit
- Shelves
- NIST Calibration
