TPS

2.8 Cubic Feet of Workspace
15°C above ambient to 260°C

Product Page

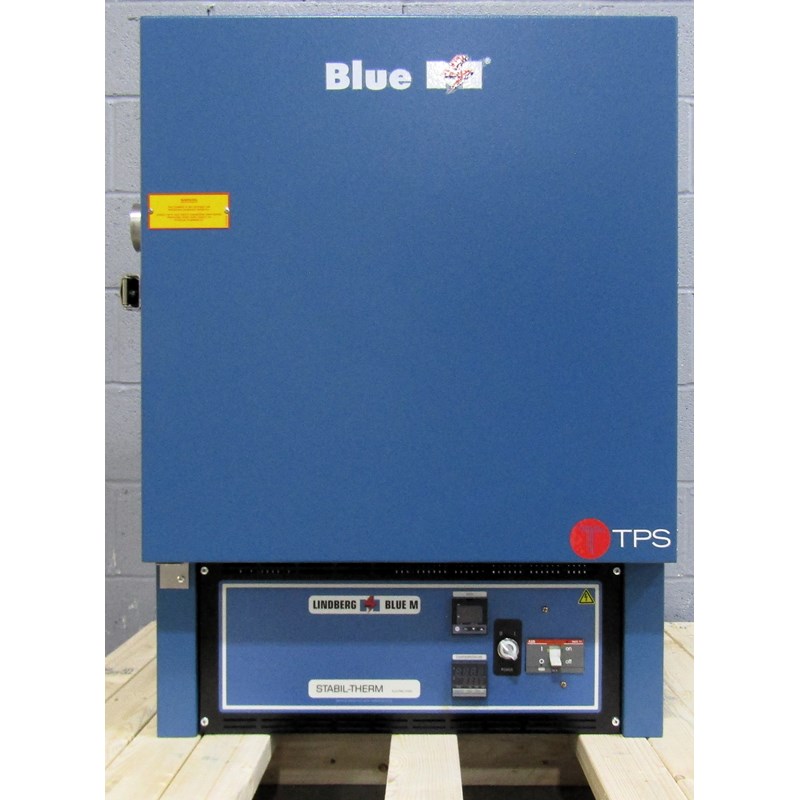

Mechanical Convection Oven: Blue M ESP400-C-RKC RF100 Serial#: 31333

Fully Refurbished Blue M ESP400 with Single Set-Point Controller. Available for Immediate Purchase.  Can Ship in 2-3 Days.

This small, cost-effective industrial oven provides reliable performance with horizontal air flow which offers excellent temperature uniformity, and is an ideal selection for applications where there are multiple tiers of product arranged to allow air to flow horizontally from side-to-side. This economy oven features Blue M's onepass air flow system which allows incoming air to pass over the heaters and through the work chamber only once, if desired, enabling fast cool down or quickly venting non-hazardous fumes.

Benefits

  • Horizontal airflow is ideal for thermal constancy and fast run-up and cool down rates
  • Alert system protects overheating from occurring and automatically disconnects heater

Features

  • Open-air nichrome wire heater elements
  • Centrifugal blower wheel

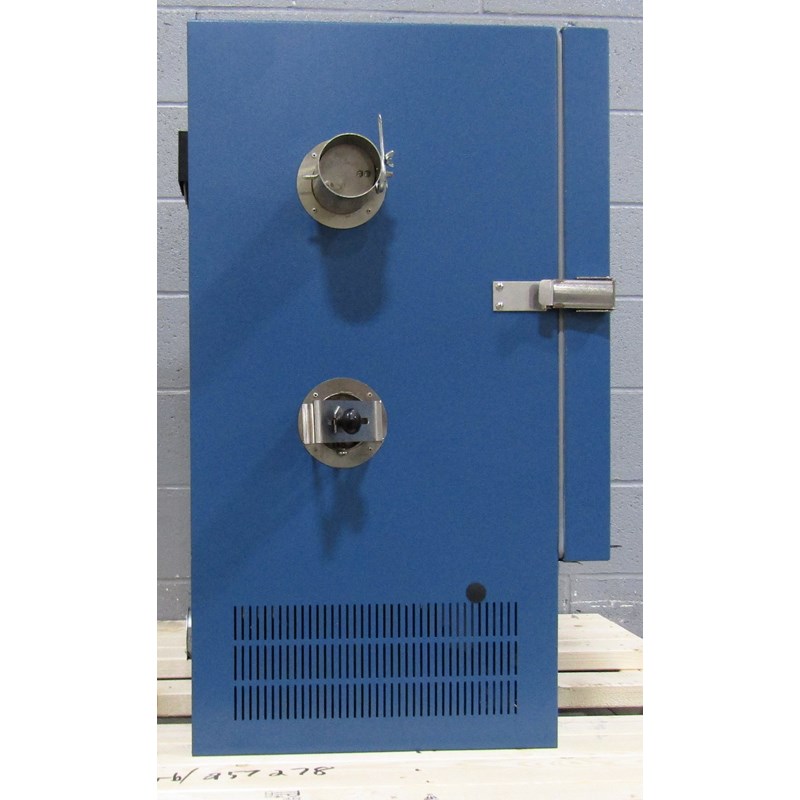

  • Adjustable air intake and exhaust dampers

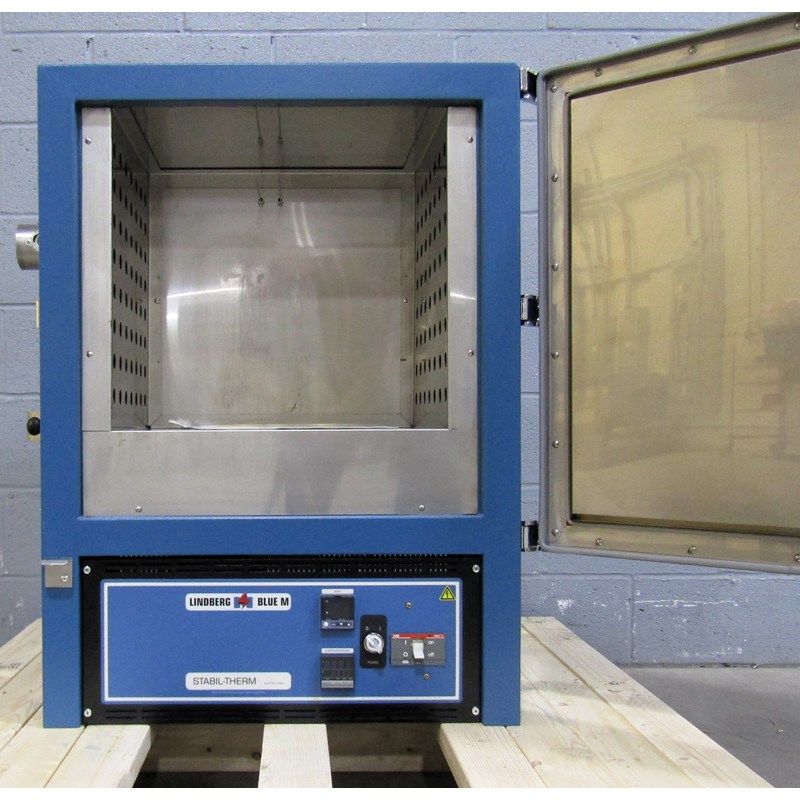

  • Stainless steel interior corrosion resistant - including inner face of door

Pricing Information

  • List Price New: $ 7,381.00
  • Purchase This Unit For: $ 5,950.00

Specifications

  • Temperature Range: 15°C above ambient to 260°C
  • Interior Dimensions W x D x H (inches): 19 x 15 x 18
  • Exterior Dimensions W x D x H (inches): 32 x 24 x 37
  • Crating Dimensions W x D x H (inches): 42 x 34 x 47
  • Electrical Power: 230/240V 1 Phase 60 Hz
  • Amp Draw: 15.5
  • Fuse: 20A
  • Heater: 1.5 kW
  • Weight: 234.0

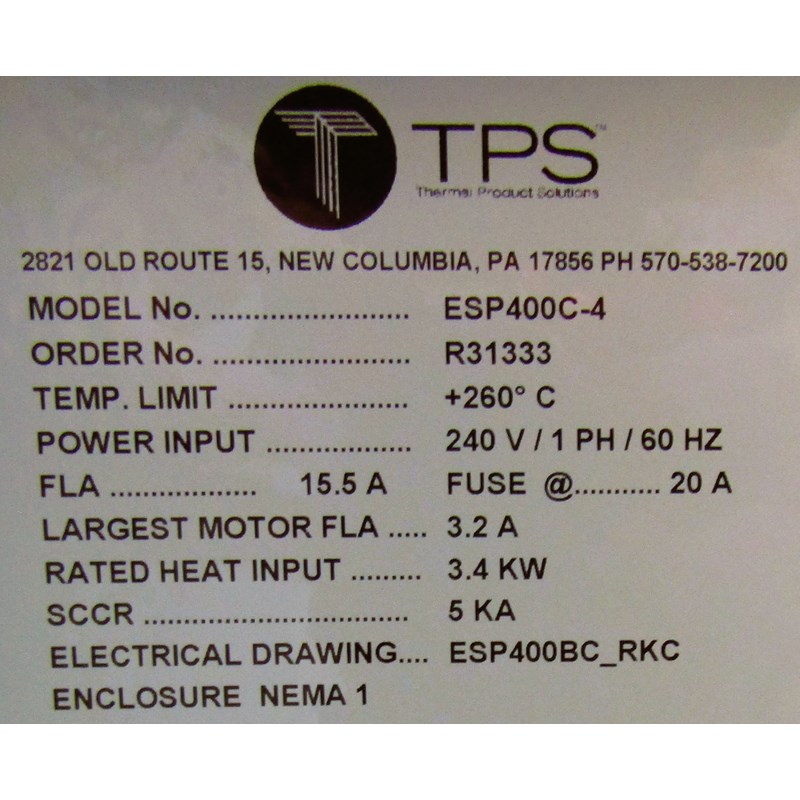

  • FG# R221025

Options

Included Options:

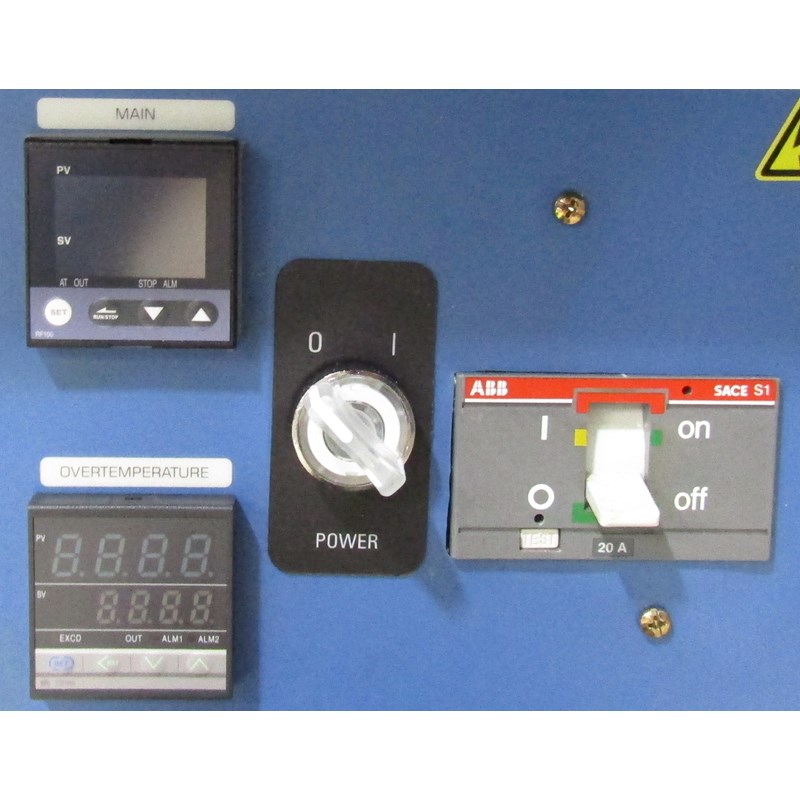

  • RKC RF100 single set point controller
  • Independent OTP
  • Limited Warranty
Available Options:
  • Wire Shelves
  • Floor Stand
  • NIST Certificate of Calibration
  • Maintenance kit

Additional Images
