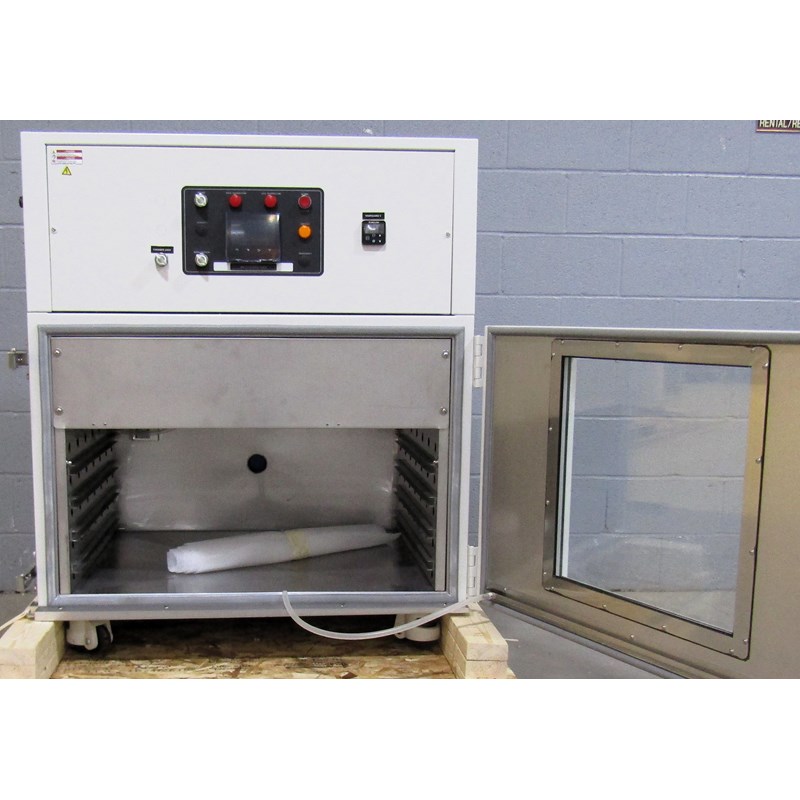

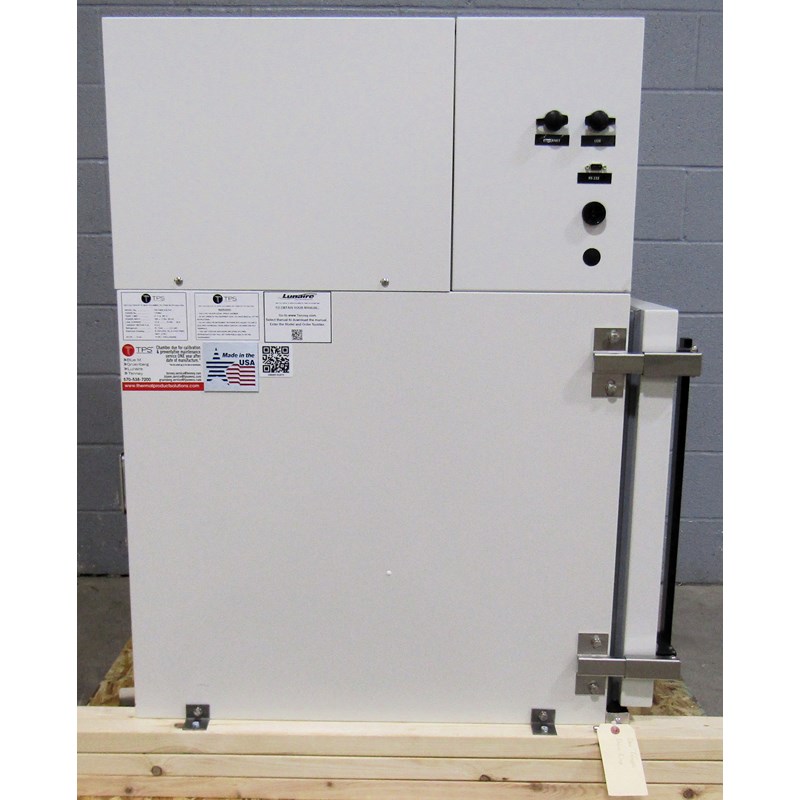

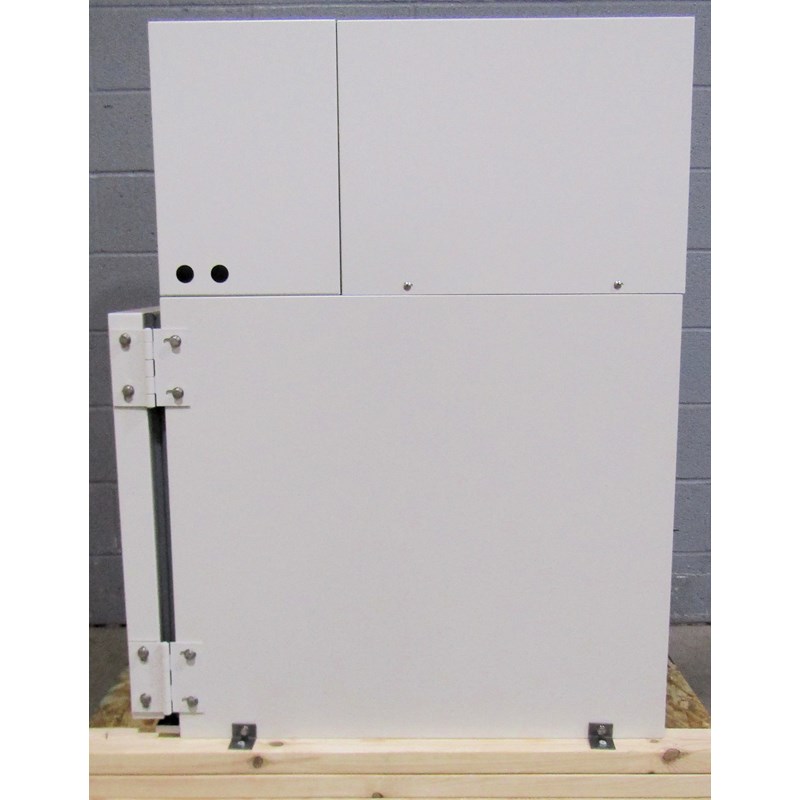

Lunaire CEO-908-2-B-F4T Steady State Heat & Refrigeration Chamber Serial#: 176994
Temperature Only 8 cubic foot Stability Chamber. Available for Immediate Sale. Can Ship in 3-5 Days!
Lunaire’s steady-state chambers are available in four convenient sizes. With work space sizes of 8, 16, 32, and 58-cubic-feet and a variety of temperature and humidity combinations, these chambers provide the flexibility for a wide range of uses.
Benefits
- Meets a variety of needs with availability in four sizes and multiple temperature and humidity combinations
- Temperature/humidity settings are housed conveniently in one controller and allow for hands-free operation
- Designed for quick shipping, easy installation, and consistency over controls, utility requirements, and heat output
- Air intake and exhaust tubes with manual dampers vent undesirable process moisture and vapors, protecting the product
- Highly efficient horizontal airflow system provides maximum temperature uniformity in testing
- Safety-minded low limit and high limit temperature shutdown circuits sound, limiting unwanted results
Features
- Electric Incoloy-sheathed tubular heaters

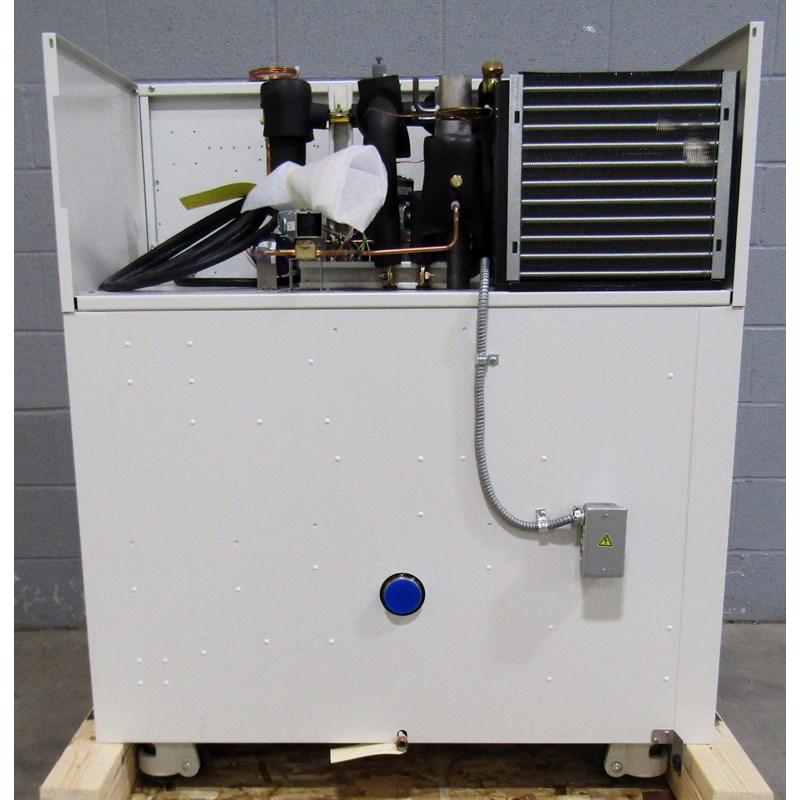

- Single stage reciprocating type compressor with Non-CFC refrigerant
- Centrifugal type blower wheel with external mounted motor for air circulation
- Door Gasket Trough and Chamber Drain
- Non-ramping, manual mode
- Direct printing to a serial printer
- Direct connection to a PLC or computer workstation

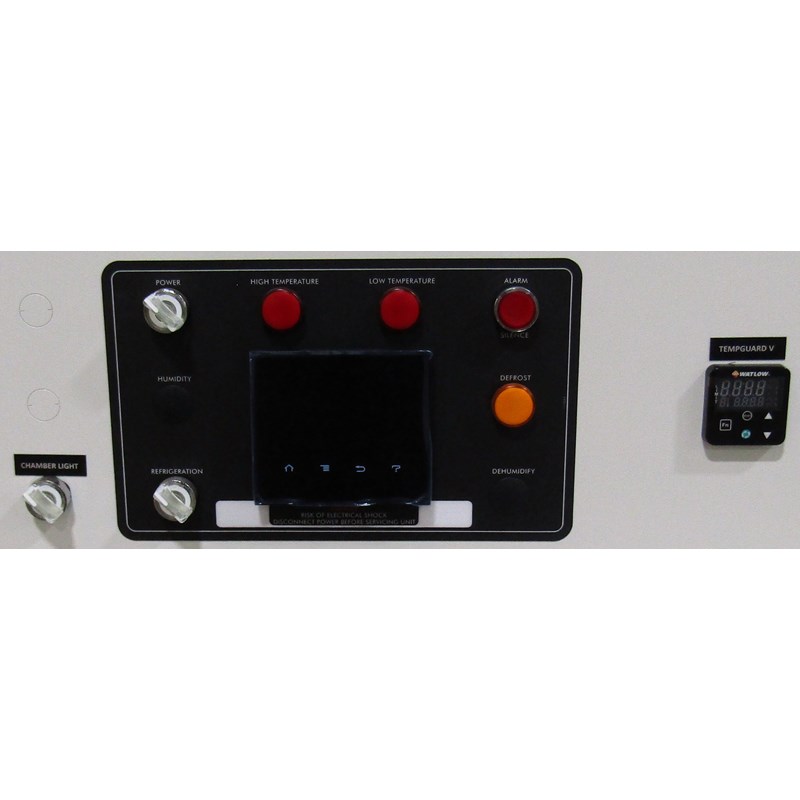

- High definition, LCD display with four digital input lines
- Solid Shelves included
Pricing Information
- List Price New: $ 17,468.00
- Purchase This Unit For: $ 17,468.00
- Rent This Unit For: N/A

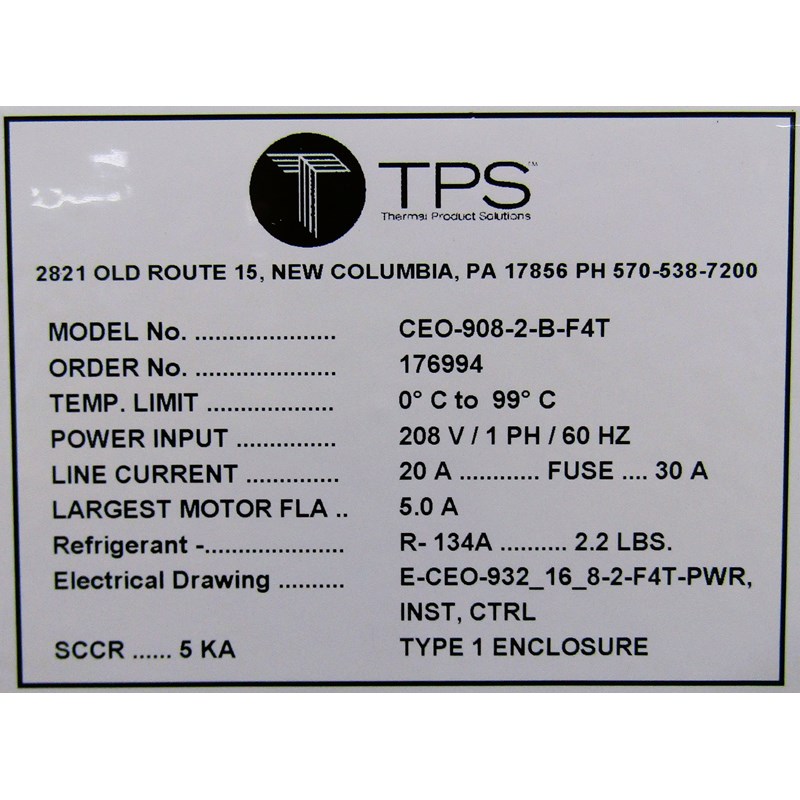

Specifications
- Chamber Temperature Unit: °C
- Computer Interface: Ethernet and RS232 Communications
- Control Panel: UL508A
- Control Panel Location: Top-Mounted
- Quantity (1) 2" port with a cover comes standard with this unit and is centered in the workspace on the back wall of the chamber.
- Control Tolerance: +/-0.3°C after stabilization
- Humidity Range: Not applicable for this style chamber
- Temperature Range: 0°C to 99°C
- Interior Dimensions W x D x H (inches): 33 x 28 x 15
- Exterior Dimensions W x D x H (inches): 39 x 32 x 46
- Crating Dimensions W x D x H (inches): 44 x 41 x 89
- Electrical Power: 208V 1 Phase 60 Hz
- Amp Draw: 20
- Amp Fuse: 30
- Heater: 1.2 kW
Options
Included Options:
- UL508A Control Panel
- Computer Interface: Ethernet Communications
- (1) 2" port with cover centered in the back wall (work space) of the chamber
- Standard Shelves (Stainless Steel): 1
- Additional Shelves: Yes 3
- Door Style: Door with Viewing Window
- Door Hinge Side: Right
- Chamber Light
- Lead-in Port: 3 Inch Port
- OTP High Limit Control
- Warranty: One Year
Available Options:
- Additional Shelves
- Air Dryer for Low RH Operation
- Certificate of Calibration
- Maintenance Kit
