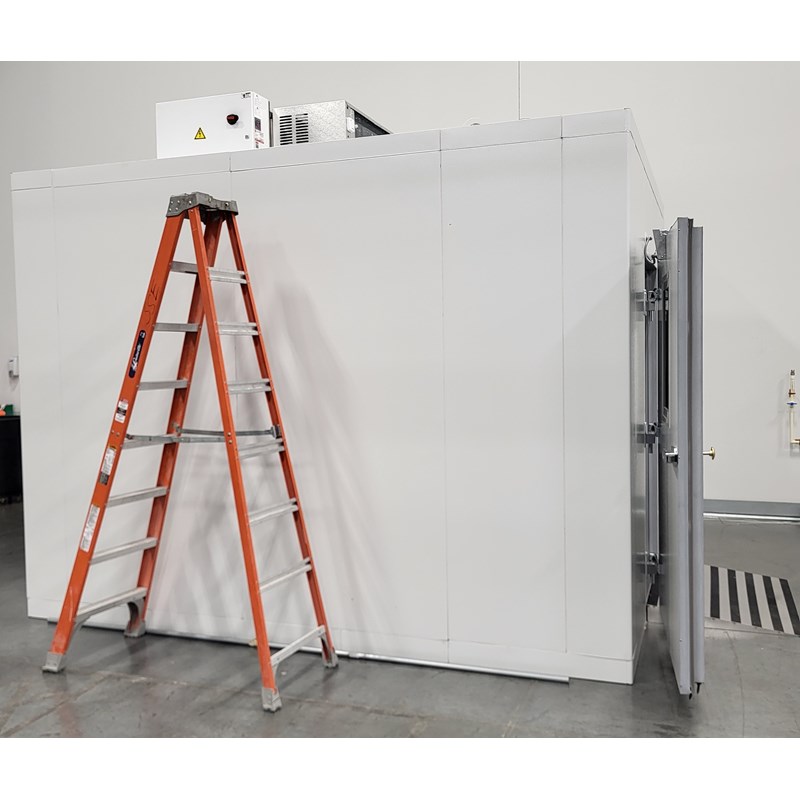

WSS-870-RS-1S-A-S1.2-C Lunaire Environmental Steady State Walk-In Room Serial#: 163920

Lunaire Walk In Temperature & Humidity Controlled Chamber. Maximum Temperature 60°C.

Tenney’s multipurpose walk-in environmental chamber is the perfect test site for everything from testing against humidity, temperature, and various climate conditions. This walk-in environmental test chamber provides supreme temperature testing for large components and equipment.

When your testing requires walk-in rooms, choose Tenney. Our walk-in environmental chamber features automated process control, energy efficiency, and a vast range of features and options. Every Tenney walk-in environmental test chamber features state-of-the-art equipment that reliably produces required conditions, structural integrity that keeps the room working properly through years of demanding test cycles, and measuring/monitoring equipment that precisely records all test data.

Tenney walk-in environmental chambers are used worldwide for many testing applications. Almost every tool, product, or component that is used in the home, factory, or field is tested with environmental simulation equipment.

Pricing Information

  • List Price New: $ 150,000.00
    •
  • Purchase This Unit For: $ 99,500.00
    •

Specifications

  • Interior Dimensions:  119.5"W x 131"D x 96"H
  • Exterior Dimensions: 140.5"W x 139"D x 126.5"H
  • Operating Temperature Range: 10°C to 60°C
  • Maximum Temperature: 60°C
  • Heat Type: Electric
  • Air Circulation: Vertical
  • Heat Rating: 3kW
  • Refrigeration Rating: 1HP
  • Required Voltage: 230V, 1Ph, 60Hz, FLA 48A, Fuse 60A
  • Temperature Control Tolerance: (+/-) 1.0°C of set point after stabilization measured at the supply of air stream, to the workspace
  • Relative Humidity  Control Tolerance: +/- 5% RH after stabilization, measured at the control sensor in the supply air stream
  • Relative Humidity Range: 50% RH in the temperature range of 60°C, limited by a 5°C dew point

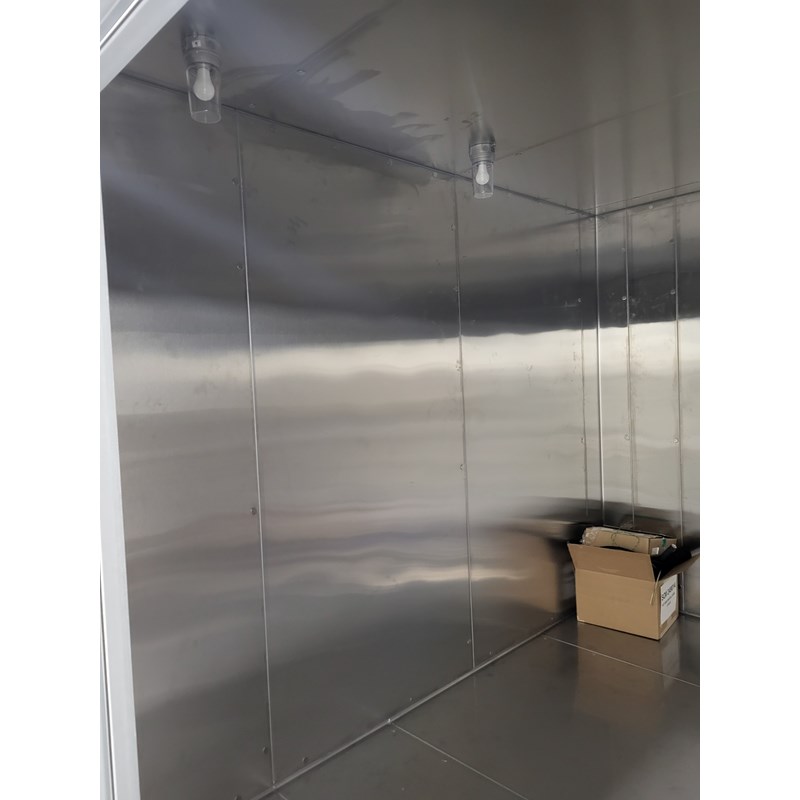

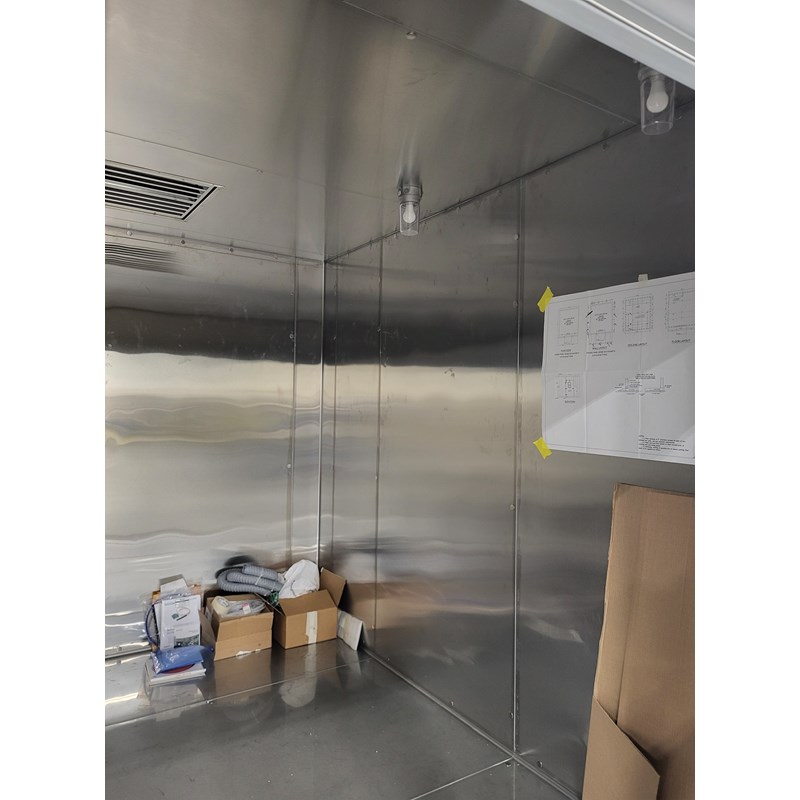

  • Interior Wall & Ceiling Construction: 22-gauge stainless-steel
  • Exterior Construction: 26-gauge embossed white galvanized steel
  • Warranty: 90 Days Labor & 90 Days Parts

Control System

Smart 1.2 Controller 7 Inch Screen

Smart 1.2 Controller 7 Inch Screen

The conditioning system is supplied with the Smart 1.2 touch screen control system which provides total programming capabilities. The HMI controller will be embedded within the workspace door. The control panel at the rear of the chamber will be a UL508A Certified control panel.

The main features of the Windows CE 7.0 Pro based PLC Smart 1.2 are the WSVGA 1024 X 600 high resolution graphical 7-inch touch screen, Smart 1.2 graphical user interface, 800 MHz Cortex A9 central processing unit, 4 GB (SD Card) flash storage, capable of storing up to 100 profiles with 100 steps each. Test Data retrieval and profile data transfer/sharing is accomplished through a local USB flash drive. Individual PID control loops allow for precise process control. A 100-ohm platinum RTD is used for temperature measurement and a dry capacitance type sensor is used for humidity measurement.

Features as follows:

  • Real-time and historical color graph displays for temperature and humidity as well as set point values
  • System can run in Single set point or Programmed modes
  • Alarm, Program, and Datalog files can be easily transferred to and from controller via USB.
  • Built-in TCP/IP networking via Ethernet 10/100 communication port
  • Ethernet and RS485 communications are standard. RS232, & IEEE GPIB are all available as options.
  • Built-in peripheral support expansion using the USB, providing an effective and flexible interface, for use with USB Keyboards, mouse and barcode scanners
  • Analog signal re-transmit out to peripheral devices such as optional chart recorders
  • Remote access via Smartphone, IPad, etc. with internet connection and VNC phone application
  • 16 million display colors with a contrast ratio of 850:1
  • 512MB DRAM and 1GB of Flash Memory

Options

Included Options:

  • 48"W x 32"D Stainless Steel Exterior Ramp
  • Insulated Floor
  • 48" x 77" Single Leaf Door with a 14"W x 24"H Heated Viewport
  • Workspace Lighting
  • Smart 1.2 Control System
  • UL508A Control Panel
  • Data Sense Machine Health Monitoring Package
  • Top Mounted 1HP Single Stage Refrigeration System (local air-cooled)
  • Steam Humidifier
  • Desiccant Dehumidifier

Additional Options:

  • Reverse Osmosis Filtration System
  • Chart Recorder
  • On Site Installation, Start-Up, & Training
