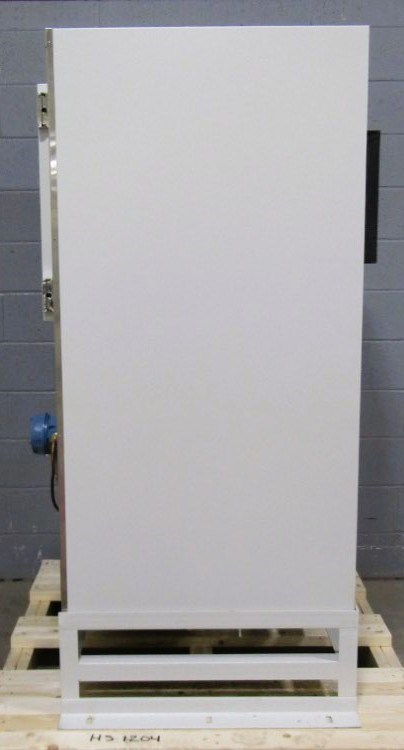

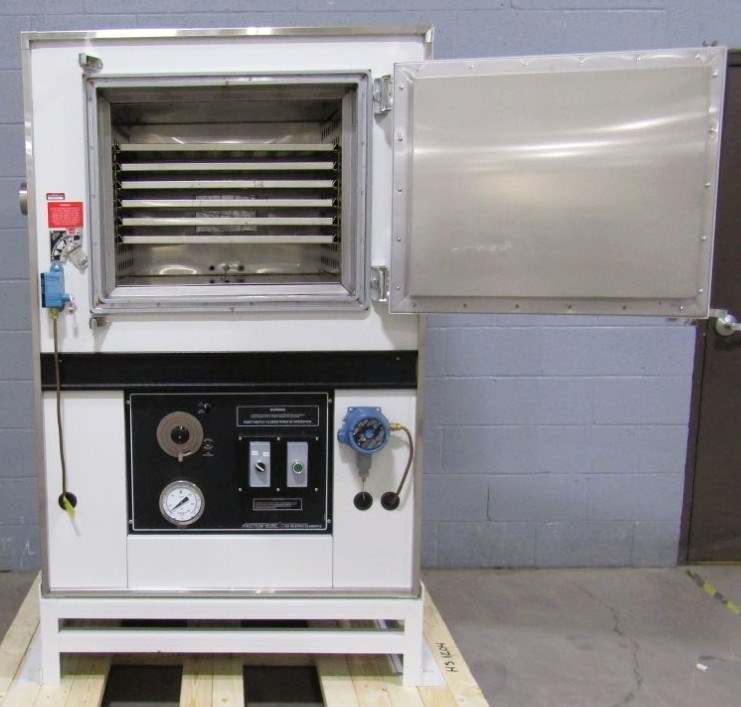

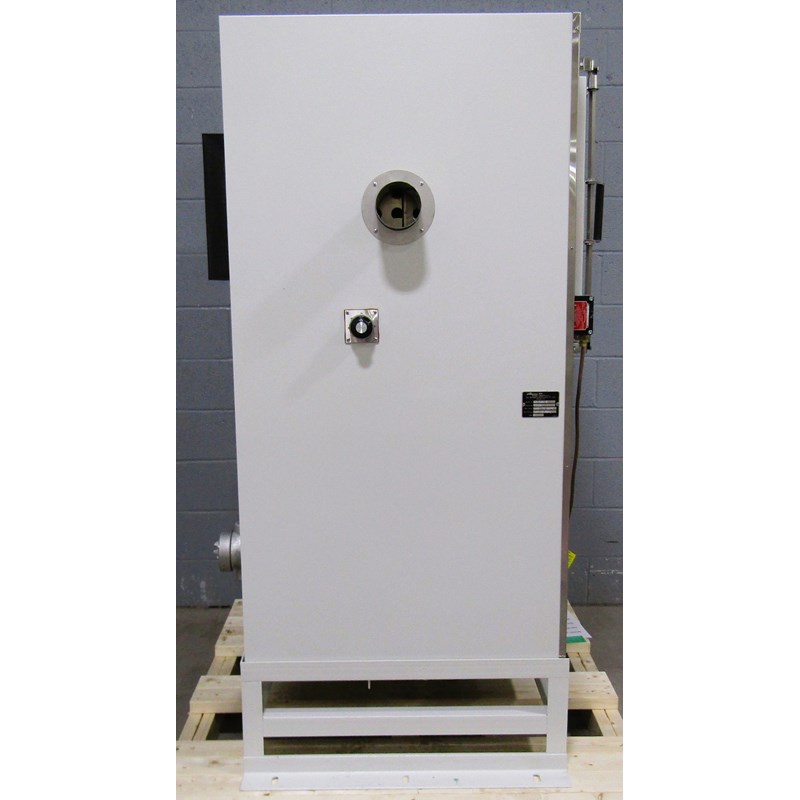

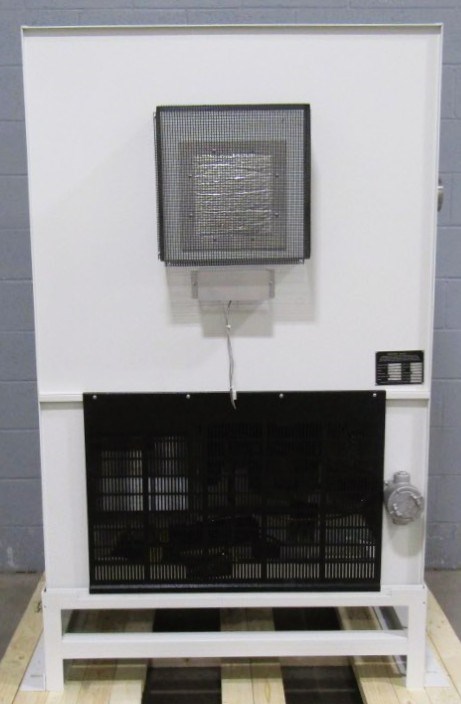

Blue M HS-1204-E "FRICTION-AIRE" Safety Oven Serial#: 175430
Customer Returned Friction-Aire® Safety Oven. In like-new condition. In-Stock and Ready for Shipment! Can Ship in 3-5 Days!
Blue M Friction Aire® industrial safety ovens provide a controlled heat source without heating elements, which eliminates atmospheric explosions and ignitions when working with hazardous Class 1, Group D materials. Class 1 atmospheres contain flammable vapors, and Group D materials include many solvents commonly used in finishing applications, such as lacquers and paints.
Benefits
- Controlled heat source eliminates atmospheric explosions and ignitions when working with Class 1, Group D materials
- Ideally suited for testing and processing of hazardous materials, paints, solvents, and lacquers.
- Maximum temperature uniformity
- Natural temperature interlock and built-in over temperature protection provides added safety to users and product
- Economical design that endures years of use
Features
- High velocity airflow system generates heat
- Blower creates air turbulence and friction for even heat
- Temperature-sensitive bellows regulates ambient air
- By-pass damper
- By-pass chamber
Pricing Information
- List Price New: $ 42,301.00
- Purchase This Unit For: $ 35,975.00
- Rent This Unit For: N/A
Specifications
- Temperature Range: +20°C above ambient to +260°C (500°F)
- Uniformity: +200°C; 1.0°C
- Run up time to +260°C: 140 minutes
- Cool down time to +50°C: 30 minutes depending on ambient temperature
- Drift: at +200°C: 0.50°C
- Maximum Velocity: 500/ FPM
- Minimum Velocity: 250 / FPM
- Interior Dimensions W X D X H (inches): 25 x 20 x 20
- Exterior Dimensions W X D X H (inches): 42 x 39 x 63
- Cabinet Type: Bench Standard Door
- Door Hinge: Right Hand
- Power: 208V, 3PH
- Amp Draw: 8.9
- Heater: 2.0Kw
- Weight: 1,035 pounds
- FG#: R260831
Control System
Power-O-Matic 90
Options
Included:
- Auxiliary Over-temperature Protection
- (6) Standard Shelves - in used condition
- Floor Stand
- Limited Warranty: 1 Year
Available:
- NIST Certificate of Calibration
- Additional Shelves
- Maintenance Kit
