Temperature: 15°C Above Ambient to 260°C
Fully Refurbished with 1 Year Warranty

Product Page

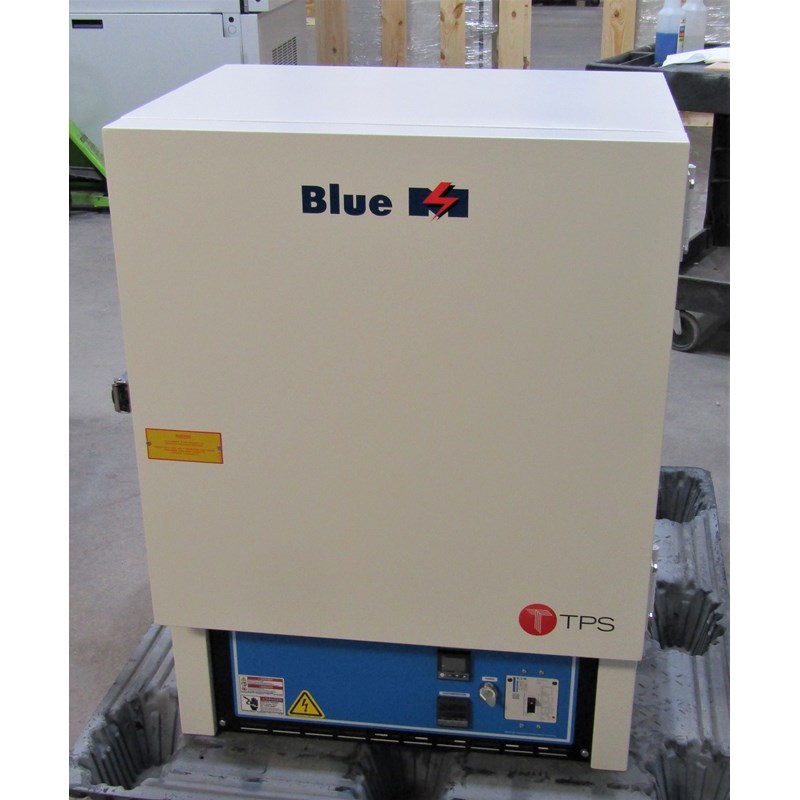

Blue M ESP-400-C-RKC RF100 Mechanical Convection Oven Serial#: ESP-720, ESP-722, & ESP-0945

Fully Refurbished & Ready to Ship! 3 Available!

This small, cost-effective industrial oven provides reliable performance with horizontal air flow which offers excellent temperature uniformity, and is an ideal selection for applications where there are multiple tiers of product arranged to allow air to flow horizontally from side-to-side. This economy oven features Blue M's onepass air flow system which allows incoming air to pass over the heaters and through the work chamber only once, if desired, enabling fast cool down or quickly venting non-hazardous fumes.


  • Horizontal airflow is ideal for thermal constancy and fast run-up and cool down rates
  • Alert system protects overheating from occurring and automatically disconnects heater


  • Open-air nichrome wire heater elements
  • Centrifugal blower wheel

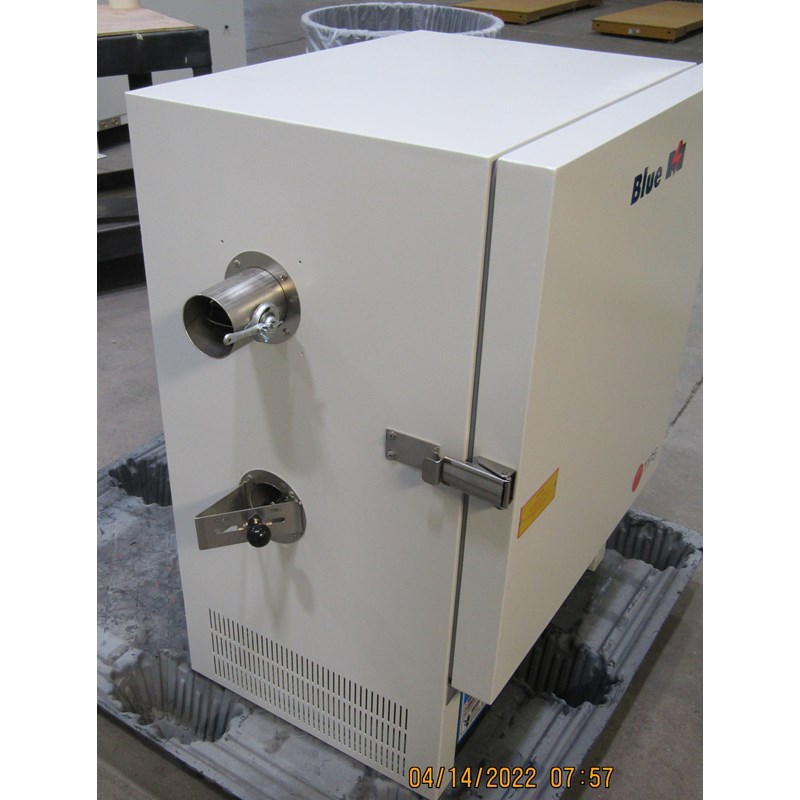

  • Adjustable air intake and exhaust dampers
  • Stainless steel interior corrosion resistant, - including inner face of door.
  • Profiling or single setpoint temperature controls

Pricing Information

  • List Price New: $ 5,980.00
  • Purchase This Unit For: $ 4,200.00


  • Temperature Range: 15°C above ambient to 260°C
  • Interior Dimensions W x D x H (inches): 19 x 15 x 18
  • Exterior Dimensions W x D x H (inches): 32 x 24 x 37
  • Crating Dimensions W x D x H (inches): 42 x 34 x 47
  • Electrical Power: 230V/240V 1 Phase 60 Hz
  • Amp Draw: 15.5
  • Heater: 3.4 kW
  • Weight: 234.0
  • FG# R210403, R210404, & R210405

Control System

RKC RF100 Temperature Controller

RKC RF100 Temperature Controller

  • Easy to read 11 segment LCD digital display
  • Enhanced PID control
  • Single Setpoint
  • Autotuning algorithm to calculate optimum setpoints and ramps
  • Helps eliminate over and under shoot of temperature
  • Overtemperature protection standard using CB100L or CB900L FM-approved controller with independent sensor and power


Included Options:
  • Single Set-Point control
  • Independent OTP
  • TPS Exclusive 1 year warranty on refurbished equipment
Available Options:
  • Wire Shelves
  • Floor stand
  • NIST Certificate of Calibration
  • Maintenance kit
