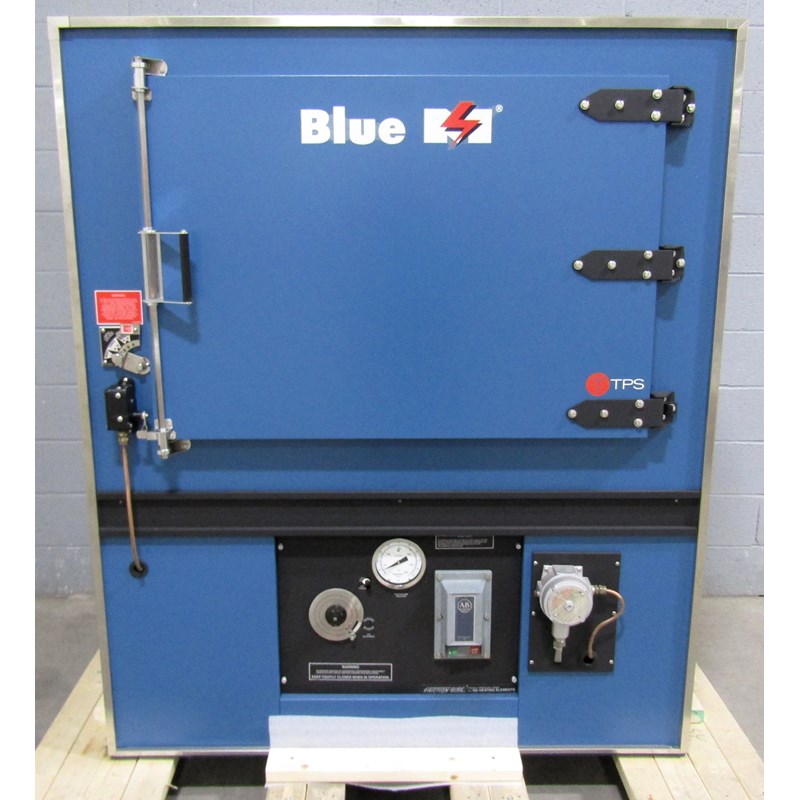

HS-3804-1G Blue M “FRICTION-AIRE”, Horizontal Airflow Class 1, Group D type Safety Oven Serial#: HS-511
Fully Refurbished Friction-Aire® High Temperature Safety Oven. Available for Immediate Sale!
Blue M Friction Aire® ovens provide a controlled heat source without heating elements, which eliminates atmospheric explosions and ignitions when working with hazardous Class 1, Group D materials. Class 1 atmospheres contain flammable vapors, and Group D materials include many solvents commonly used in finishing applications, such as lacquers and paints.
Benefits
- Controlled heat source eliminates atmospheric explosions and ignitions when working with Class 1, Group D materials
- Ideally suited for testing and processing of hazardous materials, paints, solvents, and lacquers.
- Maximum temperature uniformity
- Natural temperature interlock and built-in overtemperature protection provides added safety to users and product
- Economical design that endures years of use
Features
- High velocity airflow system generates heat
- Blower creates air turbulence and friction for even heat
- Temperature-sensitive bellows regulates ambient air
- By-pass damper
- By-pass chamber
Pricing Information
- List Price New: $ 42,521.00
- Purchase This Unit For: $ 31,890.00
Specifications
- Temperature Range: 20°C above ambient to 260°C (500°F)
- Interior Dimensions (WxDxH): 38" x 25" x 25"
- Exterior Dimensions (WxDxH): 57" x 44" x 68"
- Over-Temperature Protection
- Voltage: 460/480V 3 Phase 60 Hz.
- Amp Draw: 7.8
- Heater: 3.0 kW
- Air Flow: Horizontal
- Cabinet Type: Standard Floor Model
- Weight: 1,356.00lbs

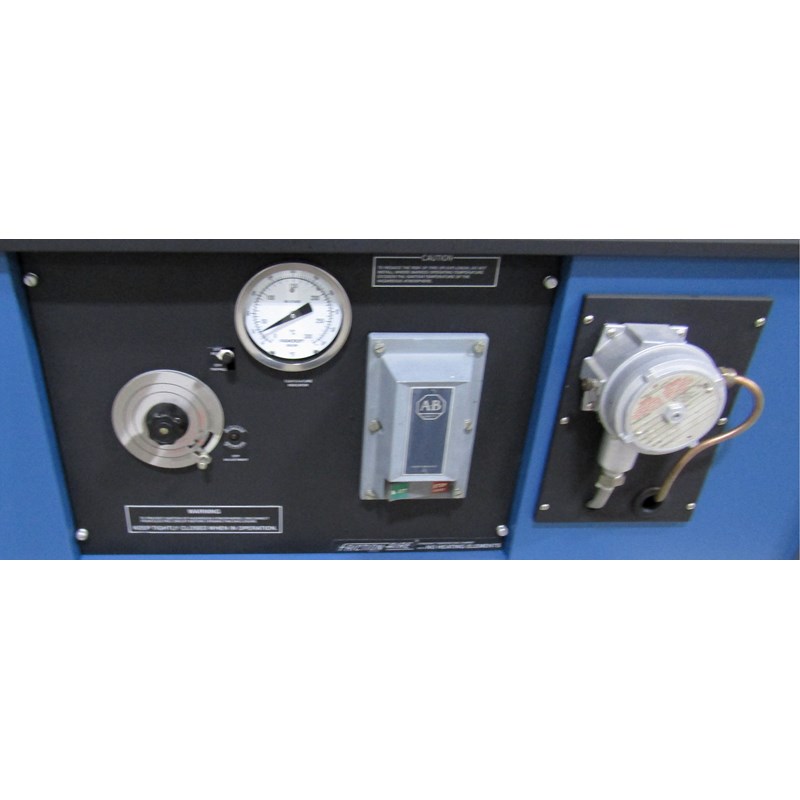

Control System
Power-O-Matic 90 Non-Electric Proportioning Control System
Options
Included

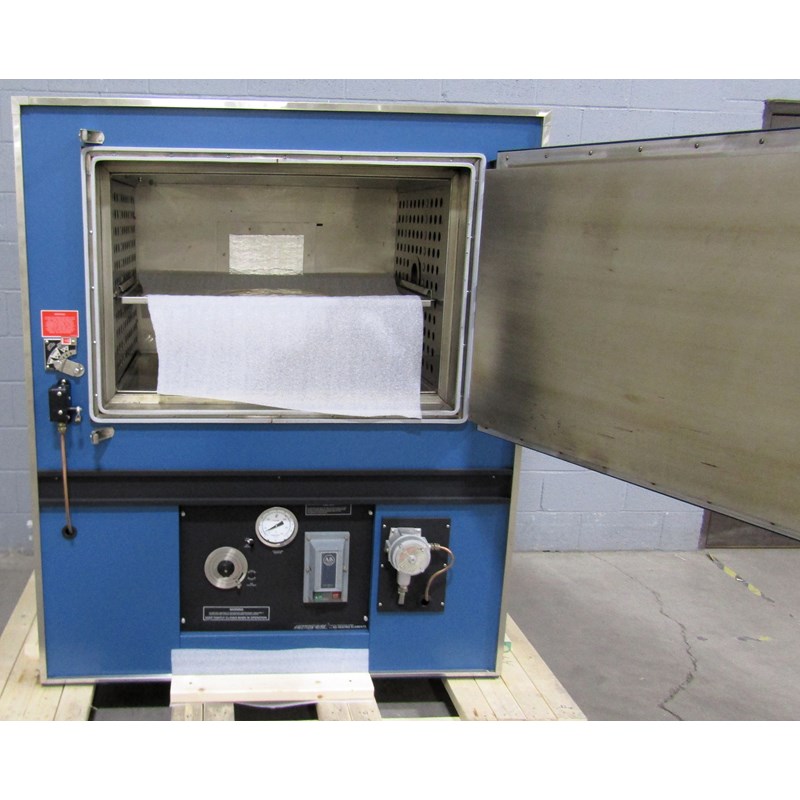

- (1) Shelf
- Over-Temperature Protection
Available
- Additional Shelves
- NIST Calibration
- Maintenance Kit
