Blue M HS-1202-F Friction-Aire Safety Oven Serial#: HS-158
Newly Refurbished Unit, In-Stock and ready for shipment! Can Ship in 2-3 Days!
Benefits
- Controlled heat source eliminates atmospheric explosions and ignitions when working with Class 1, Group D materials
- Ideally suited for testing and processing of hazardous materials, paints, solvents, and lacquers.
- Maximum temperature uniformity
- Natural temperature interlock and built-in over temperature protection provides added safety to users and product
- Economical design that endures years of use
Features
- High velocity airflow system generates heat
- Blower creates air turbulence and friction for even heat
- Temperature-sensitive bellows regulates ambient air
- By-pass damper
- By-pass chamber
- Temperature range: +20°C above ambient to +150°C (302°F)
- Run up time to +150°C: 120 minutes
- Cool down time to +50°C: 30 minutes depending on ambient temperature
- Drift: at +150°C: 0.50°C
- Maximum Velocity: 400 / FPM
- Minimum Velocity: 100 / FPM
Pricing Information
- List Price New: $33,427.00
- Purchase This Unit For: $25,750.00
- Rent This Unit For: N/A
Specifications
- Temperature Range: +25°C above ambient to +150°C (302°F)
- Run up time to +150°C: 120 minutes
- Cool down time to +50°C: 30 minutes depending on ambient temperature
- Drift: at +150°C: 0.50°C
- Maximum Velocity: 400/ FPM
- Minimum Velocity: 100 / FPM
- Interior Dimensions W X D X H (inches): 25 x 20 x 20
- Exterior Dimensions W X D X H (inches): 42 x 39 x 63
- Cabinet Type: Bench Standard Door
- Power: 480V, 3PH
- Amp Draw: 5.8
- Heater: 1.3Kw
- FG#: R230306

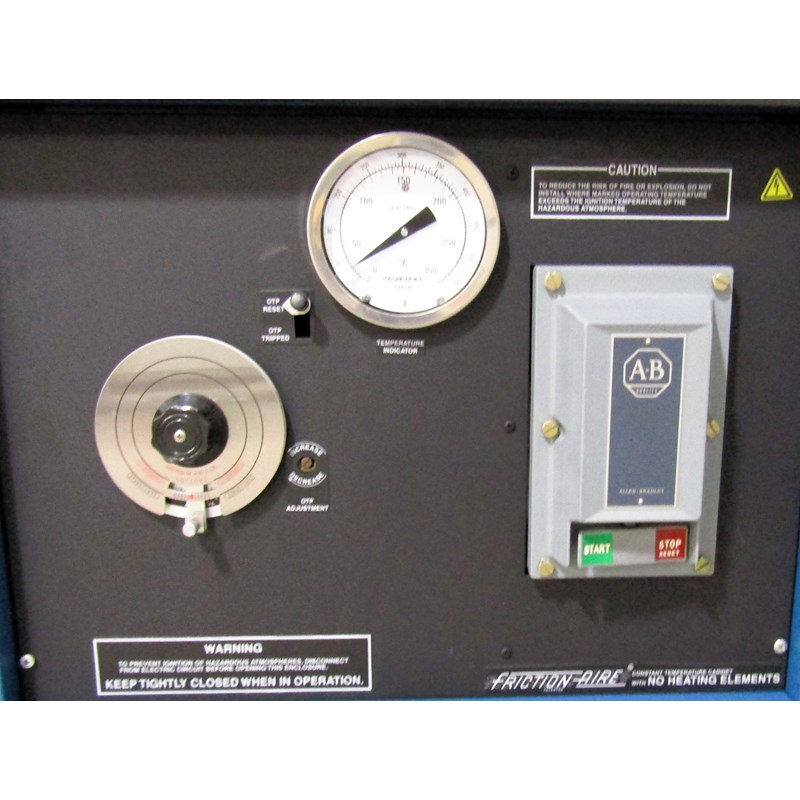

Control System
Power-O-Matic 90
Options
Included:
- Auxiliary Over-temperature Protection
- Limited Warranty: 30 Days Labor & 90 Days Parts
Available:
- NIST Certificate of Calibration
- Shelves
- Maintenance Kit
