TPS

Temperature Range: 20°C above ambient to 260°C Max
In Stock - Can Ship in 2-3 Days

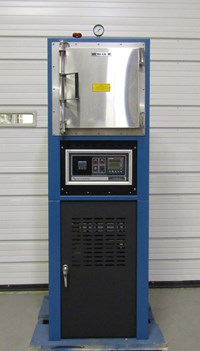

Blue M OV-18C Vacuum Oven Serial#: V-214

Blue M Vacuum Oven Available for Rent or Purchase.

Can ship in 2-3 days!

Features

  • Full 304 Stainless Steel interior
  • 3" of fiberglass Insulation
  • Fully Programmable and Profile Capable Controller
  • Independent High Limit
  • Integrated Vacuum Pump
  • Analog Vacuum Gauge

Pricing Information

  • Purchase This Unit For: $ 4,200.00
  • Rent This Unit For: $ 550.00/Month

Specifications

  • Interior Dimensions: 16" Diameter x 16" Deep
  • Shelf Sizes: Center- 16" x 16"; Bottom- 12" x 16"
  • Exterior Dimensions (W x D x H Inches): 24 x 31 x 73
  • Shipping Weight- 420lbs.
  • Temperature Range: 20°C above ambient to 260°C Maximum
  • Vacuum Range- to 30"hG
  • Vacuum Pump- 1/2HP
  • Power Supply: 208/240VAC 1Ph 60Hz
  • Power: 17Amps- 3.0kW; 30A Plug Supplied
  • FG# R191027

Control System

Watlow F4 Temperature Controller

Watlow F4 Temperature Controller

  • Dual channel
  • Profiling: 40 profiles, 256 steps
  • Automatic & manual control
  • 2 Analog inputs, universal-type (RTD is standard)
  • 4 Digital inputs
  • 2 Auxiliary analog inputs -- optional
  • 2 Control outputs: time proportioned, on/off or 4-20 mA
  • 2 Alarm outputs
  • 8 Digital event outputs
  • 2 Retransmit outputs -- optional
  • Communications: EIA-232 and EIA-485 with Modbus RTU protocol

Options

Included Options

  • 2 Shelves
  • Floor Stand with Integrated Vacuum Pump
