« Back to List Page

Temperature Range: 15°C above ambient to 350°C
Ships in 2-3 Days

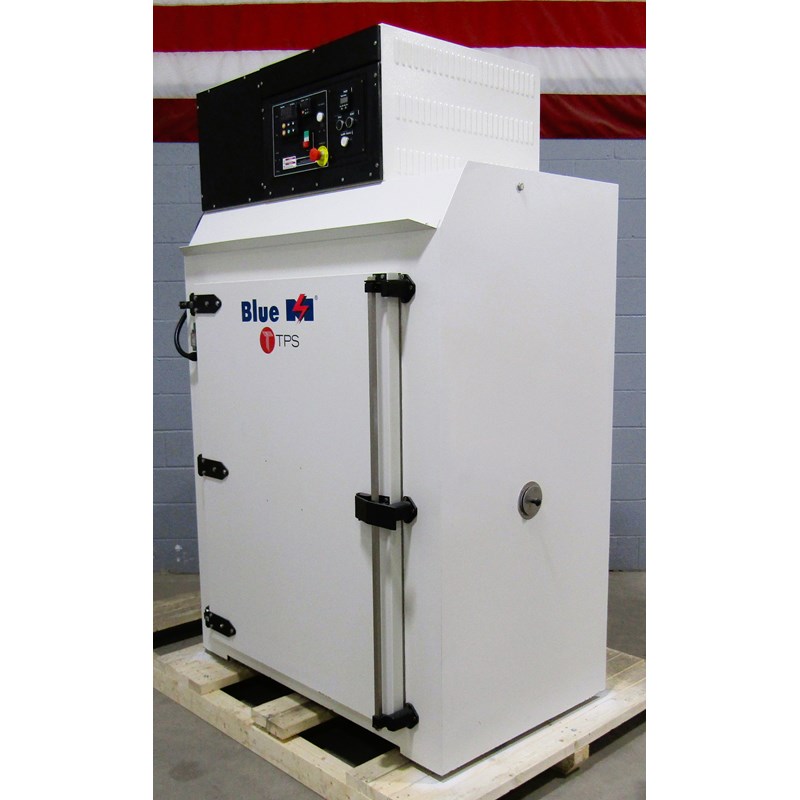

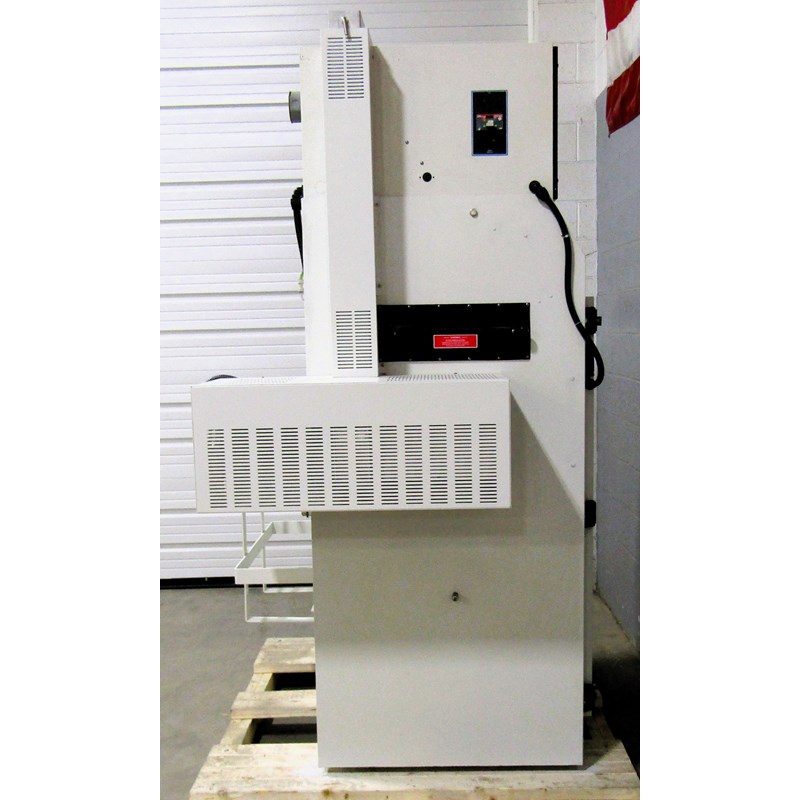

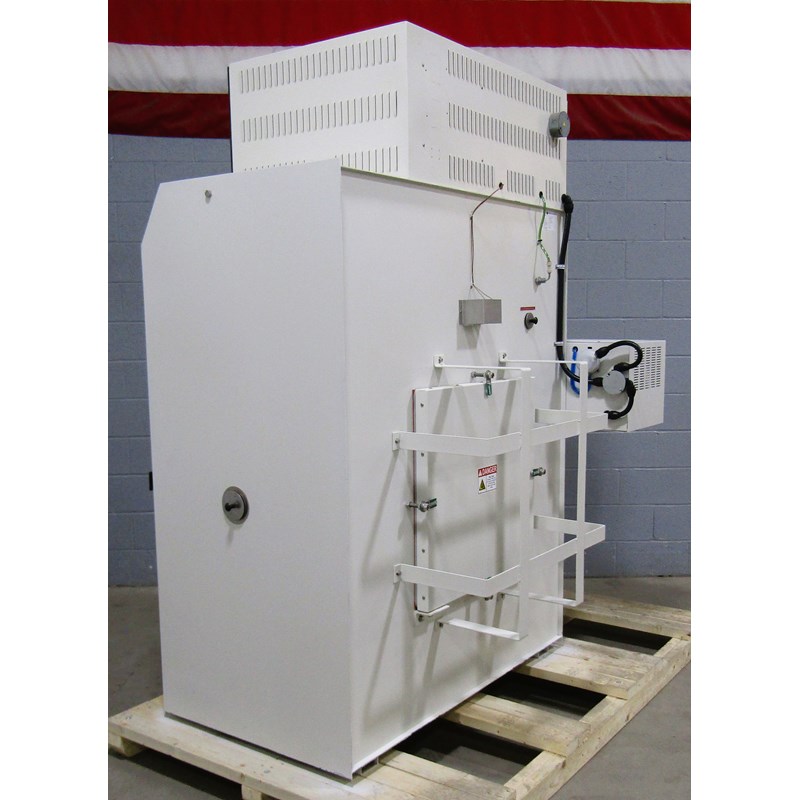

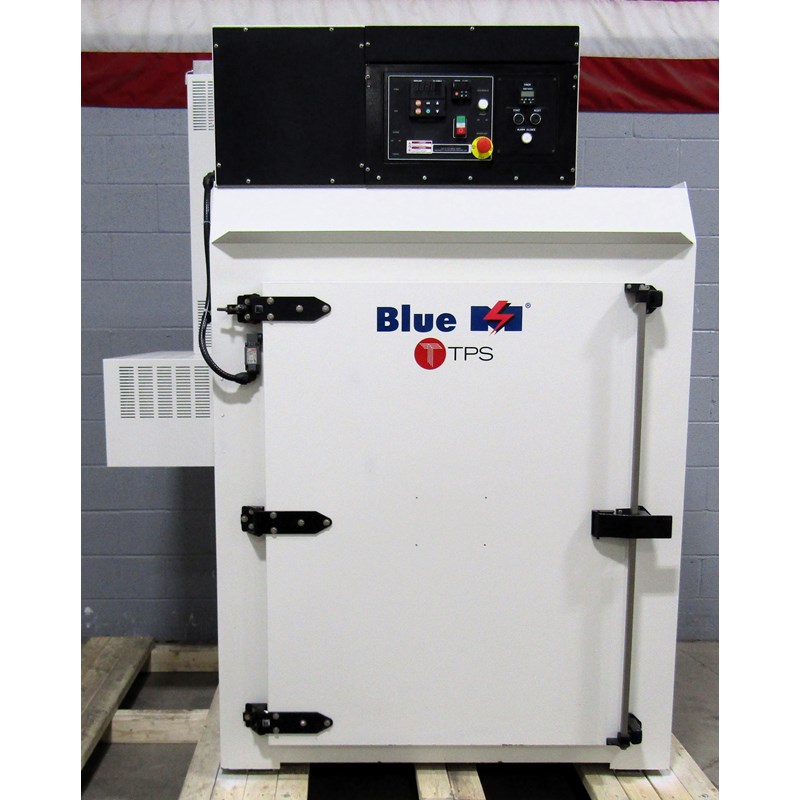

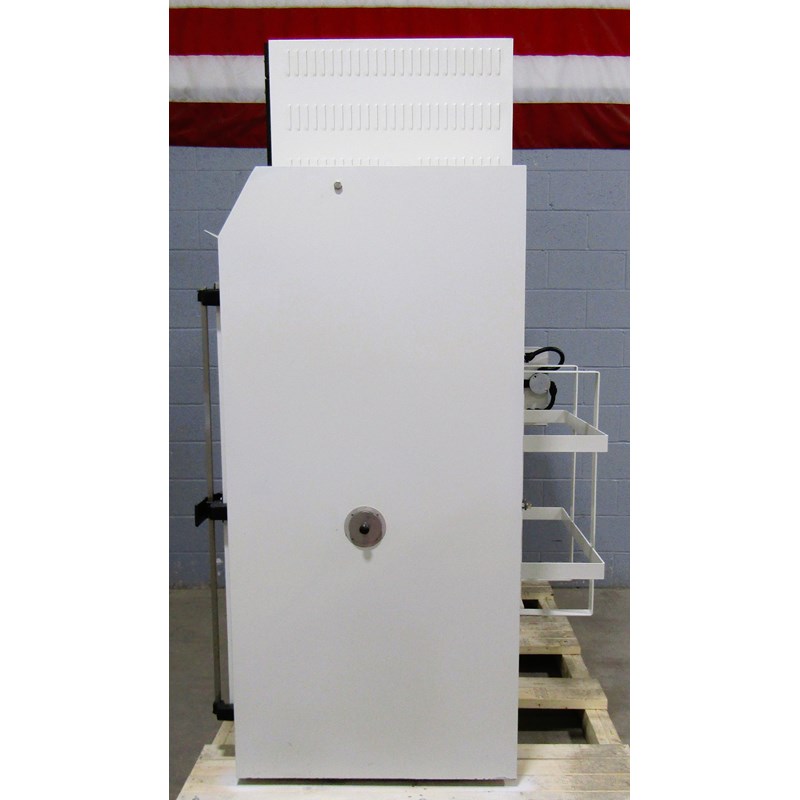

Blue M DCSA-256-F-SP Class A Mechanical Convection Oven Serial#: 68066-06

In Stock and Ready to Ship!


  • NFPA recommended features reduce hazardous vapors and flammability
  • Welded construction prevents dangerous build up on chamber walls
  • Airflow switches stop heaters in event of airflow loss for added safety and assurance of quality production


  • Housings made from reinforced, heavy gauged, cold rolled steel
  • Interiors made of Type 304 stainless steel
  • Welded construction
  • Fiberglass insulation
  • Silicone sealed steel door
  • Eternal cylindrical heater banks
  • Direct drive motor/ blower system
  • Forced exhaust system
  • Airflow switches
  • Adjustable purge/timer door switch
  • Blow-out relief panel and safety cage
  • Fire extinguishing port
  • Angle shelf supports

Pricing Information

  • List Price New: $15,000.00
  • Purchase This Unit For: $10,500.00

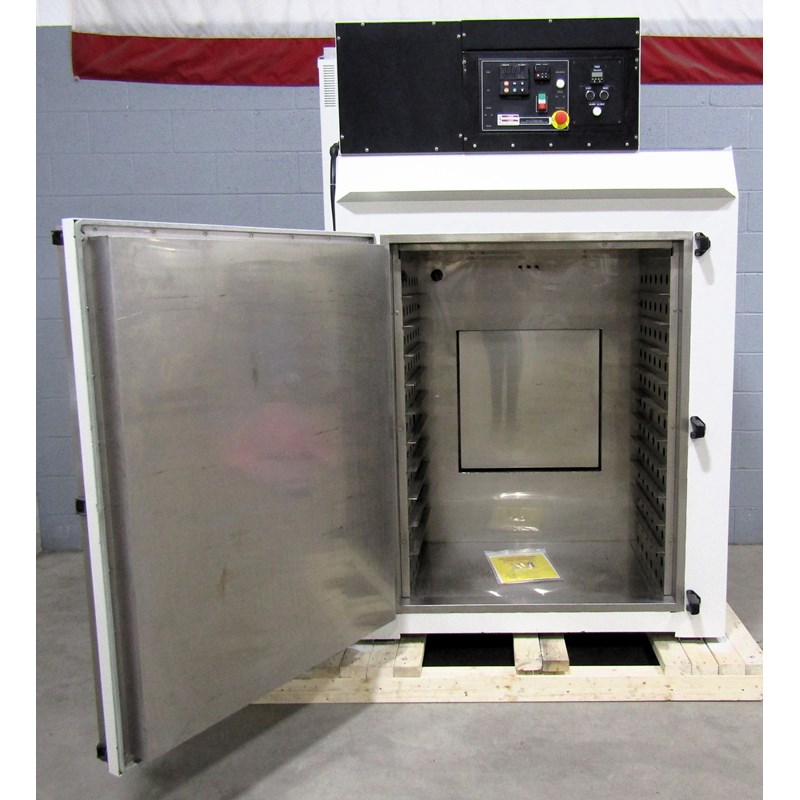

  • Interior Dimensions: 25"W x 20"D x 20"H
  • Exterior Dimensions: 45"W x 36"D x 83"H
  • Power: 208/240VAC, Three phase, 40A fuse
  • 29/33 Amps
  • 9/12 Kw
  • FG# R161221

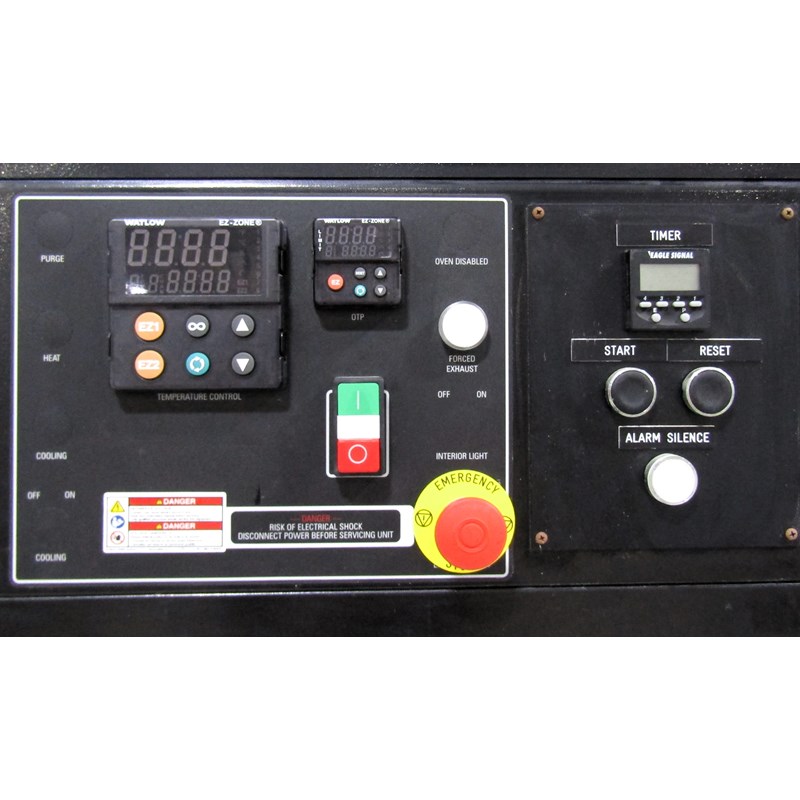

  • Control System

    Blue M PRO550 Profiling Controller


    Included Options:

    • Over Temperature Protection is standard on this model

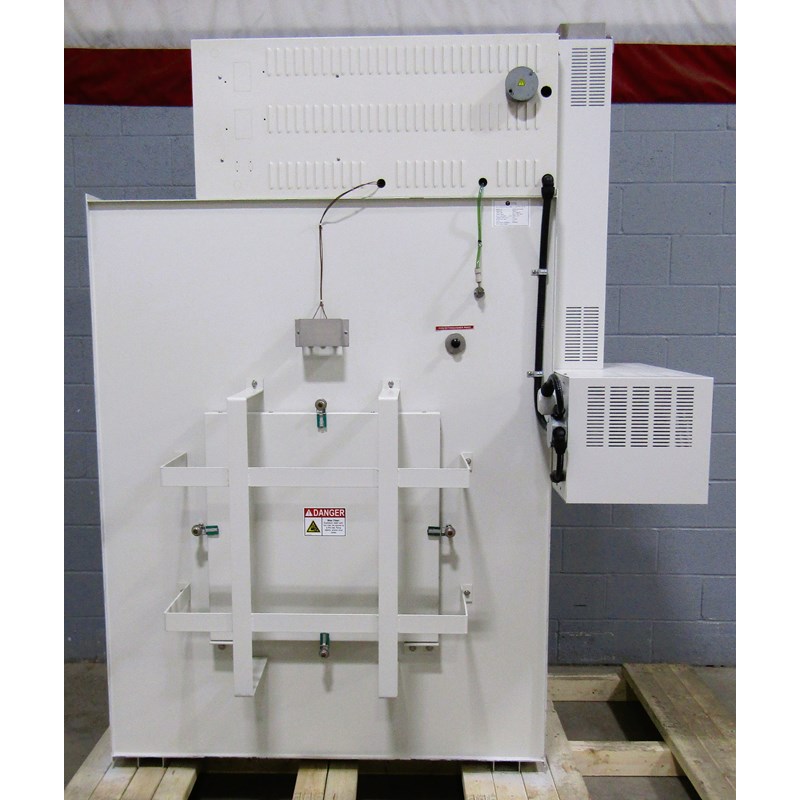

    • Exhaust is located on the top of the oven
    • Includes (4) 4-inch ports with plugs, (2) on both sides of the oven. Ports are centered front to back and evenly spaced vertically
    • Includes RS-485 communications port
    • Safety Door Switch
    • Fire Extinguisher Port
    • TPS Exclusive 1 Year Warranty on Refurbished Equipment

    Available Options:

    • Stainless steel shelves
    • Redundant OTP
    • Chart Recorders
    • Floor Stand
