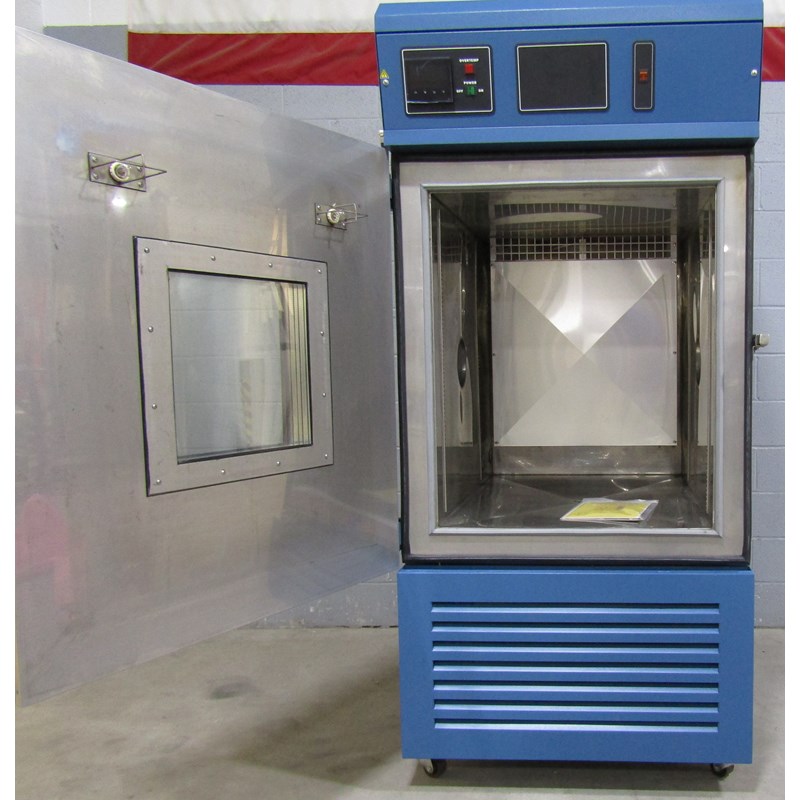

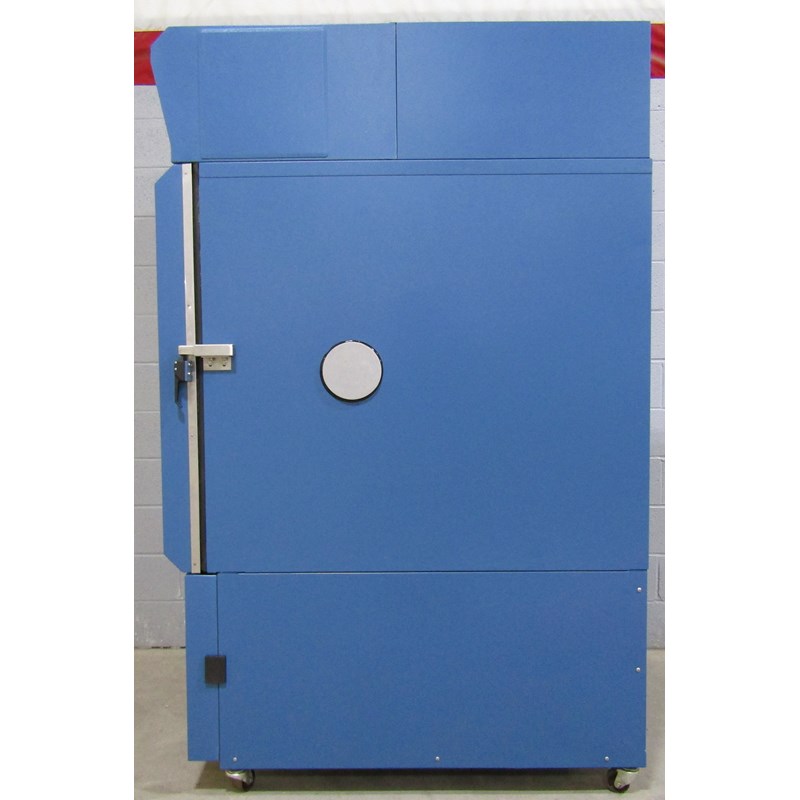

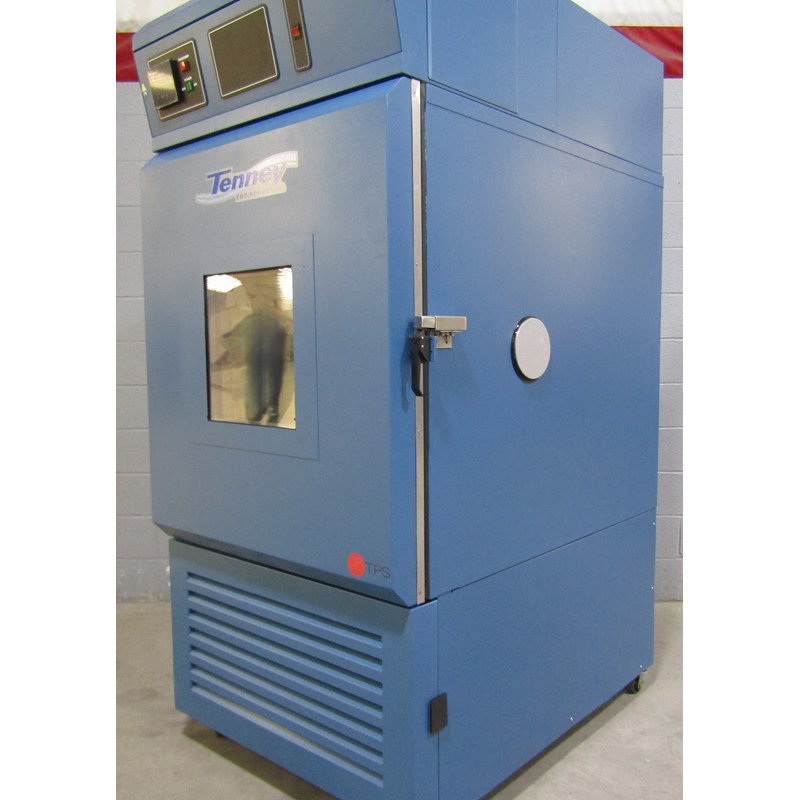

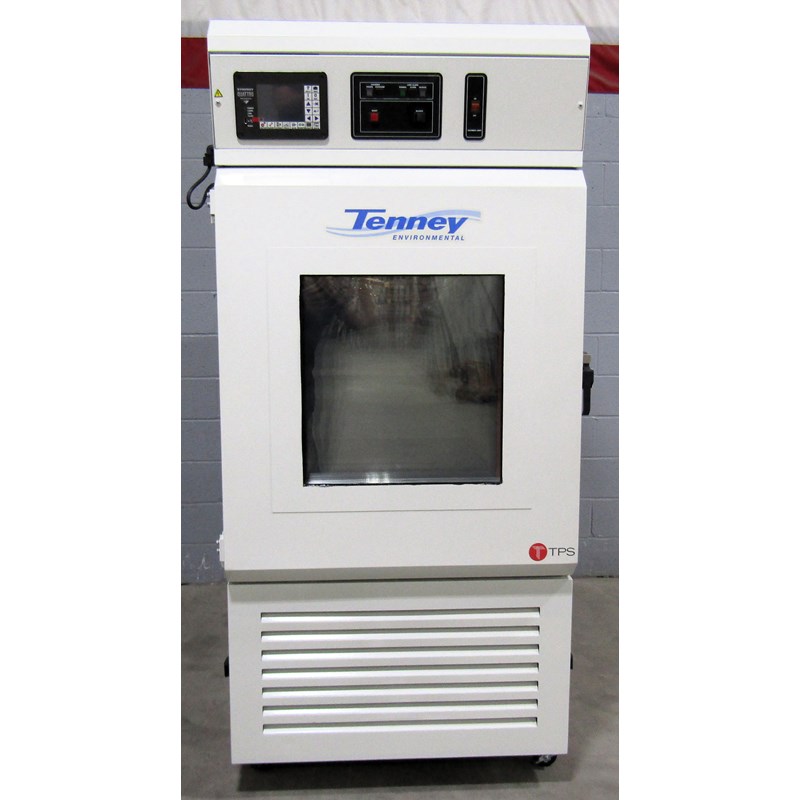

Tenney T20C-1.5-A-F4T-C Temperature Chamber Serial#: 27558

Fully Refurbished 20 cubic foot Tenney Temperature Test Chamber Ready to Ship!  Available for Monthly Rental or Immediate Purchase.

Our line of Tenney Series chambers employ leading edge technology to supply our customers with the most efficient and environmentally-friendly test equipment possible. State-of-the-art controllers allow precise, effective monitoring and programming of your unit.   An exact blend of insulation ensure efficient chamber operation and maximize floor space by minimizing equipment footprints.  Time-proven mechanical refrigeration, in single or cascade systems, allows years of worry-free use.  Environmentally safe CFC-free refrigerants provide the safety you demand.

Benefits

  • Structural reinforcement is used at all critical points
  • Through wall ports are continuously welded
  • Fully welded liner

Features

  • Design features for optimal performance such as high volume horizontal down air circulation
  • Semi-hermetic (serviceable) compressors, protected with over current and thermal devices are provided for long term reliability
  • All wiring complies with NEC.
  • All doors are equipped with double gaskets that trap air for the purpose of insulation.
  • All models feature vapor-tight, continuously welded stainless steel interiors.

Pricing Information

  • List Price New: $ 28,585.00
  • Purchase This Unit For: $ 22,500.00
  • Rent This Unit For: $ 1,900.00 / month

Specifications

  • Temperature Range: -70C to +200C
  • Interior Dimensions: WXDXH (inches) 30 x 32 x 36
  • Exterior Dimensions: WXDXH (inches) 41 x 55 x 84
  • Voltage: 230/240V - 1 phase 60Hz

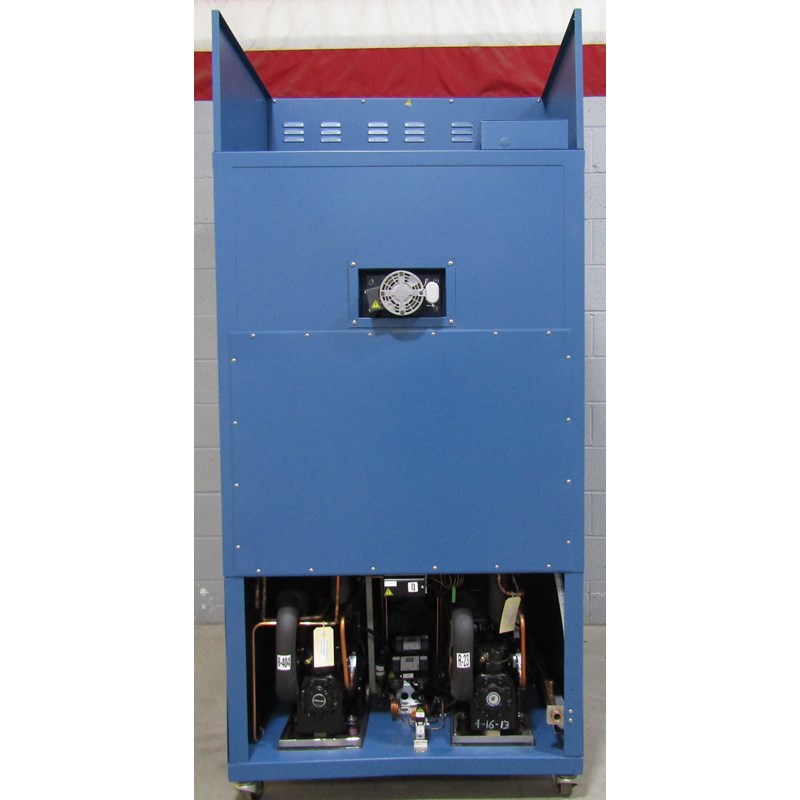

  • Refrigeration: Tenney Hermerticool Cascade Air Cooled System, 2HP
  • Kw: 2.0
  • Amp Draw: 35 Amps
  • Fuse at 45A
  • Air Flow: Vertical
  • FG# R240604

Control System

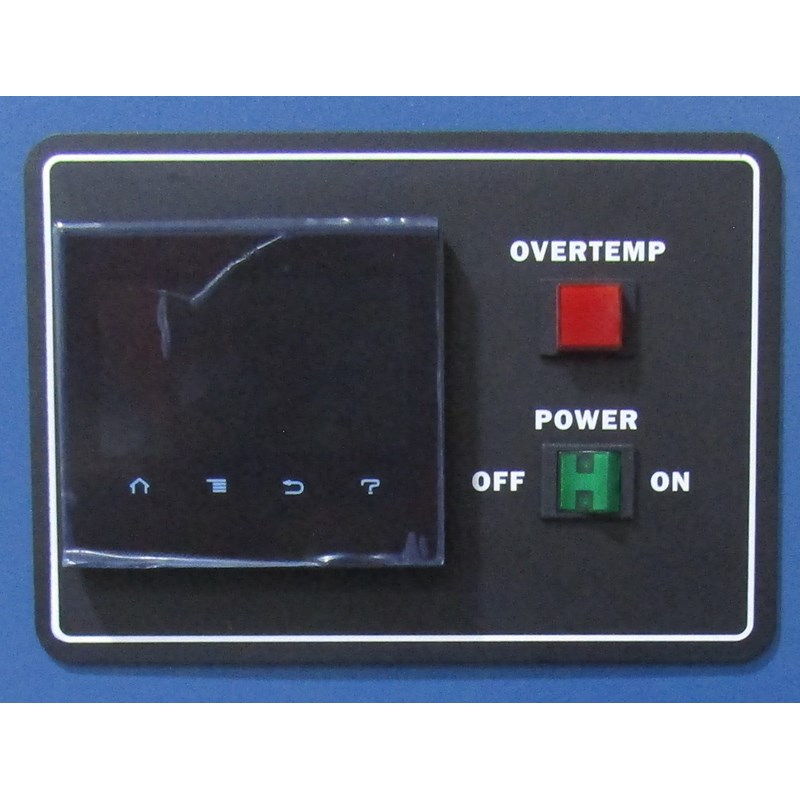

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.

Features

  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart
  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment

Options

Included Options:

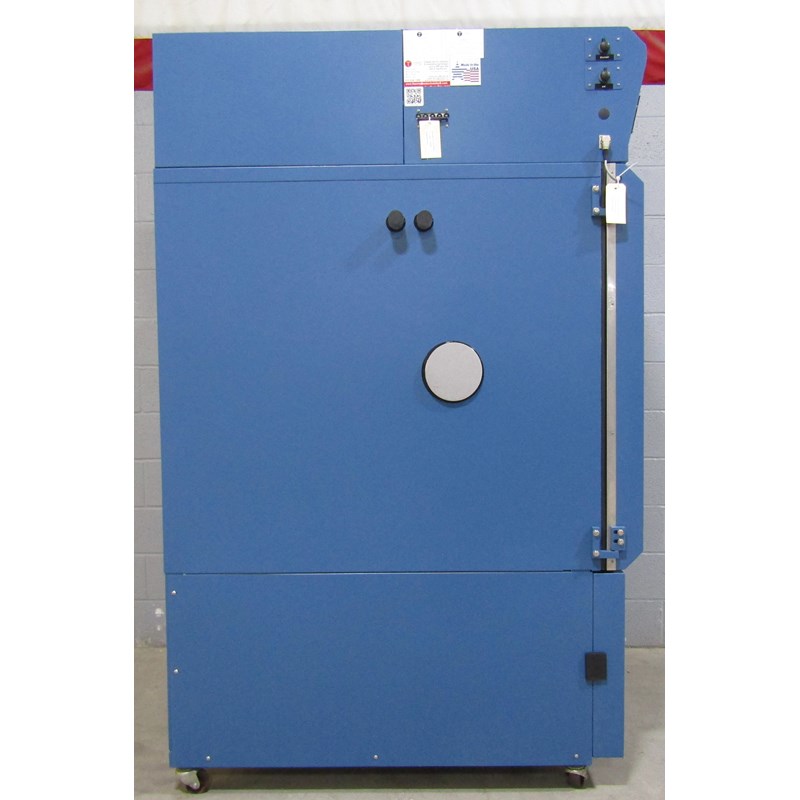

  • (2) 3" ports. Centered on left side of the chamber, with plug.
  • Casters
  • Ethernet Communications
  • Onboard Data Logging & Chart Trending
  • TPS Refurbished Equipment Limited Warranty
Available Options:
  • Stainless Steel Shelves
  • Certificate of Calibration NIST or ISO17025
  • TempGard OTP
  • Dry Air Purge
  • LN2 Boost Cooling
  • Boost Heat
  • Spare Parts Kits

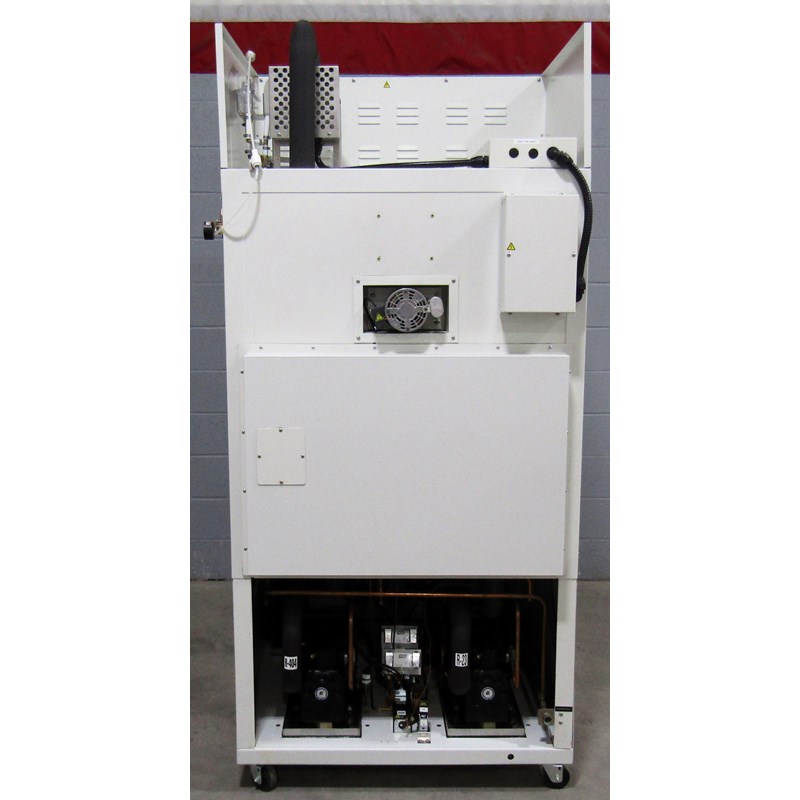

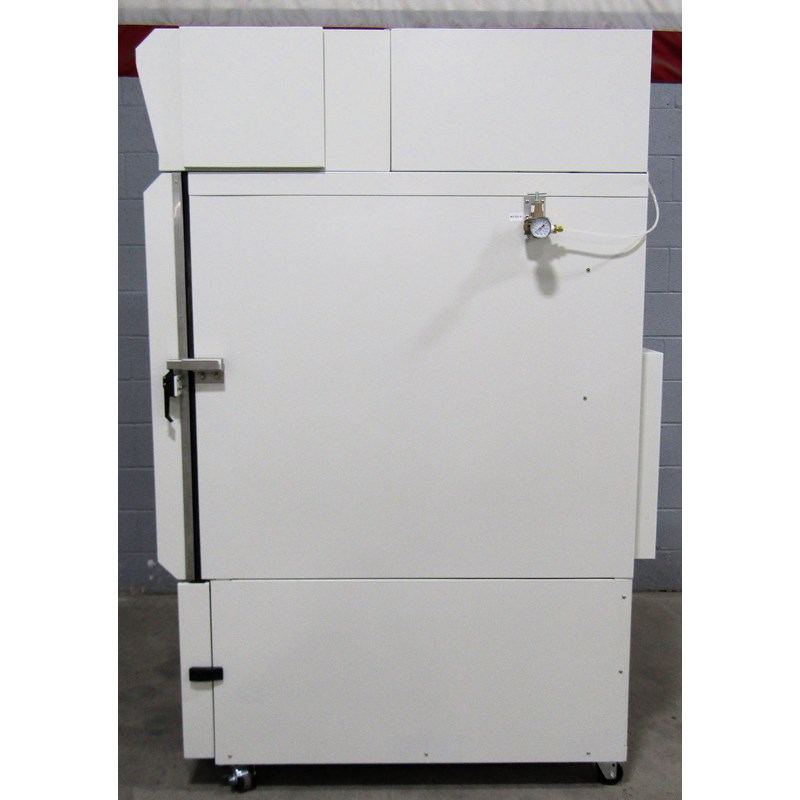

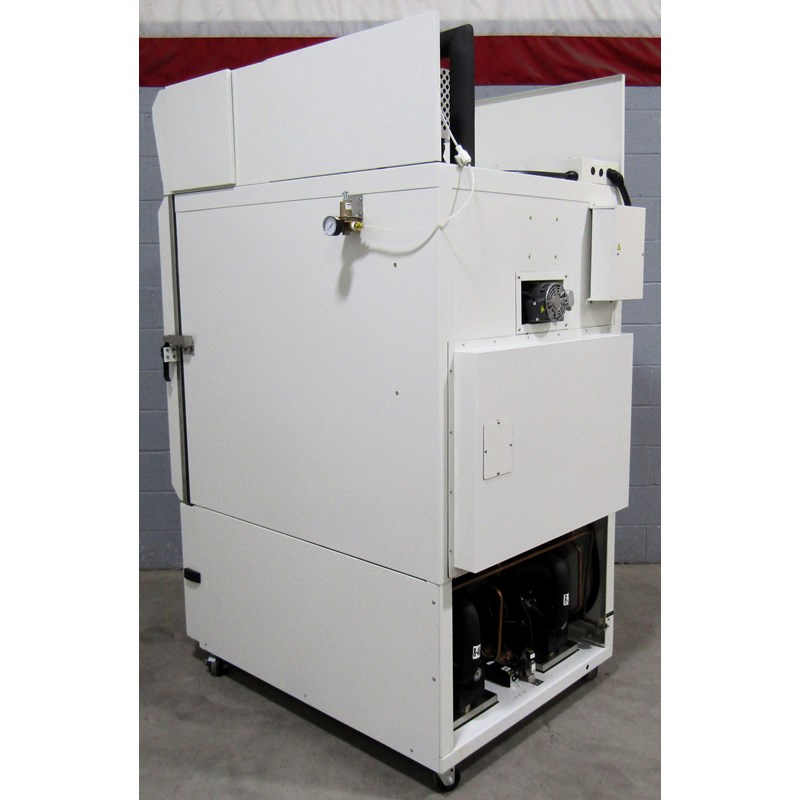

Additional Images
