TPS

15°C above ambient to 350°C
480V 3-Phase 60Hz.

Product Page

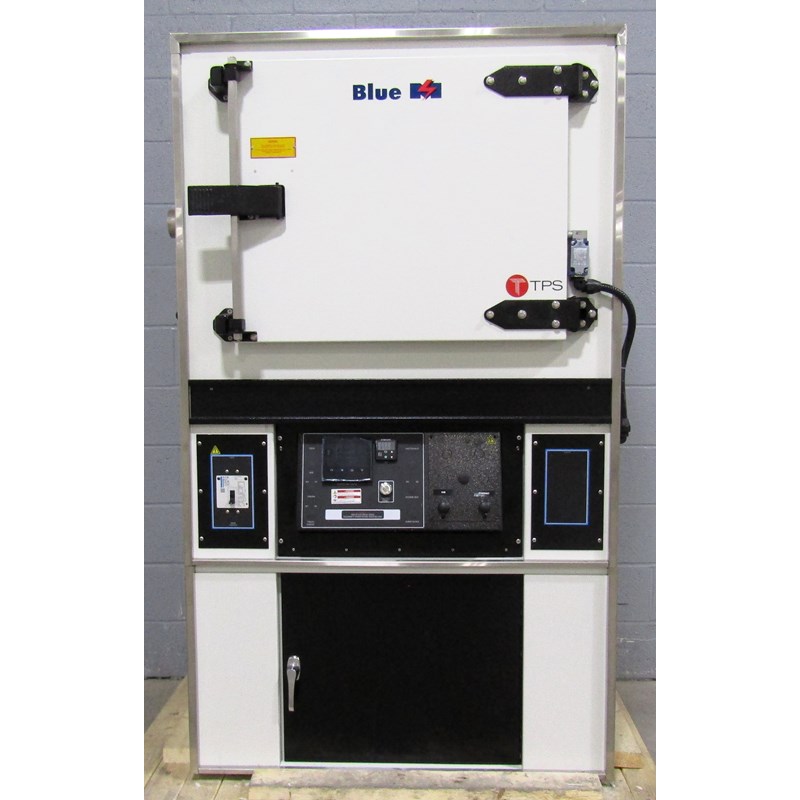

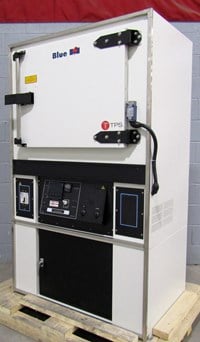

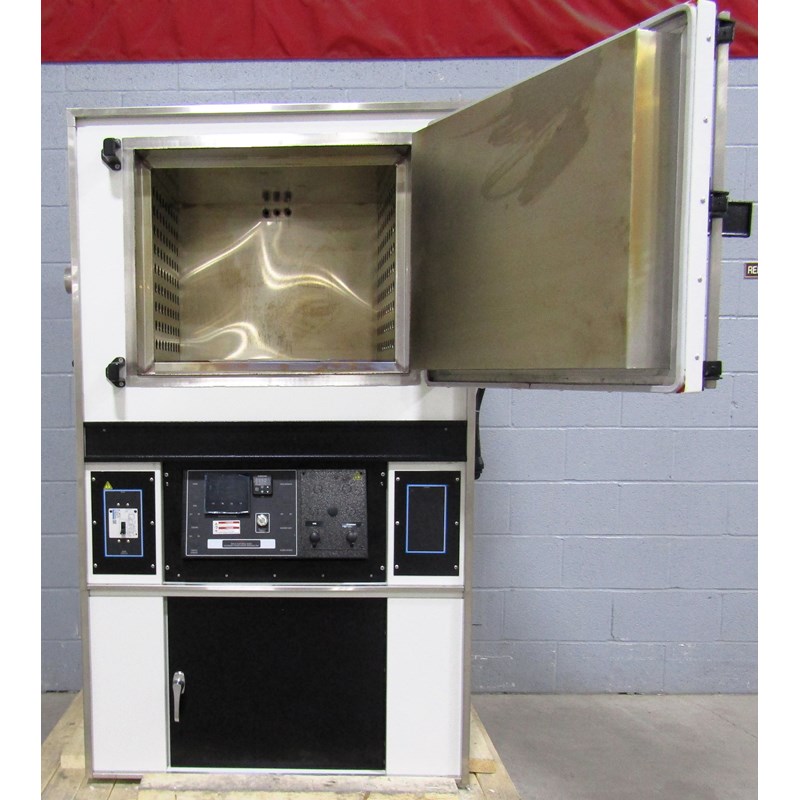

Blue M DCW-256-G-F4T Mechanical Convection Oven Serial#: 169142-02

Customer Returned Unit.  Unit is in like-new condition and never used in the field.  In Stock and Ready to Go!  Can Ship in 2-3 Days!

Benefits

  • Horizontal air flow assures uniform thermal performance under all loading conditions
  • Exclusive Blue M Eternal heating elements - the most reliable available, with heavy gauge, high temperature nickel chromium where, low-watt density for longer service life, standard air flow switch
  • Blue M one-pass air flow controls your profile, including cool down with infinitely variable control from full re-circulation to full one pass, and optional motorized damper for automatic operation
  • Direct drive blower multi-blade centrifugal blower with high-volume air delivery, dynamically balanced

Features

  • Differential air pressure switches alert operators before costly problems with batch runs
  • Quick access for simple inner chamber cleaning
  • Easy to use controller for repeatable results and less training requirements
  • Reinforced Type 304 stainless steel interior resists corrosion and makes cleaning easy
  • 4 inches of fiberglass insulation saves energy and provide cool to the touch exterior
  • Adjustable air intake and exhaust dampers for flexible testing conditions
  • Infinitely variable control from full re-circulation to full one pass to accommodate any processing need
  • Profiling or single set-point temperature controls offer flexible recipe options
  • Standard air flow switch

Pricing Information

  • List Price New: $ 15,415.00
  • Purchase This Unit For: $ 13,500.00
  • Rent This Unit For: N/A

Specifications

  • Door Style: Standard Single Door
  • Door Hinge: Right Hand
  • One Year Parts & Labor Warranty
  • Over Temperature Protection is included as standard on this model
  • Temperature Range: 15°C above ambient to 350°C
  • Interior Dimensions W x D x H (inches): 25 x 20 x 20
  • Exterior Dimensions W x D x H (inches): 45 x 36 x 69 (w/stand)
  • Crating Dimensions W x D x H (inches): 55 x 46 x 79 (w/stand)
  • Cabinet Type: Includes Floor Stand

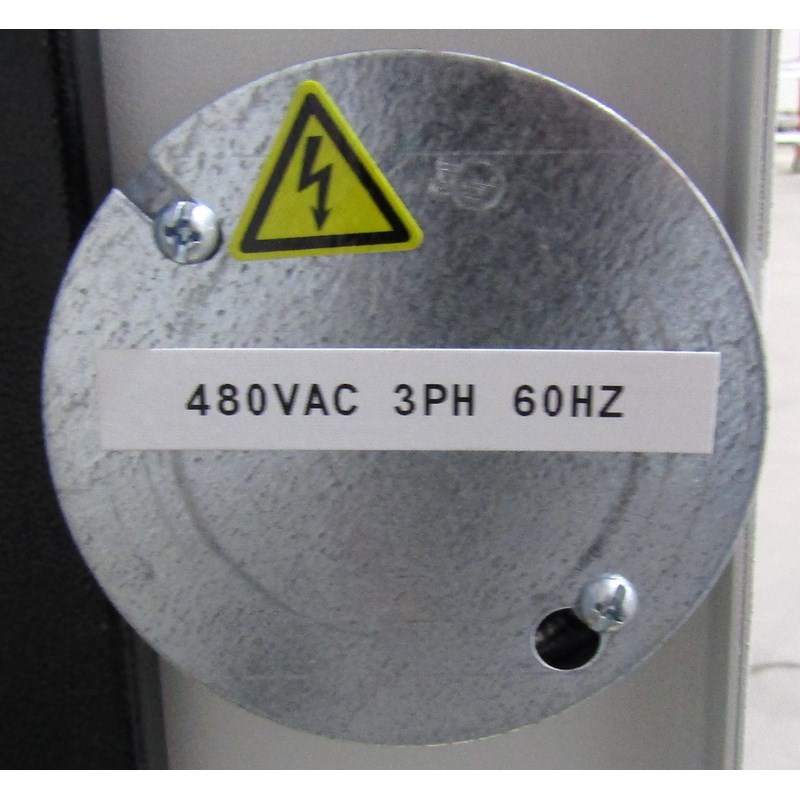

  • Electrical Power: 480V,  3-Phase, 60 Hz
  • Amp Draw: 16
  • Heater: 12.0 Kw
  • Weight: 700.0 lbs.
  • FG# R754012-02

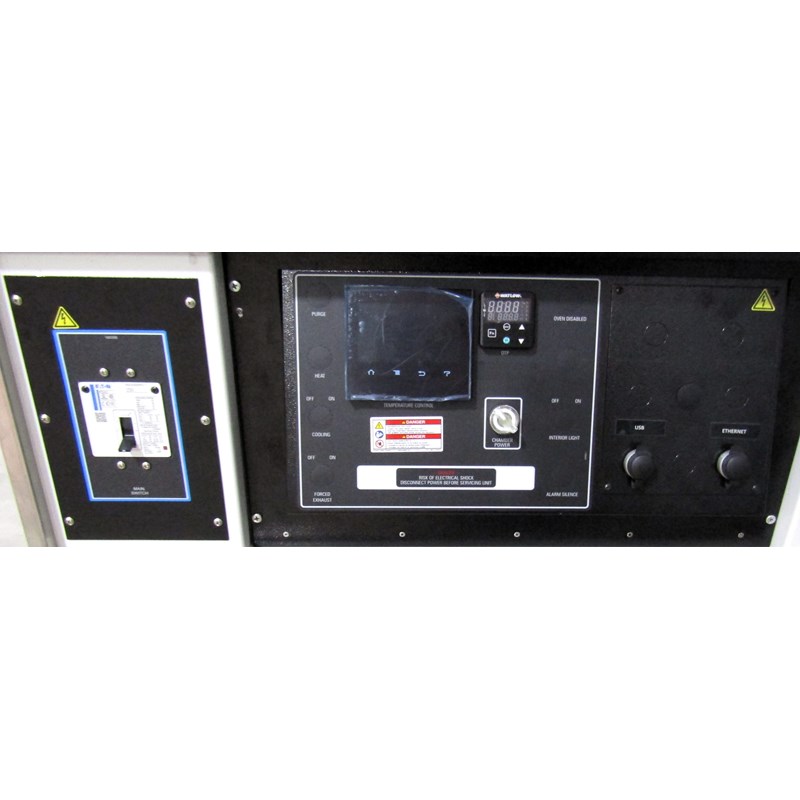

Control System

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.

Features

  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart
  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment

Options

Included Options:
  • Over Temperature Protection is standard on this model
  • Watlow F4T Programmable Controller
  • UL508A Control Panel
  • Safety Door Switch
  • Floor Stand
  • One Year Parts & Labor Warranty
Available Options:
  • Stainless steel wire rod shelves
  • 3" Port
  • Maintenance Kit
  • NIST Calibration Certificate
  • Watlow F4T Upgrade: Data & Chart Trending Capabilities
