Tenney TC10RC2.0-A-S1.2-C Environmental Cycling Test Chamber Serial#: 116673

Long-Term Rental Returned Tenney TC10RC Available for Immediate Sale. Can Ship in 3-5 Days!  Ask about our Rent to Own Option!

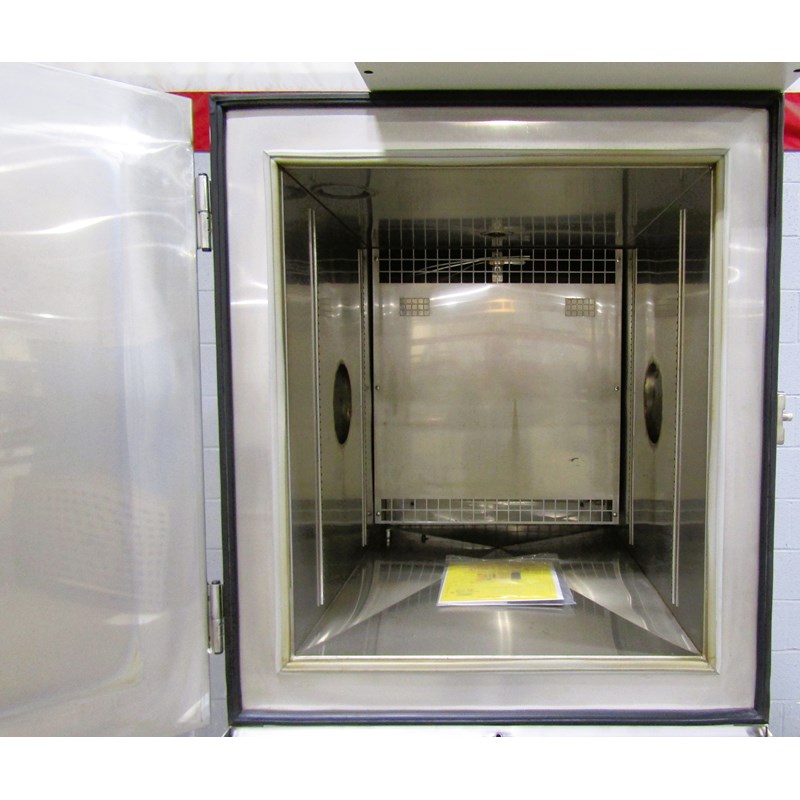

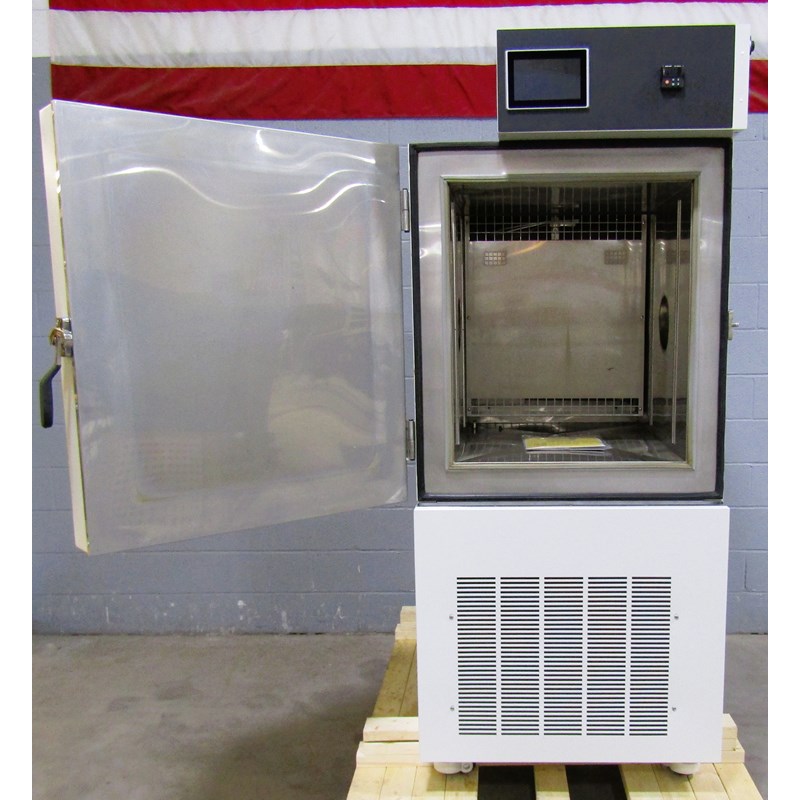

The TC Series of environmental cycling reach-in test chambers include both temperature-only chambers and temperature / humidity chambers. The Tenney TC Series Cycling Test Chambers offer design features for optimal performance such as a high volume horizontal-down air circulation system with an electric heating system and a mechanical refrigeration system. If the humidity option is selected, a vapor injection type humidification system is used to condition the product. A wide range of options can be added to enhance the equipment. Since 1932, Tenney engineering continues to incorporate the latest technologies in heating, cooling, and humidification to meet the most stringent demands in the industry.

Benefits

  • Robust design delivers consistent, reliable, repeatable results that lead to higher productivity
  • Constructed for long life and thermal integrity

Features

  • Air cooled refrigeration
  • Solid state humidity sensor when humidity option is purchased
  • Platinum RTD temperature sensor
  • Heavy-duty leveling casters
  • Nichrome wire air heater
  • Solid-state pressure switches
  • Backup safety thermal cutoff
  • Chamber vent port

Pricing Information

  • List Price New: $33,146.00
    •
  • Purchase This Unit For: $25,500.00
    •
  • Rent This Unit For: $ 2,200.00 / month
    •

Specifications

  • Temperature Range: -73°C to 200°C
  • Temperature Fluctuation: +/- 1.0 Deg C measured at control sensor
  • Humidity Fluctuation: +/- 5% RH after stabilization
  • Humidity Range: 20% to 95%, RH over the temperature range of 20°C to
    85°C, limited by a 5°C dew point
  • Interior Dimensions W X D X H (inches): 24 x 27.5 x 28
  • Exterior Dimensions W X D X H (inches): 34 x 60 x 77.75
  • Control Panel: UL508A
  • Electrical Power: 230V/240V 1 Phase 60 Hz
  • Amp Draw: 45
  • Amp Fuse: 60
  • Weight: 1414
  • FG# R250212

Control System

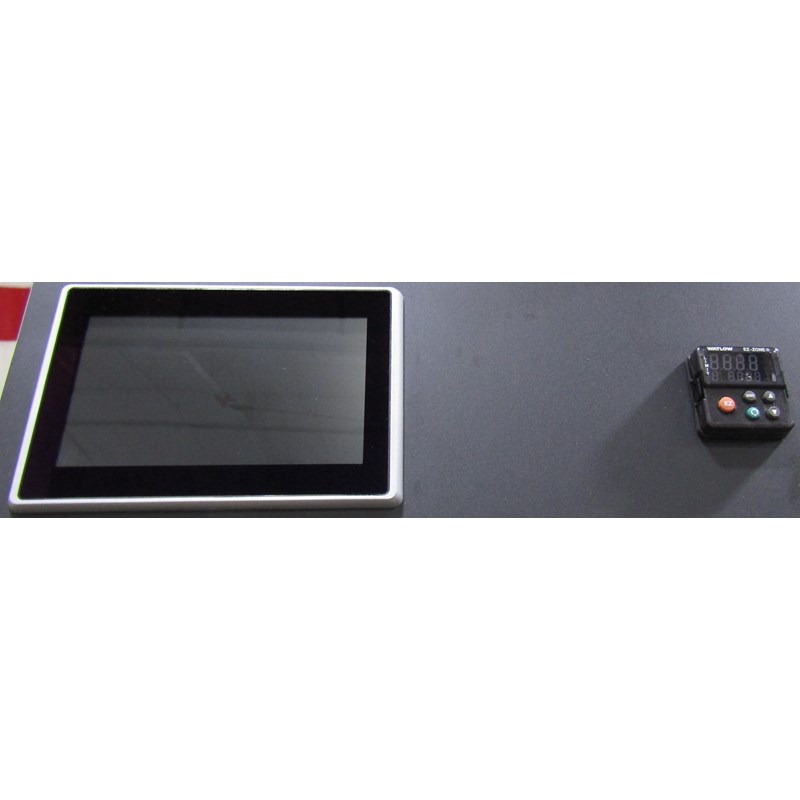

Smart 1.2 Controller 7 Inch Screen

Smart 1.2 Controller 7 Inch Screen

The conditioning system is supplied with the Smart 1.2 touch screen control system which provides total programming capabilities. The HMI controller will be embedded within the workspace door. The control panel at the rear of the chamber will be a UL508A Certified control panel.

The main features of the Windows CE 7.0 Pro based PLC Smart 1.2 are the WSVGA 1024 X 600 high resolution graphical 7-inch touch screen, Smart 1.2 graphical user interface, 800 MHz Cortex A9 central processing unit, 4 GB (SD Card) flash storage, capable of storing up to 100 profiles with 100 steps each. Test Data retrieval and profile data transfer/sharing is accomplished through a local USB flash drive. Individual PID control loops allow for precise process control. A 100-ohm platinum RTD is used for temperature measurement and a dry capacitance type sensor is used for humidity measurement.

Features as follows:

  • Real-time and historical color graph displays for temperature and humidity as well as set point values
  • System can run in Single set point or Programmed modes
  • Alarm, Program, and Datalog files can be easily transferred to and from controller via USB.
  • Built-in TCP/IP networking via Ethernet 10/100 communication port
  • Ethernet and RS485 communications are standard. RS232, & IEEE GPIB are all available as options.
  • Built-in peripheral support expansion using the USB, providing an effective and flexible interface, for use with USB Keyboards, mouse and barcode scanners
  • Analog signal re-transmit out to peripheral devices such as optional chart recorders
  • Remote access via Smartphone, IPad, etc. with internet connection and VNC phone application
  • 16 million display colors with a contrast ratio of 850:1
  • 512MB DRAM and 1GB of Flash Memory

Options

Included Options:

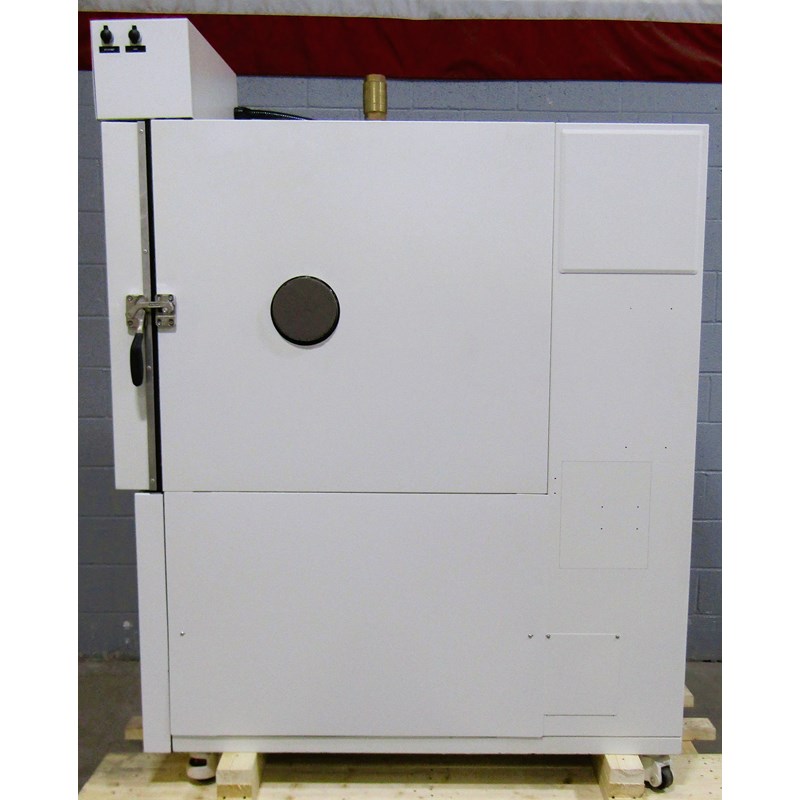

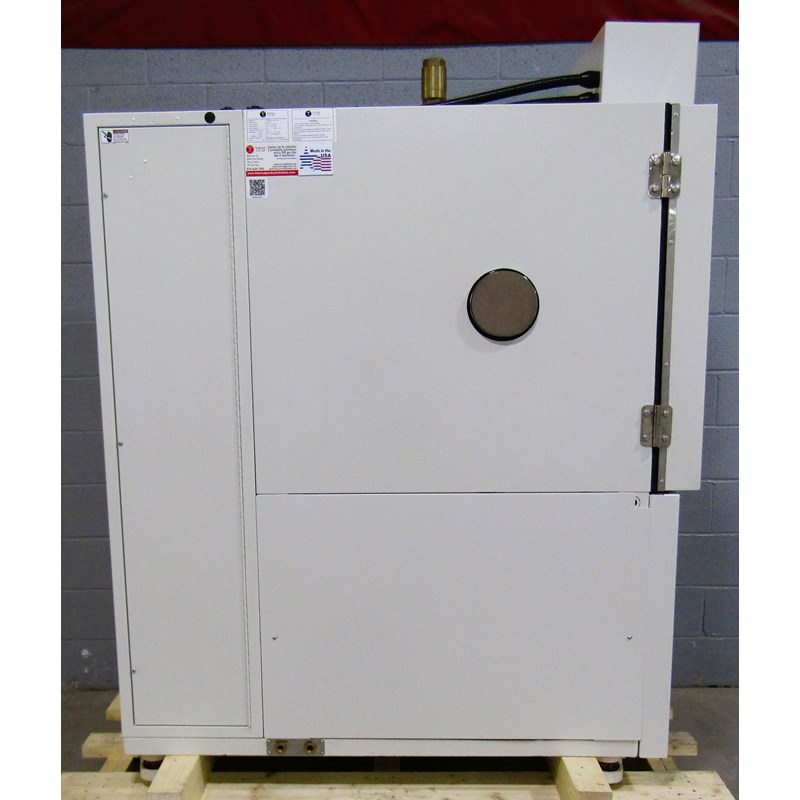

  • (2) 6" ports with plug centered in each sidewall
  • Four leveling casters
  • Data Logging & Chart Trending
  • TempGard OTP

Available Options:

  • Stainless Steel Shelves
  • Dry Air Purge
  • LN2 Boost Cooling
  • Maintenance Kit
  • Optional Extended Range: -73°C to 200°C.
