Tenney TC64S Environmental Test Chamber Serial#: 119721

***Unique Opportunity ***

Fully Refurbished 64 cubic foot Test Chamber available for Immediate Sale.  Can Ship in 3-5 Days!

The TC Series of environmental cycling reach-in test chambers include both temperature-only chambers and temperature / humidity chambers. The Tenney TC Series Cycling Test Chambers offer design features for optimal performance such as a high volume horizontal-down air circulation system with an electric heating system and a mechanical refrigeration system. If the humidity option is selected, a vapor injection type humidification system is used to condition the product. A wide range of options can be added to enhance the equipment. Since 1932, Tenney engineering continues to incorporate the latest technologies in heating, cooling, and humidification to meet the most stringent demands in the industry.

Benefits

  • Robust design delivers consistent, reliable, repeatable results that lead to higher productivity
  • Constructed for long life and thermal integrity

Features

  • Watlow F4T controller
  • Air cooled refrigeration
  • Platinum RTD temperature sensor
  • Heavy-duty leveling casters
  • Nichrome wire air heater
  • Solid-state pressure switches
  • Backup safety thermal cutoff
  • Chamber vent port

Pricing Information

  • List Price New: $ 40,197.00
  • Purchase This Unit For: $ 32,500.00

Specifications

  • Condenser Type: Air
  • Air Circulation: Vertical
  • Computer Interface: Ethernet Communications Standard with Controller
  • Door Style: Standard
  • Water Supply: Water Regulator Assembly
  • Temperature Range: -35C to 200C
  • Temperature Fluctuation: +/- 1.0 Deg C measured at control sensor
  • Interior Dimensions: WXDXH (inches) 48 x 48 x 48
  • Exterior Dimensions: WXDXH (inches) 67.5 x 83 x 90
  • Electrical Power: 230V/240V 1 Phase 60Hz
  • Amp Draw: 32
  • Fuse: 40
  • FG# R250723

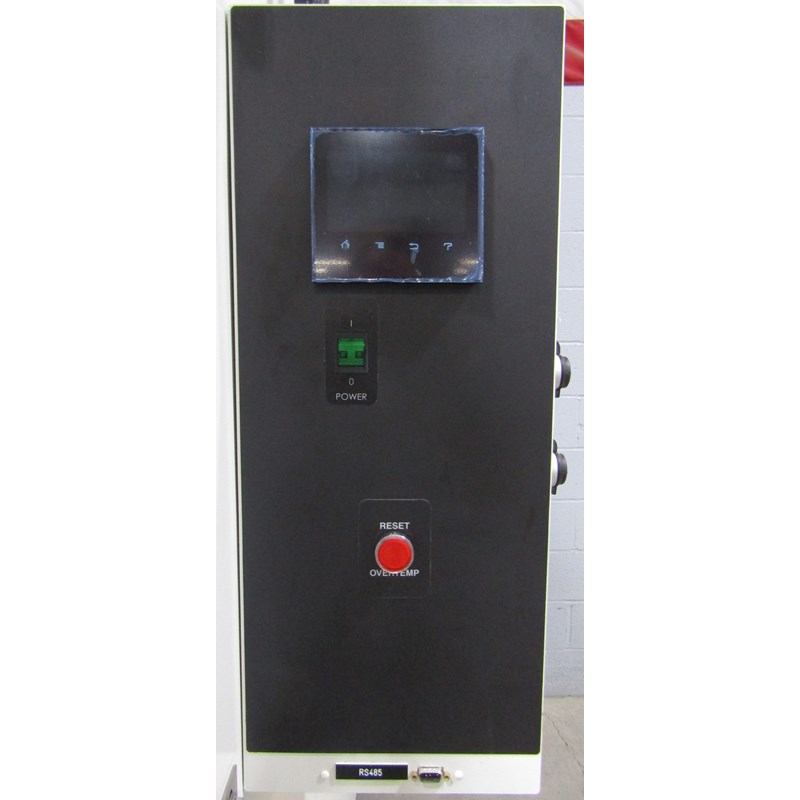

Control System

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.

Features

  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart
  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment

Options

Included

  • (2) 3" ports - one in each sidewall
  • (1) Shelf
  • Casters (2 Locking)
  • Data Logging & Chart Trending
  • Limited Warranty

Available

  • Additional Shelves
  • Cooling Boost - CO2 or LN2
  • Dry Air Purge
  • Dehumid Dry Air - GN2 Purge system
  • Boost Heat
  • Reverse Osmosis System
  • TempGard
  • NIST Certificate of Calibration
  • Maintenance kit
