TPS

Temperature Range: -68C to 180C
Available for Rent to Own!

Product Page

Request a Quote

Tenney TC20RC2.0-A-F4T-C Temperature & Humidity Chamber Serial#: 168452-01, -02

TC20RC Back in Stock!  Can ship in 3-5 Days.  Available for Monthly Rental.  Ask about our Rent to Own Option!

The TC Series of environmental cycling reach-in test chambers include both temperature-only chambers and temperature / humidity chambers. The Tenney TC Series Cycling Test Chambers offer design features for optimal performance such as a high volume horizontal-down air circulation system with an electric heating system and a mechanical refrigeration system. If the humidity option is selected, a vapor injection type humidification system is used to condition the product. A wide range of options can be added to enhance the equipment. Since 1932, Tenney engineering continues to incorporate the latest technologies in heating, cooling, and humidification to meet the most stringent demands in the industry.

Benefits

  • Design features for optimal performance such as high volume horizontal down air circulation
  • Electric heating system and mechanical refrigeration system
  • Vapor injection type humidification system
  • Wide range of options available

Features

  • Four leveling casters
  • Two 3-inch access ports each centered in sidewall of the chamber
  • Window in Door and Interior Light
  • Computer Interface: Ethernet
  • Unit has a minimum standard shelf spacing of 2". This particular chamber can accommodate a maximum of 6 shelves.

Pricing Information

  • List Price New: N/A
    •
  • Purchase This Unit For: N/A
    •
  • Rent This Unit For: $2,025.00 / month
    •

Specifications

  • Temperature Range: -68C to 180C
  • Humidity Range: 20% to 95% RH over the temperature range of 20C to 85C limited by a 3C dew-point
  • Condenser Type: Air
  • Interior Dimensions: WXDXH (inches) 30 x 32 x 36
  • Exterior Dimensions: WXDXH (inches) 49 x 64 x 77
  • Crating Dimensions: WXDXH (Inches) 54 x 70 x 83
  • Electrical Power: 230V/240V 1 Phase 60Hz
  • Amp Draw: 45
  • Amp Fuse: 60
  • Weight 1692#
  • FG# R753926-02

Control System

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.

Features

  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart
  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment

Options

Included

  • Ethernet Communications standard with the Watlow F4T controller
  • Set of Four leveling casters
  • Heated window in door w/internal light
  • Data Logging & Chart Trending Capabilities
  • Water Regulator Assembly
  • UL508A Control Panel

Available

  • Shelves
  • Cooling Boost - CO2 or LN2
  • Dry Air Purge
  • Dehumid Dry Air - GN2 Purge system
  • Boost Heat
  • Five Gallon Reservoir w/recycling system
  • DI Cartridge System
  • Reverse Osmosis System
  • Pump to drain
  • NIST Certificate of Calibration
  • A2LA ISO 17025 Calibration
  • Maintenance kit

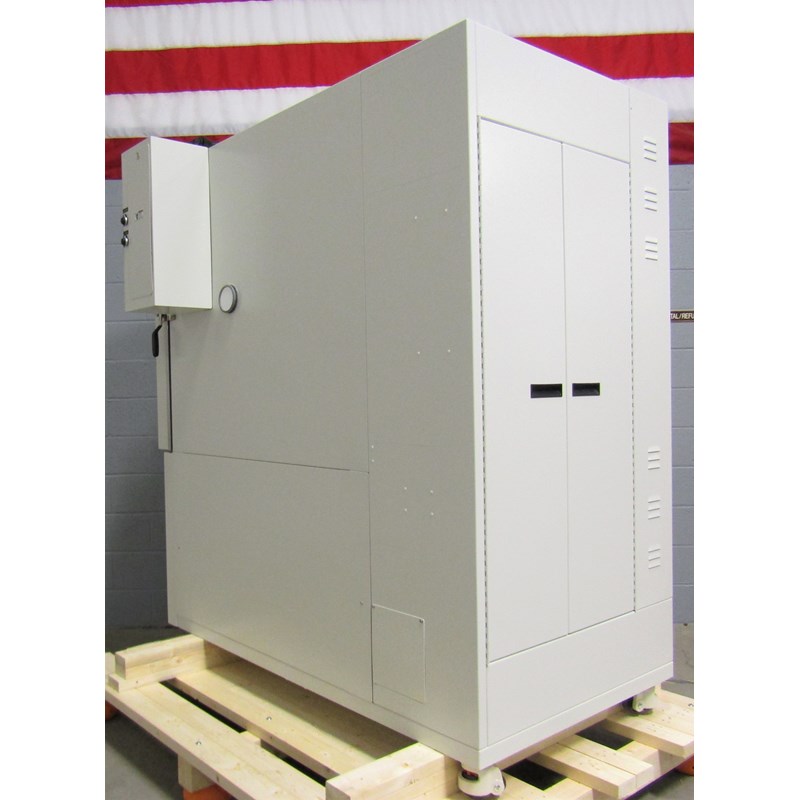

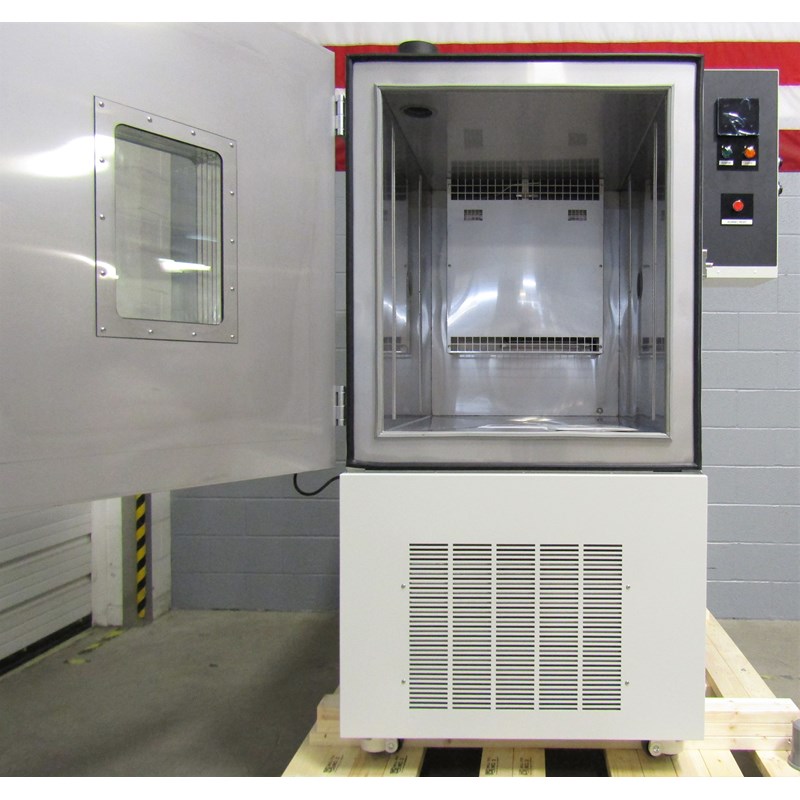

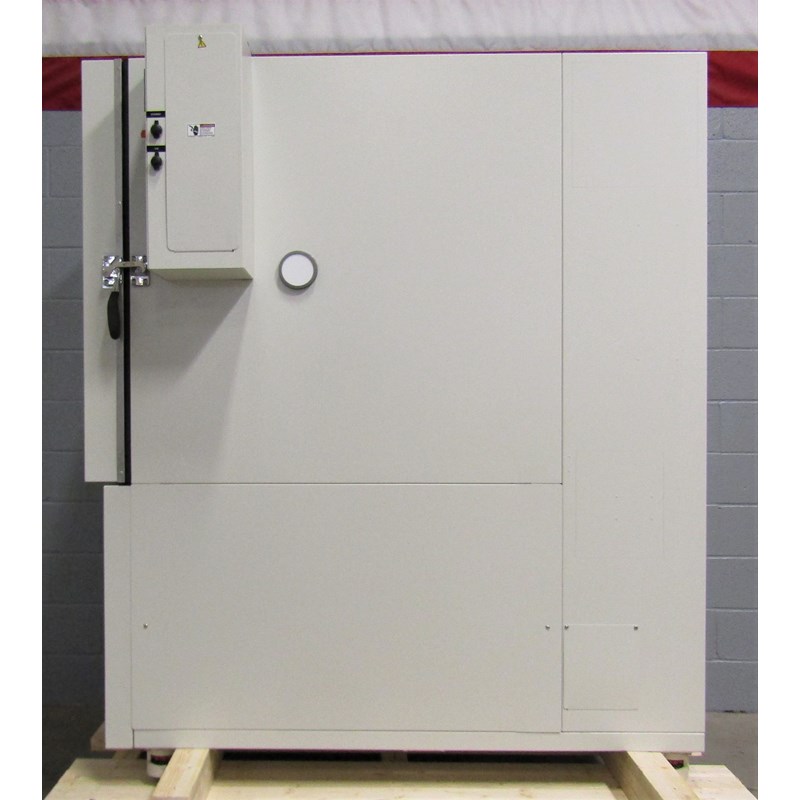

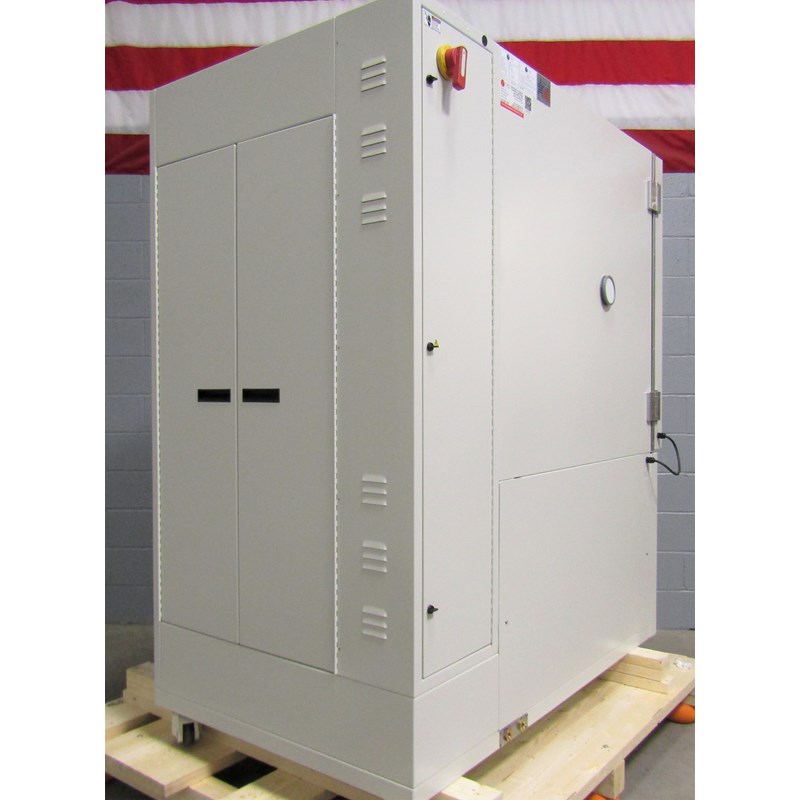

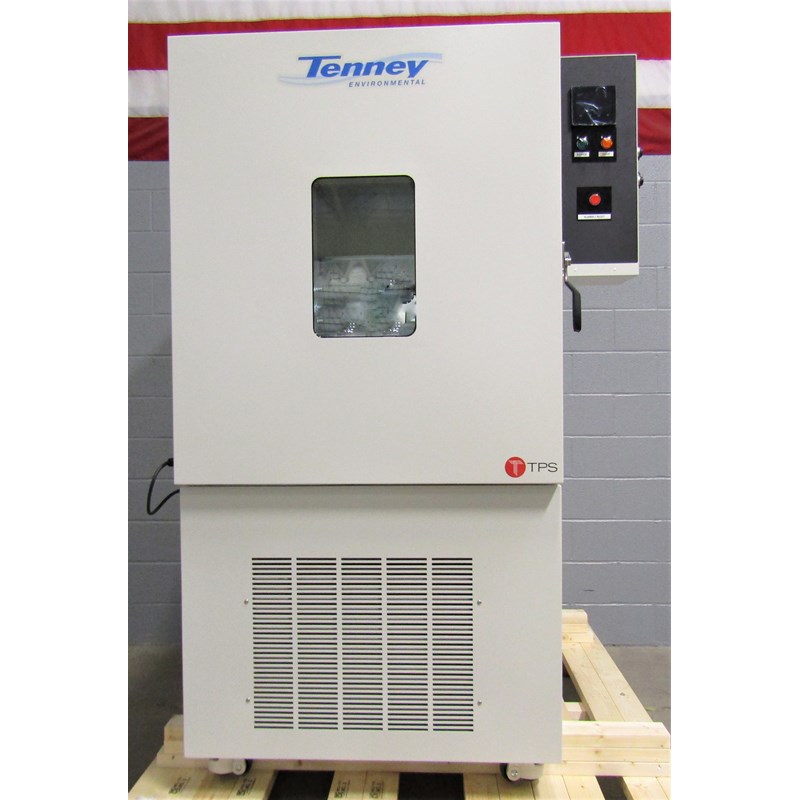

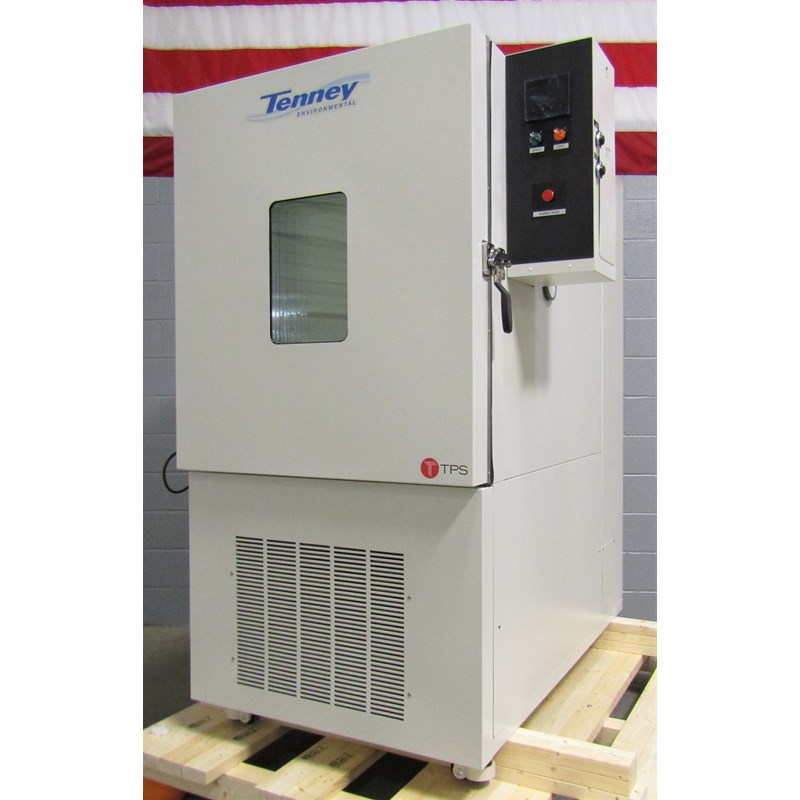

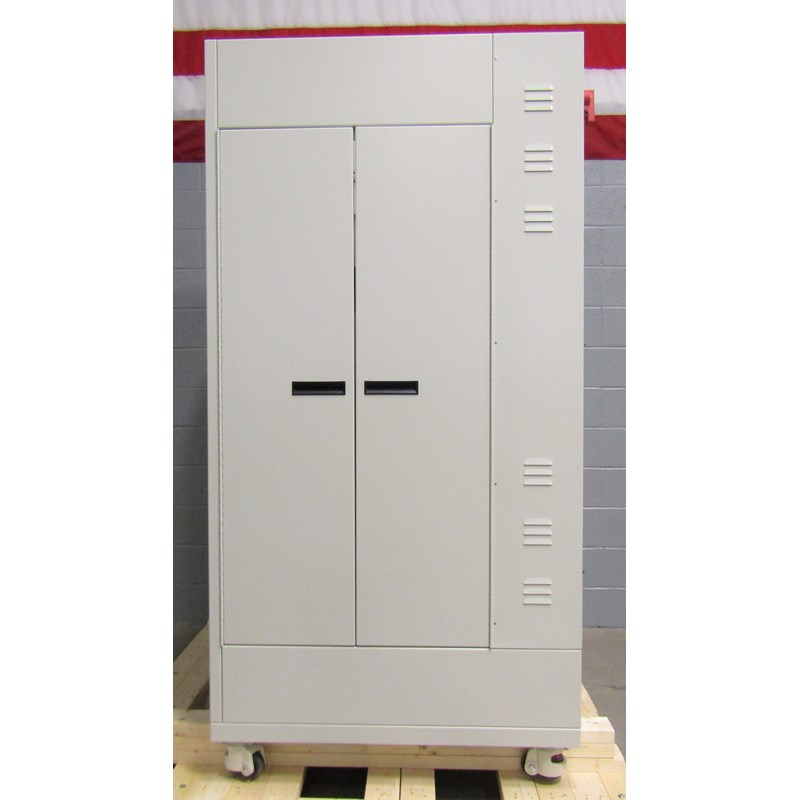

Additional Images
